MR30-F MR30-M MR30 Connectors Motor 3 Pin Pulg 15A RC Lipo Brttey Connectors

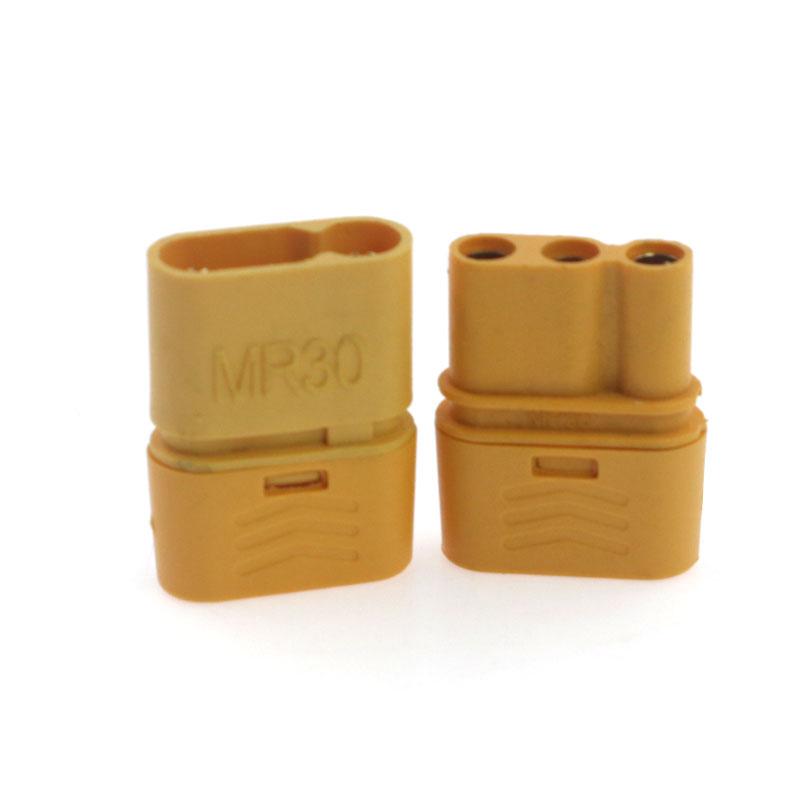

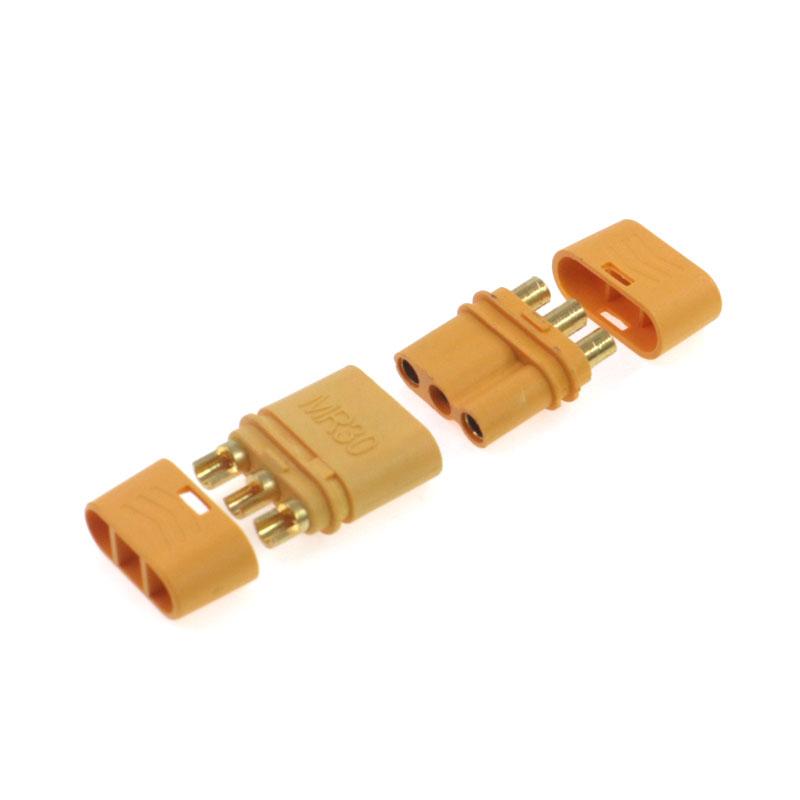

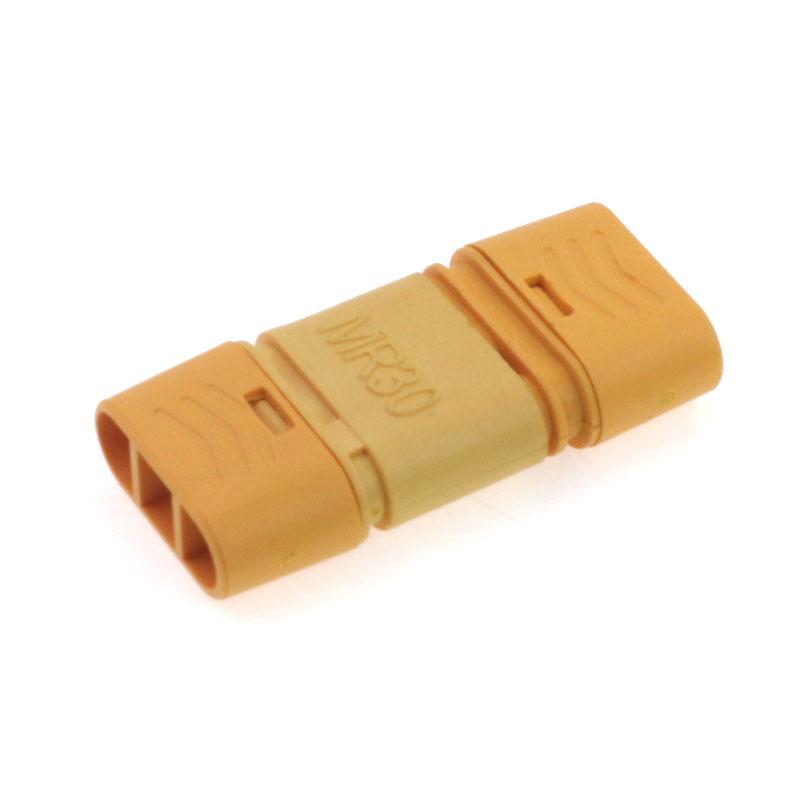

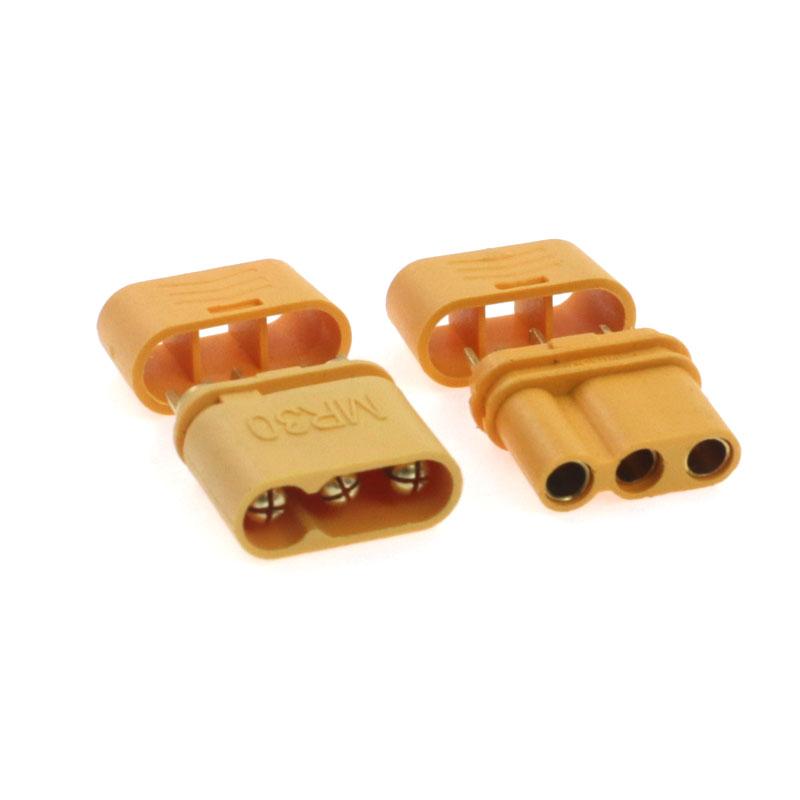

MR30 battery connector is recommended for motor connector, 3-pin structure, gold-plated copper contacts, complete set consists of one male and one female and two protective covers

Brand:
OLINK
Item no.:
MR30
Payment:
Wire transfer, Paypal, Western Union, Alipay
Product origin:
China
Color:
Yellow
Goods stock:
50000
Shipping port:
Xiamen
Lead Time:
7

Inquiry now

product introduction

MR30-F MR30-M MR30 Connectors Motor 3 Pin Pulg 15A RC Lipo Brttey Connectors

Description For MR30 Power Connector

Male and female design, female end connector battery (power supply), male end connected to load;
The contacts are gold-plated for better conductivity;
With guiding structure, it will not cause wrong connection direction；
Solder cup with lid, will not expose the solder joint to the outside；
Small size, compact structure, tight connection after plugging, not easy to loose

Specification
ITEM No	MR30 Connector	CR	0.7MΩ
Color	Yellow	RV	DC 500V
Metal Material	Brass Gold Plated	RC	15A
Plastic Material	PA	MC	30A
FR level	UL94 V0	Plug times	1000 times
Recommend USD	MOTOR	Cable Spec	16AWG
Pin	3	Temperature1	-20°C to 120°C

Application

MR30 Motor Plug are mainly used in UAVs, remote-controlled aircraft, remote-controlled cars, remote-controlled boats, balance vehicles, and power tools, and other occasions and fields that require larger current connections.Connectors can include custom wiring harnesses.

More Similar Products


XT30 Connectors	XT30U Connectors	XT60H Connectors	XT90 Connectors	XT90H Connectors

*For more information, please contact us by email or through any contact information on the webpage.
