Soldering type dc battery connector xt90 series

Equivalent to amass connectors, XT90 conenctor perfect for applications up to 90A constant. It can be sold in pairs(female + male) or a single side(female or male).



  • Brand:

    OLINK
  • Item no.:

    XT90
  • Payment:

    Wire transfer, PayPal, Western Union, Alipay
  • Product origin:

    China
  • Color:

    Yellow
  • Goods stock:

    50000
  • Shipping port:

    Xiamen, Ningbo
  • Lead Time:

    7


 Soldering type dc battery connector xt90 series




features for XT90 battery connector

  • Male and female design, female end connector battery (power supply), male end connected to load;
  • The contacts are gold-plated for better conductivity;
  • The opening of the tail welding cup is reversed, making welding more convenient;
  • The shell is marked with obvious "+" and "-" symbols, and the interface is designed in a special shape to prevent the wrong interface insertion;
  • After the XT90 connector is connected, it fits tightly, and it is not easy to loosen during the working process;

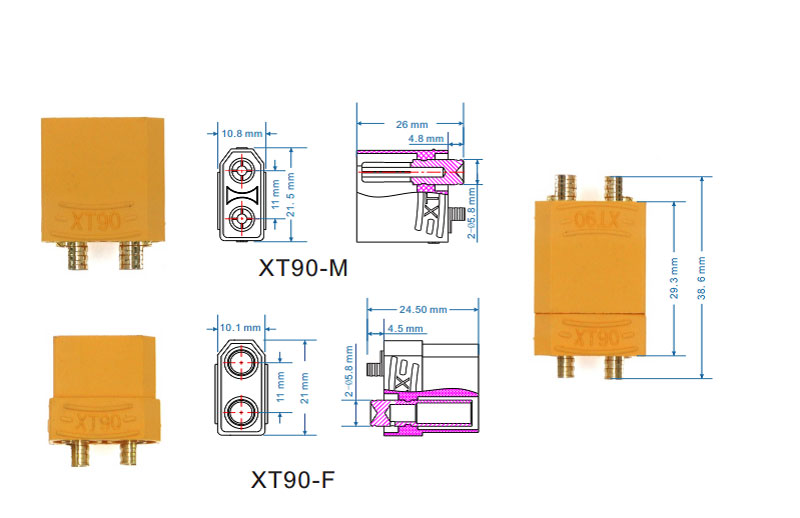

Specification of XT90 series connector

Item NO.:

 XT90 Connector CR:   0.30 MΩ
Color:   Yellow RV:   DC 500 V
Metal Material:   Brass Gold Plated RC:   40 A
Plastic Material:   PA66 MC:   90 A
FR level:   UL94 V0 Plug times:   1000 times
Recommend used:   Battery/Controller/Charger Cable Spec:   10AWG
Product description:   High current connector Temperature:   -20°C to 120°C


Application of soldering XT90 connector

XT90 connectors are mainly used in UAVs, remote-controlled aircraft, remote-controlled cars, remote-controlled boats, balance vehicles, and power tools, and other occasions and fields that require larger current connections. Connectors can provide customized wiring harness services.

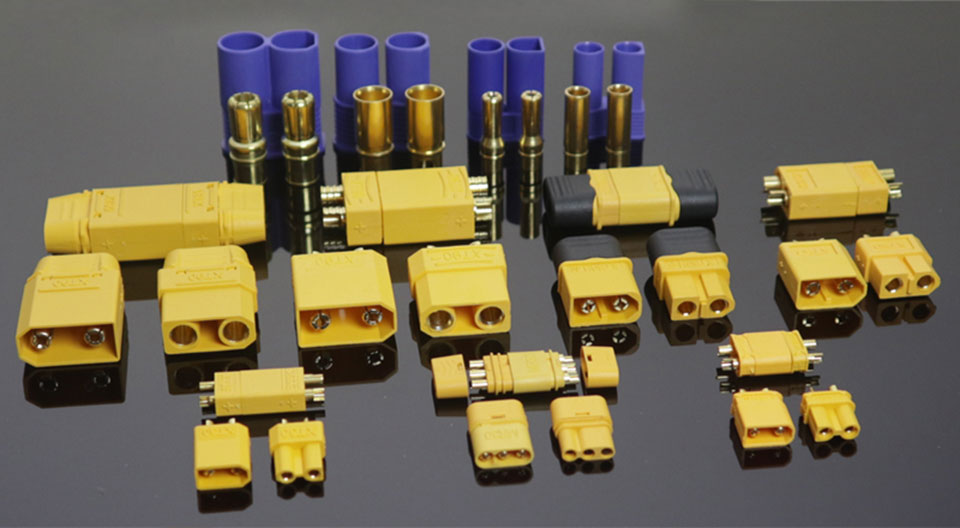

More high current connector productsSimilar products can choose XT30, XT60, XT60-H, XT90, etc., if you need more information, please contact us
