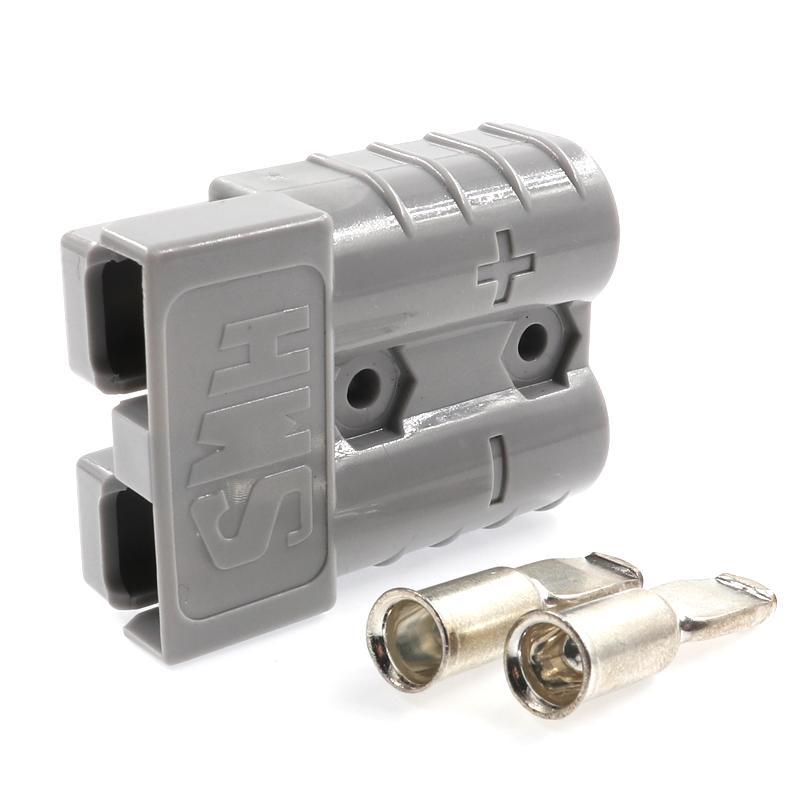

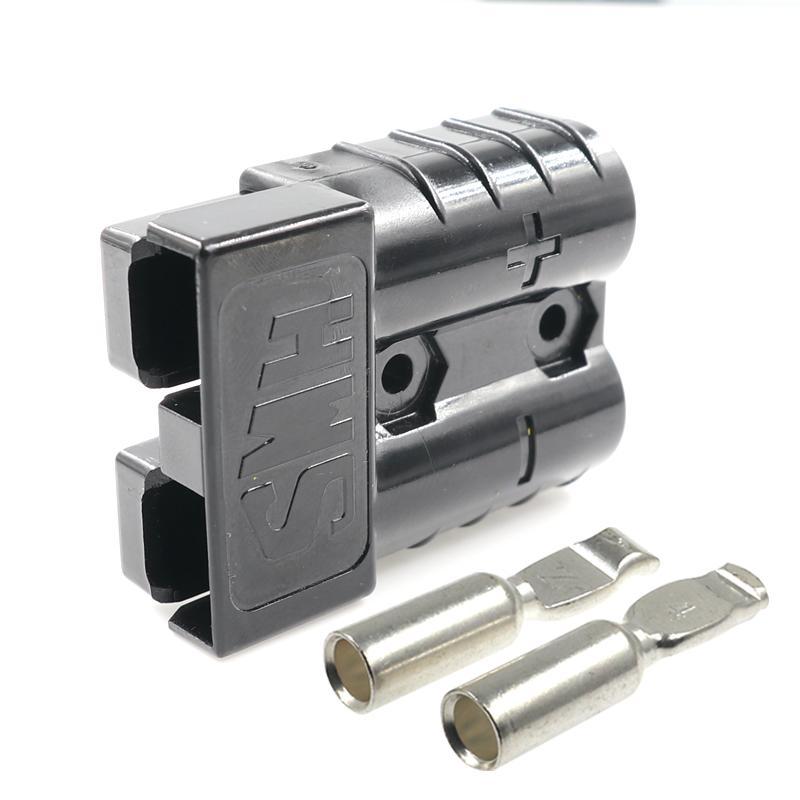

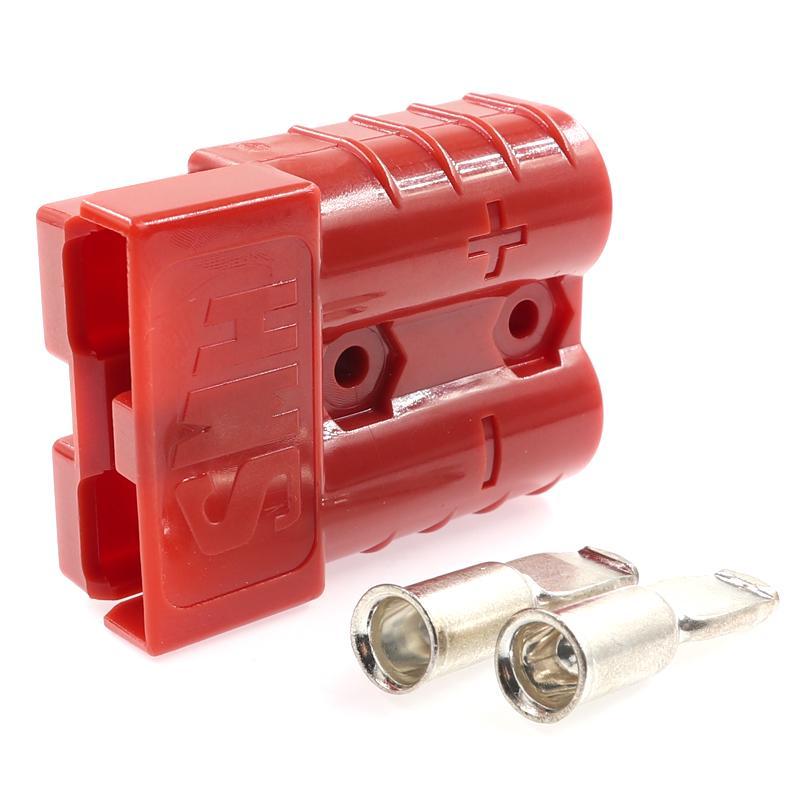

High current 2 pin male and female battery connector smh50

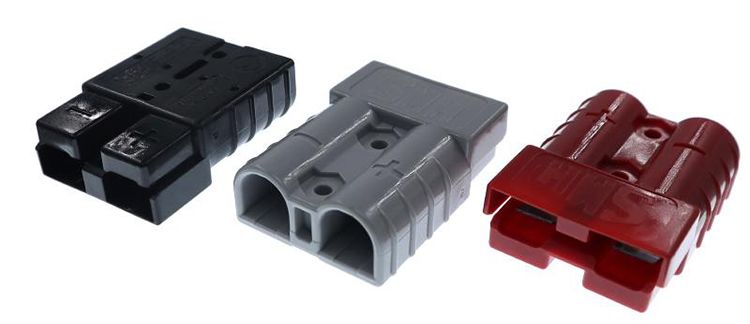

This type of battery connector is physically and electrically hermaphrodite. The battery connector can provide up to 350 amperes of rated current. The most commonly used sizes are those with a rated current of 50/120/172/350. The size of the plastic shell is the same, but the metal contacts are different, and the shell color is optional.

  • Brand:

    OLINK
  • Item no.:

    SH50
  • Payment:

    Wire transfer, PayPal, Western Union, Alipay
  • Product origin:

    China
  • Color:

    RD, BU, BK, GN, GY, YE, OG, WH
  • Goods stock:

    50000
  • Shipping port:

    Xiamen, Ningbo
  • Lead Time:

    7

High current 2 pin male and female battery connector sb50

Features of High current connector

  • There are multiple colors, each color has a different interface;
  • There is no distinction between male and female, SB50 connectors of the same color can be mutually matched, and different colors cannot be connected to each other to avoid wrong insertion;
  • Copper-plated silver terminal block, with card slot design, better conductivity;
  • Two-pole design, can be connected to the "+" and "-" poles at the same time.

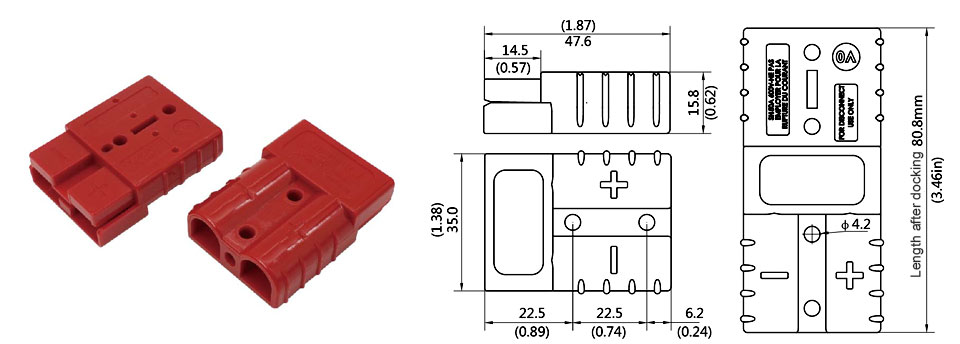

Drawing for SH50 Connectors

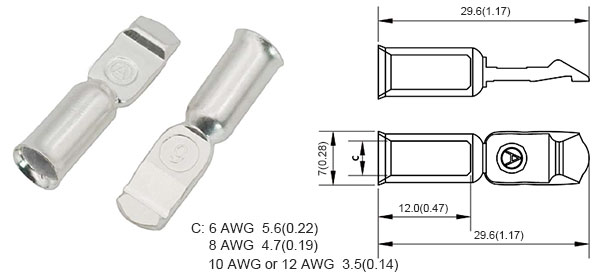

Note:A set of SH50 Connector

only contains a shell and two crimp terminal


Parameter of High current connector

Product Name
  High Current 2 Pin Male And Female Battery Connector SB50
Rated Current
  50A Rated Voltage
  600V
Wire Size
  6~12AWG Contact Material
  Copper Plate With Silver
Insulation Material
  PC Flammability
  UL94 V-0
Inner Shrapnel
  55N Temperature Range
  -20~105
Shell Optional Color
  Red,Blue,Black,White,Gray,Yellow,Green,Orange

Auxiliary Parts For SH50 Connectors

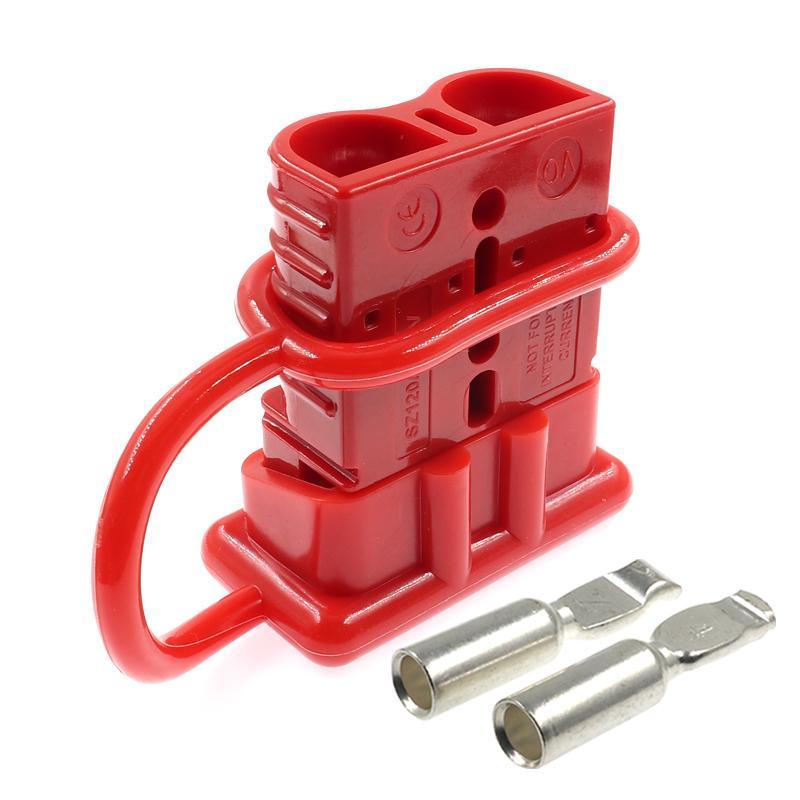

  Hold Hands (Available colors: Red, Gray)

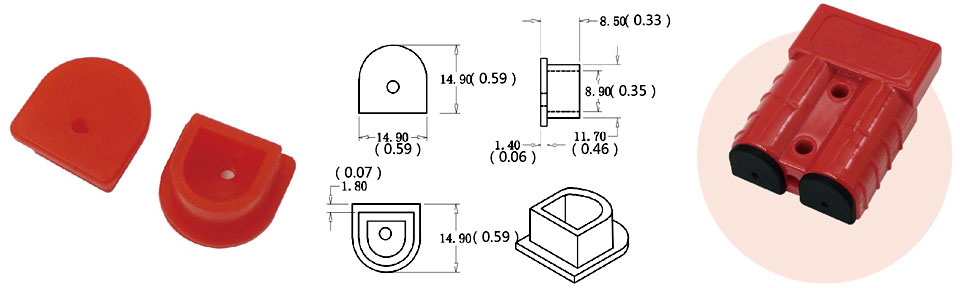

  Dustproof Cover (Available colors: Red, Black)

  Cablefix Plug  (Available colors: Red, Black)

Use occasion for SH50 Connectors

The SB50 connector is mainly used in the following industries:

  • Machinery industry: cutting machine, electric vehicle controller, etc.
  • Power supply: UPS uninterruptible power supply, voltage stabilizer, inverter, lithium battery module, etc.;
  • Electric vehicles, such as golf carts, indoor cleaning vehicles, electric tractors;

*For more information, please contact us by email or through any contact information on the webpage.
