High current power battery charger connector for forklift use

We are industrial battery charger manufacturers, there are different forklift battery connector types. The battery connector establishes a connection between the battery and the vehicle, only an absolutely reliable, high-quality, and durable connection device can ensure the reliable and low-loss use of electrical energy.

Brand:
OLINK
Item no.:
ANRE-80A
Payment:
Wire transfer, PayPal, Western Union, Alipay
Product origin:
China
Color:
Black
Goods stock:
50000
Shipping port:
Xiamen, Ningbo
Lead Time:
7

Inquiry now

product introduction

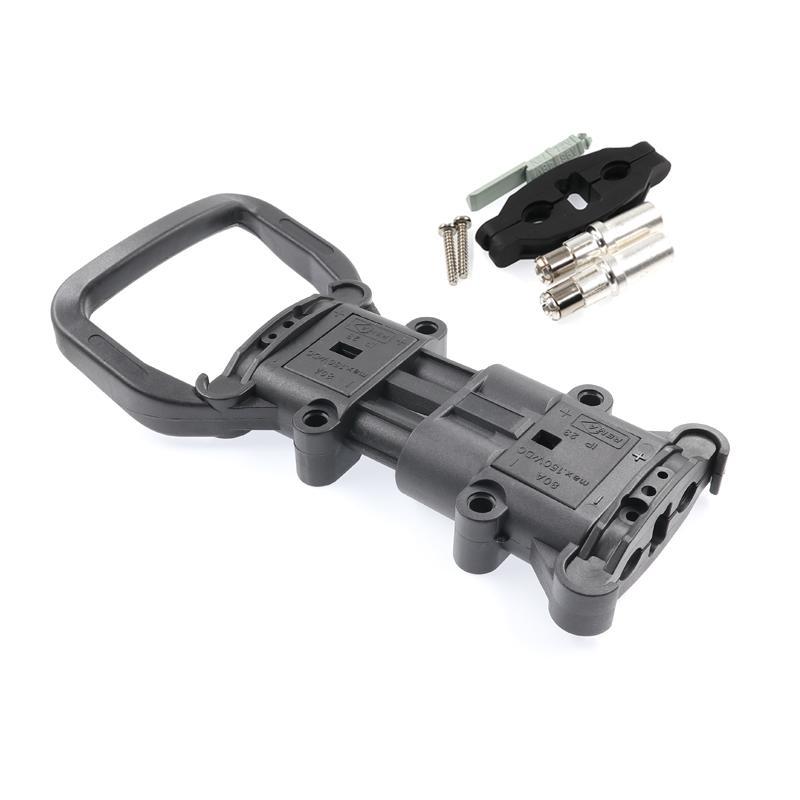

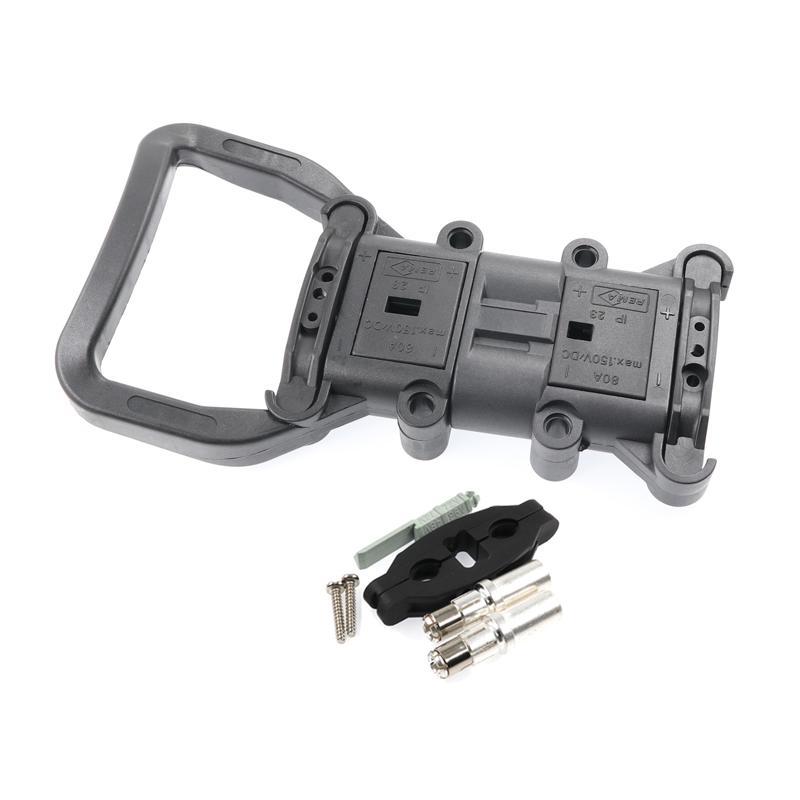

High current power battery charger connector for forklift use


DC 80A 150V Connectors (Male)	DC 80A 150V Connectors (Female)

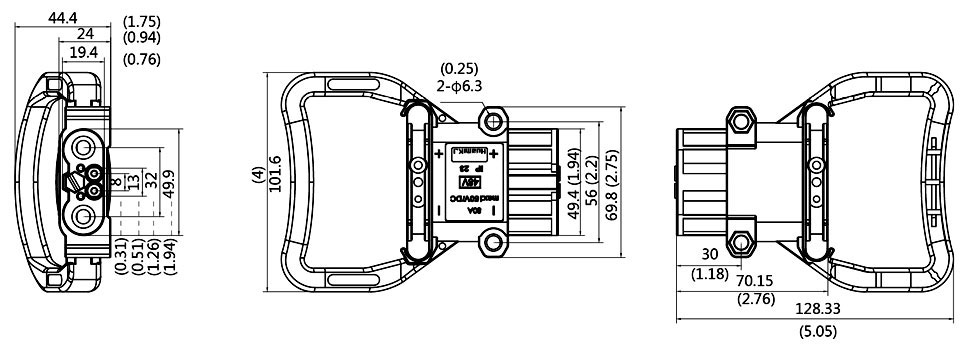

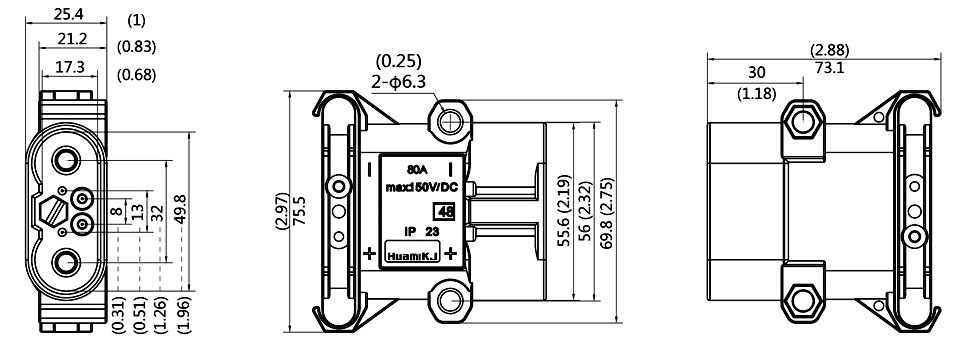

Drawing of DC 80A150V Connectors

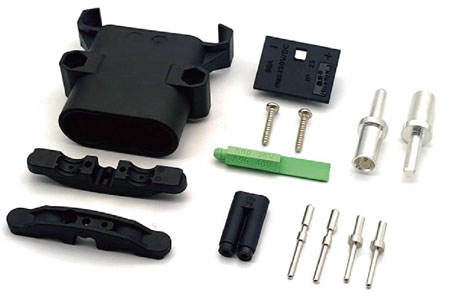

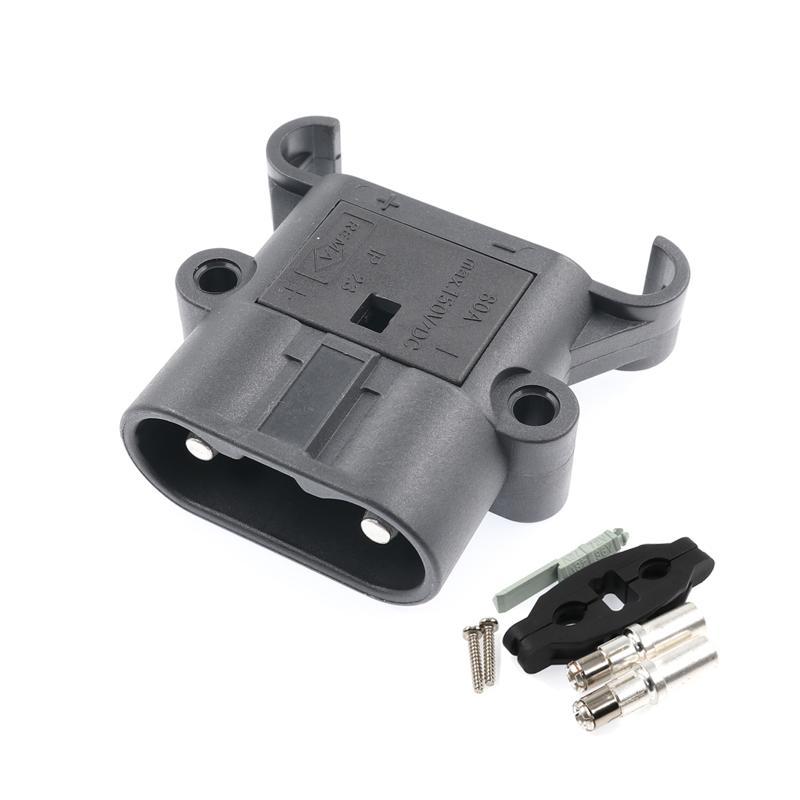

DC 80A 150V Connectors (Male)

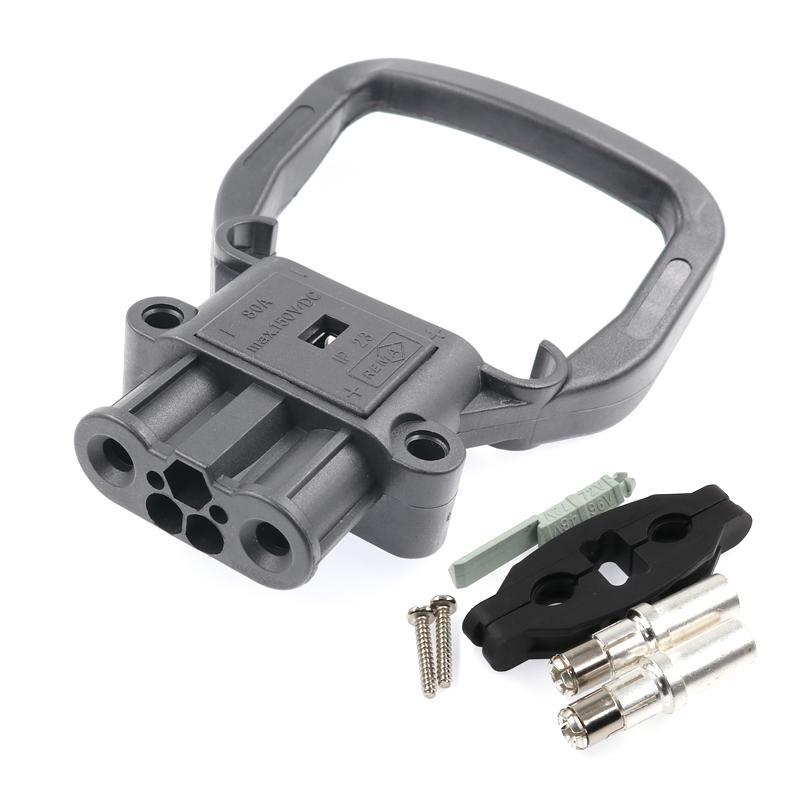

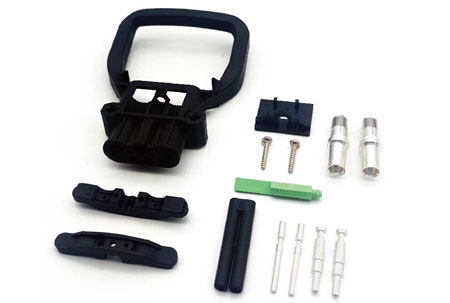

DC 80A 150V Connectors (Female)

Parameter For 80A150V Connectors

Part Number	Rated current	Rated voltage	Material of terminal	Color	Flammability	Wire
Housing	80A	150V	PA66	Grey/Black	UL94V-0	N/A
Chief Terminal	80A	150V	Copper with silver	Silvery	N/A	6AWG-4AWG
Upper Assist Terminal	15A	150V	Copper with silver	Silvery	N/A	18AWG-14AWG
Below Assist Termianl	15A	150V	Copper with silver	Silvery	N/A	18AWG-14AWG

Applications OF 80A150V Connectors

Power battery, radio power supply, forklift handling equipment, UPS uninterruptible power supply, inverter, electric cleaning equipment, power lithium batteries, energy storage power generation, photovoltaic solar energy, off-road vehicle winches, equipment, electric wheelchairs and other equipment with high current input or output.

*For more information, please contact us by email or through any contact information on the webpage.
