40A 2 pin power charger cable connector for battery

We provide different types of battery connectors, also connector accessories, including battery terminal covers, battery cables/wires, etc.


  • Brand:

    OLINK
  • Item no.:

    SH40
  • Payment:

    Wire transfer, PayPal, Western Union, Alipay
  • Product origin:

    China
  • Color:

    RD, BU, GY
  • Goods stock:

    50000
  • Shipping port:

    Xiamen, Ningbo
  • Lead Time:

    7

40A 2 pin power charger cable connector for battery

Features of battery cable connectors

  • Insulation flame-retardant shell: PC flame-retardant material, fire-proof grade UL94 V-0, to ensure the stability of use

  • Built-in shrapnel: thick high-precision manganese steel, full of flexibility

  • Silver-plated copper terminals: enhance electrical conductivity and ensure stable current transmission. The copper terminal is convenient for cold pressing and welding, and the wiring is faster and firmer

  • Buckle design, easy to install: the same color can be docked with each other, no male and female design; But different color can't be docked with each other.

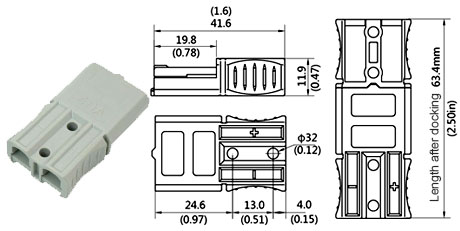

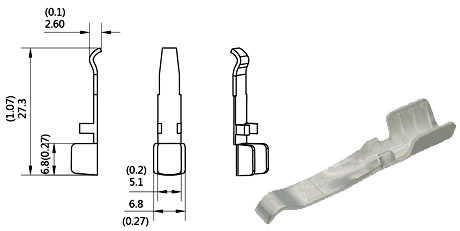

Drawing of SH40 Connectors

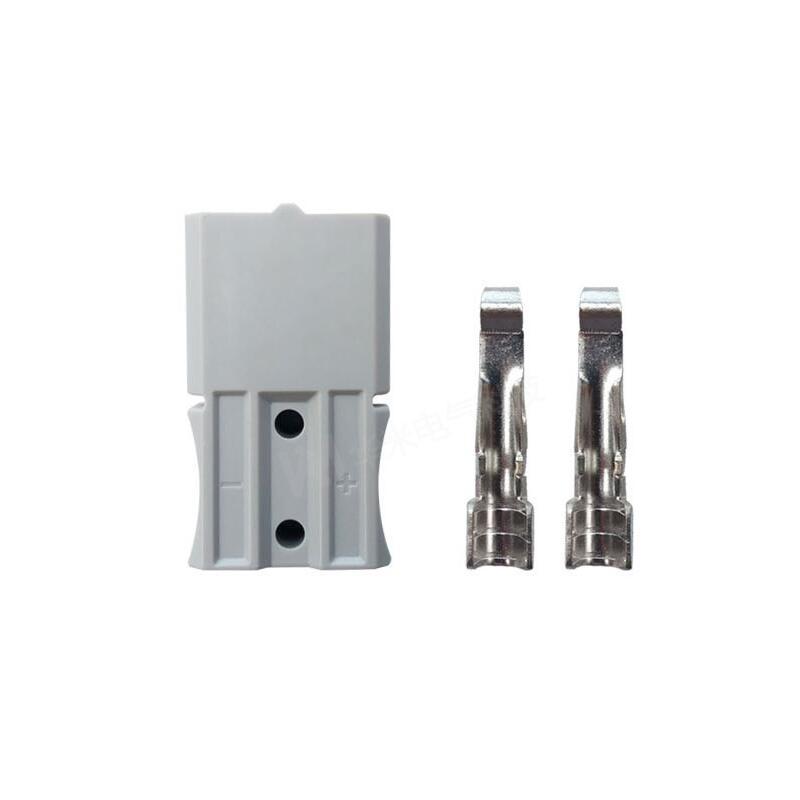

Note:A set of SH40 Connector, only contains a shell and two crimp terminal

Parameter of battery connectors

Product name
  40A 2 pin power charger cable connector for battery
Rated Current      40A Rated Voltage       600V
Wire Size      12/10 AWG Contact Material       Copper
Insulation Material      PC Flammability
   UL94 V-0
Inner shrapnel
  65Mn Temperature range       -20℃ ~105℃

Internal shrapnel

  Thickened high-precision manganese steel Color    Red, Blue, Grey


Auxiliary parts for SH40


Use occasion of SH40 Connectors

The sp120 battery connector is mainly used in AC/DC power inverters, electric bicycle power batteries, and industries and occasions that require single-max current connections.

*For more information, please contact us by email or through any contact information on the webpage.

FAQ

Q: Can different color be matched each other?

A: No. The same color can be docked, but different color can't be docked.

Q: Is it possible to custom wire harness?

A: Yes, wire harness can be customized. Provide details information (like wire gauge, wire length and how to deal with the end of wire) to our sales, they will give you a quotation.
