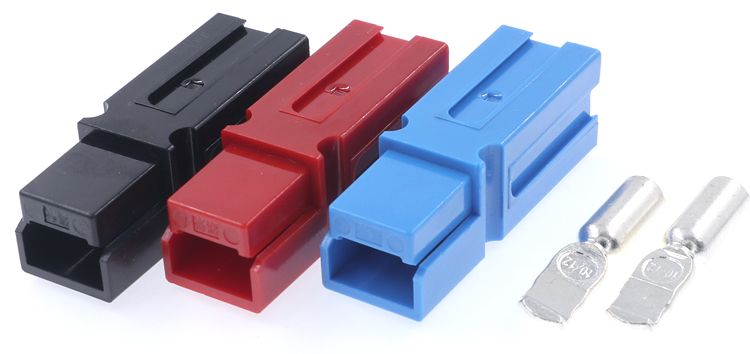

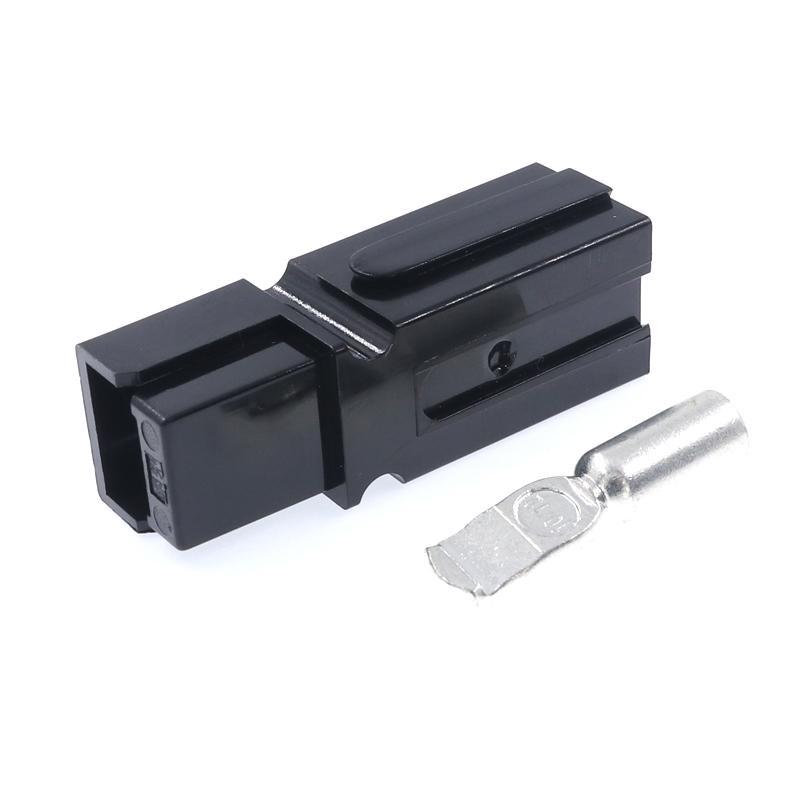

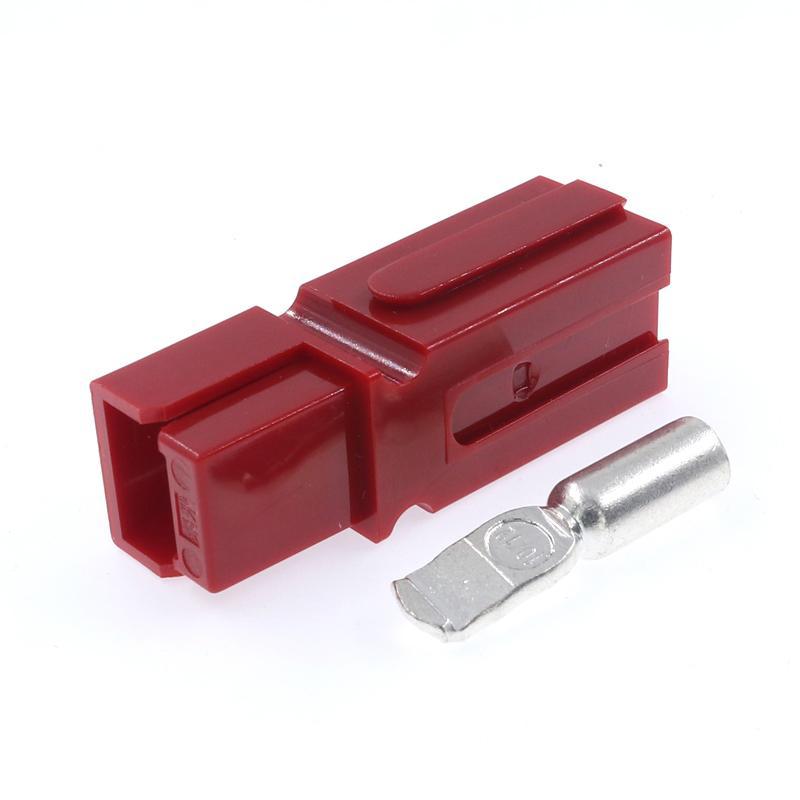

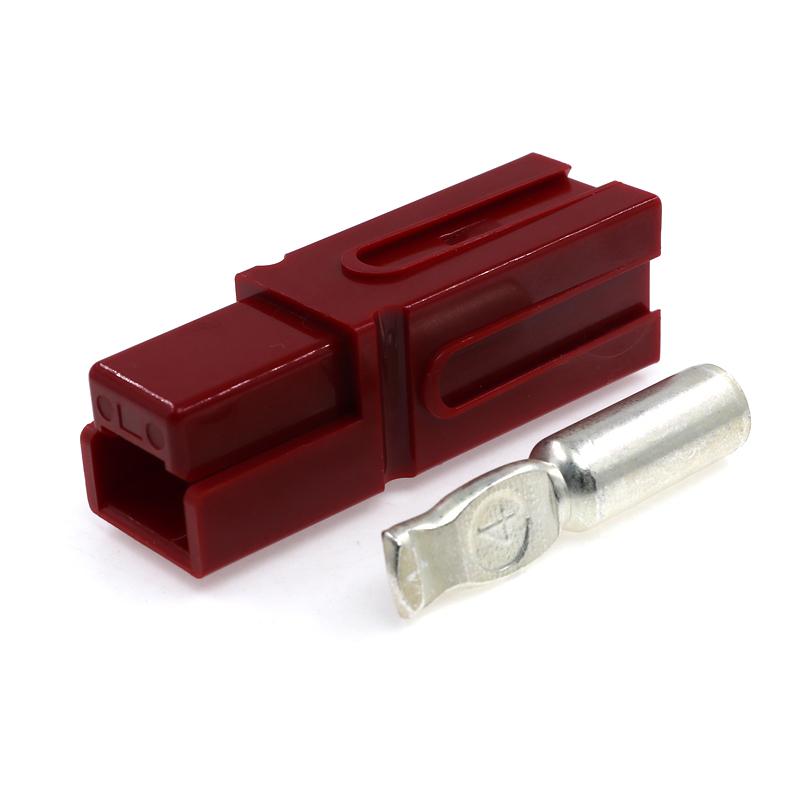

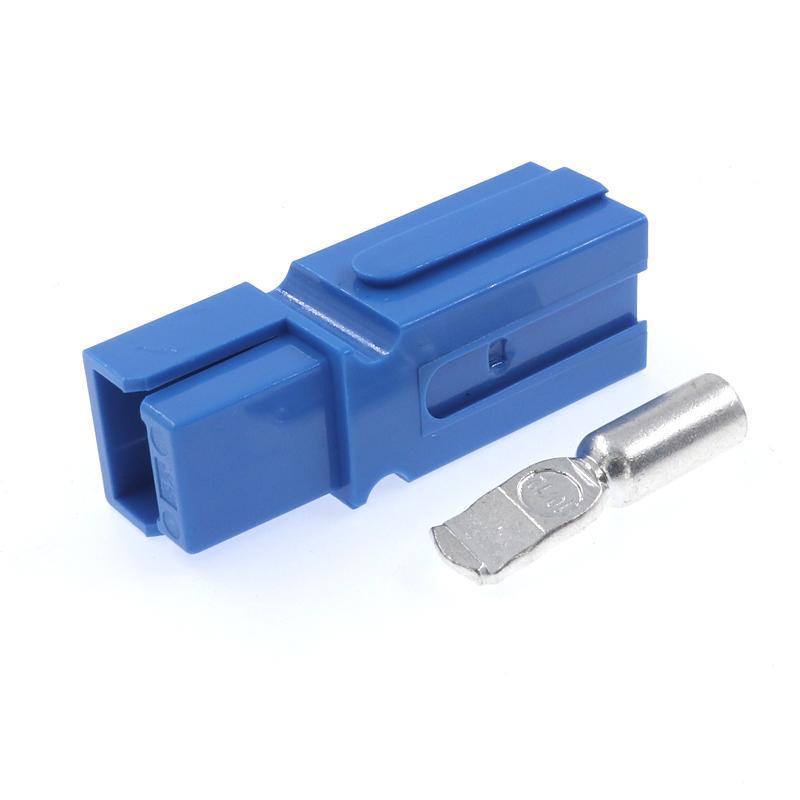

High current 120A motorcycle battery charger connector

We provide a wide variety of battery connectors, as well as other electrical connector accessories, including battery terminal covers, battery cables/wires, etc.


  • Brand:

    OLINK
  • Item no.:

    SP120
  • Payment:

    Wire transfer, PayPal, Western Union, Alipay
  • Product origin:

    China
  • Color:

    RD, BU, BK, GN, GY, YE, OG, WH
  • Goods stock:

    50000
  • Shipping port:

    Xiamen, Ningbo
  • Lead Time:

    7

High current 120A motorcycle battery charger connector

Features of battery cable connectors

  • Quick connection and disconnection, simple and safe

  • The plugs are interchangeable between the same models, and there is no male and female design, which is beneficial to reduce inventory

  • The terminals are silver-plated with red copper, high current working environment, reducing contact sparks

  • The shell color is multi-color optional, and different colors adopt independent interfaces, which is convenient for users to customize multi-level configuration


parameter of battery Connectors

Product name
  High current 120A motorcycle battery charger connector
Rated Current       120A Rated Voltage       600V
Wire Size       2/4/6AWG Contact Material       Copper
Insulation Material       PC Flammability
   UL94 V-0
Inner shrapnel
   65Mn Temperature range       -20℃ ~105℃
Shell optional color
   Red,Blue,Black,White,Gray,Yellow,Green,Orange

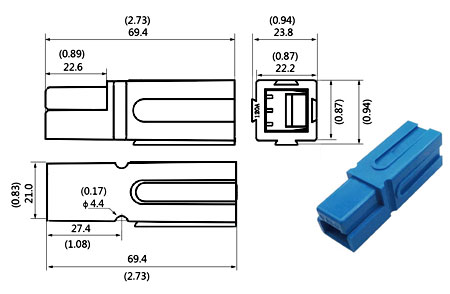

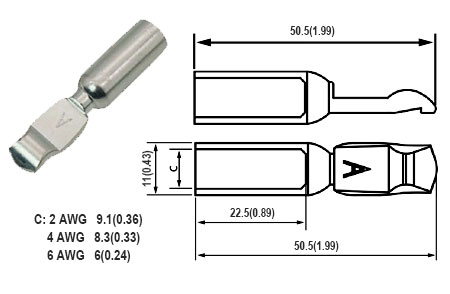

Drawing of SP120 Connectors



Note:A set of SP120 Connector, only contains a shell and a crimp terminal


Use occasion of SP120 Connectors

The SP120 battery connector is mainly used in AC/DC power inverters, electric bicycle power batteries, and industries and occasions that require single-max current connections.


FAQ

Q: Can provide the connector with cable?

A: Yes, we can also provide wiring service. Give us the wire gauge, length and how to deal with another side of the wire, we will provide you a quotation.

*For more information, please contact us by email or through any contact information on the webpage.
