12 awg power battery connector xt60 male female

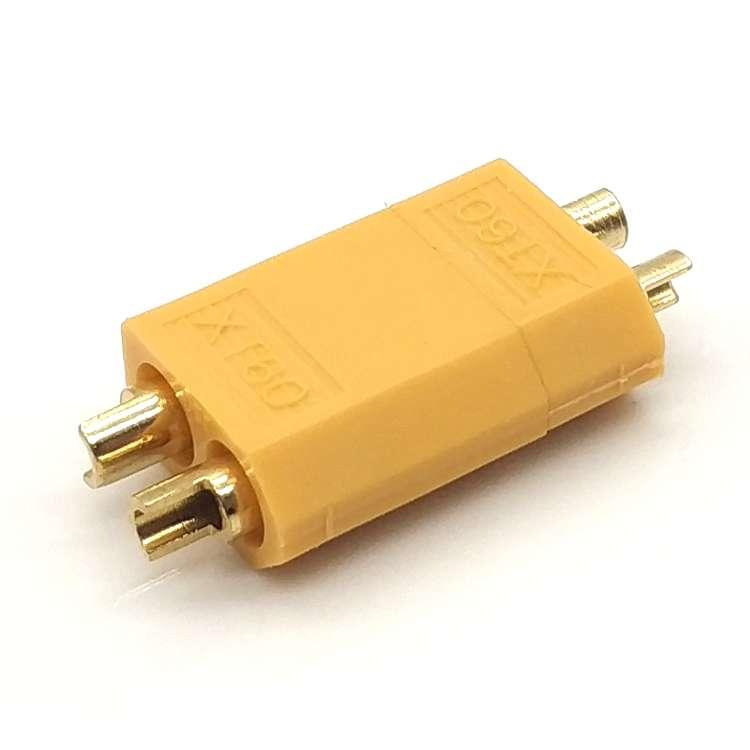

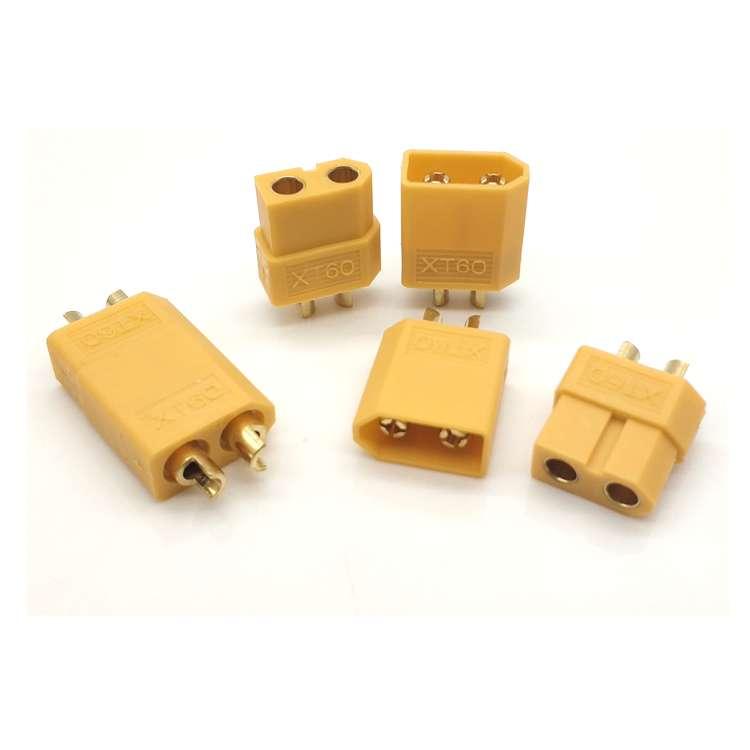

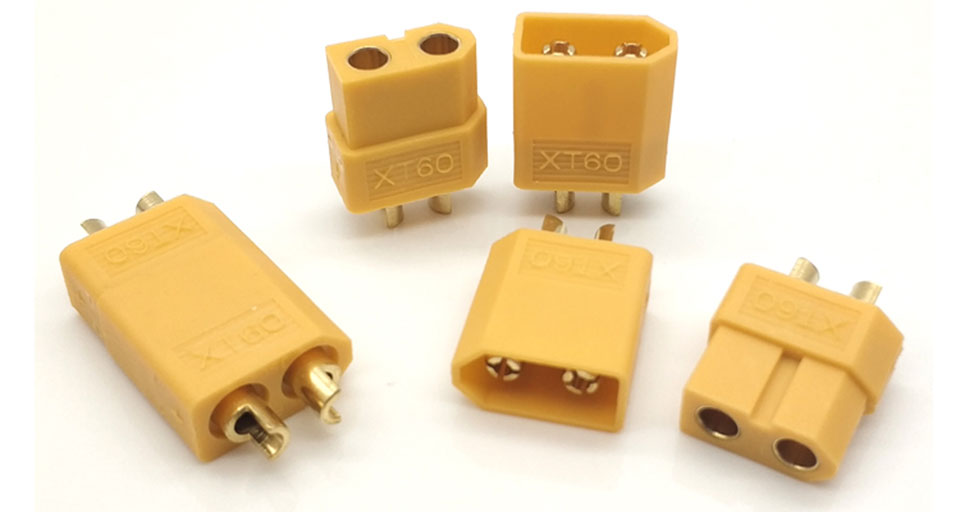

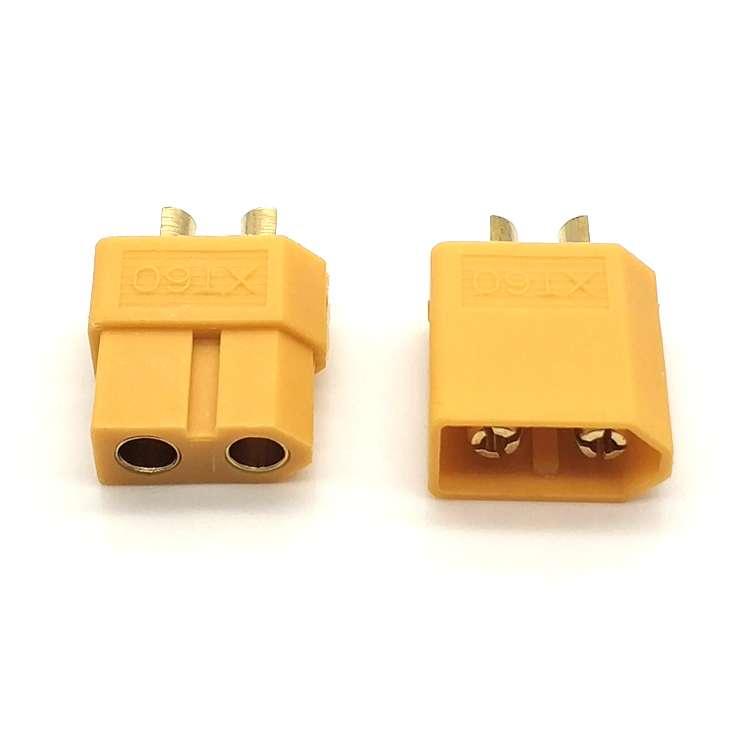

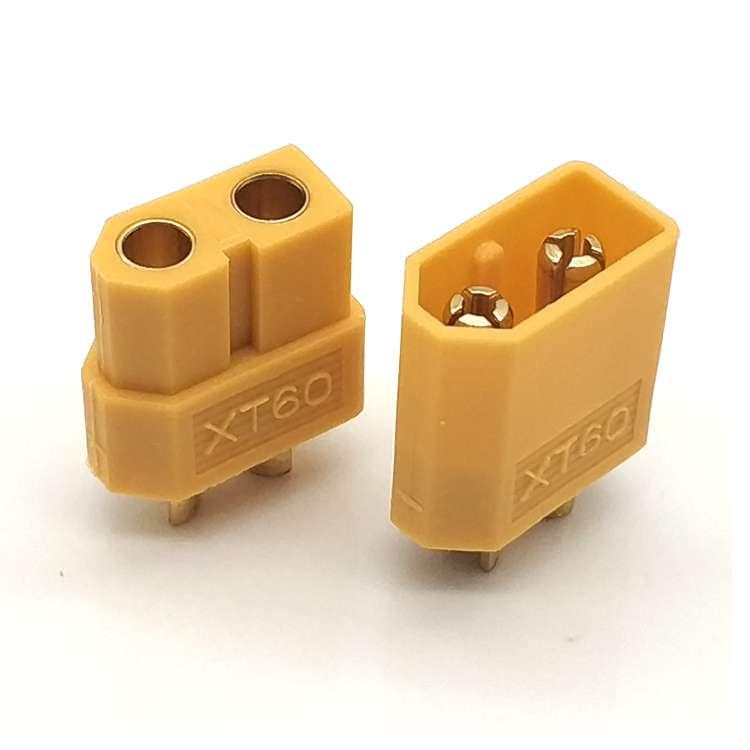

XT60 connector made from PA and gold plated spring connectors, its shape prevents reverse polarity, and when plugged in the connection is super-solid. The XT60 conenctor perfect for applications up to 60A constant. It can be sold in pairs(female + male) or a single side(female or male).



  • Brand:

    OLINK
  • Item no.:

    XT60
  • Payment:

    Wire transfer, PayPal, Western Union, Alipay
  • Product origin:

    China
  • Color:

    Yellow
  • Goods stock:

    50000
  • Shipping port:

    Xiamen, Ningbo
  • Lead Time:

    7

12 awg power battery connector xt60 male female


  Description For XT60 Battery Connector
  • Male and female design, female end connector battery (power supply), male end connected to load;
  • The contacts are gold-plated for better conductivity;
  • The opening of the tail welding cup is reversed, making welding more convenient;
  • The shell is marked with obvious "+" and "-" symbols, and the interface is designed in a special shape to prevent the wrong interface insertion;
  • After the XT60 connector is connected, it fits tightly, and it is not easy to loosen during the working process;


Specification of XT60 power connector

Item NO.:

 XT60 Connector CR:   0.55MΩ
Color:   Yellow RV:   DC 500V
Metal Material:   Brass Gold Plated RC:   30A
Plastic Material:   PA66 MC:   60A
FR level:   UL94 V0 Plug times:   1000 times
Recommend USD:   Battery Cable Spec:   12AWG, 14AWG, 16AWG
Certificate   CE, ROHS Temperature:   -20°C to 120°C


 Application

XT60 connectors are mainly used in UAVs, remote-controlled aircraft, remote-controlled cars, remote-controlled boats, balance vehicles, and power tools, and other occasions and fields that require larger current connections. Connectors can include custom wiring harnesses.
