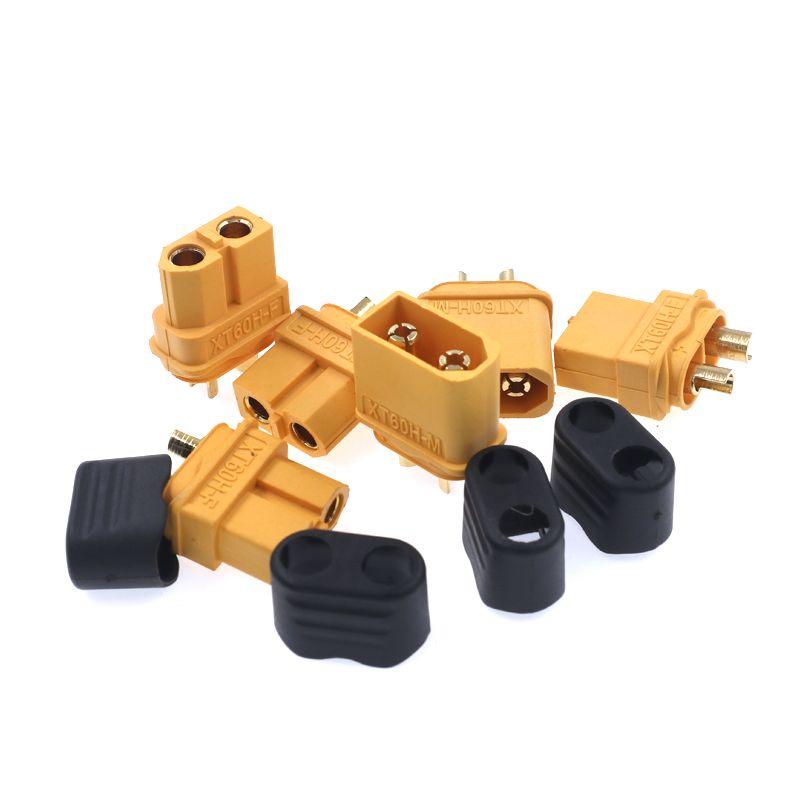

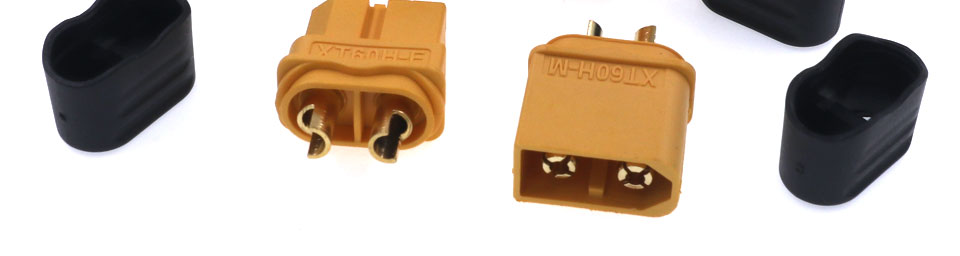

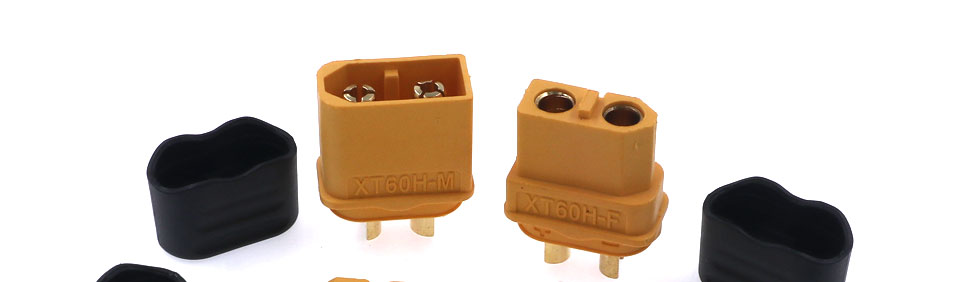

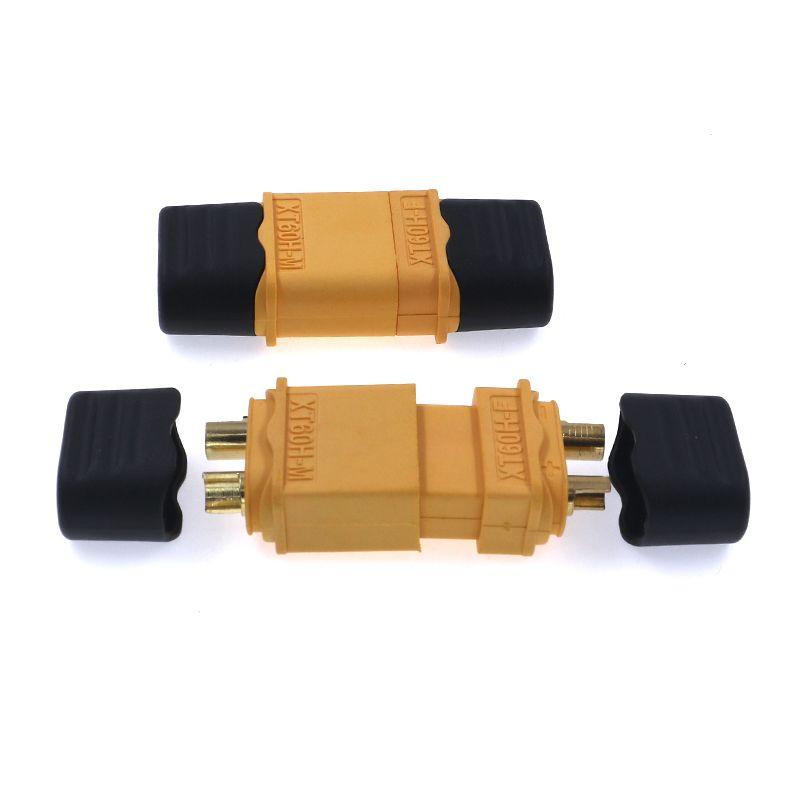

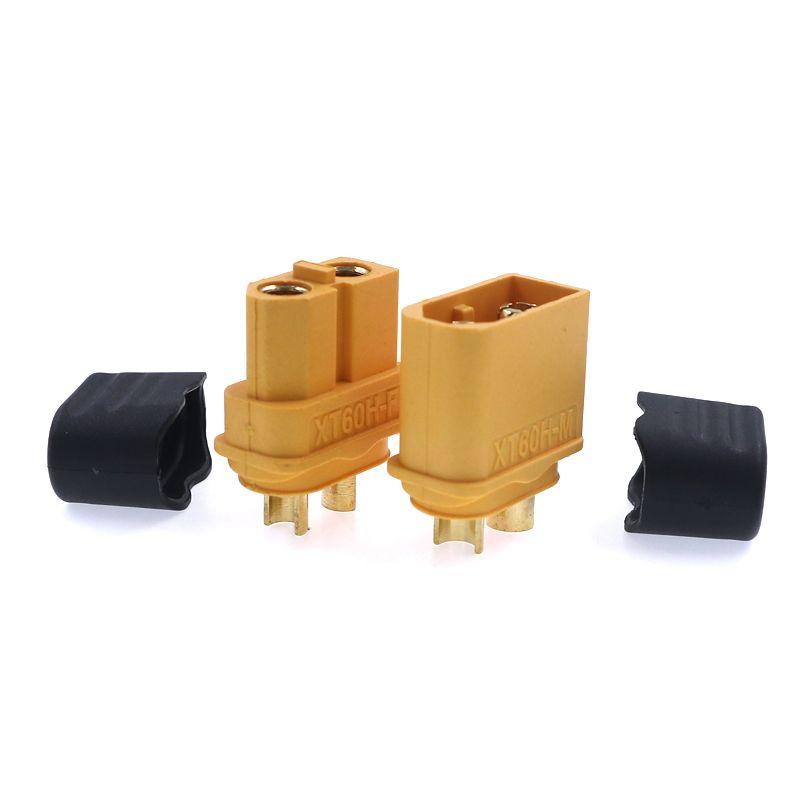

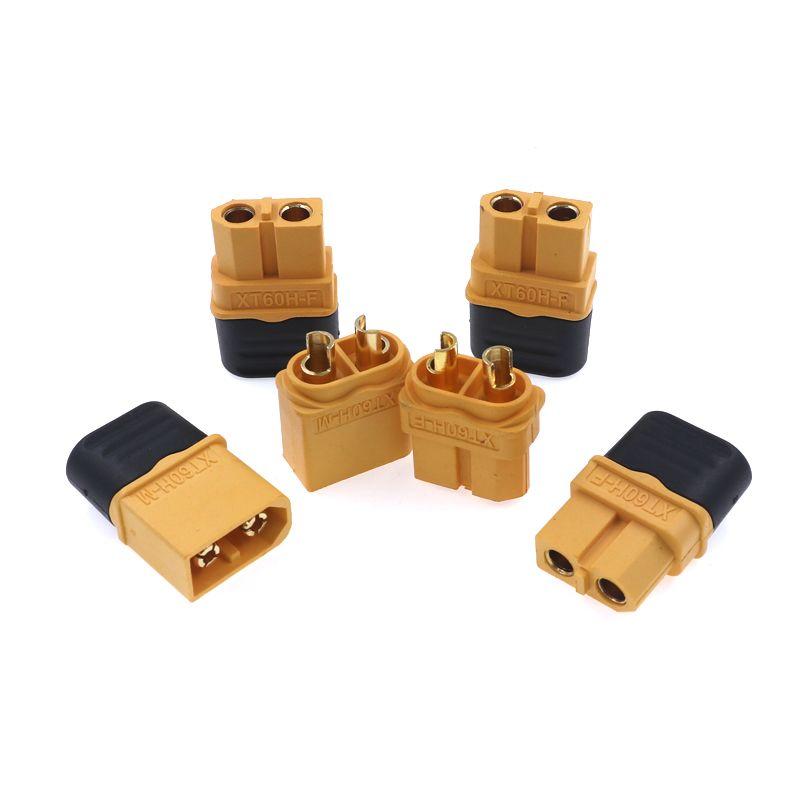

High current battery connector XT60 with cover

Equivalent to amass XT60 connector, it's made from PA and gold plated spring connectors, perfectly for applications up to 60A constant. It can be equipped with the cover.


  • Brand:

    OLINK
  • Item no.:

    XT60H
  • Payment:

    Wire transfer, PayPal, Western Union, Alipay
  • Product origin:

    China
  • Color:

    Yellow
  • Goods stock:

    50000
  • Shipping port:

    Xiamen, Ningbo
  • Lead Time:

    7


 High current battery connector XT60 with cover

Features For Soldering XT60H Connector

  • Protect the solder joints: the newly-added sheath perfectly protects the solder joints, which will not fall off after assembly, which is both beautiful and safe

  • Sheath design: bid farewell to the heat shrinkable tube, the sheath is assembled in place in a second, saving time and worry

  • V0 flame retardant: UL94V-0 flame retardant, refuses to burn

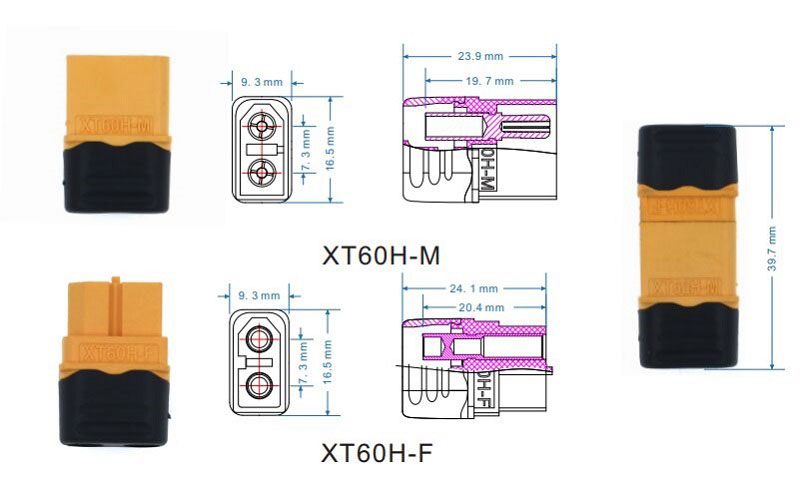

Specification Of XT60 Connector With Cover

Item NO.:

 XT60H Connector CR:   0.50MΩ
Color:   Yellow RV:   DC 500V
Metal Material:   Brass Gold Plated RC:   30A
Plastic Material:   PA66 MC:   60A
FR level:   UL94 V0 Plug times:   1000 times
Recommend USD:   Battery Cable Spec:   12AWG
Certificate   CE, ROHS Temperature:   -20°C to 120°C

  Application

XT60H connectors are mainly used in UAVs, remote-controlled aircraft, remote-controlled cars, remote-controlled boats, balance vehicles, and power tools, and other occasions and fields that require larger current connections. Connectors can provide customized wiring harness services.
