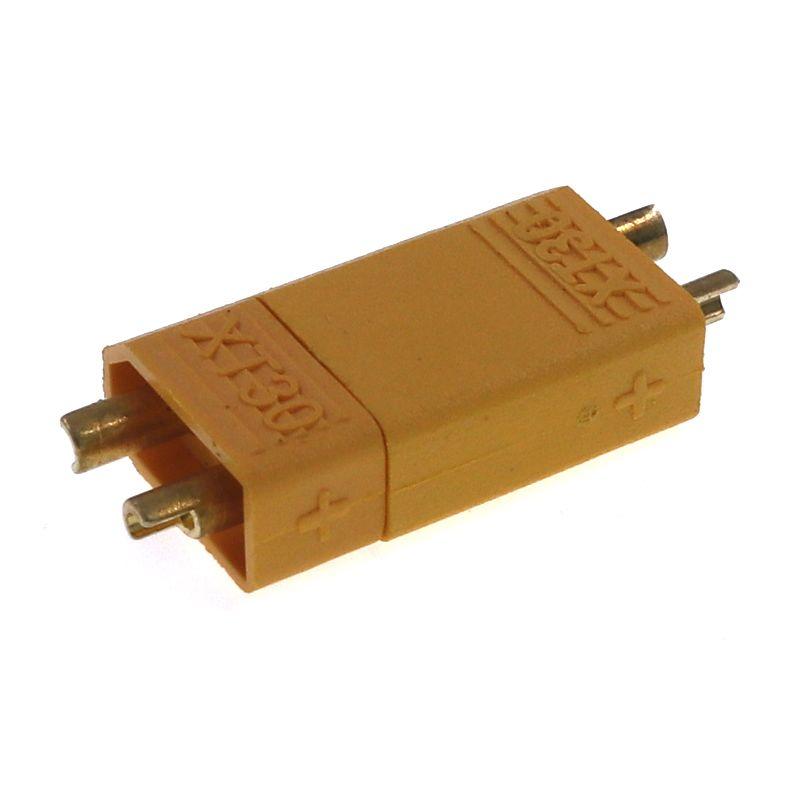

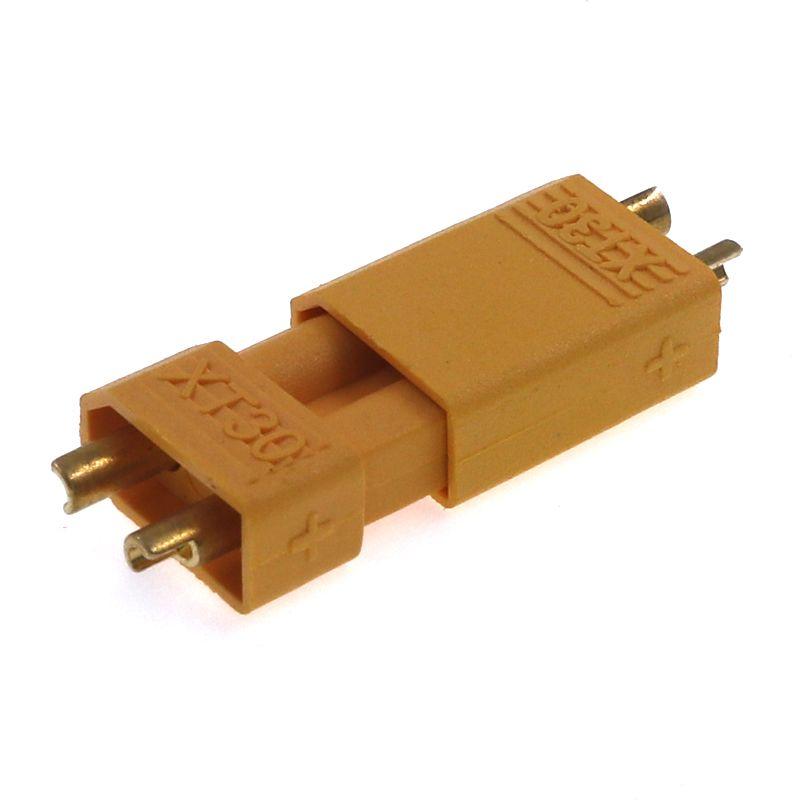

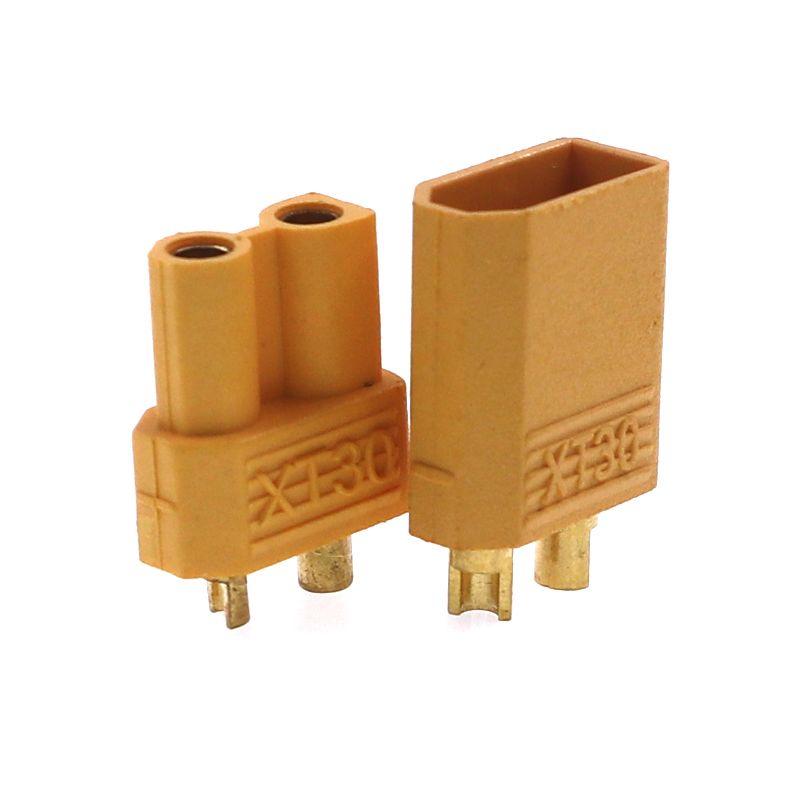

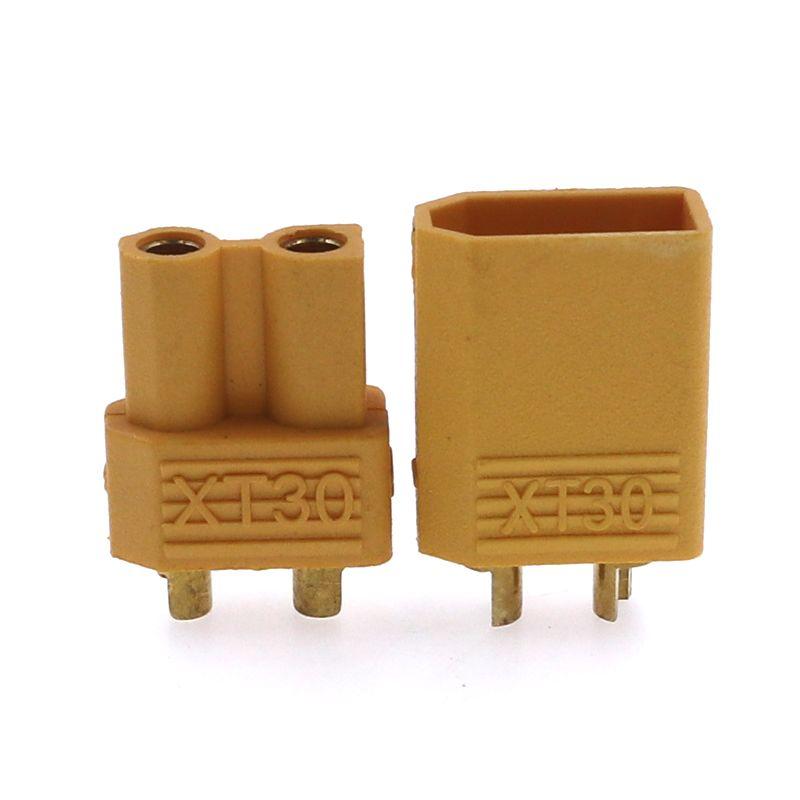

Male and female plug xt30 battery connector 15A

XT30 connector, its housing is made with PA and the contact is gold plated, its shape prevents reverse polarity, and when plugged in the connection is super-solid. Advantages: low resistance, slow heating, anti-reverse insertion


  • Brand:

    OLINK
  • Item no.:

    XT30
  • Payment:

    Wire transfer, PayPal, Western Union, Alipay
  • Product origin:

    China
  • Color:

    Yellow
  • Goods stock:

    50000
  • Shipping port:

    Xiamen, Ningbo
  • Lead Time:

    7


 Male and female plug xt30 battery connector 15A

  Features For XT30 Battery Connector

  • Flame-retardant shell: The plastic shell is made of insulating materials. Strong heat resistance. Ensure work stability

  • Hollow-out high heat dissipation: The hollow-out design at the bottom increases the heat dissipation area. Safer heat dissipation

  • Humanized solder cup: The semi-circular tail solder cup is arranged 180 degrees outwards, which makes the welding work easier

  • Plug and play: simple one step in place, saving working time and labor cost

  • Gold plated: Ensure stable current transmission
  • Advantages: low resistance, slow heating, anti-reverse insertion


Specificaton Of XT30 Power Connector

Item NO.:

 XT30 Connector CR:   0.7MΩ
Color:   Yellow RV:   DC 500V
Metal Material:   Brass Gold Plated RC:   15A
Plastic Material:   PA MC:   30A
FR level:   UL94 V0 Plug times:   1000 times
Recommend USD:   Battery/Controller/Charger Cable Spec:   18AWG/0.75mm2
Life:   1000 times Temperature:   -20°C to 120°C


  Application

XT30 connectors can be used in transportation railway, electric bicycle, electric storage forklift and electric sightseeing car, and other occasions and fields that require larger current connections. Connectors can include custom wiring harnesses.
