XT90-H With Cap PCB mount motorcycle battery connector

Instead of amass connectors, XT90H conenctor perfect for applications up to 90A constant. It can be equipped with a cap.

Brand:
OLINK
Item no.:
XT90H
Payment:
Wire transfer, PayPal, Western Union, Alipay
Product origin:
China
Color:
Yellow
Goods stock:
50000
Shipping port:
Xiamen, Ningbo
Lead Time:
7

Inquiry now

product introduction

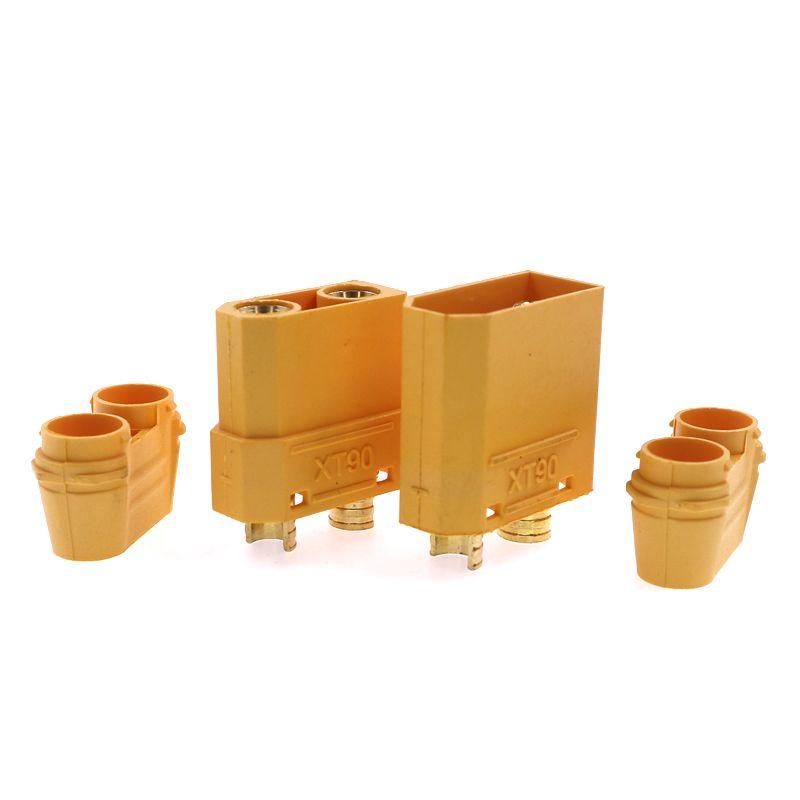

PCB mount motorcycle battery connector XT90-H with cap

Features For XT90H Connector With Cover

Male and female design, female end connector battery (power supply), male end connected to load;
The contacts are gold-plated for better conductivity;
The opening of the tail welding cup is reversed, making welding more convenient;
The shell is marked with obvious "+" and "-" symbols, and the interface is designed in a special shape to prevent the wrong interface insertion;
After the XT90 connector is connected, it fits tightly, and it is not easy to loosen during the working process;

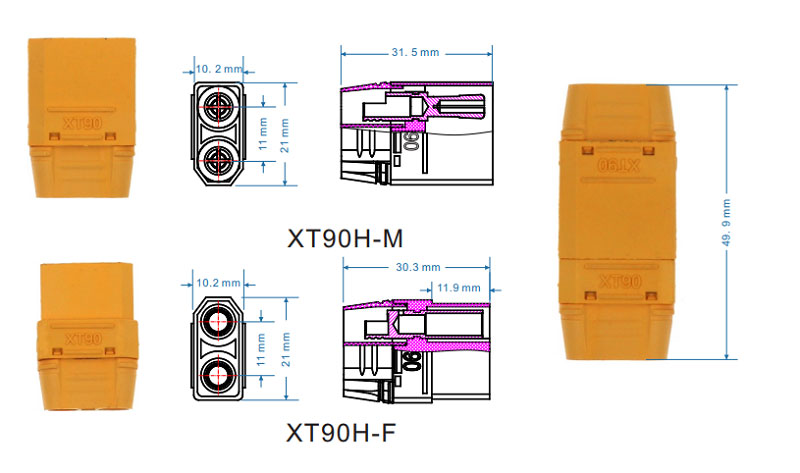

Specification of XT90H Parallel Connector
Item NO.:	XT90-H	Connector CR:	0.30 MΩ
Color:	Yellow	RV:	DC 500 V
Metal Material:	Brass Gold Plated	RC:	40 A
Plastic Material:	PA66	MC:	90 A
FR level:	UL94 V0	Plug times:	1000 times
Recommend used:	Battery/Controller/Charger	Cable Spec:	10AWG
Product description:	High current connector	Temperature:	-20°C to 120°C

Application

XT90H connectors are mainly used in UAVs, remote-controlled aircraft, remote-controlled cars, remote-controlled boats, balance vehicles, and power tools, and other occasions and fields that require larger current connections. Connectors can provide customized wiring harness services.

More Similar Products


XT30 Connectors	XT60 Connectors	XT60 Connectors	XT60H Connectors	XT90 Connectors

*For more information, please contact us by email or through any contact information on the webpage.
