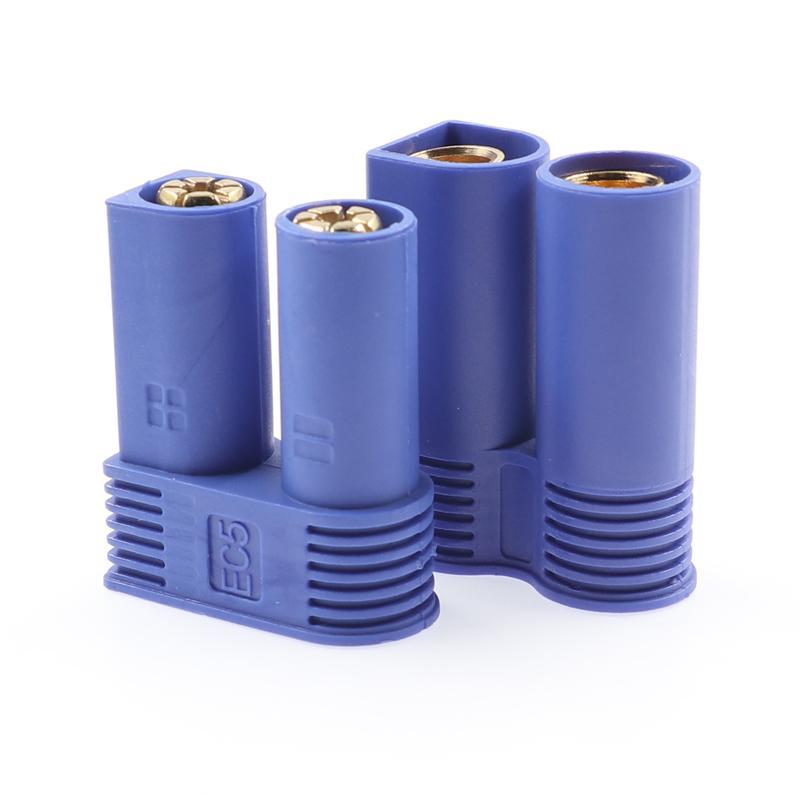

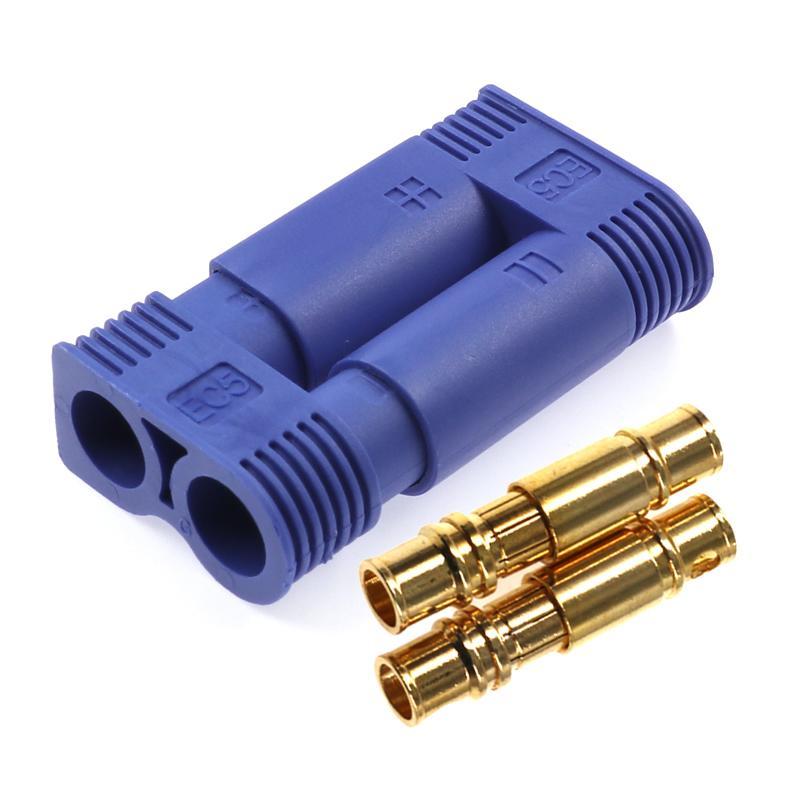

Soldering type EC5 bullet battery connector male and female

EC5 (E-flite connector 5 mm) connectors, leads with connectors and accessories are very suitable for electric power applications, and can be used with any battery, charger, ESC, power meter, etc. They are ideal for high-power applications.

  • Brand:

    OLINK
  • Item no.:

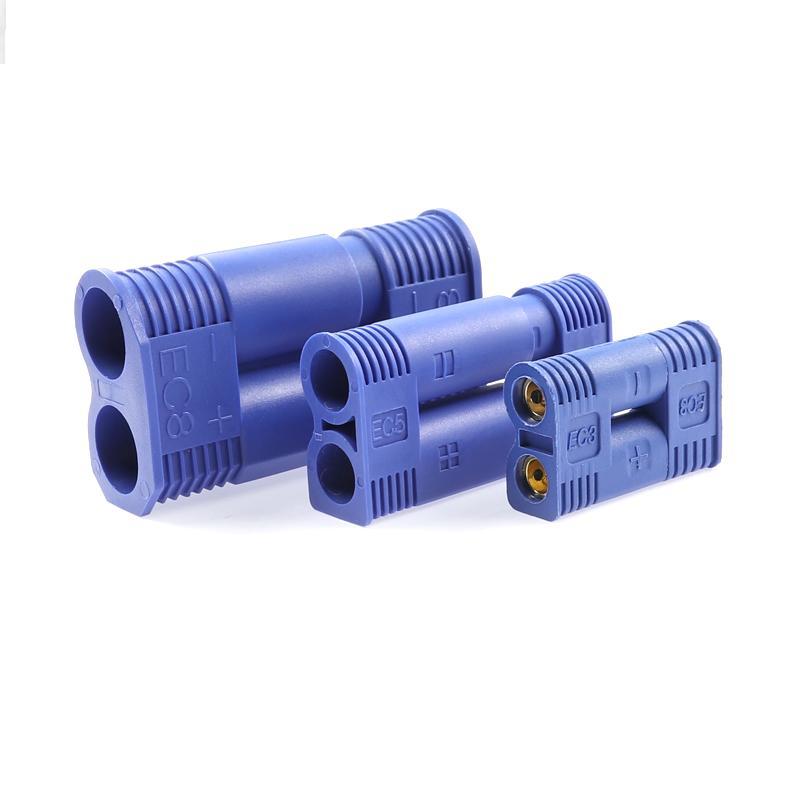

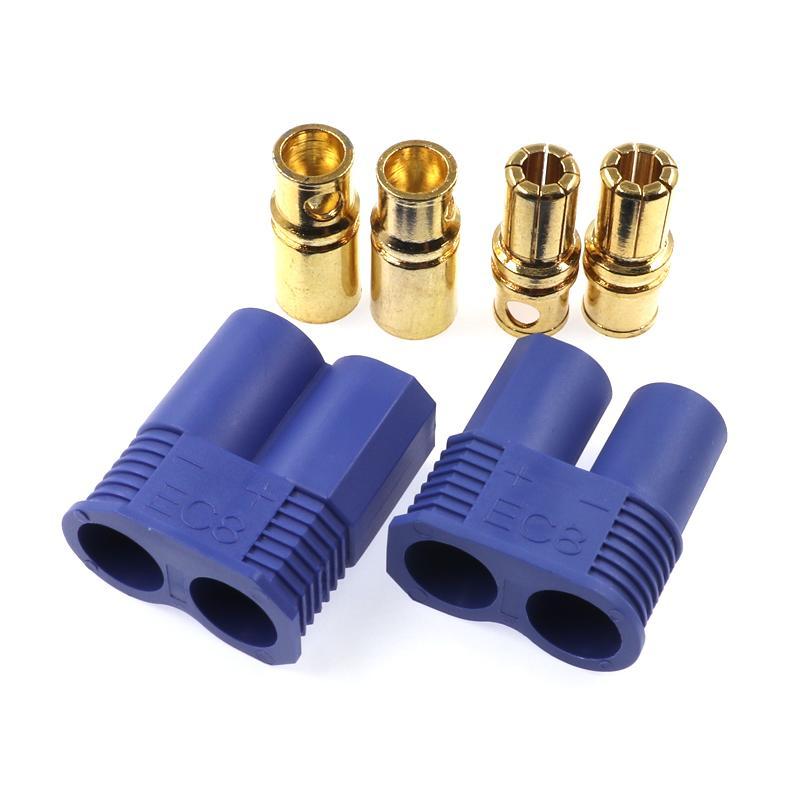

    EC2/EC3/EC5/EC8
  • Payment:

    Wire transfer, PayPal, Western Union, Alipay
  • Product origin:

    China
  • Color:

    Blue
  • Goods stock:

    50000
  • Shipping port:

    Xiamen, Ningbo
  • Lead Time:

    7

Soldering type EC5 bullet battery connector male and female


Feature:

  • Smaller size to meet the needs of small size and high current
  • Round square jack design, anti-reverse insertion is more intimate
  • Flame retardant material, high temperature resistance, refusal to burn, long service life
  • The 24K gold plating layer is not easy to oxidize, ensuring stable current transmission; it can withstand constant 40A and instantaneous currents of 90A.

Material & Parameter:

Item No.: EC5-F & EC5-M Contact resistance: 0.40
Color: Blue Rated voltage: DC 500V
Metal material: Brass gold plated Rated current: 40A
Plastic material: PA Max. current: 90A
FR level: UL94 V0 Use times: 1000 times
Recommend use: Battery/Controller Cable Spec.: 10AWG
Certification: - Temperature: -20℃ to 120℃

Application:

It has a wide range of applications, such as the field of drones, remote control models, electric vehicles, and other fields.
