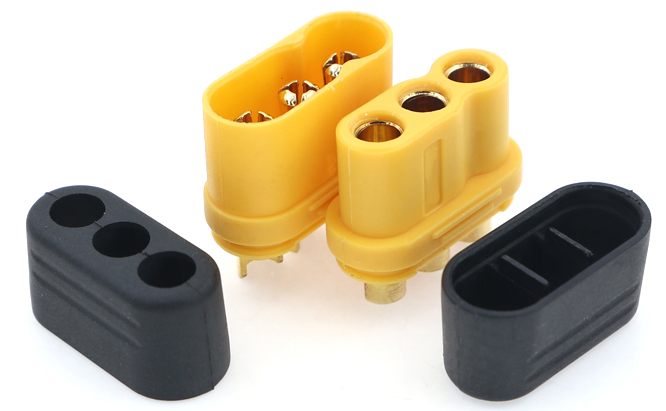

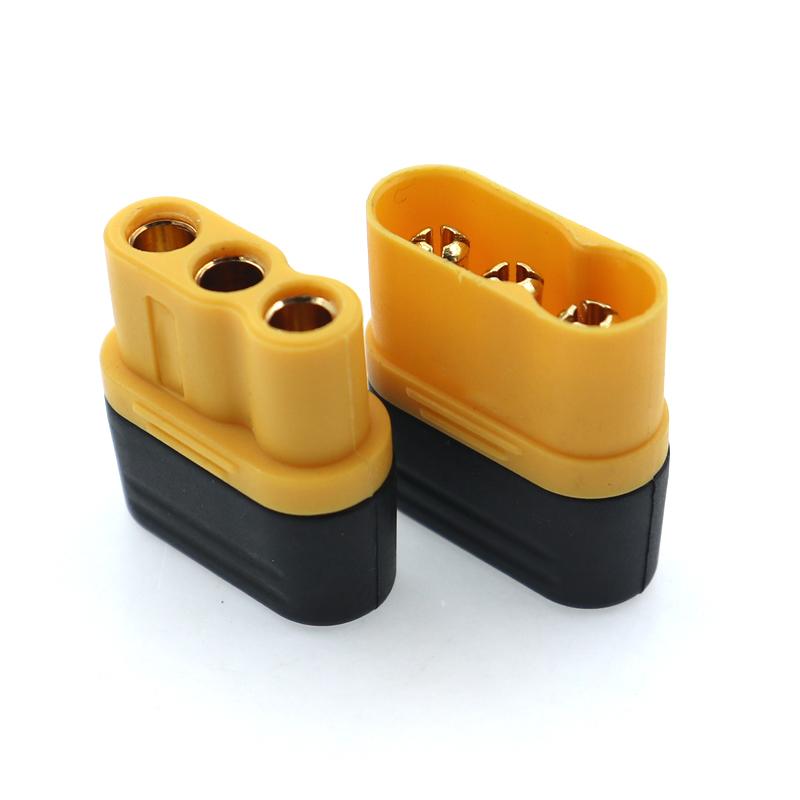

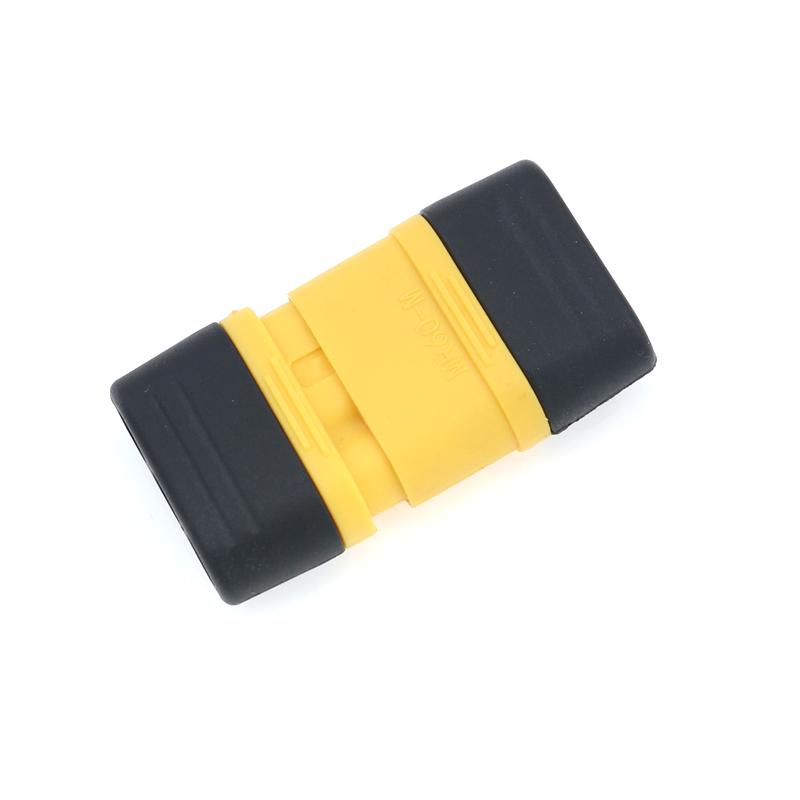

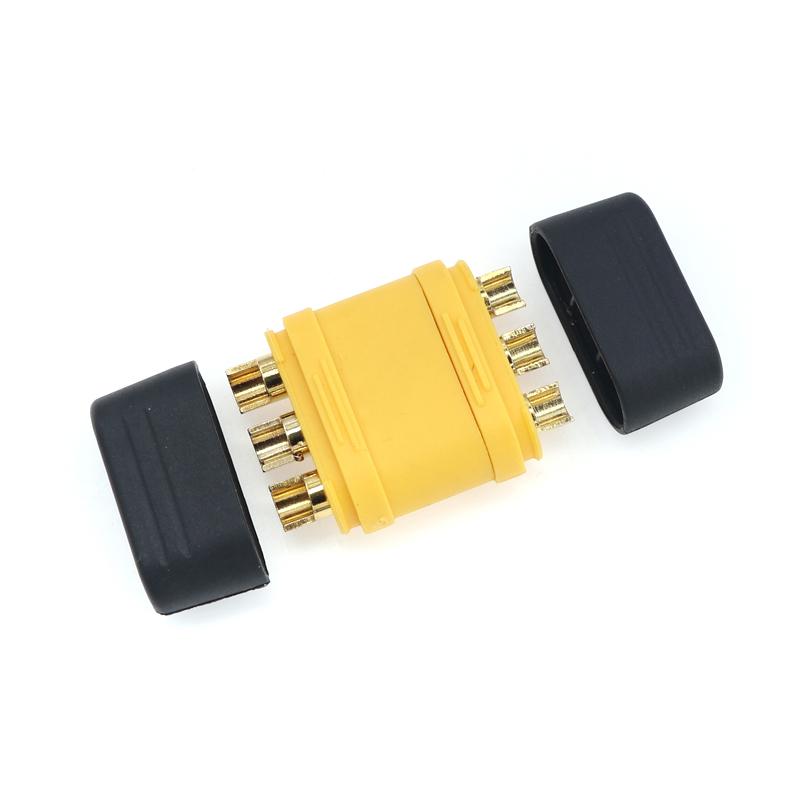

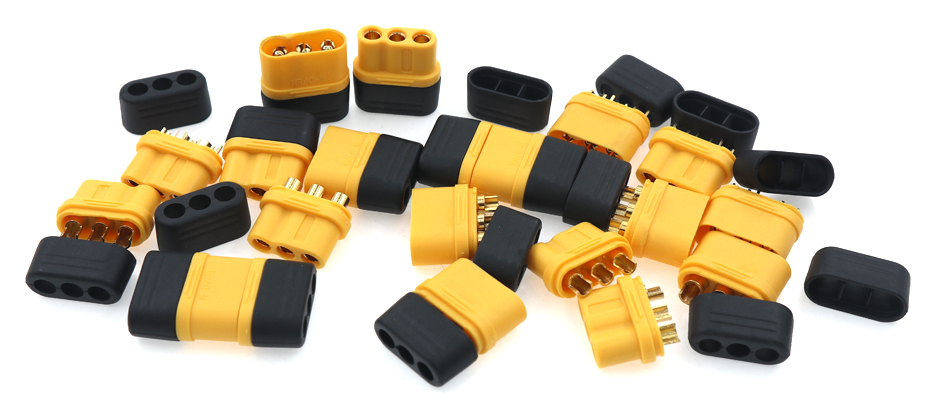

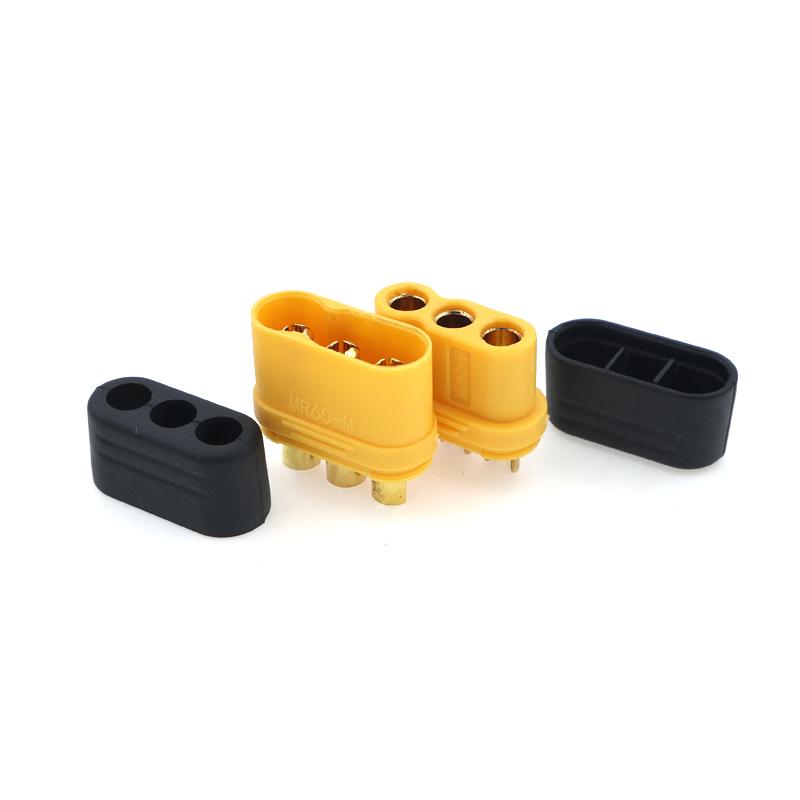

MR60 3pin Connector Female Male With Yellow Connector

The MR60 connector is a covered 3-pin connector with side-by-side contact pins. It can withstand a maximum impact current of 60A and can operate stably in a 30A circuit. It is mainly used for the connection of ESCs and drive motors. It can be used as: balance cars, model aircraft, etc. High current components for electric bicycles and other equipment.
  • Brand:

    OLINK
  • Item no.:

    MR60-F/M
  • Payment:

    T/T
  • Goods stock:

    50000

MR60 high current plug is usually used in high power electronic equipment and has the following characteristics:

  • High current capacity: The MR60 plug is designed to carry large currents, usually tens of amps or even higher, making it suitable for high-power applications.
  • High temperature resistance: Since it is usually used in high-power equipment, MR60 plugs are usually made of high-temperature resistant materials to ensure stable performance under high loads.
  • Reliability and Durability: These plugs are designed and tested to ensure they can withstand frequent plugging and unplugging and extended use without damage and maintain a good electrical connection.
  • Safe to use: Covered design prevents exposed conductors from causing short circuit risk
  • Standardized design: MR60 plugs usually meet specific standards, such as those set by the International Electrotechnical Commission (IEC), to ensure good compatibility with other devices.


Material & Parameter:

Item No. MR60-F/M Number Of Pins
3 pin
Color yellow-black(cap) Contact Material
Bras Cold Plated
Rated Voltage
500V DC Shell Material
Nylon PA
Rated Current
30A
Flame Retardant Level
UL94 V-0
Maximum Wiring
12AWG/4mm2 Operating Temperature
 -20℃~+120℃

Number of pluggable times
1000 Time USE.
Controller/Electric Motor

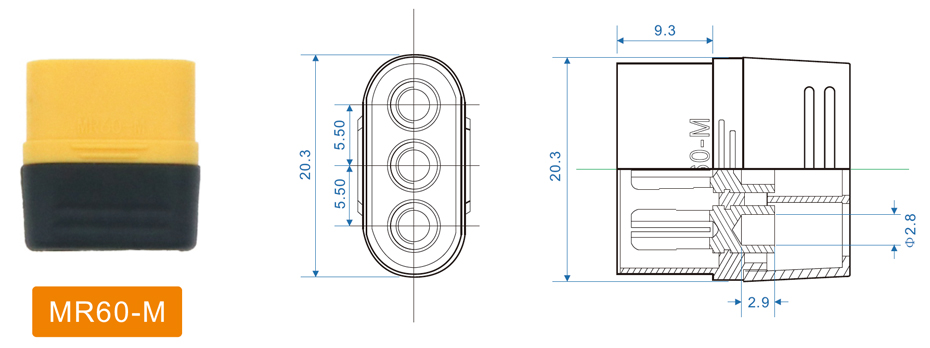

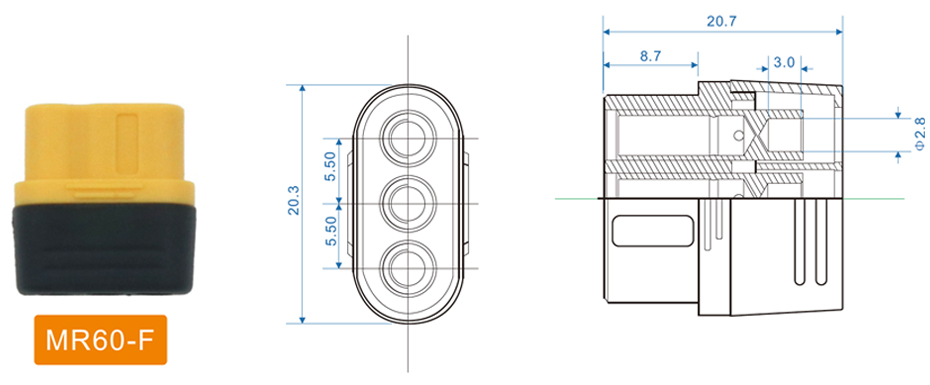

MR60 3pin Connector Size:
