OL13 IP68 Waterproof Electrical Connector is a high-performance round adapter connector engineered for reliable power transmission in harsh environments, boasting IP68 waterproof rating and UL94-V0 flammability grade for uncompromising safety and durability. Crafted with corrosion-resistant nylon housing and brass gold-plated contacts, it delivers stable conductivity with a rated current of 3A-25A and rated voltage of 125-400AC.V, perfectly suited for power inverter boxes, battery conversion and various industrial power supply setups.

Available in 1-9P pins and 1-7 cores with blue/black color options, this male/female connector fits cable outer diameters of 4mm-8mm (max 14AWG) and features dual seal ring designs (flat sealing ring/ordinary O-ring seal) plus high-performance PPS MAX insulation material for enhanced moisture and dust resistance. Fully customizable with support for drawing-based, sample-based and full customization of cables and wiring harness terminals, it meets diverse application needs. Backed by 7*24h online technical support and flexible OEM/ODM services, this China-made connector offers fast lead times (7 days for 1-1000 sets) and reliable performance for global industrial power connection demands.

OLINK OL21 Series Power Solder Type Electric Plugs are high-performance male-female cable connectors available in 2P-14P configurations, boasting IP67/IP68 waterproof and dustproof ratings. Featuring gold-plated brass contacts for superior conductivity, they support 5A/15A/30A rated current and 400V/500V rated voltage, with a temperature tolerance of -25℃ to +85℃. Crafted with flame-retardant PA66, high-temp PPS insulation and nylon housing, the connectors adopt solder/screw termination and threaded coupling for secure connection, with over 500 mating cycles and 2000MΩ insulation resistance. CE/RoHS certified and customizable via OEM/ODM, they are ideal for outdoor electronics, power inverters, street lamps and more, backed by 7*24h technical support and flexible delivery options.

OLINK OL28 is an IP68 circular male&female waterproof power connector, featuring 250V/380V rated voltage and 5-45A adjustable rated current for diverse high-power supply needs. It adopts gold-plated brass contacts with nickel underplating for low resistance and anti-corrosion, paired with nylon housing, PA66 back shell and PPS insulation material that reach UL94 V-0 fire resistance grade. The connector works stably in -40℃~+85℃, with rich 2P-26P pin configurations, solder/screw crimping dual termination modes and threaded/bayonet connection options, fitting multiple cable OD specifications. Equipped with free dust cover, rubber ring and dual seal rings as standard accessories, it achieves superior dust and moisture protection for harsh outdoor/wet environments. CE and RoHS certified, it also supports full OEM/ODM customization including LOGO, housing, cable harness and mold, ideal for power inverters, outdoor billboards, street lamps and various industrial power devices.

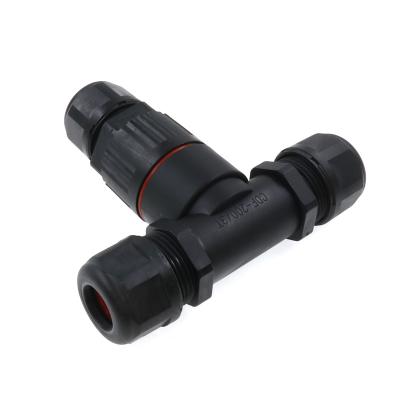

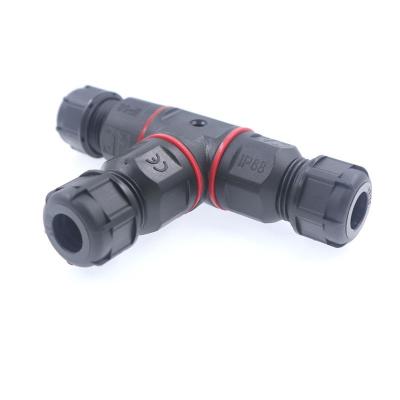

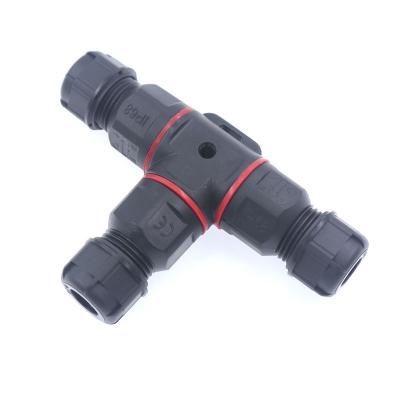

OLINK CDF-200T is an IP68 waterproof outdoor power connector with T-type bayonet connection, featuring 4m water resistance and dual inner-outer sealing for full dust and moisture protection. It delivers high-power transmission with 450V rated voltage, 32A rated current and nickel-plated brass contacts for stable, low-loss performance. The connector offers flexible 3P/5P pin options and crimp/screw dual termination modes, fitting 0.5-4.0mm² wires and 4-7/7-10mm cable OD. Its flame-retardant PA66 nylon housing is wear and corrosion resistant, adapting to a wide temperature range of -40℃~+95℃. Certified by CE, RoHS and ISO9001, it’s ideal for harsh outdoor power wiring scenarios with tool-free, easy operation.

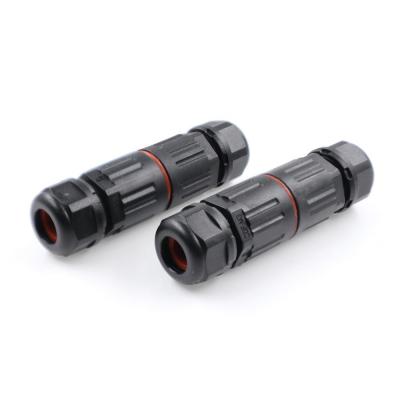

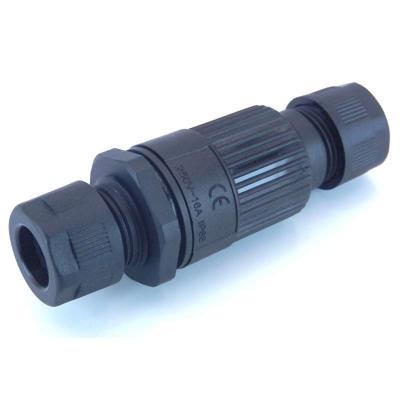

OLINK CDF-200 is an IP68 watertight cable connector engineered for outdoor street light and landscape lighting applications, boasting 4m water resistance with dual rubber ring sealing for full dust and moisture protection. It features nickel-plated brass contacts, delivering stable low-loss power transmission with 400V rated voltage and 32A rated current. The round connector offers flexible 2P/3P/5P pin options and screw/lever crimp termination, fitting 0.5-4.0mm²/24-12AWG wires and 4-6/6-8/8-12mm cable OD for diverse wiring needs. Its flame-retardant PA66 nylon housing is anti-corrosion and wear-resistant, adapting to a wide temperature range of -40℃~+95℃. With tool-free rotary nut wiring for easy assembly and upgraded dual-diameter seal structure, it’s CE and RoHS certified, ideal for outdoor power, communication and illumination waterproof wiring scenarios.
