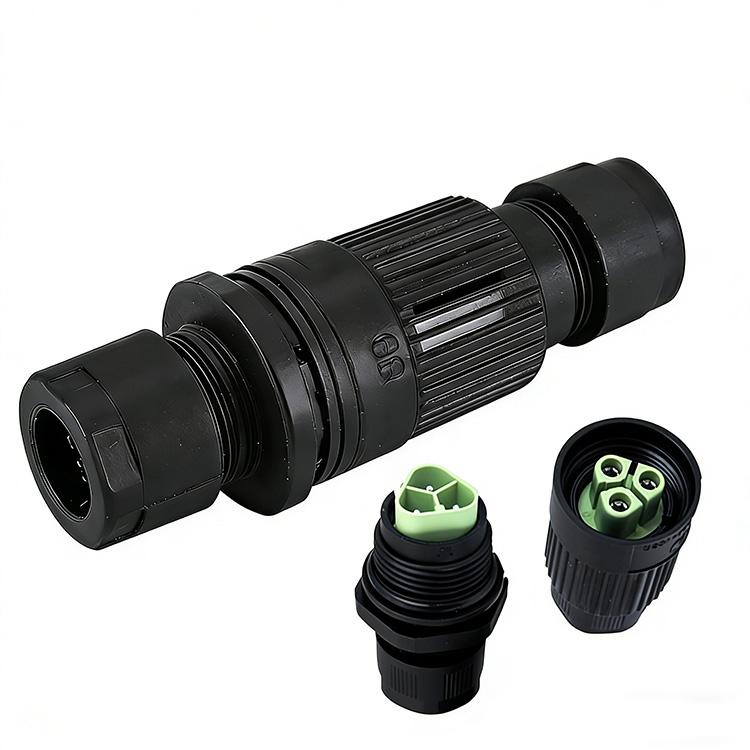

JH22 IP68 Waterproof DC LED Outdoor Power Connector

OLINK JH22 is a professional LED waterproof connector rated up to 250V, specially designed for outdoor LED lighting and electrical applications. This outdoor waterproof LED connector ensures stable DC power transmission with IP-grade waterproof and dustproof structure, offering excellent resistance to moisture, UV and extreme temperatures. With a secure locking design, it prevents accidental loosening for reliable long-term connection. Constructed from high-grade insulated and flame-retardant materials, this LED lighting power connector is ideal for outdoor LED strips, landscape lights, advertising signs and street lamps, delivering safe and stable performance for outdoor lighting projects.

Item no.:
JH22
Payment:
Wire transfer, PayPal, Western Union, Alipay
Product origin:
China
Lead Time:
7

Inquiry now

product introduction

Technical Specifications

Rated Current:	16A
Rated Voltage:	250V
Pin Count:	2P/3P
Contact Material:	Copper Alloy / Nickle Plating
Shell Material:	PA
IP Rating:	IP68
Mating Cycles	≥500
Color:	Black / Fluorescent Green
Cable OD Max	11mm
Environmental Temperature	-40°C~+85°C
Sealing Body	Silicone Rubber
OEM/ODM:	YES
Technical Support:	7*24h Online Service

Product selling points

· Top-tier Waterproof Performance: IP68 rating, full protection against dust and water, perfect for outdoor harsh environments.

· Stable Power Output: 250V rated voltage & 16A rated current, ensures steady power supply for LED outdoor lighting.

· Excellent Electrical Properties: Nickel-plated copper alloy contacts (≤10mΩ contact resistance), ≥500MΩ insulation resistance for high safety.

· Wide Temperature Adaptability: Works in -40°C~+85°C, adaptable to various outdoor temperature conditions.

· Durable Construction: PA housing with flame/corrosion resistance, silicone rubber sealing, ≥500 mating cycles for long service life.

· Flexible Compatibility: Male&female genders, max 11mm cable OD, fits most outdoor lighting wiring needs.

· Certified Quality: CE/ROHS/IP67/ISO9001 certified, strict professional QC inspection and complete testing system.

· Customizable Service: Supports OEM/ODM (logo/mold/cable customization), 7*24h online technical support.

· Cost-effective Pricing: Tiered prices for bulk orders, factory-direct supply with no middlemen.

· Reliable Supplier: 10+ years export experience, 10 million pcs annual production, multiple logistics/payment options, exported to 100+ countries.

Product details

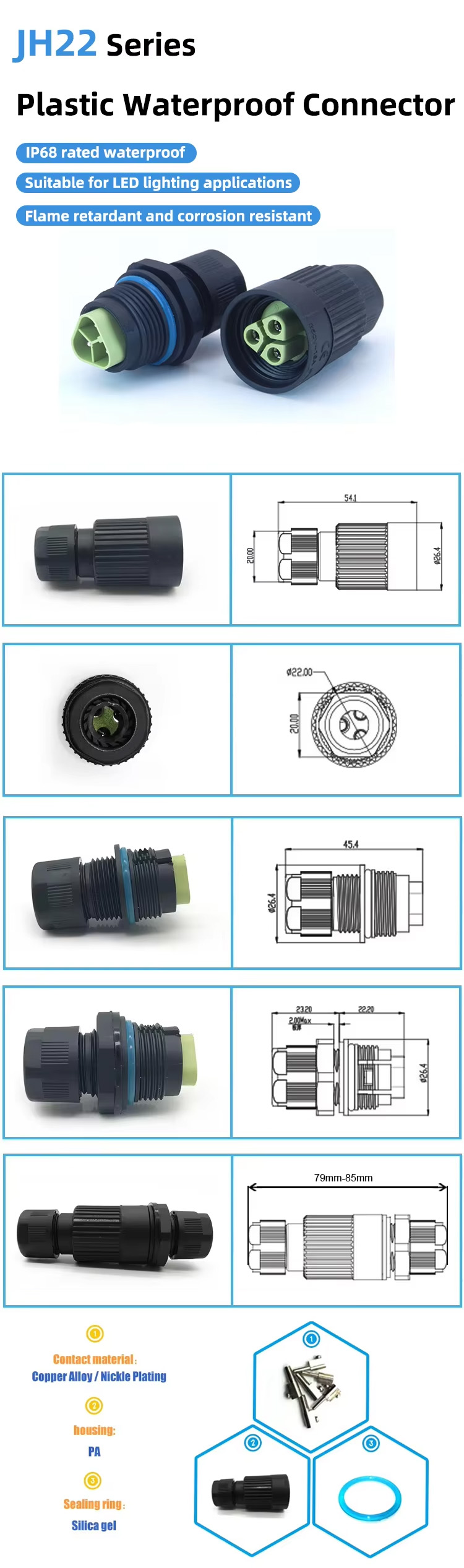

JH22 Series Product Detailed Dimension Drawings

Application Scenarios

JH22 is used in new energy equipment, underwater equipment, LED lighting and outdoor electrical appliances

Factory Display

All-in-one production and customization factory

Certificate Display

Shipping & Payment Methods

We support sea, air and land transportation, with a variety of express delivery options. Payment methods include PayPal, Visa, etc
