Plastic Waterproof Connector

 /M20 IP68 Gold Plated LED Power Cable Connector

waterproof electrical connector
waterproof electrical connector waterproof electrical connector waterproof electrical connector waterproof electrical connector waterproof electrical connector

M20 IP68 Gold Plated LED Power Cable Connector

M20 Connector is a professional industrial waterproof connector featuring gold-plated pure copper contacts and nylon PA66 housing, delivering excellent electrical conductivity, corrosion resistance and insulation performance. This M20 waterproof electrical connector ensures stable current transmission, low contact resistance and long service life even under frequent mating cycles. The rugged PA66 shell is high-temperature resistant, impact-resistant and flame-retardant, making this industrial control connector ideal for harsh working environments.
With a precise structure and reliable connection, it is widely used in electrical equipment, communication devices, industrial control and automotive electronics. Supporting customized specifications, this factory-direct M20 connector offers stable quality and cost-effective performance for bulk orders.

  • Item no.:

    OL-M20

  • Payment:

    Wire transfer, Paypal, Western Union, Alipay

  • Product origin:

    China
Inquiry now

Technical Specifications

Rated Current:
 15A
Rated Voltage:
 300V
Pin Count:
 2P-8P
Contact Material:
 Gold-plated copper
Shell Material:
 Nylon PA66
IP Rating:
 IP68
Wire installation:
 Solder or Screw Version
Color:
 Black
Wire:
 1.5mm²
Type:
 wire to panel / wire to wire
OEM/ODM:
 YES
Technical Support:
 7*24h Online Service

Product selling points

· IP67 Waterproof: Meets stringent waterproof standards, ensuring reliability in harsh environments.

· Strong Resistance: Acid, alkali, and chemical resistant, ideal for industrial applications.

· Wide Voltage Range: Supports up to 500V, suitable for high-power connections.

· Multiple Configurations: Available in various pin counts and configurations.

· Durability: Designed for long-term use with a mating cycle of over 500 cycles.

· Various pin configurations available: 2, 3, 4, 5, 7, 8, 12, 14, 19, 24 pins.

· High and low temperature resistance:Withstands up to 85℃ and down to -25℃.

· Shielded or unshielded versions available:Shield and un-shield Version Available with metal or plastic housing.

· Spark-resistant:Resistant to welding spark,continually twist.

Product details

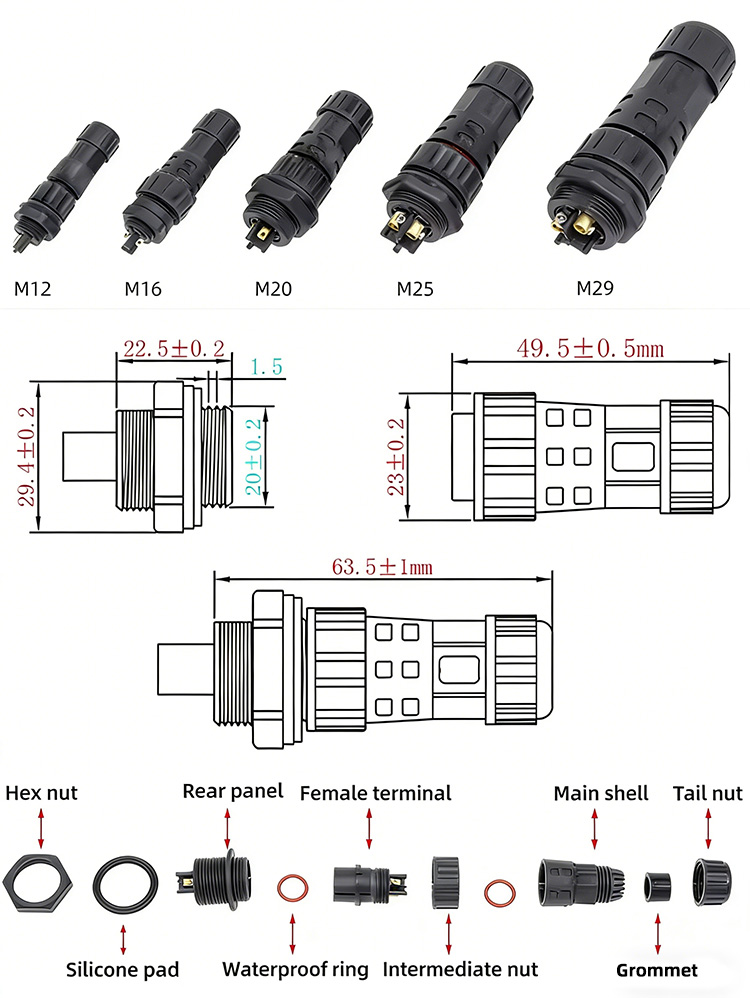

Overview of Other M20 Series Products, Drawings and Detailed Dimensions

Both male and female pins adopt gold-plated brass forsuperior conductivity and insertion durability, with atested lifespan of over 1500 mating cycles.

M20 offers two optional wiring methods: solder type and screw type

The M20 series can be pre-wired with cables before delivery, saving you the trouble of wiring after receipt

Application Scenarios

M20 series products can be applied to outdoor cable internet cafes and waterproof joints

Factory Display

All-in-one production and customization factory

Certificate Display

CE / IP67 / IP68 / ISO Certificates

Shipping & Payment Methods

We support sea, air and land transportation, with a variety of express delivery options. Payment methods include PayPal, Visa, etc
Leave A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
