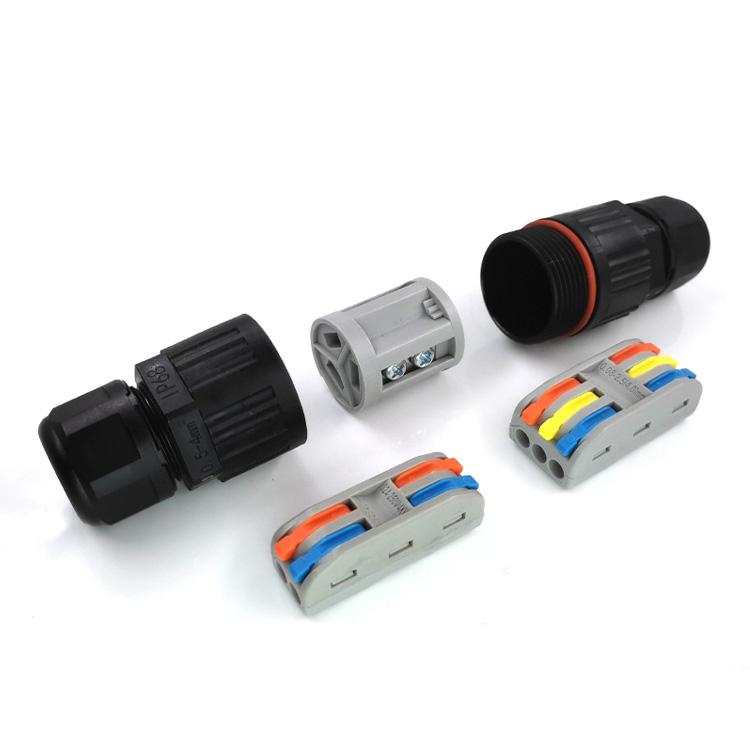

CDF-200 IP68 Waterproof Outdoor 32A 400V Power Connector

OLINK CDF-200 is an IP68 watertight cable connector specially designed for outdoor street light and landscape lighting applications. With 4m underwater protection and dual rubber ring sealing, this IP68 waterproof lighting connector provides full dust and moisture resistance. Featuring nickel-plated brass contacts, it ensures stable low-loss power transmission with 400V voltage and 32A current ratings.
Offering flexible 2P/3P/5P pin options and screw/lever crimp termination, it fits 0.5-4.0mm²/24-12AWG wires and multiple cable diameters. The flame-retardant PA66 nylon housing performs reliably from -40℃ to +95℃, while tool-free rotary nut wiring enables fast assembly. CE and RoHS certified, this outdoor waterproof wiring connector is perfect for street lighting, landscape illumination and outdoor power applications.

Item no.:
CDF-200
Payment:
Wire transfer, Paypal, Western Union, Alipay

Inquiry now

product introduction

Technical Specifications

Rated Current:	32A
Rated Voltage:	400V
Pin Count:	2P/3P/5P
Contact Material:	Brass nickel pltaed
Shell Material:	Nylon PA66
IP Rating:	IP68
Termination:	screw/lever crimp
Color:	Black
wire gague(max):	0.5mm²-4.0mm²/24-12AWG
Temperature range:	-40℃ ~ +95℃
Cable OD:	4-6mm/6-8mm/8-12mm
OEM/ODM:	YES
Technical Support:	7*24h Online Service

Product selling points

· IP68 Superior Waterproof: Dual rubber ring sealing, withstands 4m water depth, full protection against moisture/dust for extreme wet environments.

· High Power Capacity: Brass nickel-plated copper alloy contacts, 32A rated current, 400/450V rated voltage for stable low-loss power transmission.

· Wide Cable Compatibility: Fits 0.5-4.0mm²/24-12AWG wires, 3 cable OD ranges (4-6/6-8/8-12mm) for diverse wiring needs.

· Flexible Configuration: 2P/3P/5P pin options, screw/lever crimp termination (2P/3P quick connector optional) for easy operation.

· Durable & Flame-retardant: Flame-retardant nylon housing (smooth burr-free), works in -40℃~+95℃, anti-corrosion for long outdoor service life.

· Easy Tool-free Wiring: Threaded rotary nut design for fast assembly, insert core wire and tighten nut, no professional tools required.

· Upgraded Sealing Design: Dual-diameter seal structure (vs old superimposed ring) for better waterproof and airtight performance.

· Broad Application: Ideal for waterproof wiring in power, network, communication and illumination systems.

· Cost-effective & Fast Delivery: 5-day lead time for 1-5000 sets, tiered bulk pricing, customized packaging available (MOQ 1000 sets).

· Certified & Customizable: CE, RoHS, IP68/IP67 certified, OEM/ODM supported for LOGO, molds and cable harnesses, 7*24h online technical support.

Product details

CDF-200 Dimension Drawing, Detail Images, Exploded View and Wiring Method

Application Scenarios

CDF-200 is used in outdoor lighting equipment, outdoor electrical equipment, new energy equipment and automation equipment

Factory Display

All-in-one production and customization factory

Certificate Display

Shipping & Payment Methods

We support sea, air and land transportation, with a variety of express delivery options. Payment methods include PayPal, Visa, etc
