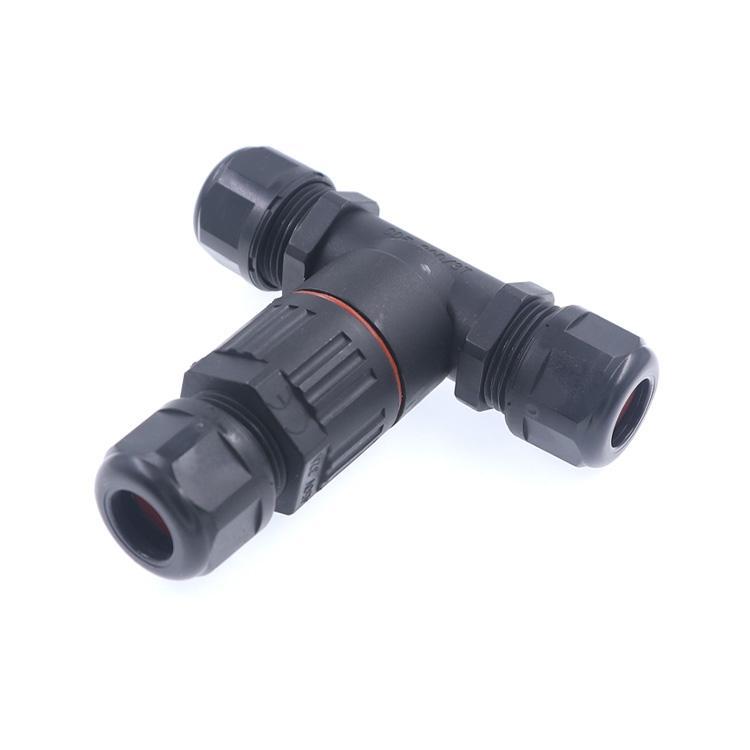

CDF-200T IP68 T-Type 32A 450V Power Connector

OLINK CDF-200T is an IP68 waterproof T-type outdoor power connector with bayonet connection, providing 4m underwater protection and dual inner-outer sealing for full dust and moisture resistance. This T-type bayonet waterproof connector features 450V voltage, 32A current and nickel-plated brass contacts to ensure stable, low-loss high-power transmission.
With flexible 3P/5P pin options and crimp/screw dual termination, it fits 0.5-4.0mm² wires and 4-7/7-10mm cable diameters. The flame-retardant PA66 nylon housing is wear-resistant and corrosion-resistant, operating stably from -40℃ to +95℃. CE, RoHS and ISO9001 certified, this tool-free outdoor waterproof wiring connector is perfect for harsh outdoor power applications.

Item no.:
CDF-200T
Payment:
Wire transfer, Paypal, Western Union, Alipay
Product origin:
China
Lead Time:
7

Inquiry now

product introduction

Technical Specifications

Rated Current:	32A
Rated Voltage:	450V
Pin Count:	1P-5P
Contact Material:	Brass nickel pltaed
Shell Material:	Nylon PA66
IP Rating:	IP68
Termination:	Crimp/screw
Color:	Black
wire gague(max):	0.5mm²-4.0mm²
Temperature range:	-40℃ ~ +95℃
Cable OD:	4-7/7-10
OEM/ODM:	YES
Technical Support:	7*24h Online Service

Product selling points

· IP68 Extreme Waterproof: Dual inner-outer sealing rings, withstands 4m water depth, full dust/moisture protection for harsh outdoor wet environments.

· High Power Transmission: Brass nickel-plated copper alloy contacts, 32A rated current, 450V rated voltage, low loss and stable power supply.

· T-Type Bayonet Design: Unique T-type structure with bayonet connection, easy plug/unplug and firm locking for convenient wiring operation.

· Flexible Configuration: 3P/5P pin options, crimp/screw dual termination modes, meets diverse outdoor power wiring demands.

· Wide Cable Compatibility: Fits 0.5-4.0mm² wires, 2 cable OD ranges (4-7mm/7-10mm) for flexible matching with different cables.

· Durable & Flame-retardant: Flame-retardant nylon housing (smooth, burr-free), anti-corrosion and wear-resistant, works in -40℃~+95℃.

· Certified & Reliable: CE, RoHS, ISO9001 certified, strict factory quality control and complete testing system for consistent performance.

· Cost-effective Bulk Pricing: Tiered pricing for bulk orders, free samples (freight excluded), annual production capacity up to 10,000,000 pcs.

· Fast Delivery & Service: 7-day lead time for 1-1000 sets, 1-3 days sample delivery, 7*24h online technical support.

· Customizable Solutions: OEM/ODM supported (LOGO, mold customization), customized packaging available (MOQ 2000 sets), multiple global shipping/payment methods.

Product details

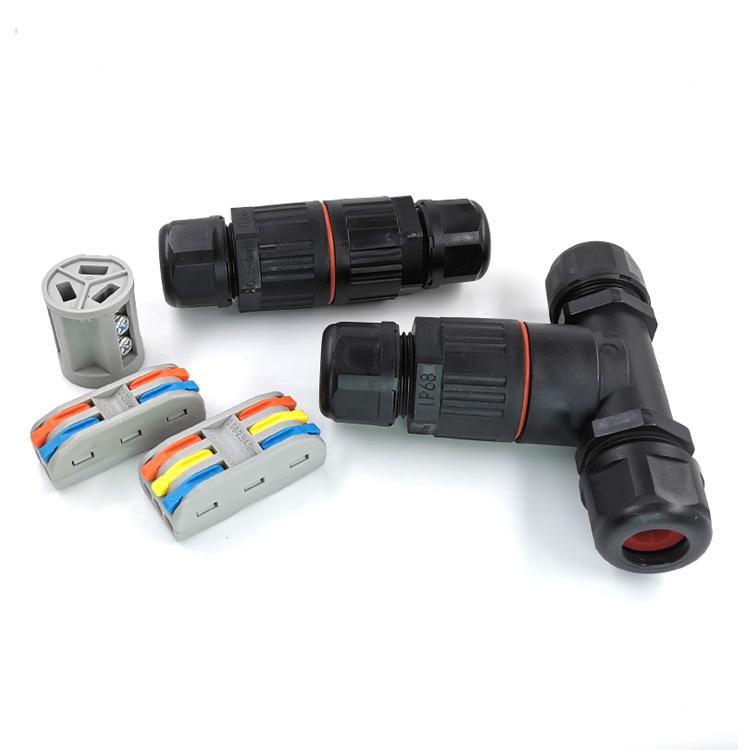

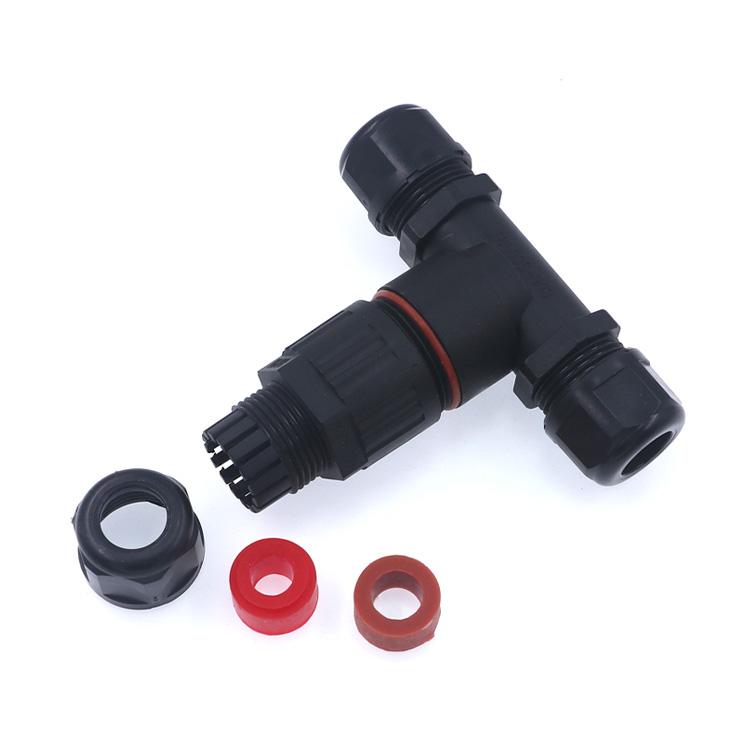

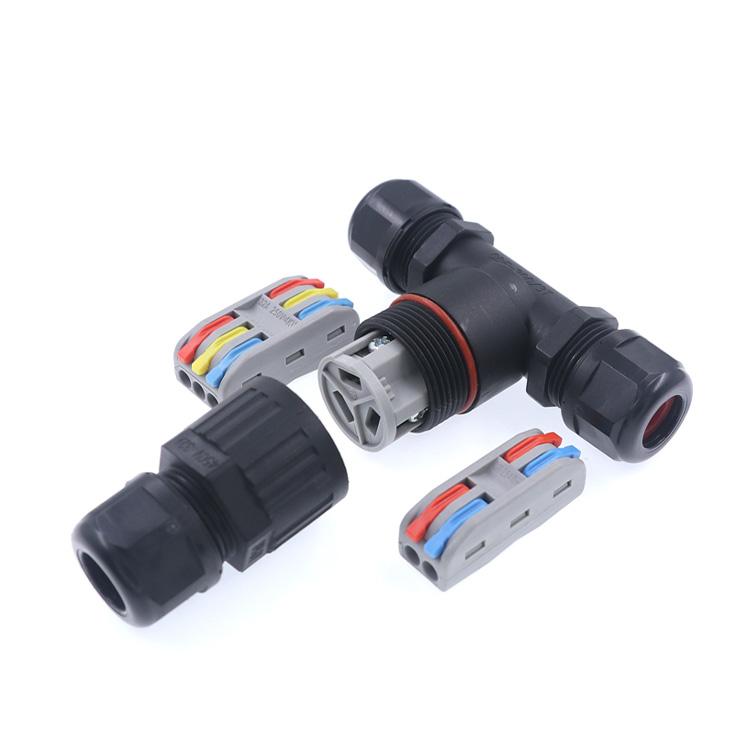

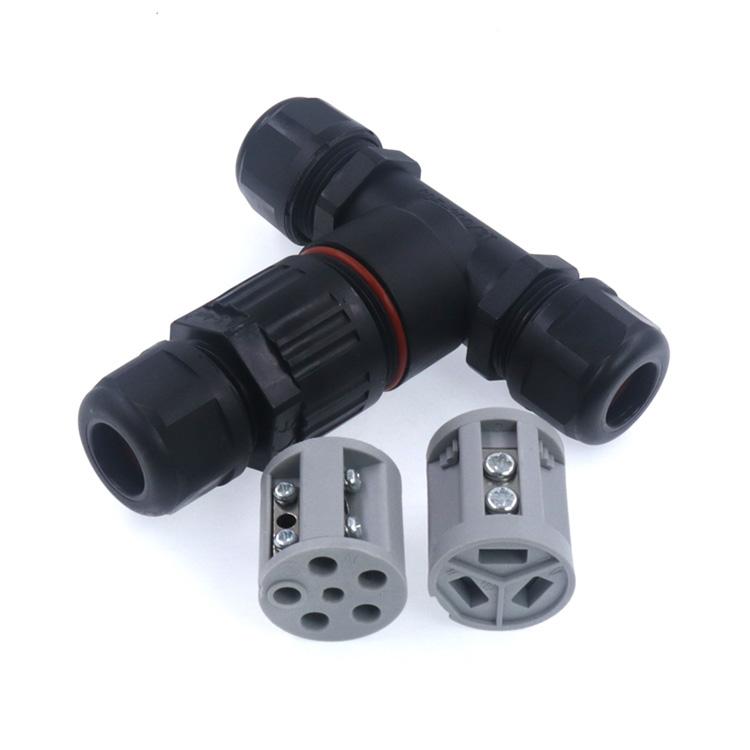

CDF-200T Exploded View, Detail Images, Wiring Instructions

Application Scenarios

CDF-200T is used in outdoor lighting equipment, outdoor electrical equipment, new energy equipment and automation equipment

Factory Display

All-in-one production and customization factory

Certificate Display

Shipping & Payment Methods

We support sea, air and land transportation, with a variety of express delivery options. Payment methods include PayPal, Visa, etc
