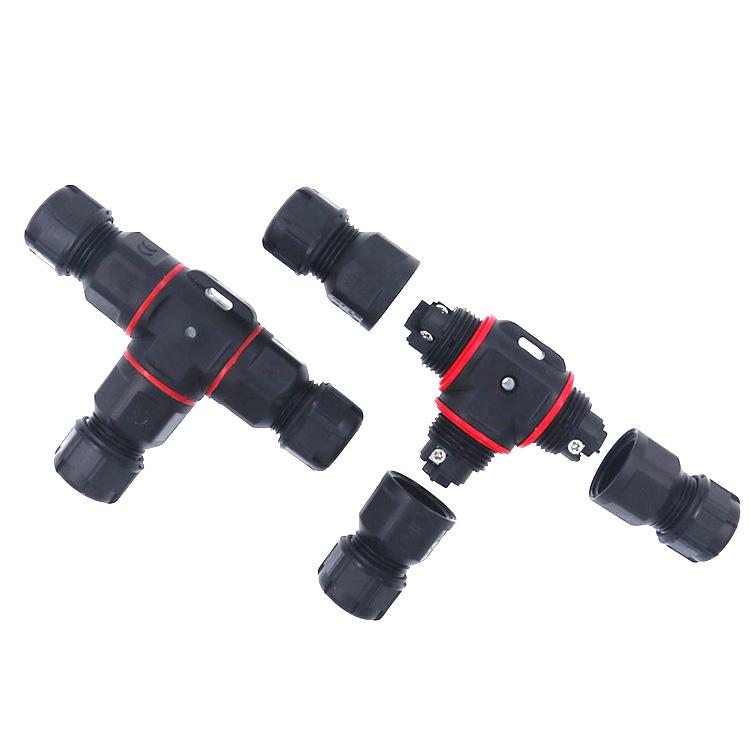

OL-T1 IP68 T-Type 3-Way 2-4Pin Power Connector

This IP67/IP68 outdoor waterproof connector is available in 2-pin, 3-pin, 4-pin and 5-pin versions, designed for stable power and signal connections in harsh outdoor environments. Featuring superior waterproof and dustproof protection, secure locking structure and high-quality pure copper contacts, this industrial waterproof electrical connector ensures excellent conductivity and corrosion resistance.
Crafted from durable insulated and weather-resistant materials, it withstands moisture, UV and extreme temperatures. Ideal for outdoor LED lighting, landscape lamps, surveillance equipment and industrial wiring projects, this plug-and-play waterproof connector offers easy installation and reliable long-lasting performance for outdoor applications.

Item no.:
OL-T1
Payment:
Wire transfer, Paypal, Western Union, Alipay
Product origin:
China
Lead Time:
5 day

Inquiry now

product introduction

Technical Specifications

Rated Current:	16A
Rated Voltage:	250V
Pin Count:	2P/3P/4P/5P
Contact Material:	Nickel plated copper
Shell Material:	Nylon
IP Rating:	IP68
Termination:	screw
Color:	Black
wire gague(max):	0.5-2.5mm2
Temperature range:	-30℃ ~ +90℃
OEM/ODM:	YES
Technical Support:	7*24h Online Service

Product selling points

· Top-level waterproof performance: IP68 rating, dual inner/outer rubber gaskets, underground buriable & fully submersible, anti-deformation and leak-proof.

· Wide temperature adaptability: Operable in -30℃~+90℃, stable performance in extreme outdoor environments.

· Reliable electrical specs: 16A rated current, 250V/450V AC rated voltage, 0.5-2.5mm²/<14AWG wire range, 8-12mm cable OD compatible.

· Premium materials: Nickel-plated copper contacts for high conductivity, nylon/PA housing, durable and wear-resistant.

· Flexible configurations: 2/3/4/5 pin options available, T-type 3-way design for convenient power distribution.

· Stable & easy wiring: Screw termination with anti-loosening design, solderless quick connection, firm and reliable.

· Full customization: OEM/ODM supported (cables, logos, specs), drawing/sample-based customization available.

· Efficient delivery: 7-day lead time for 1-3000pcs, factory direct supply with competitive pricing.

· Professional support: 7*24h online technical support, multiple logistics and payment options.

· Wide outdoor application: Ideal for mechanical/lighting/solar/fountain lamp equipment, all outdoor waterproof wiring scenarios.

Product details

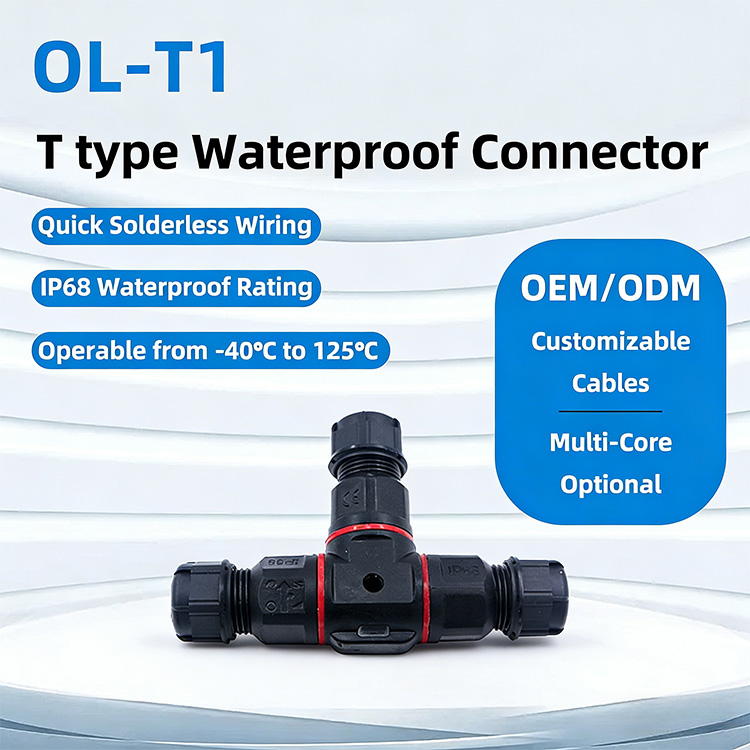

The OL-T1 features fast soldering without wiring, IP68 waterproof rating, and supports an operating temperature range of -40℃ to +125℃.

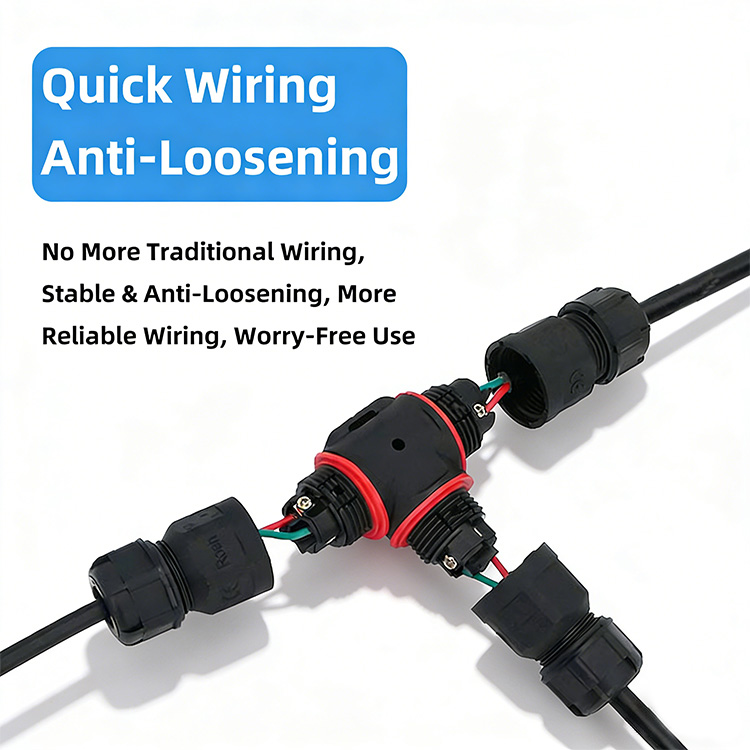

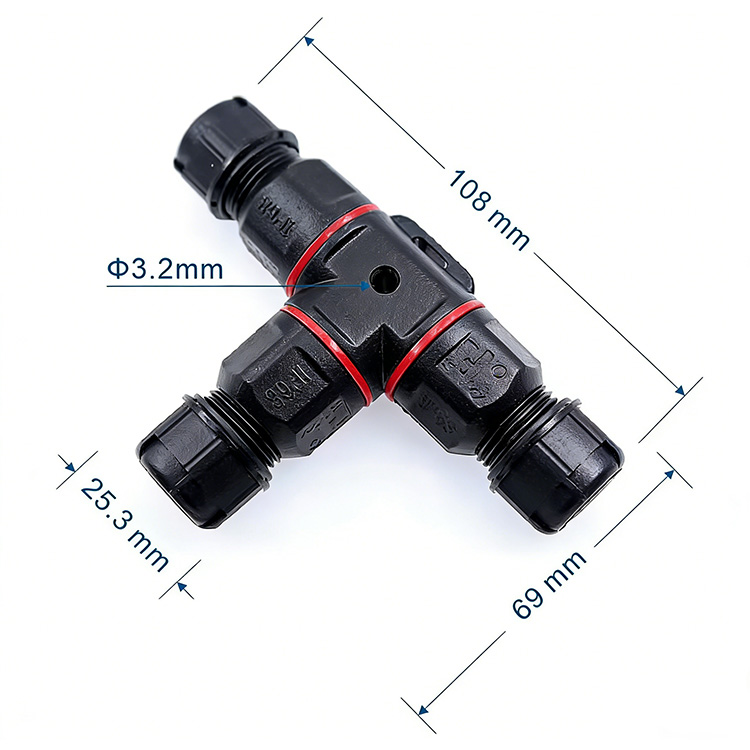

No More Traditional Wiring, Stable & Anti-Loosening, MoreReliable wiring, Worry-Free Use The OL-T1 consists of cable protection cover, wiring terminal, waterproof rubber core, sealing ring, locknut, clamping jaws and connector body. The OL-T1 has a length of 69 mm, a width of 108 mm, and a nut width of 25.3 mm.

Application Scenarios

The OL-T1 can be applied to LED lights, outdoor electrical components, underwater facilities, new energy facilities, and more

Factory Display

All-in-one production and customization factory

Certificate Display

Shipping & Payment Methods

We support sea, air and land transportation, with a variety of express delivery options. Payment methods include PayPal, Visa, etc
