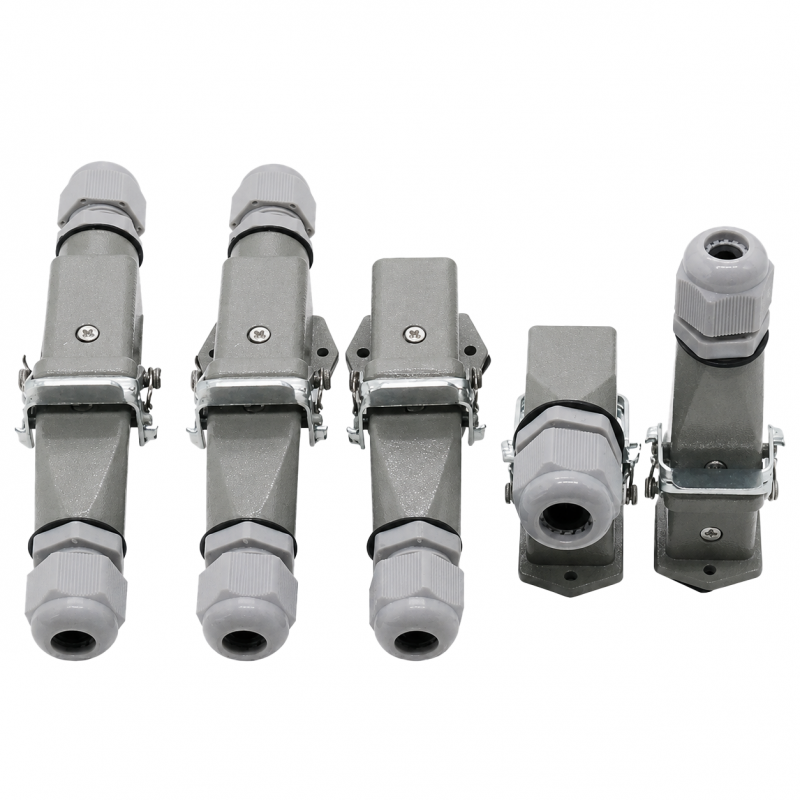

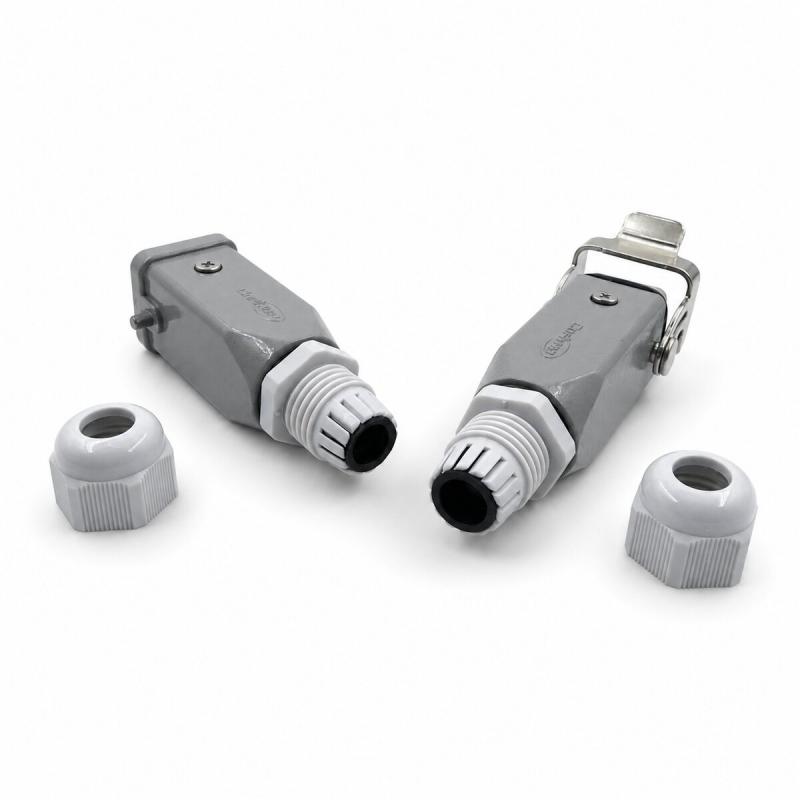

OLINK HA Series Heavy Duty Connector 3+PE/4+PE/5+PE/7+PE

The OLINK HA Series Heavy Duty Connector is designed for reliable power and signal connection in industrial equipment, control cabinets, automation systems, and outdoor electrical applications. Available in 3+PE, 4+PE, 5+PE, and 7+PE configurations, it supports 10A/16A rated current and 250V rated voltage.

With an IP65 aluminum alloy housing, silver-plated contacts, and flame-retardant insulation material, this rectangular industrial connector helps provide stable conductivity, dust and water protection, and long-term durability in harsh working environments. The HA Series is suitable for machinery, power distribution, factory automation, industrial workshops, and other equipment requiring secure plug-and-socket connection.

  • Item no.:

    OL-HDC-HA
  • Product origin:

    China
  • Goods stock:

    2000
  • Min order:

    10
  • Shipping port:

    Xiamen
  • Lead Time:

    10

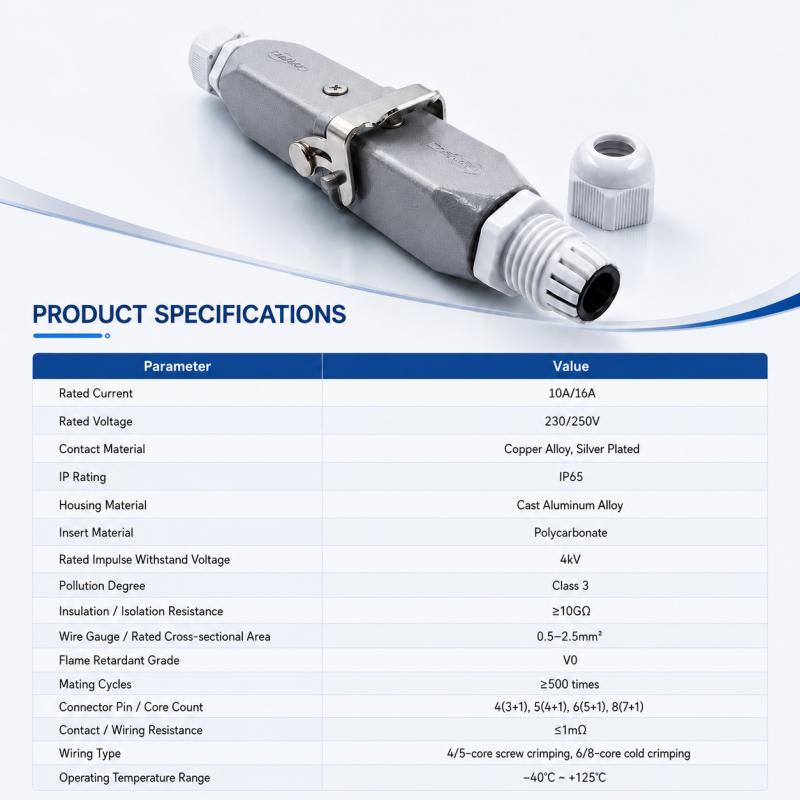

Technical Specifications

Product Name:
OLINK HA Series IP65 Heavy Duty Connector
Rated Current:
10A/16A
Rated Voltage:
230V / 250V
Contact Material:
Copper Alloy, Silver Plated
Housing Material:
Cast Aluminum Alloy
IP Rating:
IP65
Rated Impulse Voltage:
4kV
Pollution Degree:
Class 3
Insulation Resistance:
≥10GΩ
Contact Resistance:
≤1mΩ
Wire Gauge:
0.5-2.5mm²
Flame Retardant Grade:
UL94 V-0
Temperature Range:
-40℃ ~ +125℃
Mating Cycles:
≥500 times
Insert Material:
Polycarbonate
Wiring Type:
4/5-Pole: Screw Termination; 6/8-Pole: Crimp Termination

Product Overview

This aluminum heavy-duty connector combines a die-cast housing, IP65 protection, and multiple configuration options for reliable industrial power and signal connections. Different housing styles, pole configurations, and termination methods are available to meet various equipment and installation requirements.

Product details

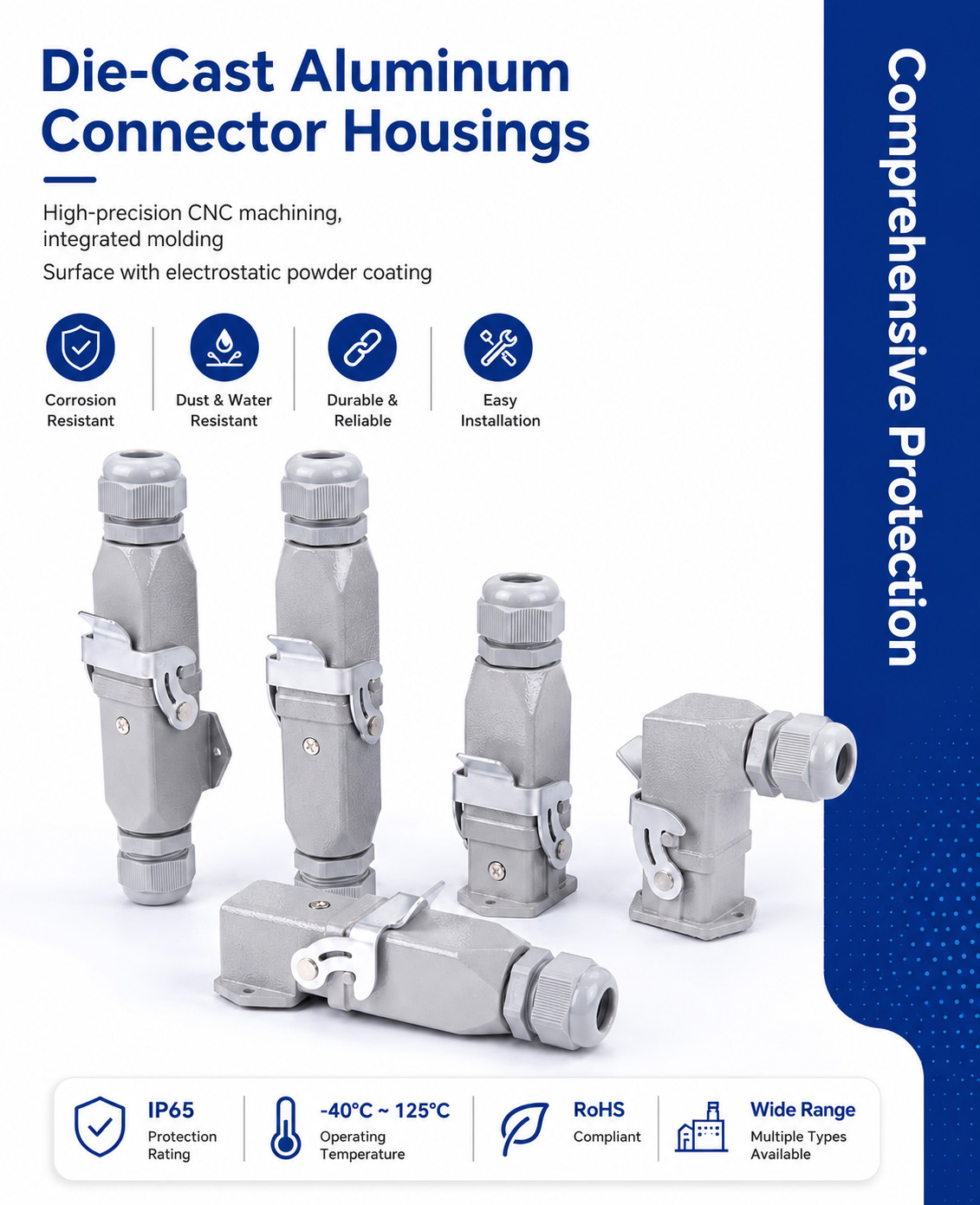

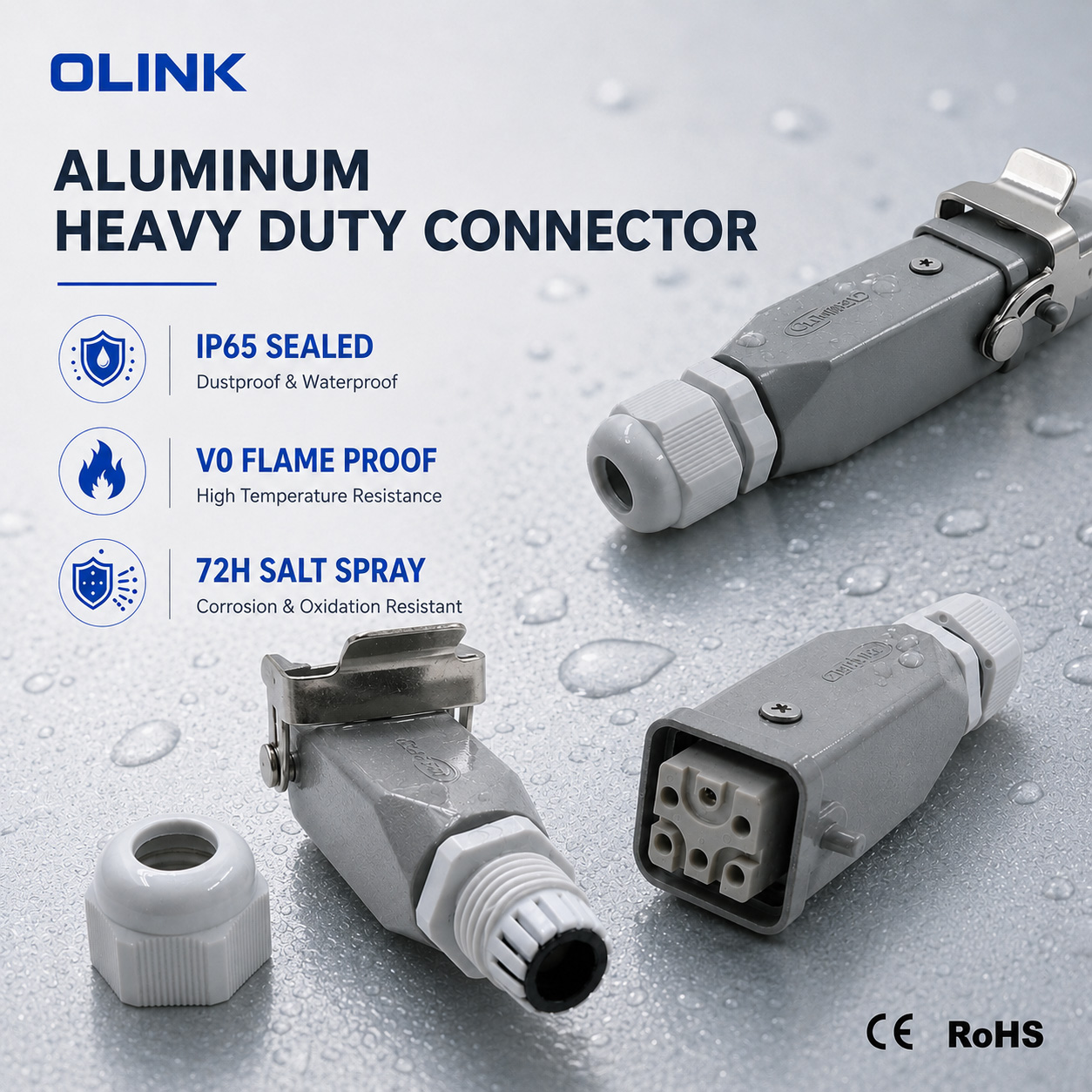

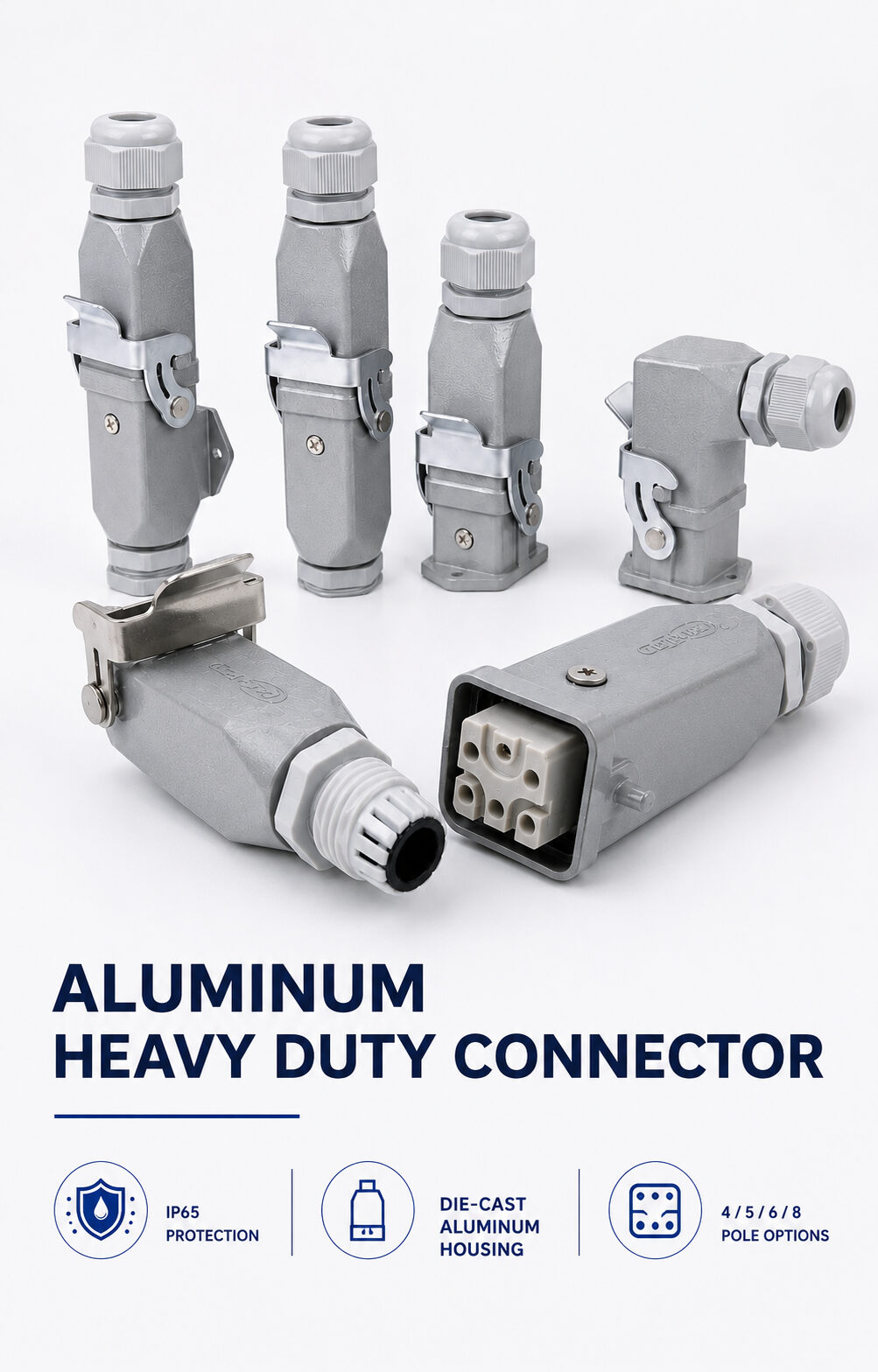

Reliable Protection for Industrial Connections

The die-cast aluminum housing provides durable mechanical protection for demanding industrial environments. Its IP65-rated design helps protect the connection from dust and water jets, while 4-, 5-, 6-, and 8-pole options support different electrical requirements.

Aluminum heavy-duty connector with IP65 protection and 4-, 5-, 6-, and 8-pole options

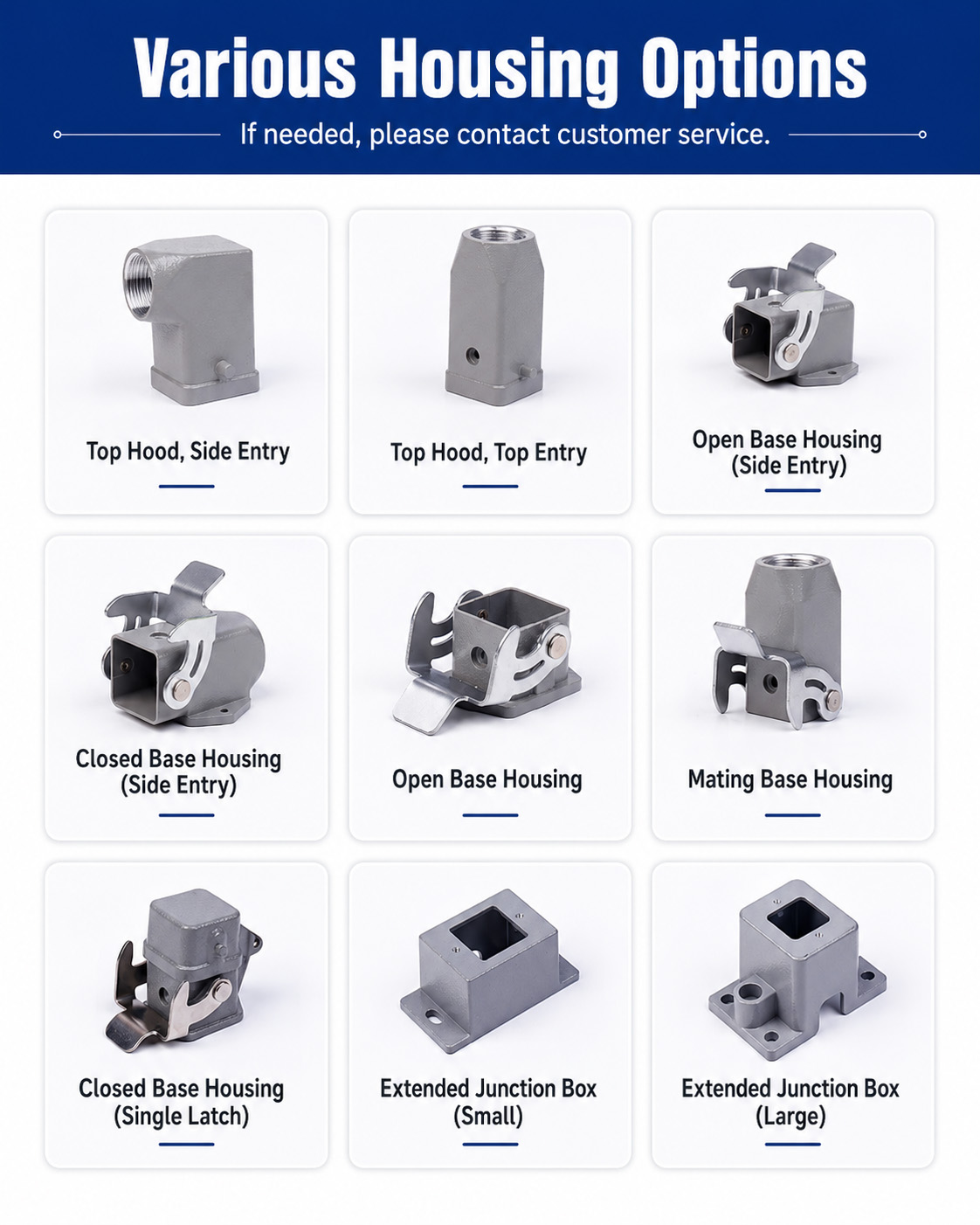

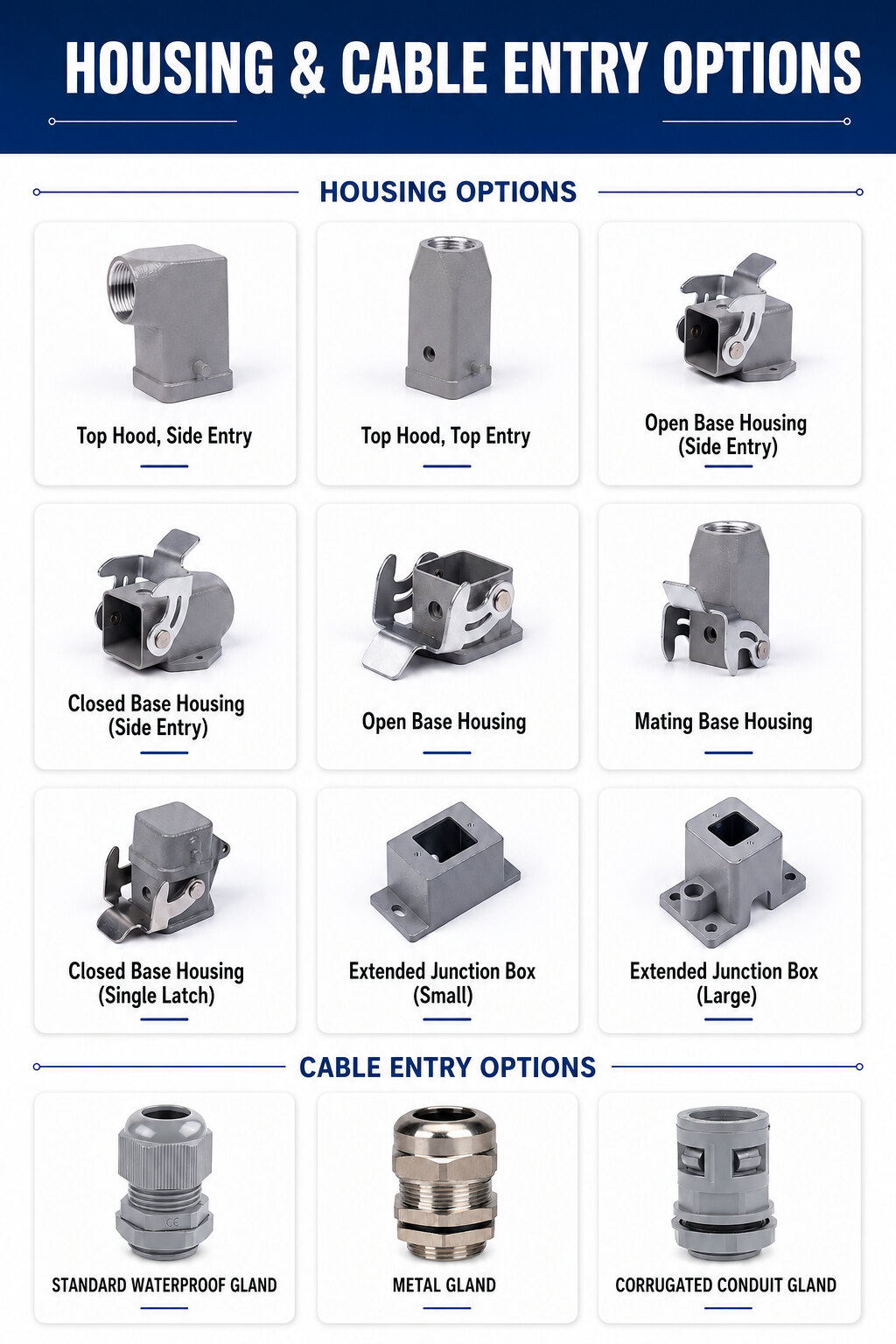

Flexible Housing and Cable Entry Options

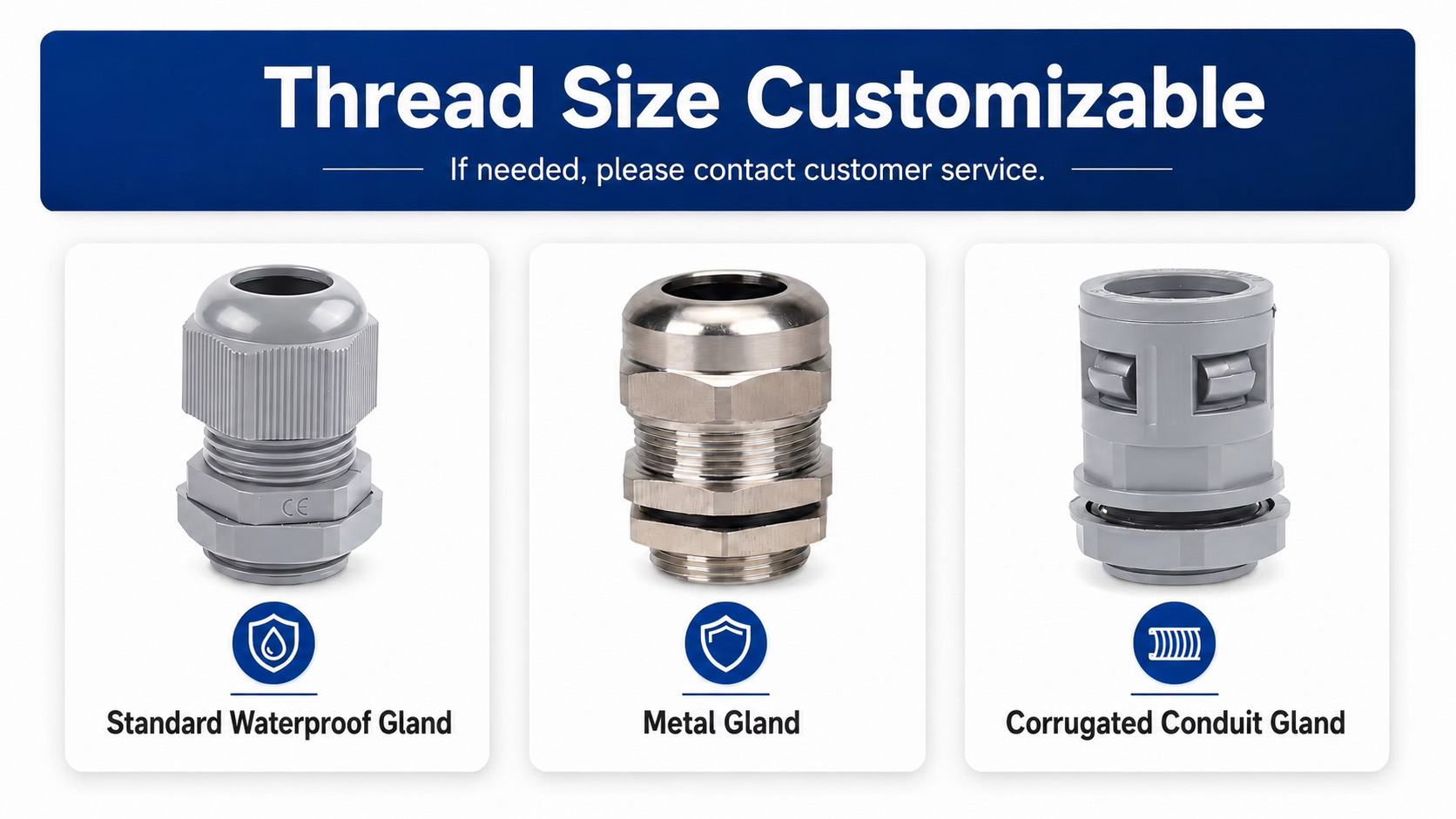

Choose from top-entry, side-entry, open-base, closed-base, single-latch, and extended junction-box housings. Standard waterproof glands, metal glands, and corrugated conduit glands are available for different cable-routing and installation conditions.

Heavy-duty connector housing styles and waterproof, metal, and conduit cable gland options

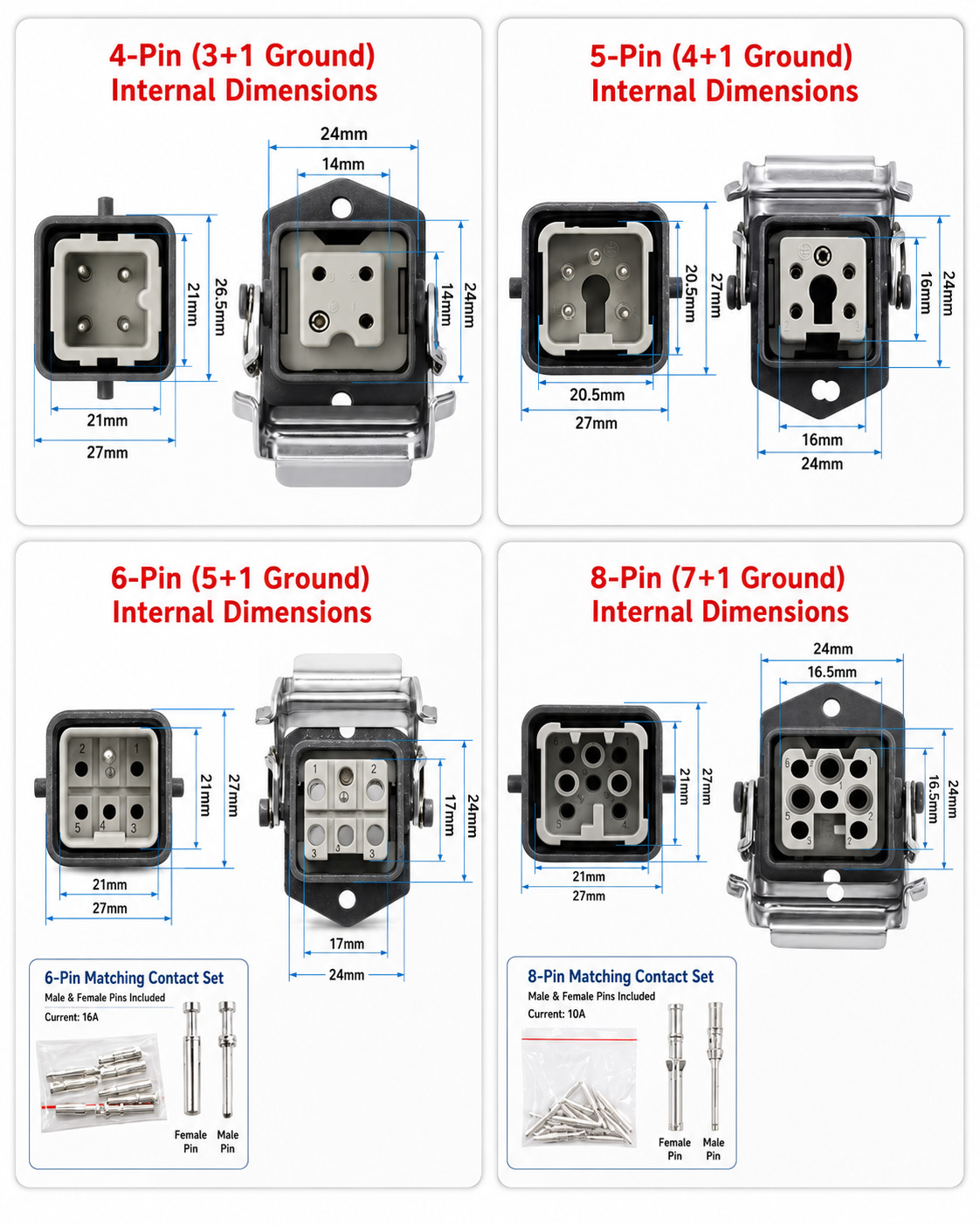

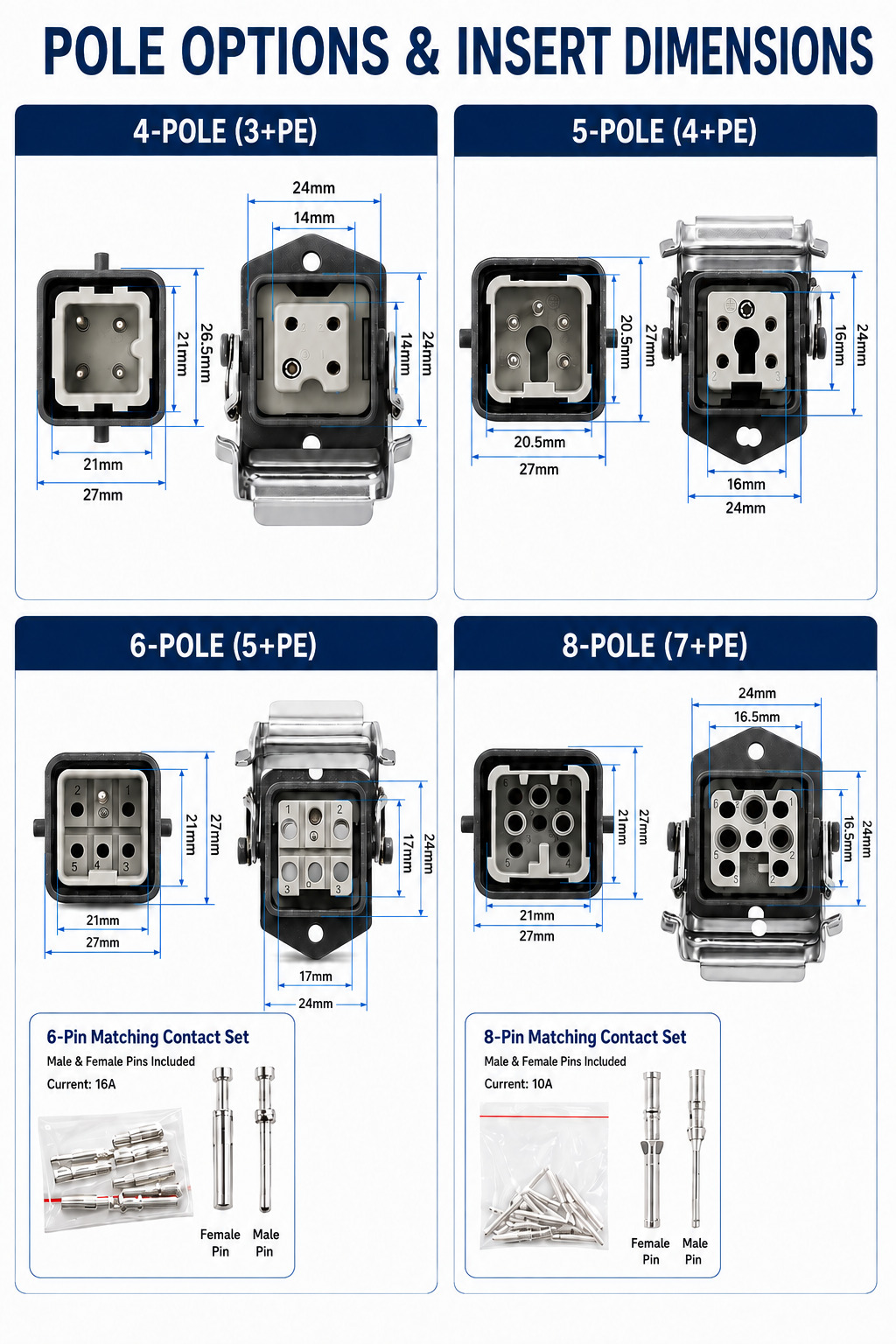

Choose the Right Pole Configuration

The connector is available with 4-, 5-, 6-, and 8-pole inserts. The 4- and 5-pole versions use screw termination, while the 6- and 8-pole versions use crimp contacts with matching male and female contact sets.

4-, 5-, 6-, and 8-pole heavy-duty connector insert dimensions

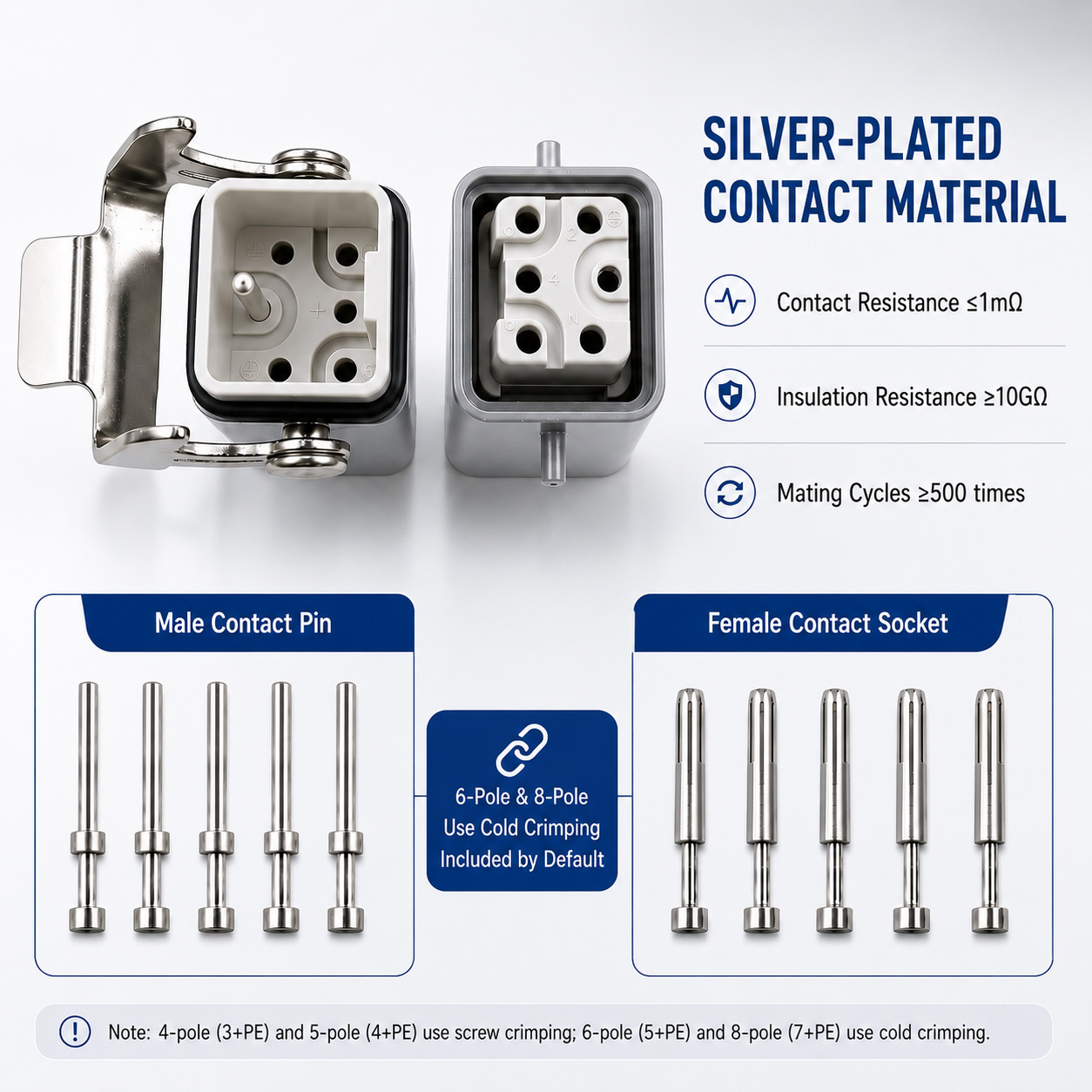

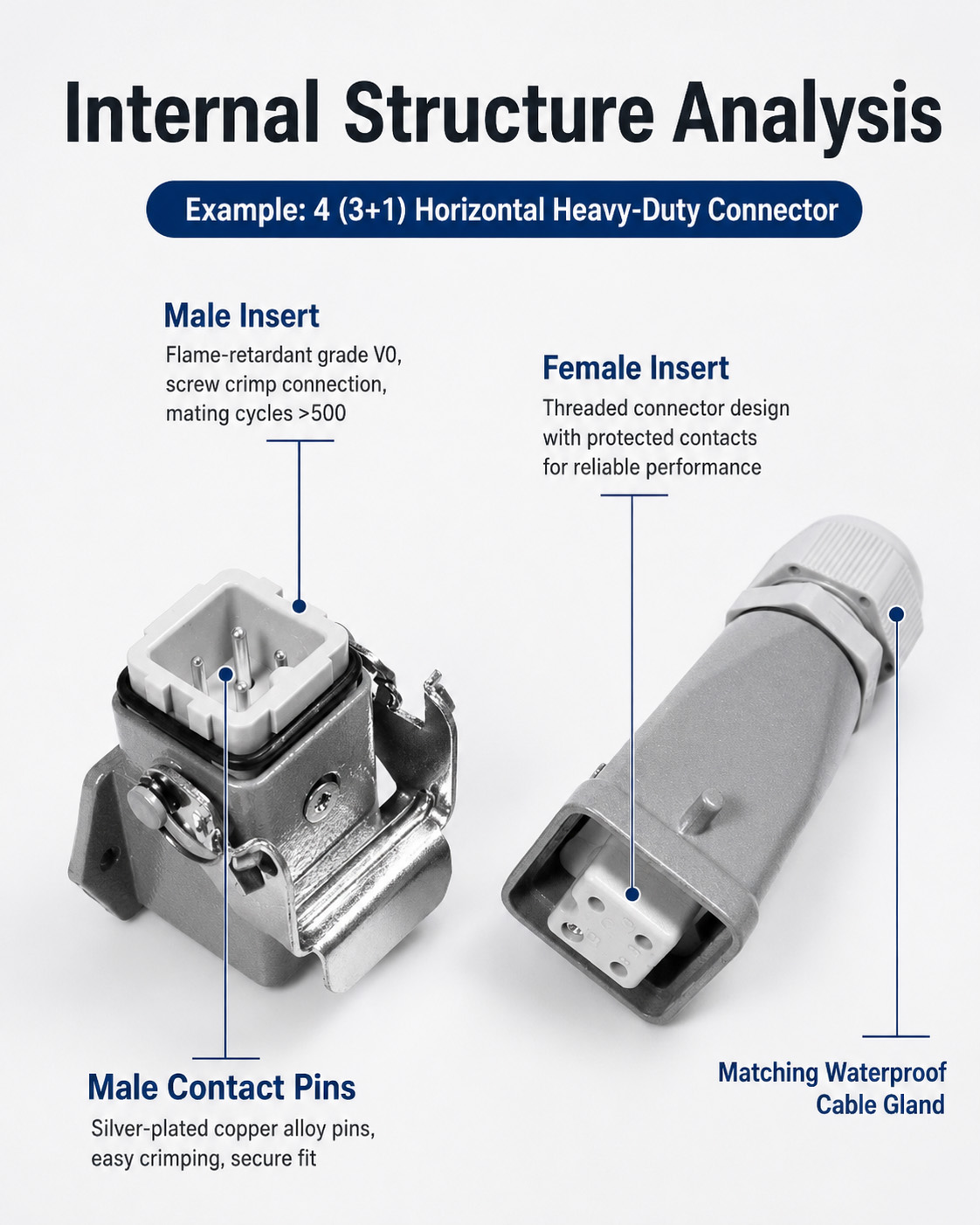

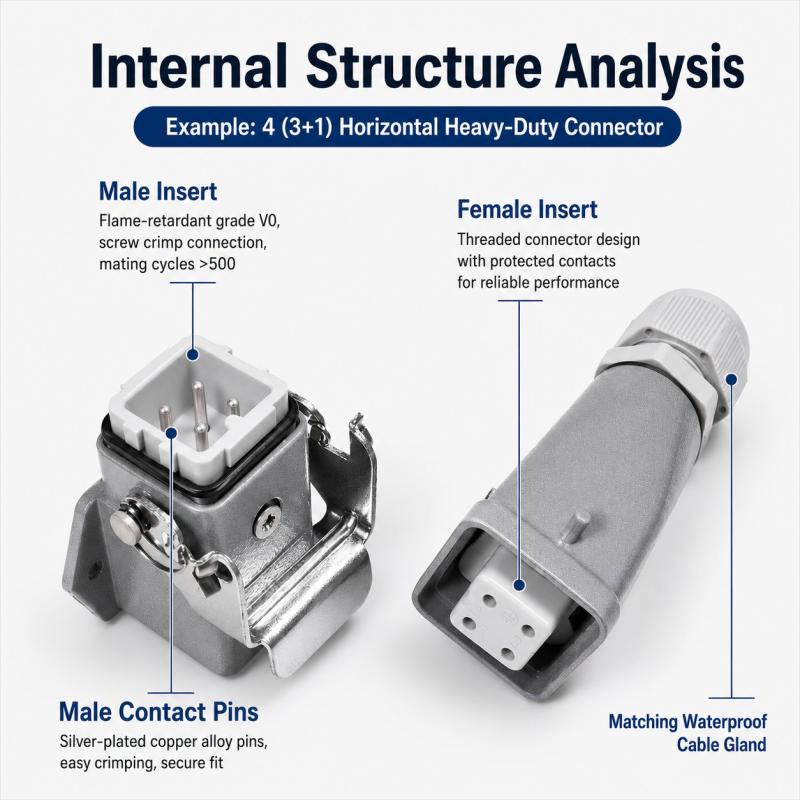

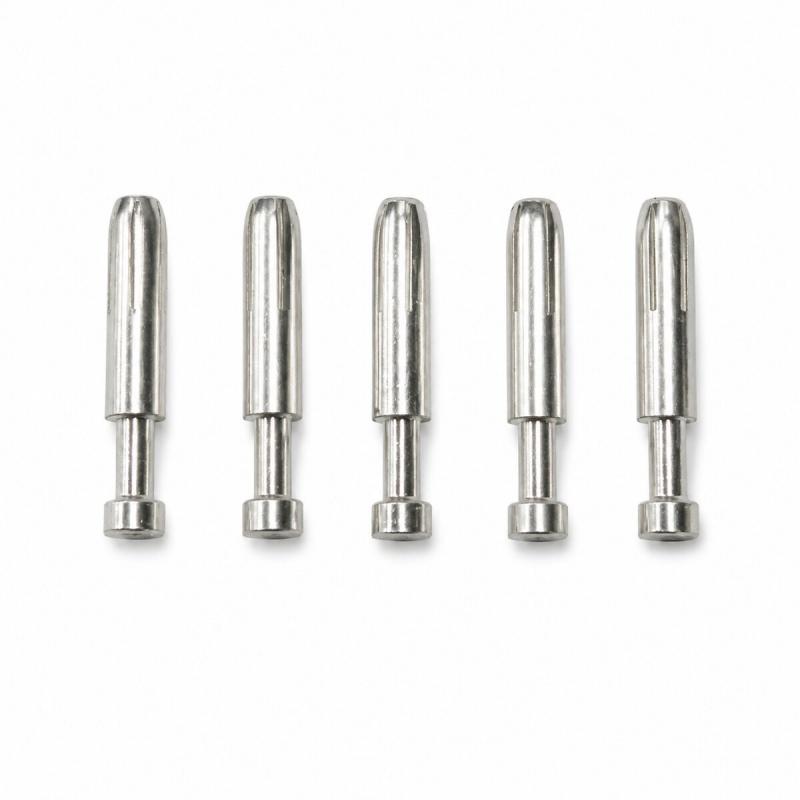

Reliable Contact and Termination System

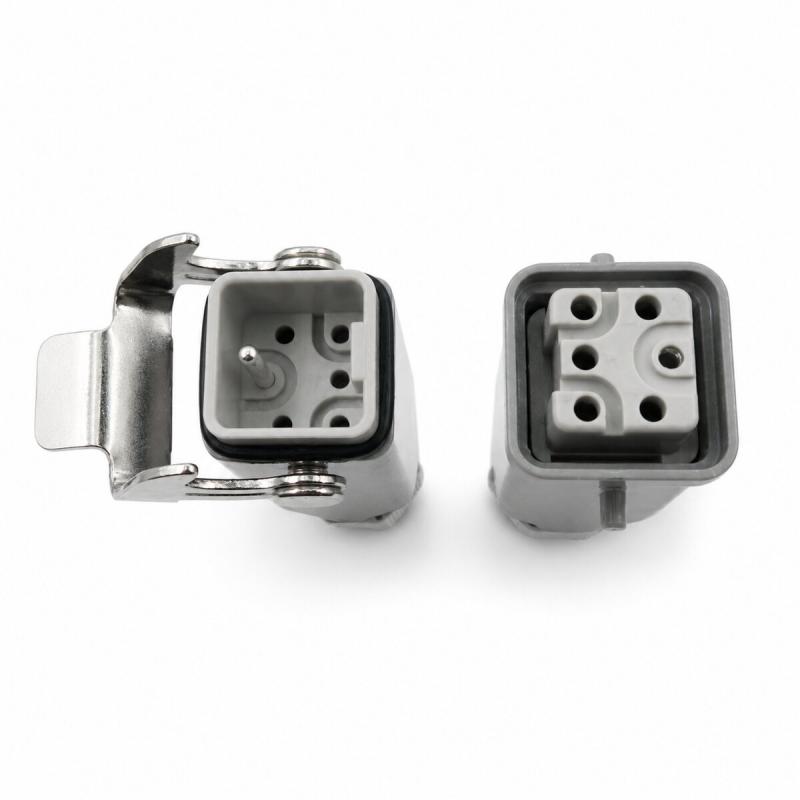

Silver-plated copper-alloy contacts provide stable electrical performance and low contact resistance. The male and female inserts are designed for secure engagement and repeated connection, with a mating life of at least 500 cycles.

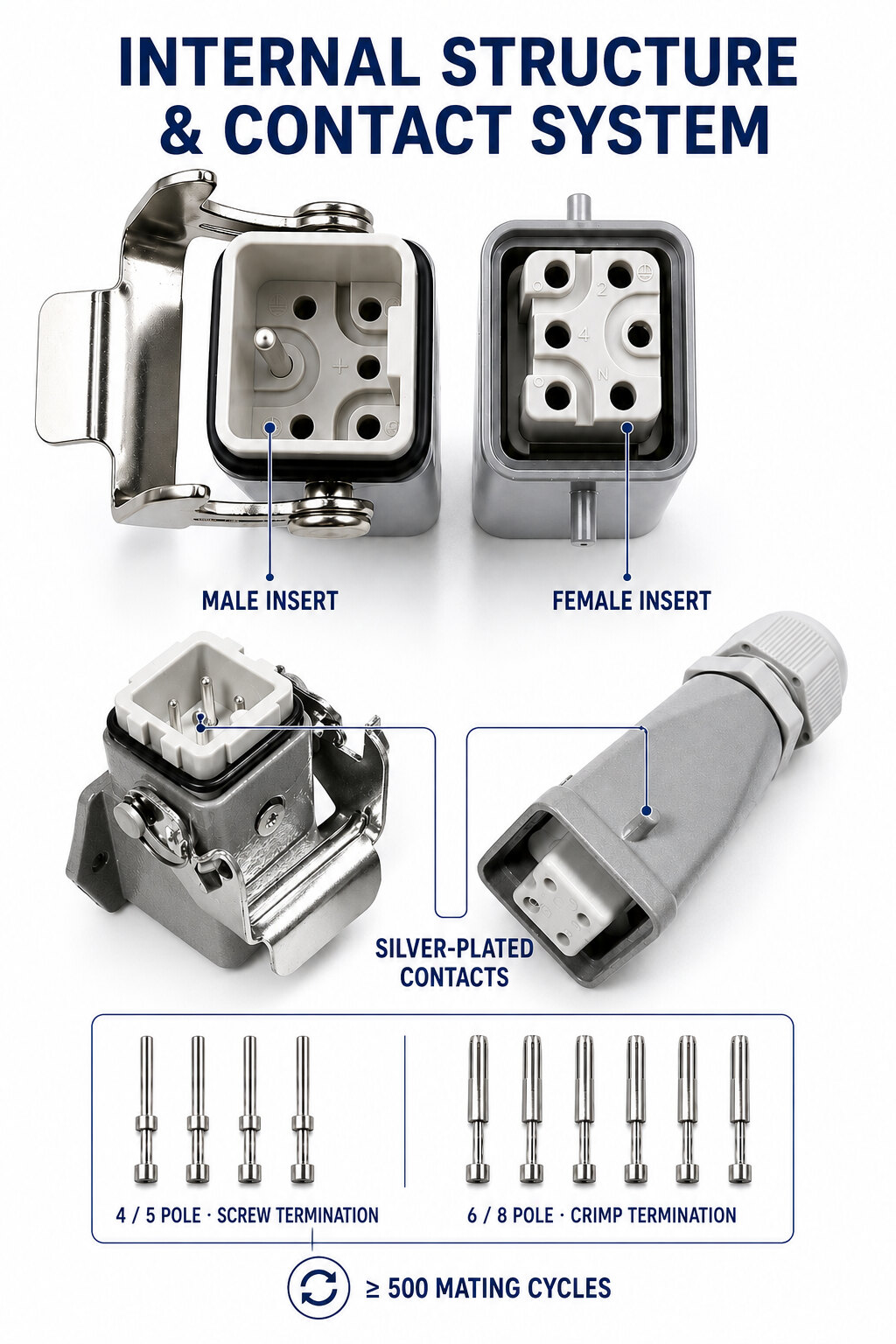

Heavy-duty connector male and female inserts with silver-plated screw and crimp contacts

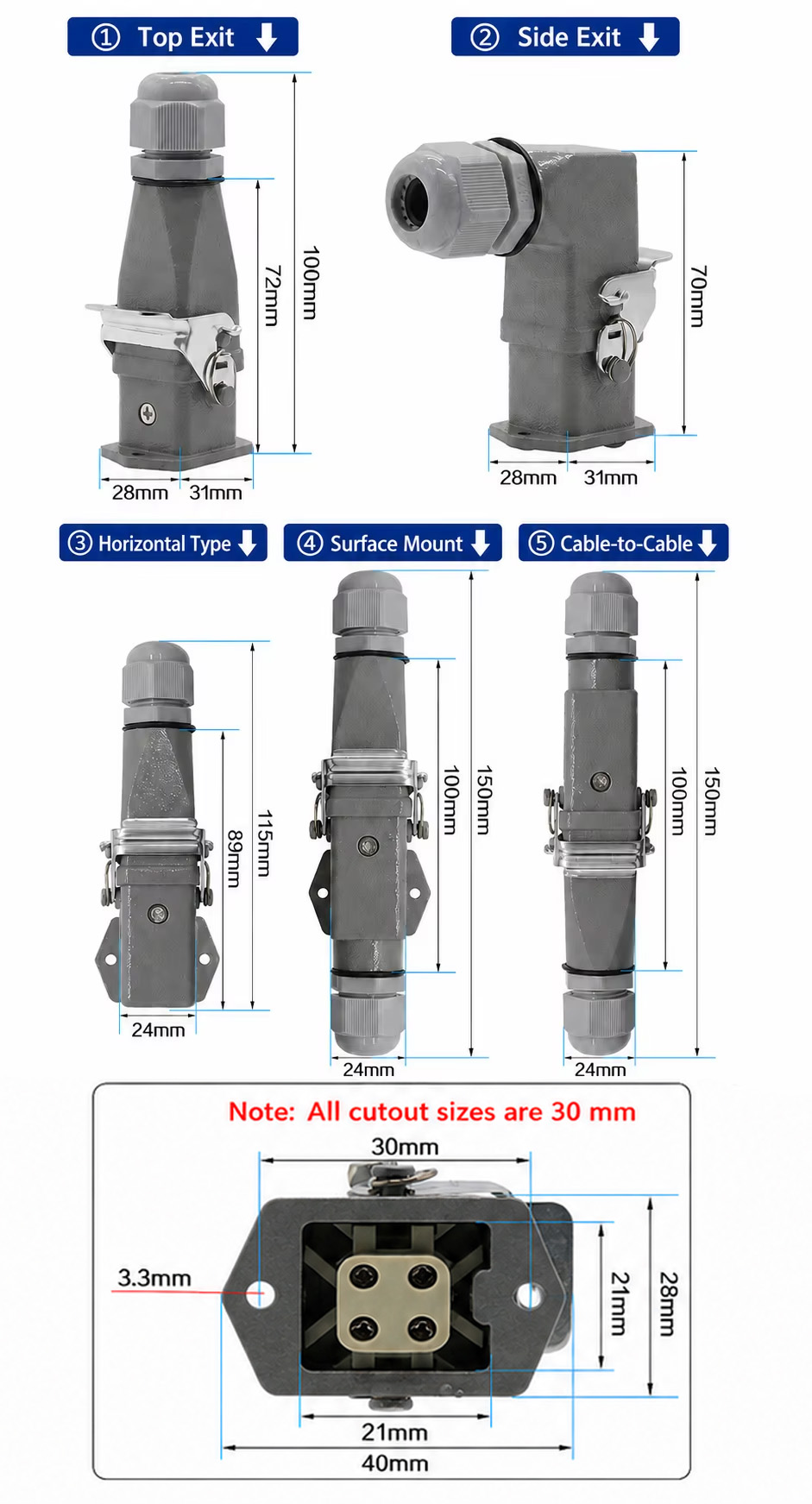

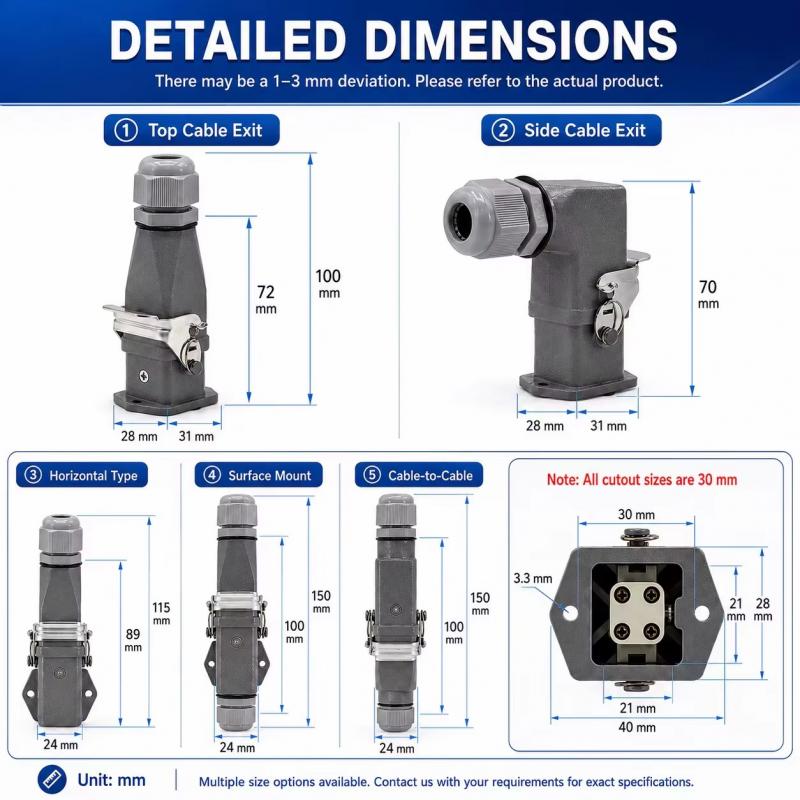

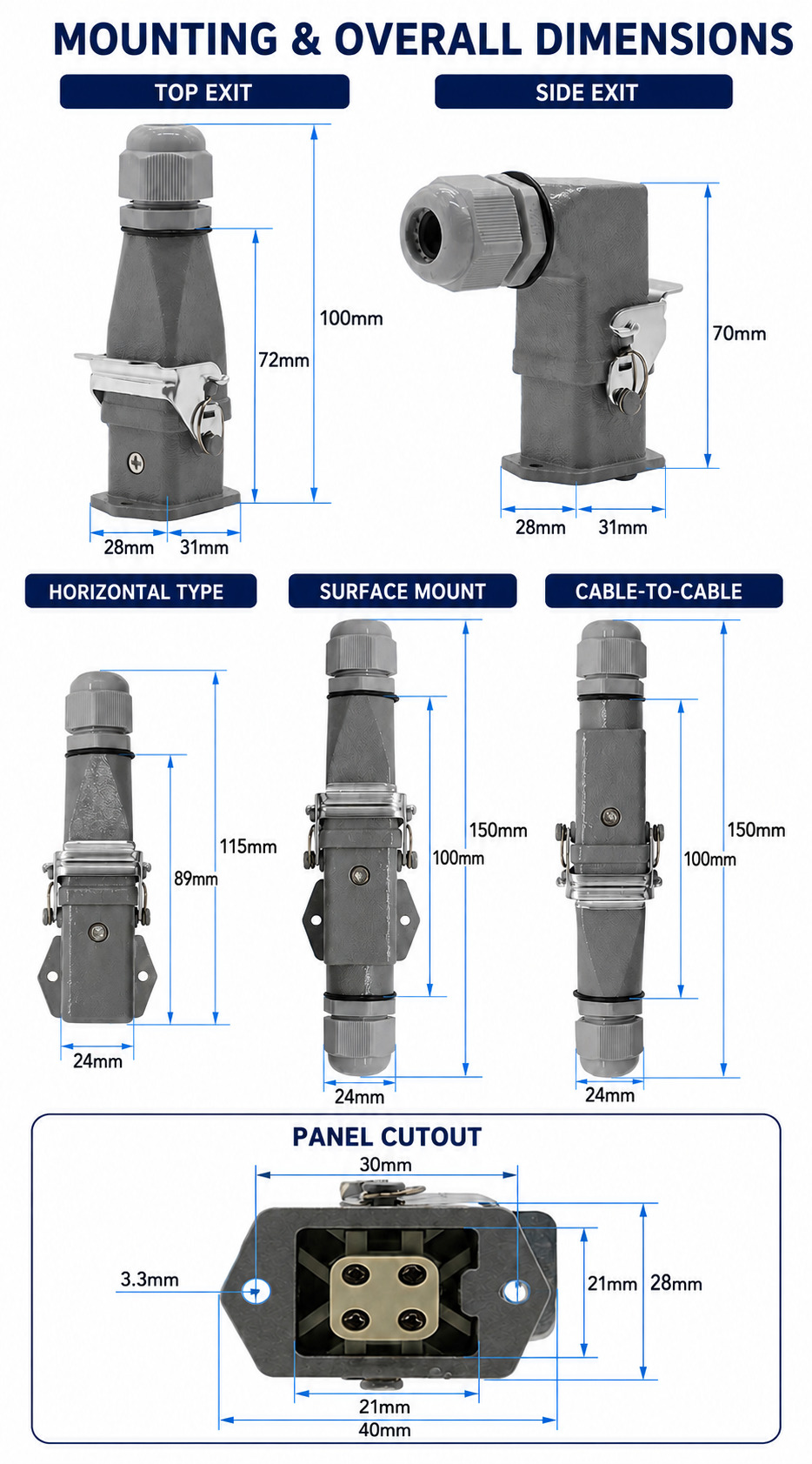

Dimensions for Installation Planning

Compare the dimensions of top-entry, side-entry, horizontal, surface-mount, and cable-to-cable configurations. Please confirm the overall height, housing width, mounting-hole position, and panel cutout dimensions before ordering.

Heavy-duty connector mounting styles, overall dimensions, and panel cutout

Typical Industrial Applications

This heavy-duty connector is suitable for wind power equipment, rail transit systems, industrial automation, and industrial machinery. Different housing, insert, and cable-entry combinations can be selected according to the equipment layout and operating environment.

Aluminum heavy-duty connector for wind power, rail transit, industrial automation, and machinery

Need Help Selecting a Configuration?

Send us your required pole count, rated current and voltage, termination method, mounting style, cable diameter, and cable-entry direction. Our team can recommend a suitable housing and insert combination for sampling or OEM/ODM production.
