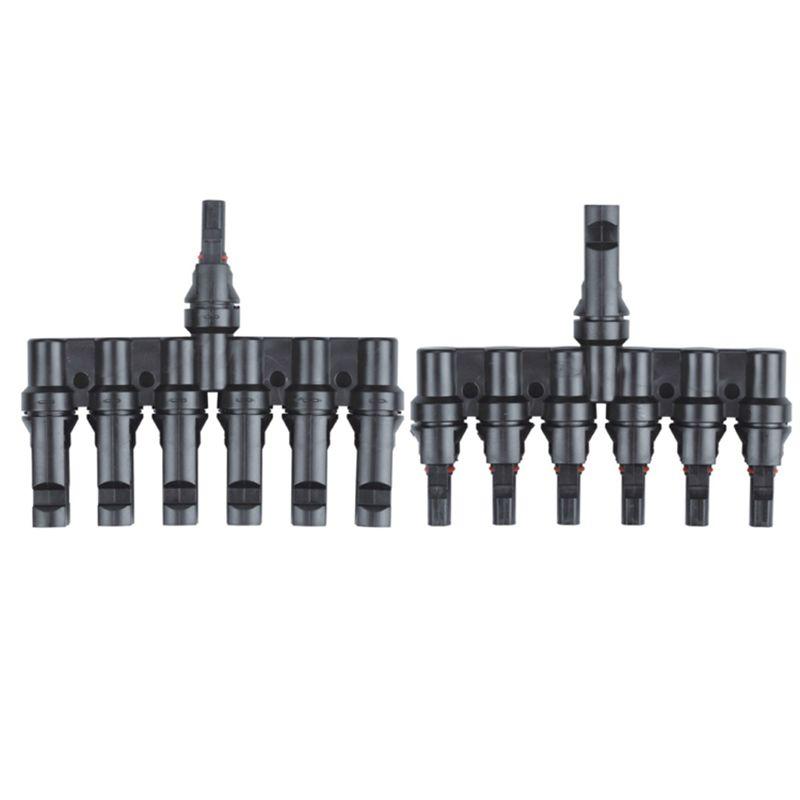

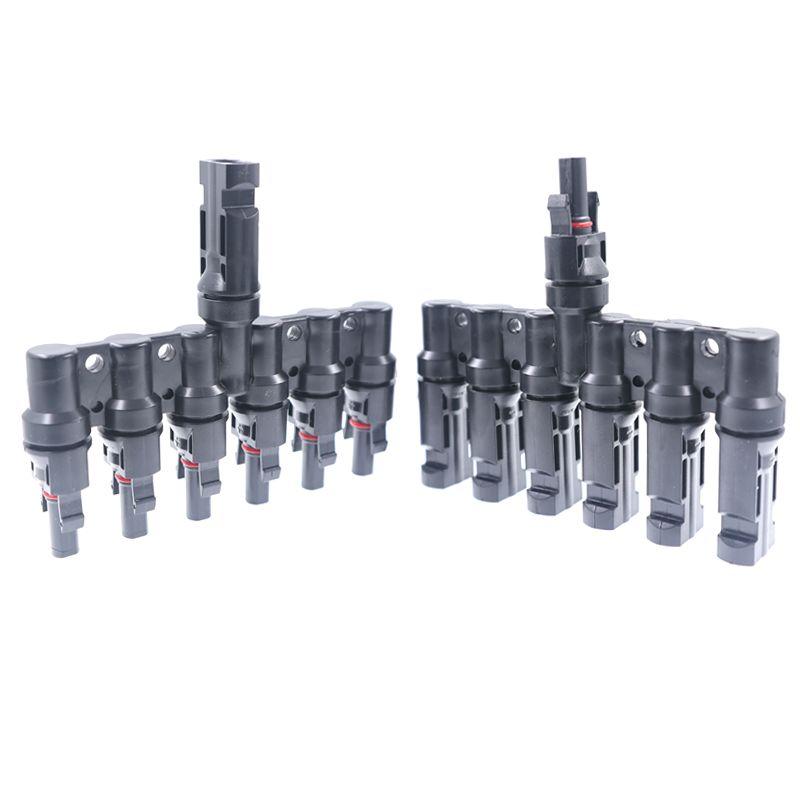

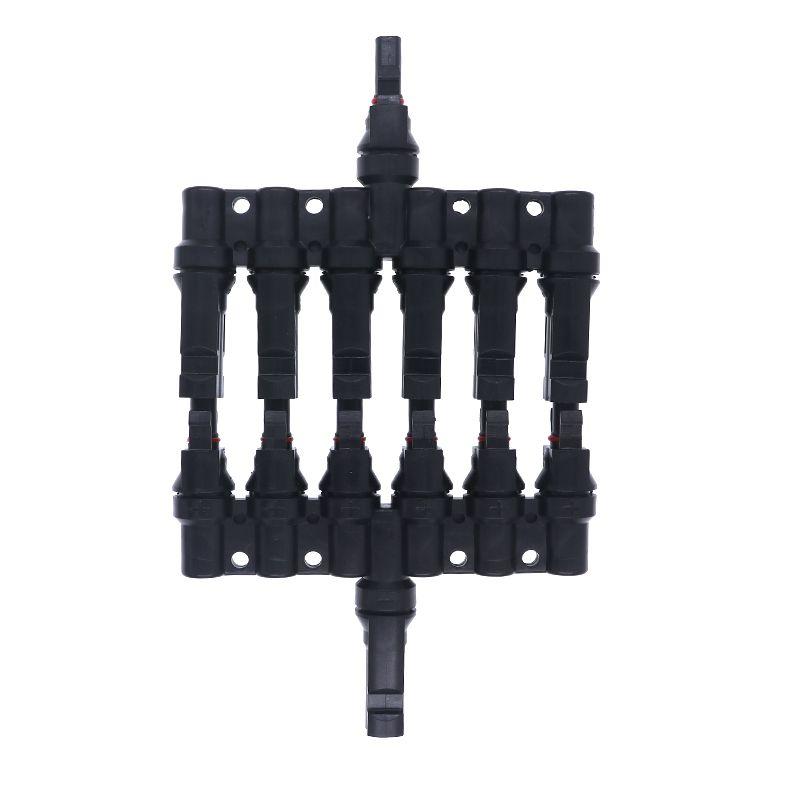

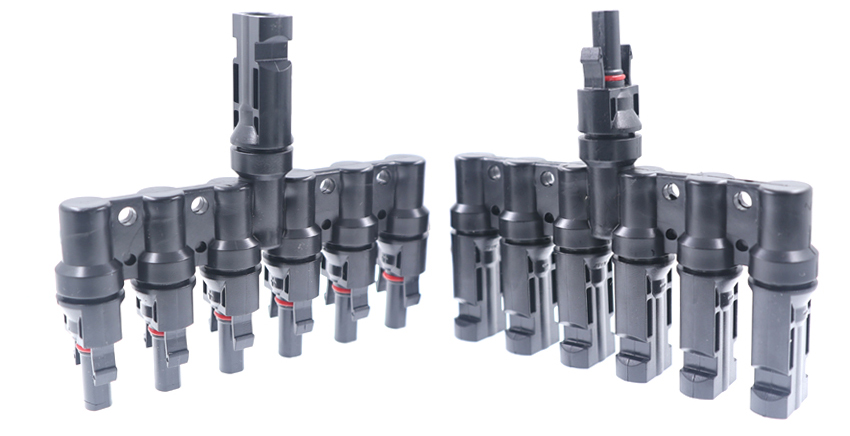

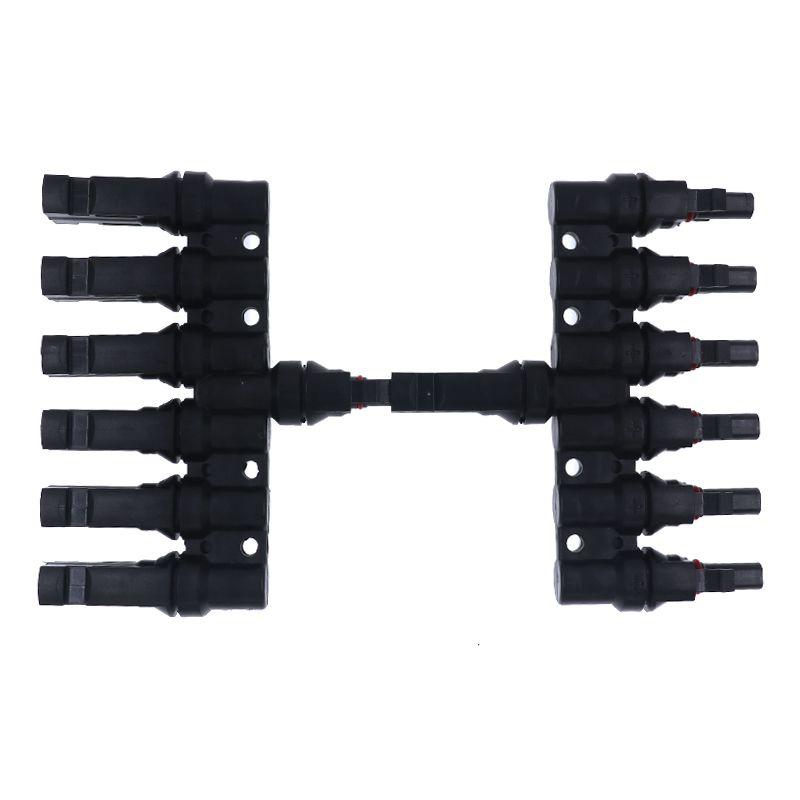

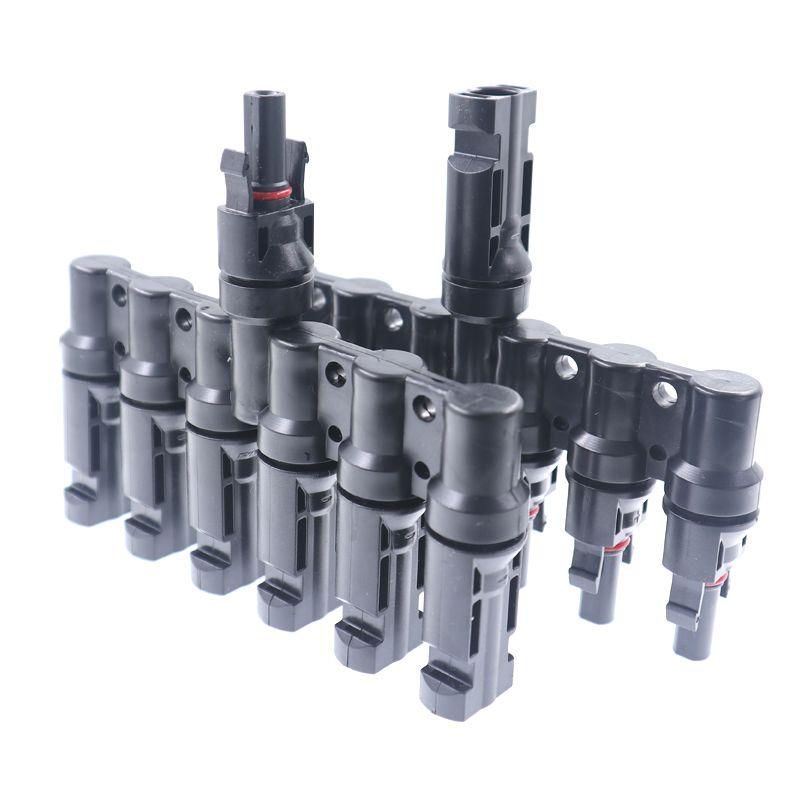

Male female solar power connector branch 6 to 1

Special Products for Photovoltaic Engineering. It has the characteristics of fast and reliable connection, waterproof and dustproof, and convenient to use.




  • Brand:

    OLINK
  • Item no.:

    PV-T6
  • Payment:

    Wire transfer, PayPal, Western Union, Alipay
  • Product origin:

    China
  • Color:

    Black
  • Goods stock:

    50000
  • Shipping port:

    Xiamen, Ningbo
  • Lead Time:

    7

Male female solar power connector branch 6 to 1

  Description of solar panel branch connector

Solar photovoltaic connector T type, there are T2, T3, T4, T5 and also T6. Insulation material is PPO, waterproof level can reach IP67. 1 set contains positive and negative poles.

Application: roof, greenhouse cultivation, traffic scene lighting, parking lot charging station, commercial building, deep well drinking water/irrigation, marine research, oil pipeline, etc.

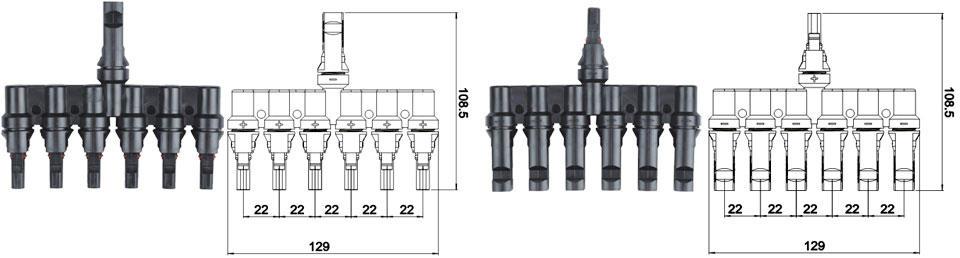

  Drawing Of MC4T Solar Connector


  Technical Data For Solar MC4 Connector

Pin Dimensions:
 φ4 mm Temperature range:
 -40℃...+85℃
Rated Voltage:   1500 V Rated current:   30 A
Degree of protection, mated:   IP67 Flame class:   UL-94-V0
Contact resistance:  < 0.5 mΩ Contact material:  Copper, tin plated
Insulation material:   PPO



  Feature Of IP67 Solar Connector

  • Six-way T type: safe connection, easy to assemble

  • Repeated plugging and unplugging: long life, automatic locking provides safe docking

  • PPO engineering plastics: high-strength PPO material, high rigidity, heat-resistant, flame-retardant, wear-resistant, anti-fouling

  • High-strength waterproof ring: IP67 waterproof grade, dustproof and waterproof can extend product life
