1000V waterproof solar panel wire connector

MC4 PV connectors are single-contact electrical connectors commonly used for connecting solar panels. The compatible products are universal in the solar market today, equipping almost all solar panels produced since about 2011.[citation needed] Originally rated for 600 V, newer versions are rated at 1500 V, which allows longer strings to be created.
  • Brand:

    OLINK
  • Item no.:

    PV-LTM01
  • Payment:

    Wire transfer, Paypal, Western Union, Alipay
  • Product origin:

    China
  • Color:

    Black
  • Shipping port:

    Xiamen
  • Lead Time:

    7

 1000V waterproof solar panel wire connectors

  Description Of Solar Connector

The MC4 system consists of a plug and socket design. The plugs and sockets are inside plastic shells that appear to be the opposite gender - the plug is inside a cylindrical shell that looks like a female connector but is referred to as male, and the socket is inside a square probe that looks male but is electrically female.

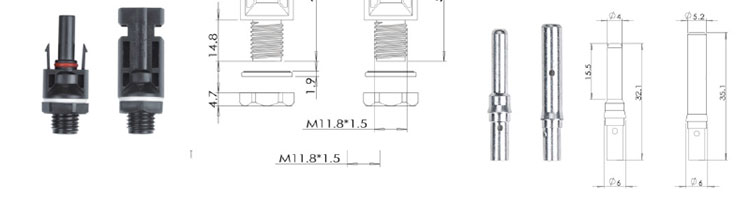

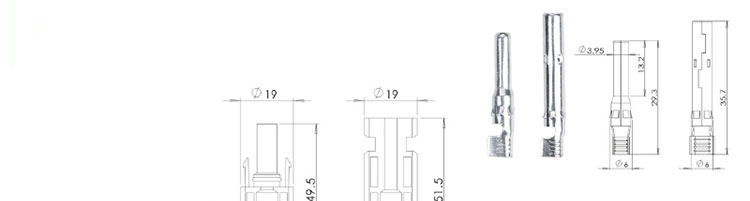

  Drawings Of Solar Connector

  Technical Data of MC4 Solar Connector

Product name   Solar DC Connector
Rated voltage   1000V DC(IEC)
Rated currect

 17A(1.5MM2)

 22A(2.5MM2, 14AWG)

 30A(4mm2, 6mm2, 12AWG, 10Awg)

Degree of protection mated   IP67
Insulation material   PC/PPO
Locking system   Snap-in
Flame class   UL-94-V0
Contact material   Messing, Verzinnt   copper alloy, tin-plated


  Are All Solar Panel Wire Connector The Same?

Solar wire connectors are divided into male and female connectors, which can be connected together. Normally, they can be connected and separated without tools. However, some solar connectors with different appearances can only be separated with the help of tools. In general, the interfaces that are the same as the MC4 connector can be connected to each other.
