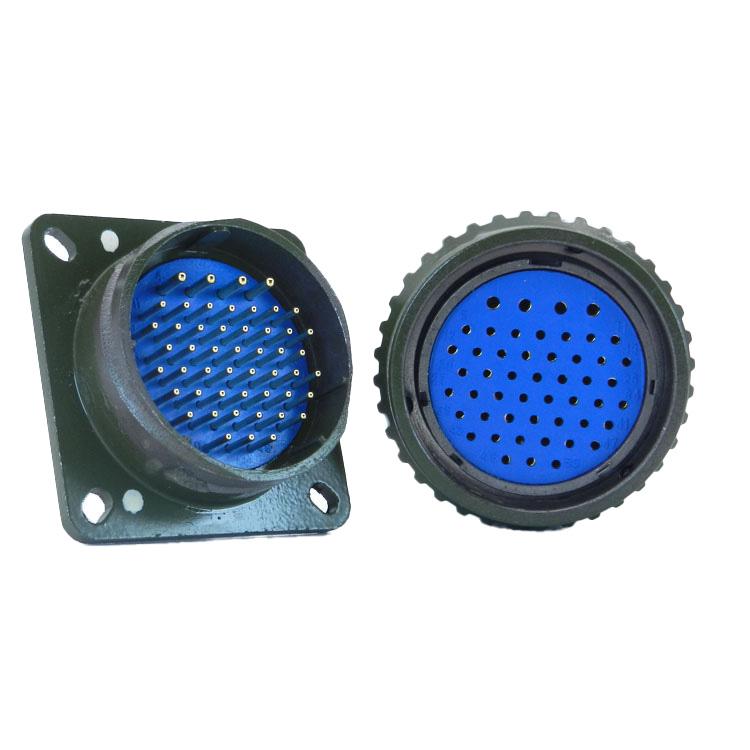

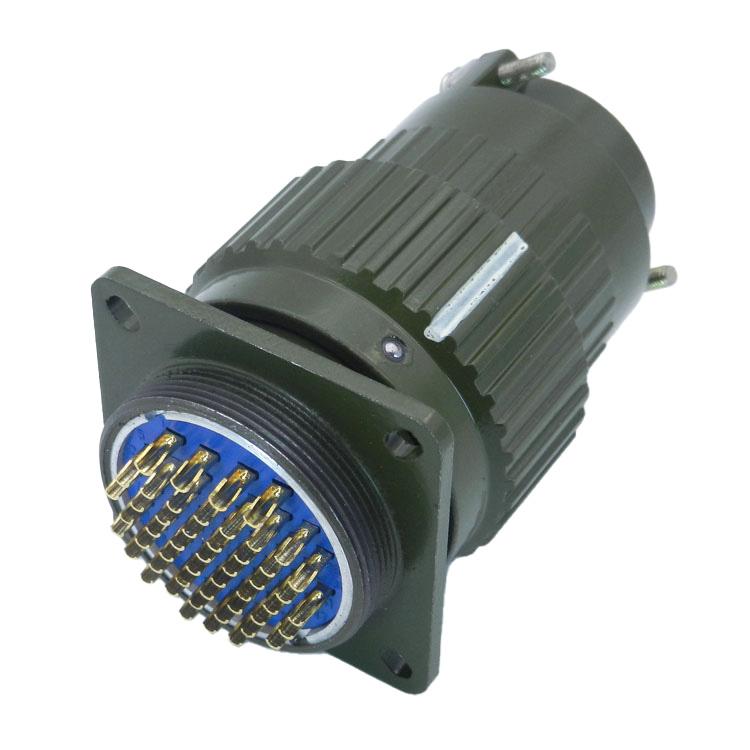

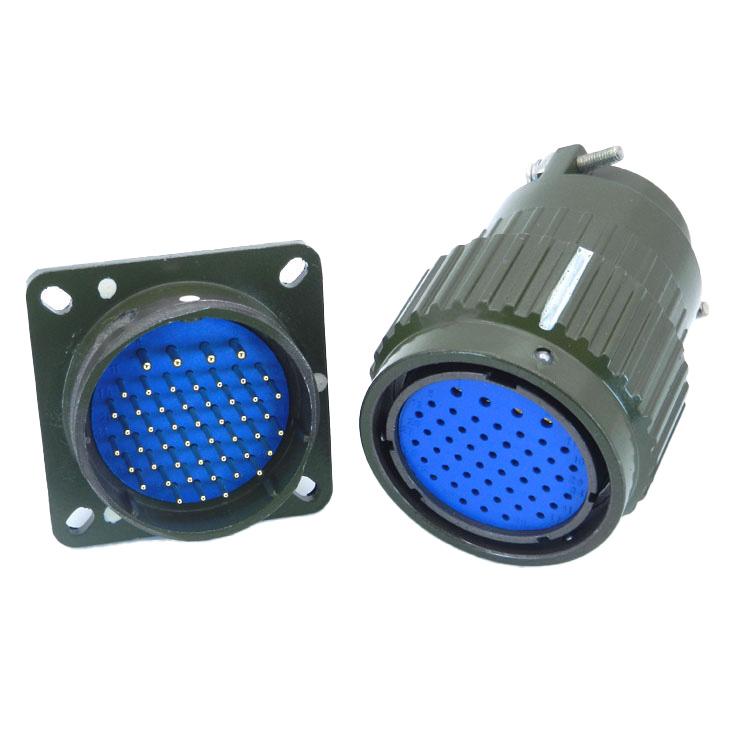

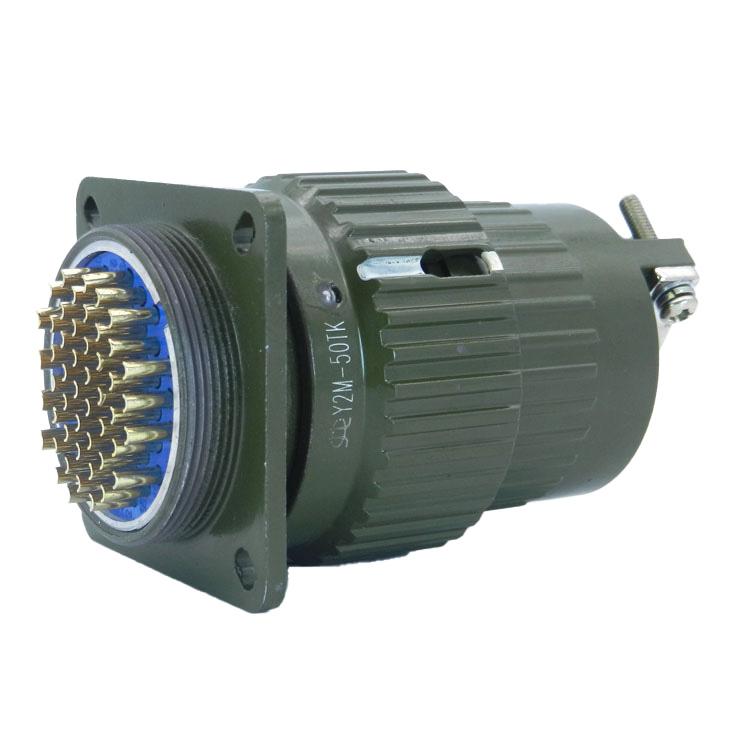

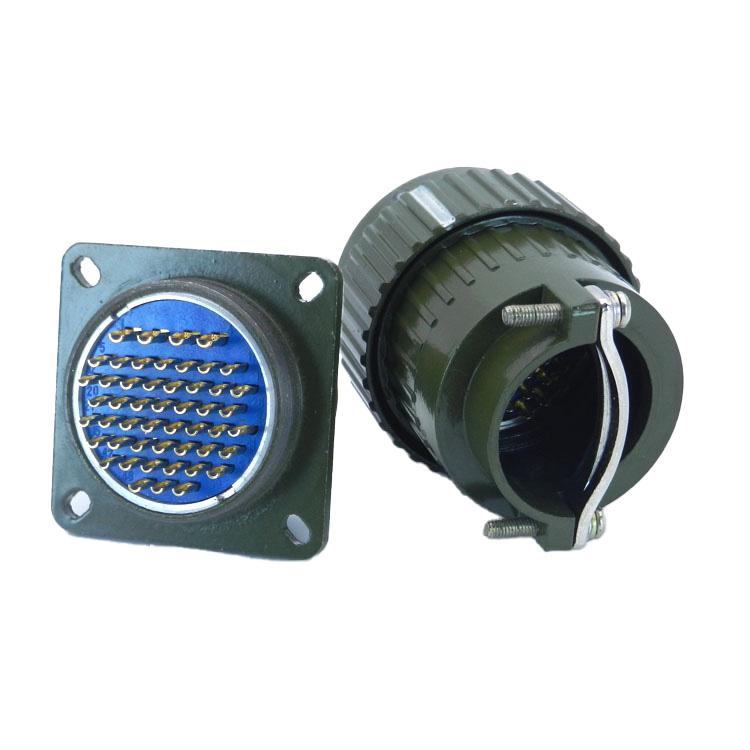

OL-YP IP68 Circular Automotive Connector 1500VAC 50A

Fzolink OL-YP is an IP68 circular multi-hole plastic cable gland connector designed for high-power electrical connections in automotive and harsh outdoor environments. This bayonet threaded waterproof connector features gold/silver-plated contacts and durable Bakelite/PPS housing, supporting 5A-100A current, 1500VAC high voltage and ultra-low contact resistance (0.3mΩ-6mΩ) for stable power transmission.
Offering 2-120 pin configurations (YP21/28/36/50), flange/cable types and male/female options, it provides quick assembly, anti-loosening connection and strong vibration/shock resistance from -40℃ to +85℃. CE/RoHS certified and fully OEM/ODM customizable, this high-power automotive industrial connector ensures long-lasting performance for demanding harsh-environment applications.

Item no.:
OL-YP
Payment:
Wire transfer, Paypal, Western Union, Alipay
Lead Time:
7

Inquiry now

product introduction

Technical Specifications

Rated Current:	5A/10A/25A/50A/100A
Rated Voltage:	1500V
Pin Count:	2P-120P
Contact Material:	gild, silver plate
Shell Material:	bakelite/PPS plastic
IP Rating:	IP68
Type of Connection:	flange and cable type
Coupling:	bayonet coupling
Life Time:	>500
OEM/ODM:	yes
Technical Support:	7*24h online service

Product selling points

· Top-tier IP68 protection: Fully waterproof/dustproof with silica gel sealing ring, withstands 99.99kPa pressure, suitable for harsh automotive and outdoor environments.
· High power handling: 5A-100A rated current (50A as core spec), 1500VAC rated voltage, low contact resistance (0.3mΩ-6mΩ) for stable high-voltage transmission.
· Premium durable materials: Gild/silver-plated brass contacts, aluminum alloy housing + Bakelite/PPS plastic insulation, anti-aging, crack-proof and deformation-resistant.
· Secure connection: Bayonet coupling + threaded design, quick assembly/disassembly, anti-loosening, internally welded + external metal flexible hose fixation.
· Extreme environmental adaptability: -40℃~+85℃ working temperature, resistant to vibration (10-2000Hz, 147m/s²) and shock (196m/s²), 95% humidity resistance.

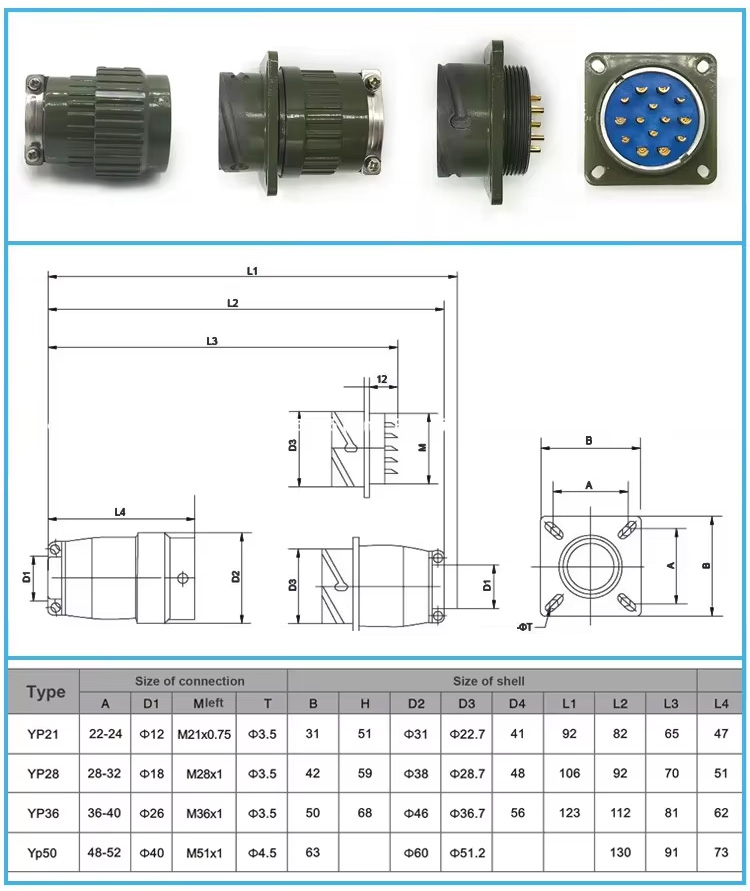

· Flexible configurations: 2-120 pin options, 4 models (YP21/28/36/50) with 1mm-5mm pin diameters, flange/cable connection types, female&male genders.
· Long service life: >500 mating cycles, 5000+ cycles warranty for reliable long-term use.
· Certified quality: CE, RoHS certified, strict factory QC inspection and standardized production.
· Full customization: OEM/ODM supported, wiring harness, cables and LOGO customizable.
· Professional support: 7*24h online technical support, free samples (freight collect).
· Wide automotive application: Ideal for automotive high-power systems, industrial equipment and harsh-environment electrical connections.

Product details

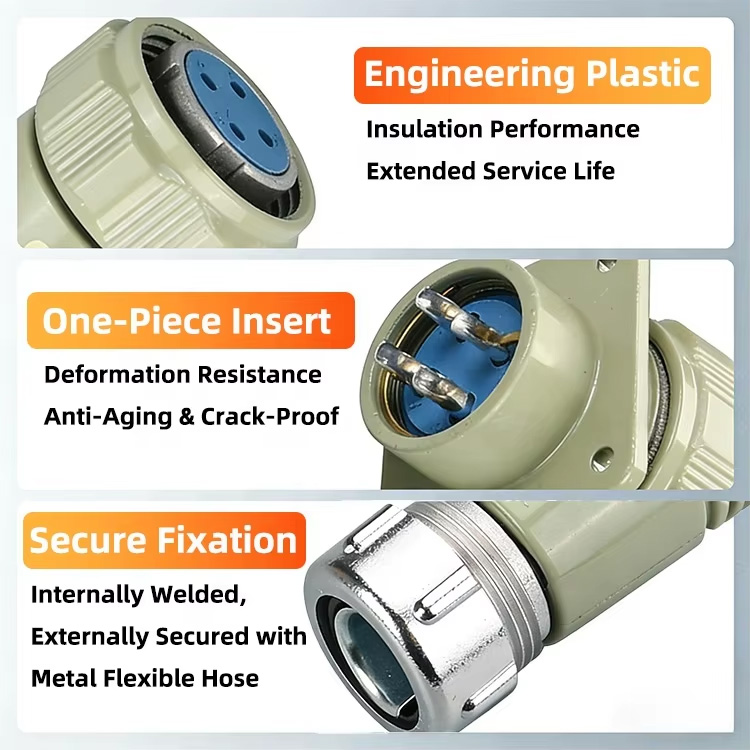

The OL-YP metal connector is made of high-strength engineering plastic, which enhances insulation and service life. It features an integrated inlaid structure that is deformation-resistant, aging-resistant and crack-resistant. Additionally, the connector is secured with internal safety welding for safer use

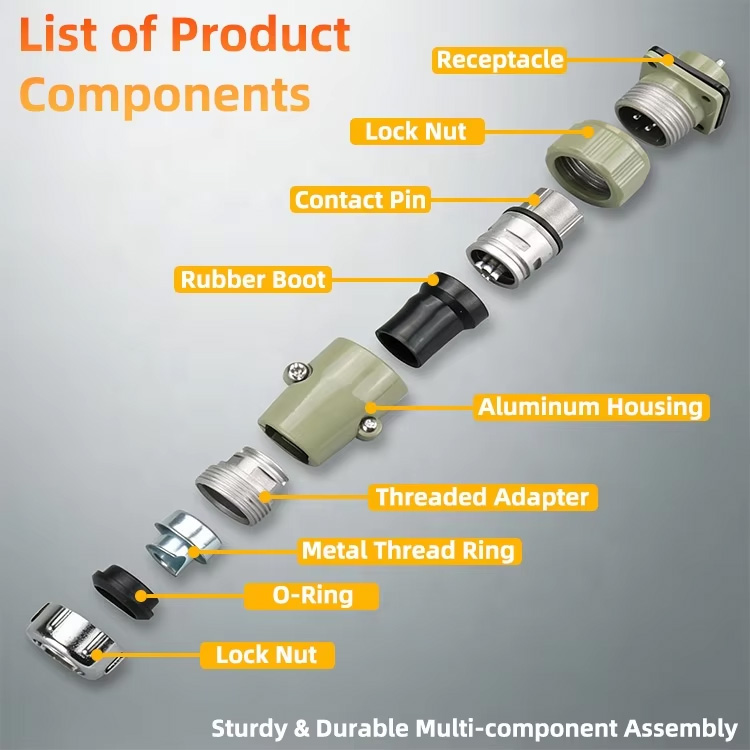

The OL-YP consists of Receptacle, Lock Nut, Contact Pin, Rubber Boot, Aluminum Housing, Threaded Adapter, Metal Thread Ring and O-Ring

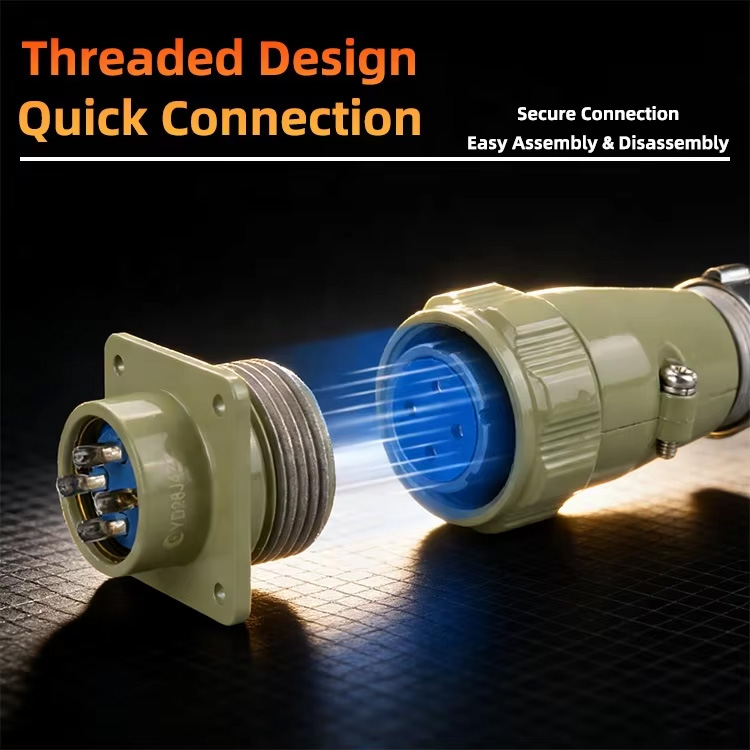

The OL-YP metal connector adopts threaded connection, which is simple, fast and easy to install and disassemble

Application Scenarios

The OL-YP can be applied to street lights / landscape lights, surveillance cameras, wind power equipment and automatic machine tools

Factory Display

All-in-one production and customization factory

Certificate Display

Shipping & Payment Methods

We support sea, air and land transportation, with a variety of express delivery options. Payment methods include PayPal, Visa, etc
