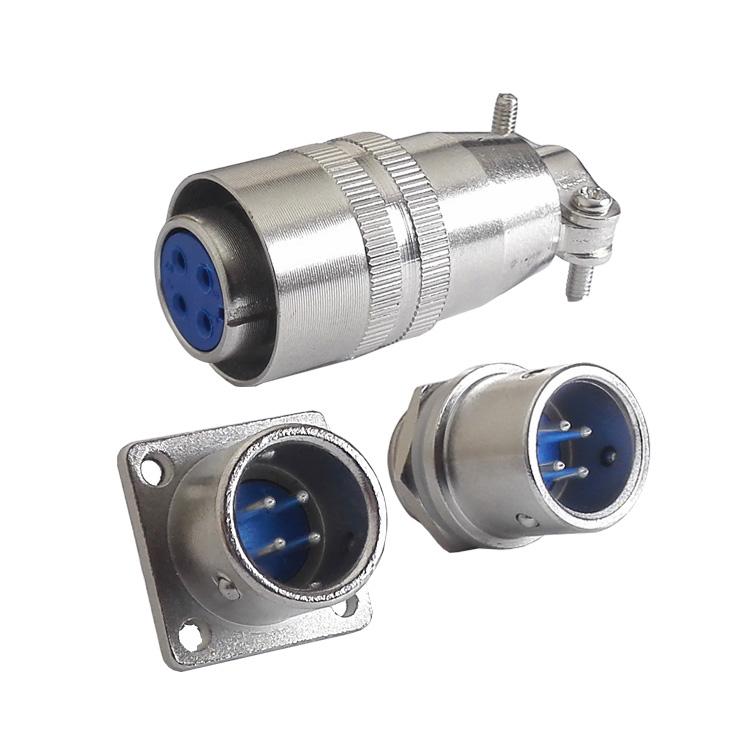

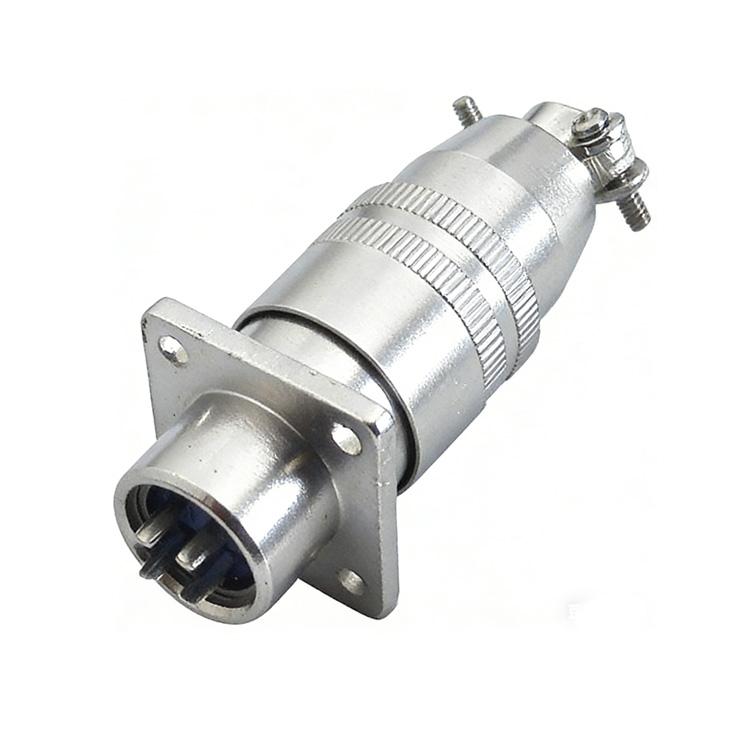

XS8 XS9 XS12 XS16 Round Socket Electric Quick Connector

XS Series IP65 Gold Plated Automotive Power Connector

Fzolink OL-XS series (XS8/XS9/XS12/XS16) are IP65 automotive round quick connectors designed for reliable wire-to-board connection in harsh automotive environments. Operating stably from -55℃ to +85℃ with >500 mating cycles, these thread & push-pull self-latching connectors feature gold-plated brass contacts (≤5mΩ) and gold/silver-plated aluminum alloy housing, ensuring superior conductivity with 250V voltage and 3A/5A/10A current options.
With vibration and impact resistance, diverse 2P-9P pin configurations and compact space-saving design, these IP65 waterproof automotive electrical connectors offer secure, convenient coupling. CE and RoHS certified, they are perfect for stable power transmission in various automotive electrical systems.

Item no.:
XS series
Payment:
Wire transer, West Union, Paypal
Product origin:
China
Lead Time:
7

Inquiry now

product introduction

Technical Specifications

Rated Current:	3A/5A/10A
Rated Voltage:	250V
Pin Count:	2P/3P/4P/5P/7P/9P
Contact Material:	Gold-Plated Brass
Shell Material:	Gold-plated / silver-plated aluminum alloy housing
IP Rating:	IP65
Withstanding Voltage:	1000VAC
Coupling:	Thread/push-pull self-latching
Insulator Material:	Bakelite
Life Time:	>500
Temperature Range:	-55°C~+85°C
Contact Resistance:	≤5mΩ
Technical Support:	7*24h Online Service

Product selling points

· Complete Series Models: Available in XS8, XS9, XS12, XS16 sizes to meet different wiring and installation needs.

· Gold-Plated Contacts: Adopts high-quality gold-plated pins for low resistance, stable conductivity, anti-oxidation and long service life.
· Automotive-Grade Reliability: Designed for automotive and industrial use, with strong anti-vibration, anti-loosening and plug-and-pull durability.
· Compact & Durable Structure: Small circular aviation design, sturdy shell, easy installation and stable performance in harsh environments.
· Secure Male-Female Connection: Standard plug-socket matching, tight connection, not easy to fall off, suitable for power and signal transmission.
· Wide Application: Ideal for automotive wiring, motorcycle, ship, LED lighting, industrial equipment and electronic devices.
· Stable Quality & Cost-Effective: Factory direct supply, consistent quality, competitive price and fast delivery.

Product details

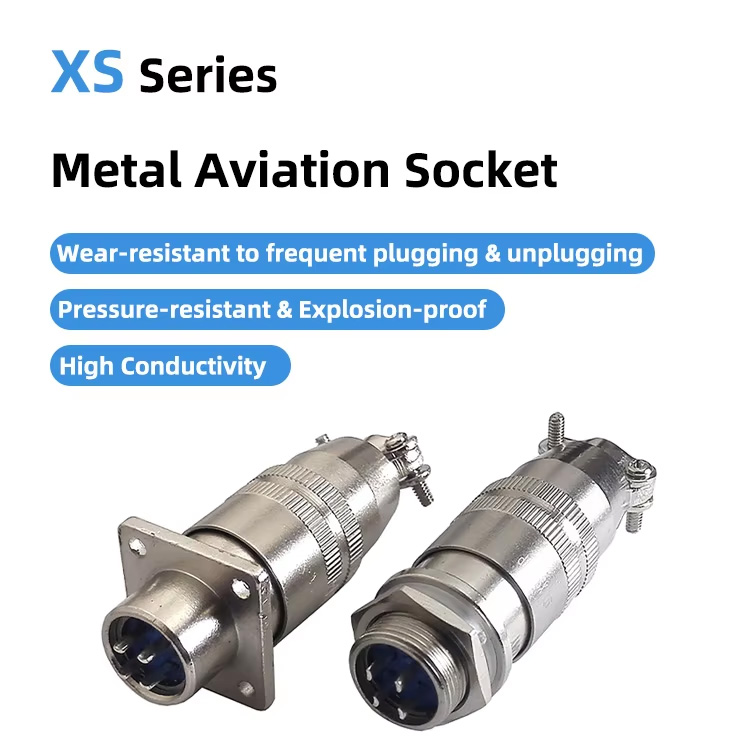

XS Series features wear resistance, frequent plugging durability, pressure resistance, explosion-proof and high conductivity

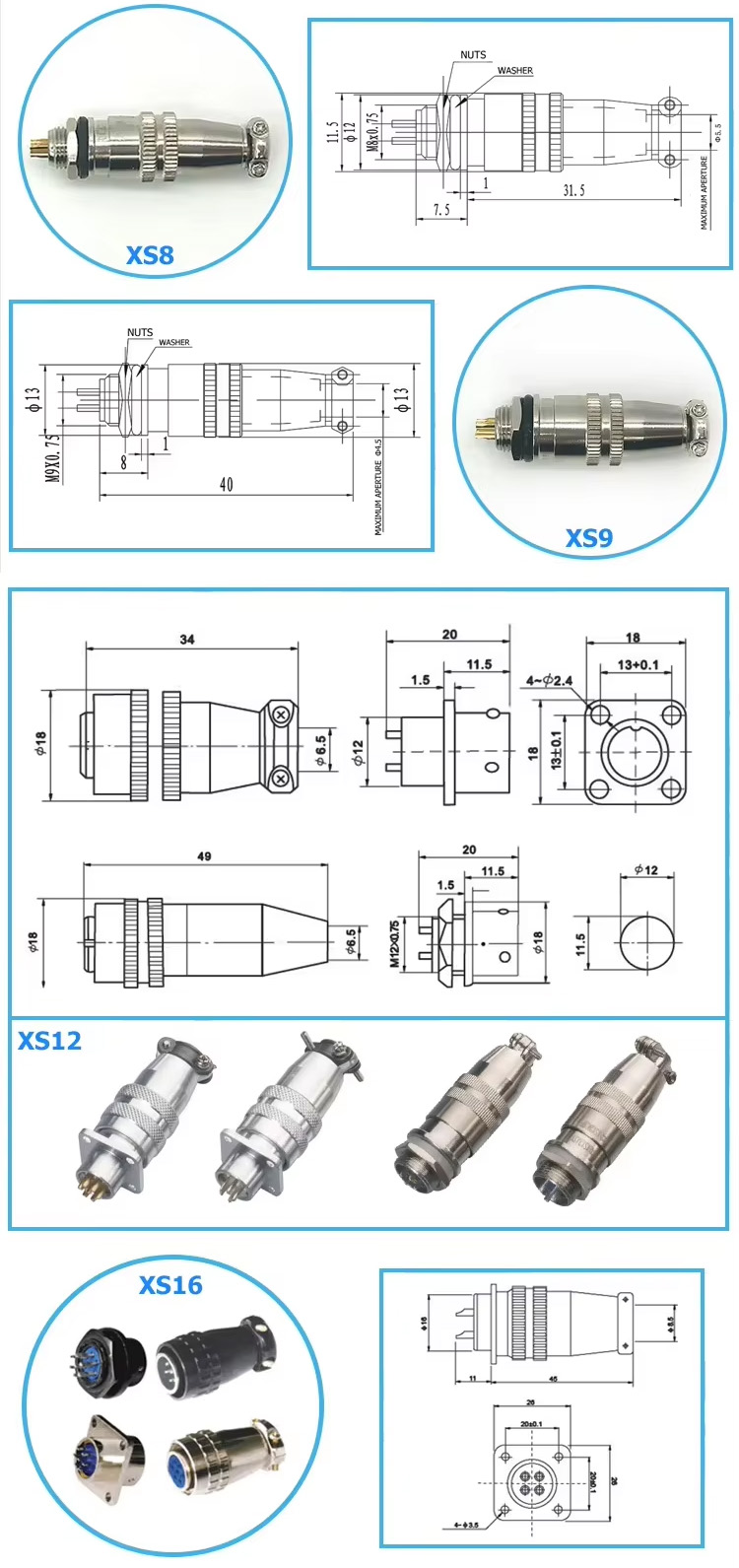

XS8/XS12/XS16 Complete XS Series Detailed Dimensions Overview

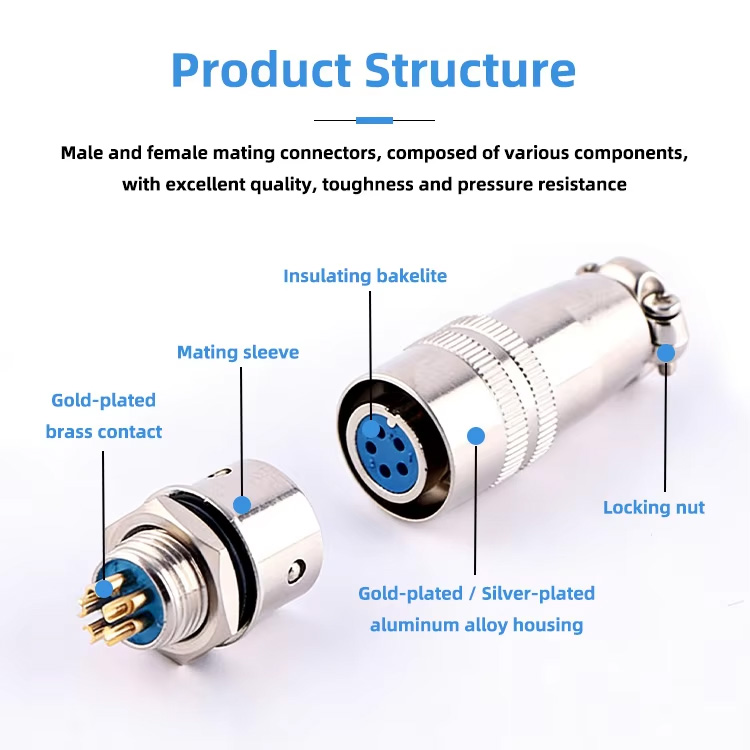

Male and female mating connectors, composed of various components, with excellent quality, toughness and pressure resistance

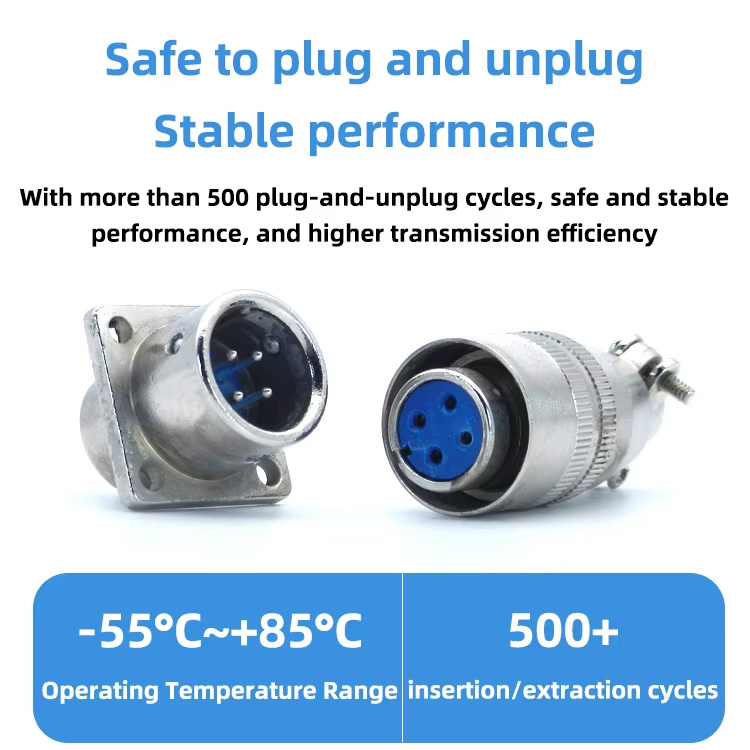

With more than 500 plug-and-unplug cycles, safe and stableperformance,and higher transmission efficiency

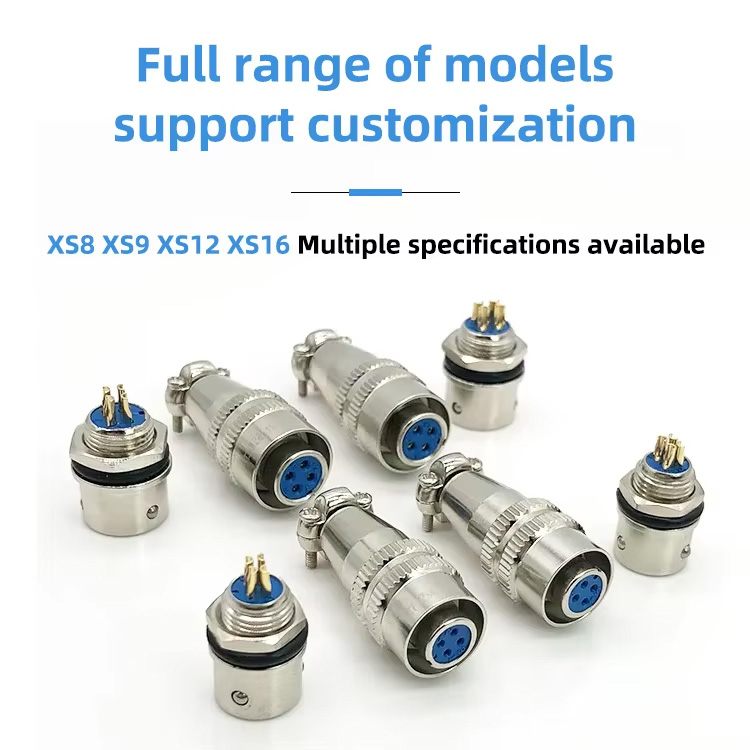

XS8 XS9 XS12 XS16 Multiple specifications available

Application Scenarios

The XS series can be applied to automation equipment, outdoor electrical equipment, automotive, and ships and vessels

Factory Display

All-in-one production and customization factory

Certificate Display

Shipping & Payment Methods

We support sea, air and land transportation, with a variety of express delivery options. Payment methods include PayPal, Visa, etc
