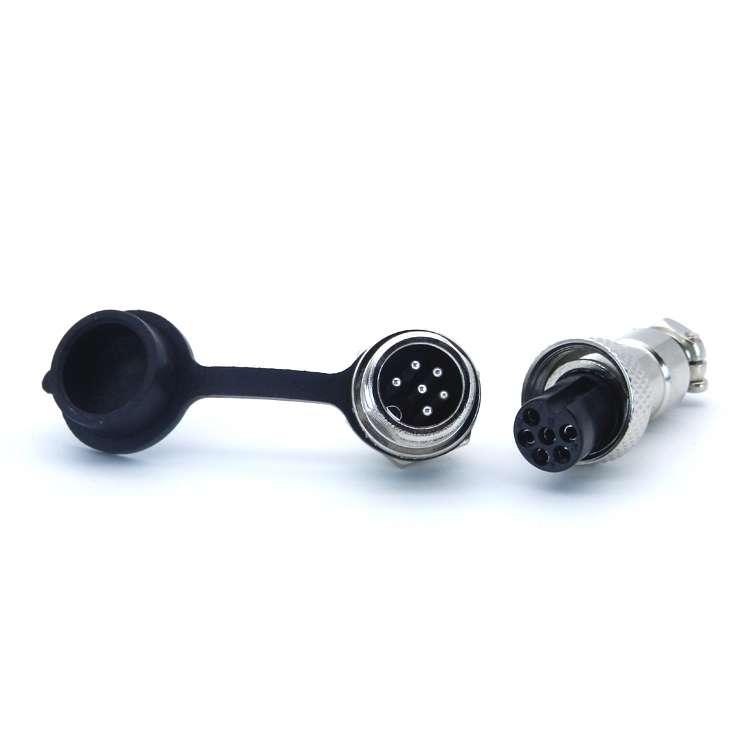

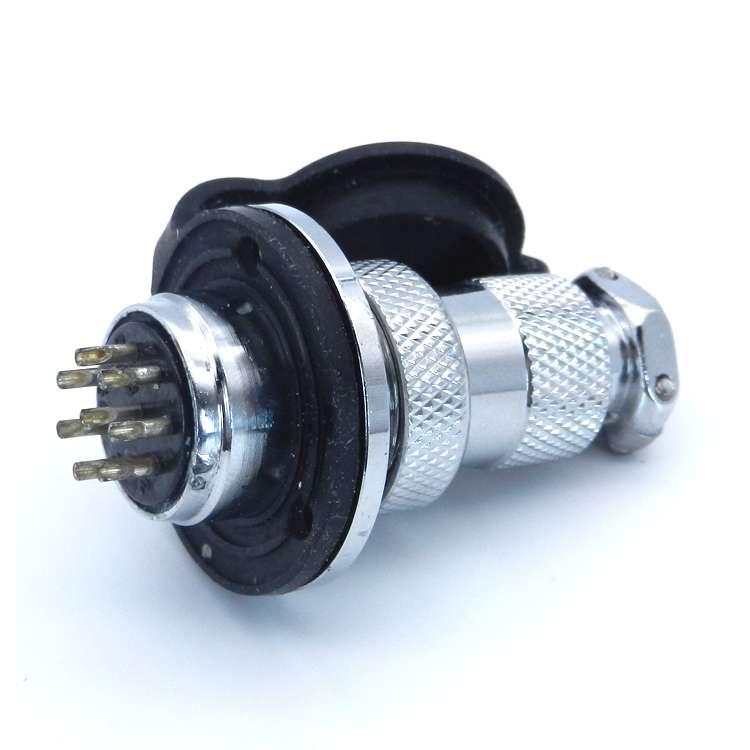

Waterproof Cable Connector GX16 2 3 5pin Connector

Panel mount GX16 aviation electrical connectors are sold as pairs. This is a robust metal connector which can be used for power or signal.


  • Brand:

    OLINK
  • Item no.:

    GX16
  • Payment:

    Wire transfer, Paypal, Western Union, Alipay
  • Product origin:

    China
  • Color:

    Gray
  • Goods stock:

    10000
  • Shipping port:

    Xiamen
  • Lead Time:

    7

                                     Waterproof Cable Connector  GX16 2 3 5pin Connector


GX type circular electrical connector is suitable for line connection between instruments, mechanical and electronic equipment. The plug and socket are connected by thread, which has the advantages of simple structure, convenient application and beautiful appearance.


Working condition of Circle electrical connector



Working Temperature:     -40~+85°C
Relative humidity:
  92 ~ 98% at40±2°C,
Working pressure:
  101.33kPa~6.67Pa

Shock:

  Max acceleration 245 m/s2

Endurance:

  ≥ 500 cycles

Vibration:

  Frequency 10 Hz~200Hz, 98m/s2

Constant acceleration:     245 m/s2
 Housing:

  Zinc alloy nickel plating

Contact:
  Brass Silver plated
Hole:

  Phosphor bronze tin plating


Type of Circle electrical connector








Plug of cable IP55

GX-A

Rear nut socket IP55

GX-B

90 degree Plug of Cable IP55

GX-D

Round flange socket IP55

GX-E





Front nut socket IP55

GX-F

Flange assembless a socket IP55

GX-H

Connector of cable IP55

GX-K

Binocuius flange socket IP55

GX-X


GX16 series Aviation plug connector hole place arranges




GX series circular connector According to the diameter matched with the panel: GX12,GX16,GX18,GX20,GX25,GX30,GX35,GX40

For more information, please contact us by email or through any contact information on the webpage.
