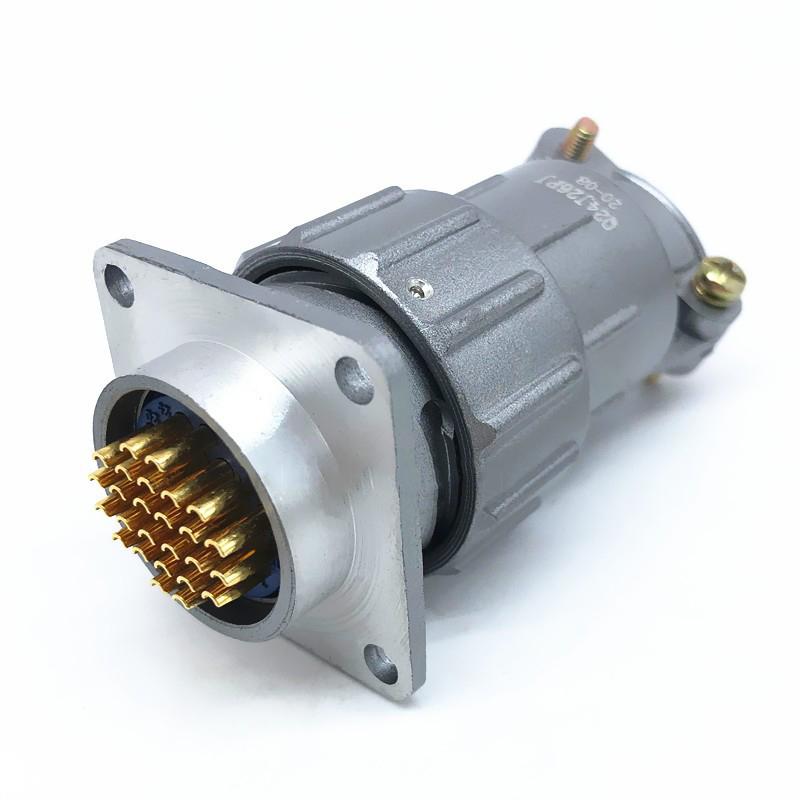

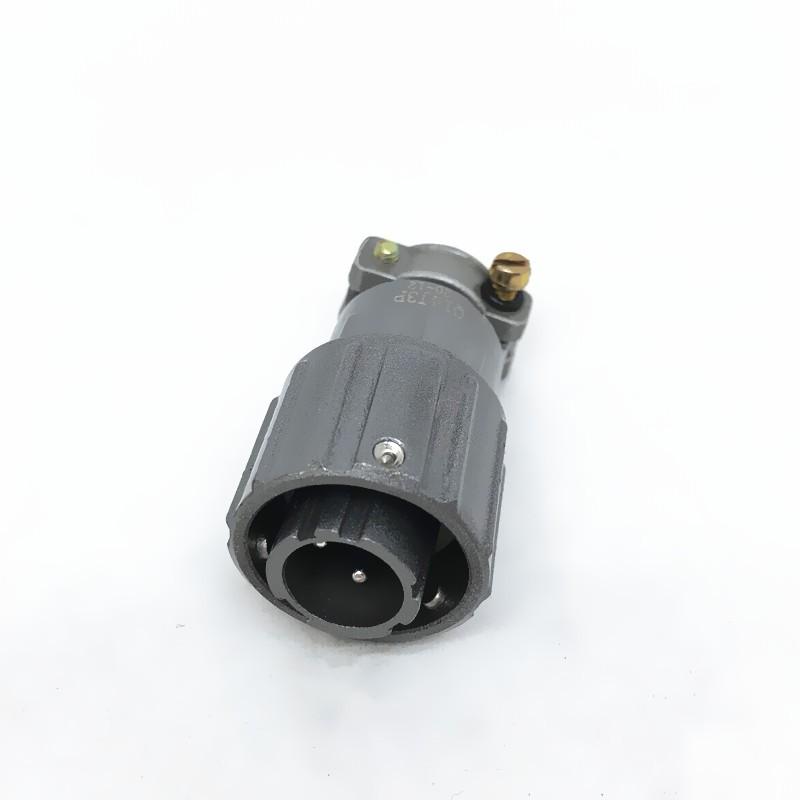

3 pin 19 pin Q series metal circular connector

Q series waterproof circular electrical connectors are manufactured according to the standard SJ1744-81 of the Ministry of Electronics Industry, with advanced product structure and convenient operation.


  • Brand:

    OLINK
  • Item no.:

    Q14, Q18, Q24, Q30
  • Payment:

    Wire transfer, PayPal, Western Union, Alipay
  • Product origin:

    China
  • Color:

    Grey
  • Goods stock:

    50000
  • Shipping port:

    Xiamen, Ningbo
  • Lead Time:

    7


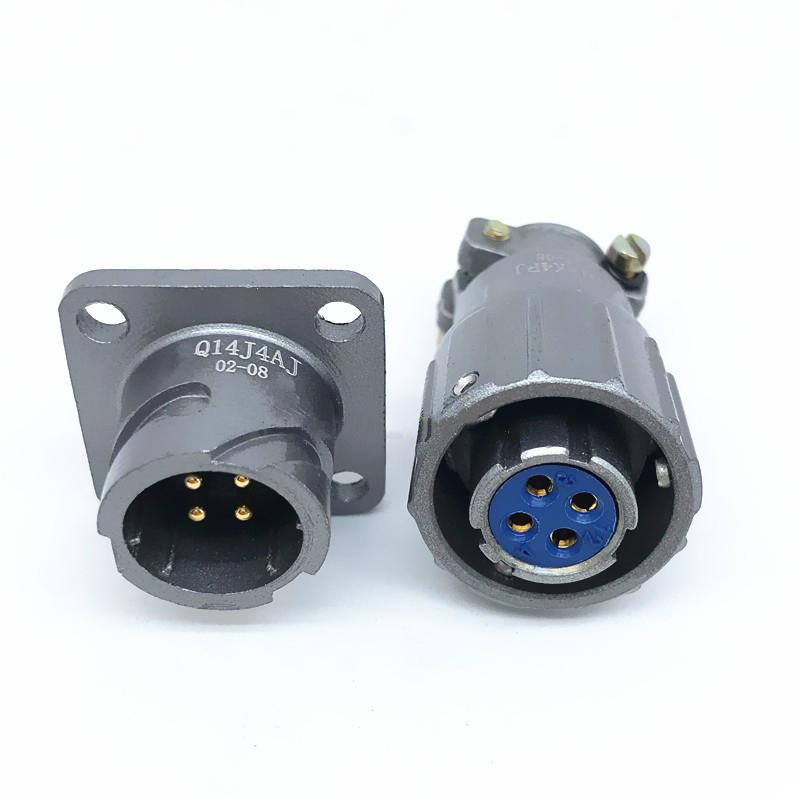

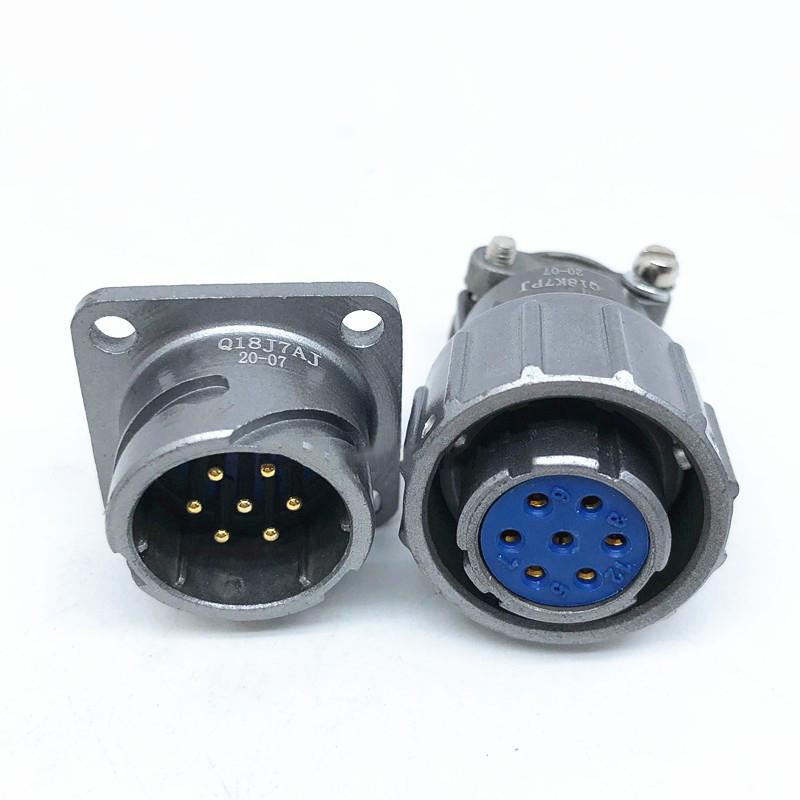

3 pin 19 pin Q series metal circular connector



Feature of circular metal connector


  • Small size, light weight, fast connection, fast sharing, etc.

  • Wiring method: Soldering

  • Two combination: male plug & female socket, or female plug & male socket

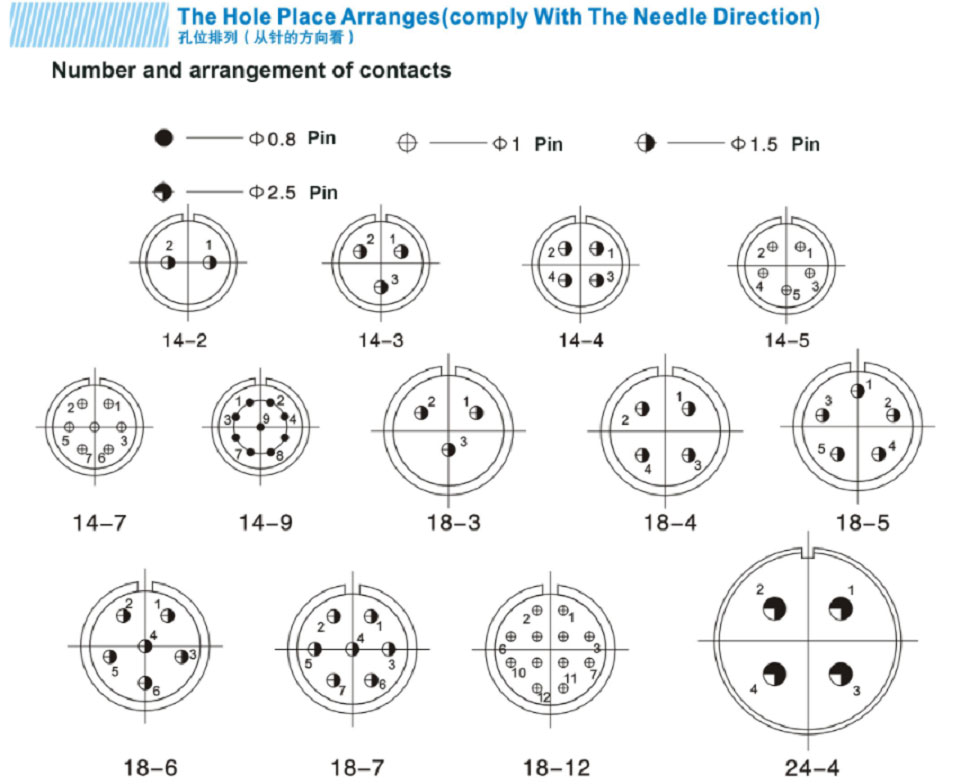

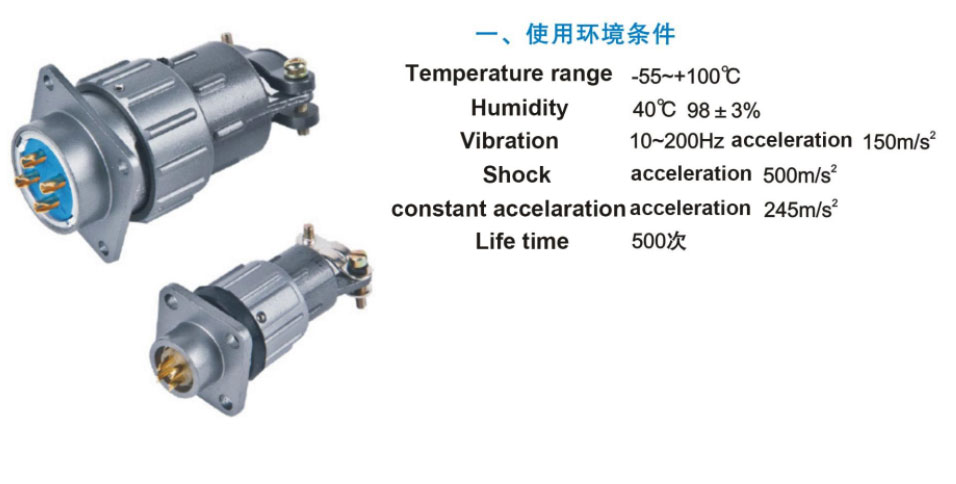

Specification of Q series metal connector


Temperature range:

 -55℃~+100℃

Humidity:

  40℃  98±3%
Connecting mode:   Bayonet connect

Shock:

 10-200Hz, Acceleration 150m/s²

Impact:

 Acceleration 150m/s²

Constant Acceleration:

 Acceleration 245m/s²

Mechanical life:

 500 times

Pin OD.(mm):  1 1.5 2.5
Working current:
3 10 25

Voltage(≤ 400 V)


Contact center distance



≥ 3.5 mm 400 V 400 V 400 V
≥ 2.8 mm 500 V 500 V 500 V
Contact resistance(mΩ):  5 5 5

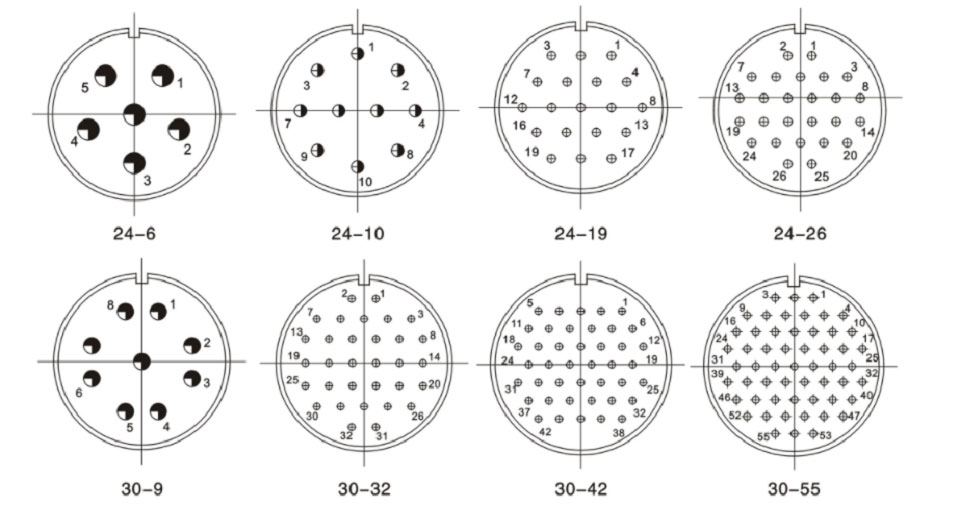

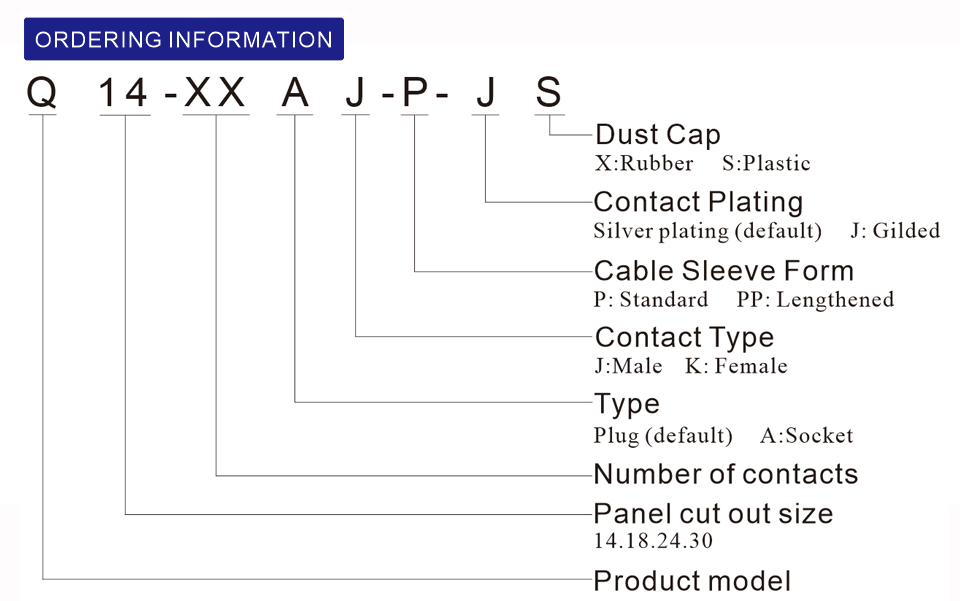

Ordering code of metal cable connectors

 Number

 Classified features and contents

 Marks

 1

 Circular connector type

 Q
 2

 Matching diameter of socket and panel(mm) 14, 18, 24, 30

 Mark the Diameter size

3  Male  J
 Female  K
4  Contact number

 Mark the pin number

5  Plug  No marked
 Socket  A
 Docking plug  AP
6

 Cable sleeve form

 Standard  P

 Lengthen

 PP
7

 Contact coating type

 Silver plated  No marked
 Gold plated
 J
8  Dust cover material  Plastic dust cover  S
 Rubber dust cover  X

Eg: Q14J2P- 14mm diameter, male, 2 pin, plug.

     Q18K2PJ- 18mm diameter, female, 2 pin, plug, gold plated


Application of connector

It is widely used in electrical connection between instruments, meters and electronic equipment.


*For more information, please contact us by email or through any contact information on the webpage.


Related products
Y2 Military  connector
Y2M series Military round bayonet connector
Y2 circular mil spec connector is widely used in circuit connection between various electronic and electrical equipment
8 pin round connector
Circular Aviation Connector P20 2Pin Plug and Socket
Circular connector P series are used for circuit connection between various electrical equipment.  They are made according to the standard SJ/T10496 and for military and industrial applications.
FQ connector types
FQ series bayonet type waterproof round connector
FQ military circular connectors are complied with the standards of component industry administration of the Ministry of electronic industry D24Q/RE008-84. They are widely used in electrical connection between electronic equipment.
GX16 aviation Connector
Waterproof Cable Connector GX16 2 3 5pin Connector
Panel mount GX16 aviation electrical connectors are sold as pairs. This is a robust metal connector which can be used for power or signal.
Circular push pull connector
FGG/EGG.00/0B/1B/2B/3B/4B 2 to 30 pin 6 pin 9 pin 12 pin circular self locking push pull connector
Circular push pull connectors are standard self-locking multi pole connectors with alignment key. Equivalent  B-Series ranges from 00 to 5B size.
 Push-pull Circular connector
0B 1B PHG FGG 2 3 4 5 6 7 9 10 12 14 16 pin push-pull Circular connector
The PHG male plug connector design allows to adjust and position the connector in an efficient way in order to prevent cable snaging. Each connector can be orientated during its assembly and enables 8 positions. The connector then remains securely positioned in its orientation.
Pcb mount circular connector
Push Pull Circular Connectors 2 to 30pin Male and Female
Push Pull Connectors: Standard B series; Waterproof/watertight K series; Half-moon insert S series; Standard F series; Plastic P series.
Socket Terminal Connector
Potential Equalization Socket Connector used for medical equipment
Socket Terminal Connector are used for grounding and eliminating potential difference of various medical equipments and precision instruments.
