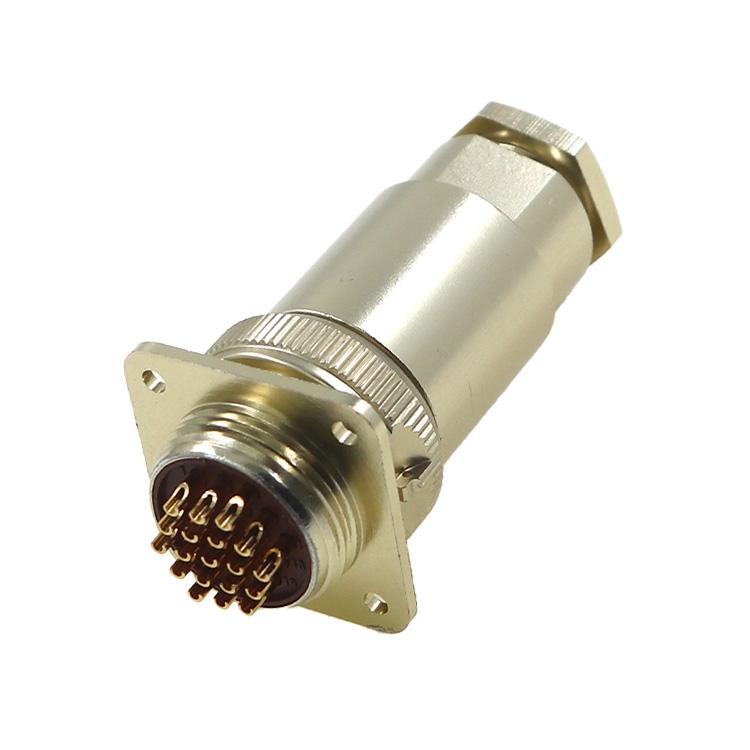

KP Series IP55 Russian Aviation Mini Connector

Fzolink KP Series is a professional Russian aviation mini aerospace connector with IP55-rated circular design, built for ultra-reliable electrical connections in extreme harsh environments. This high-shock & vibration resistant aerospace connector operates flawlessly from -60℃ to +85℃, withstanding 1000g single impact, 100g multiple impacts and 1-5000Hz 20g vibration. Featuring high-conductivity brass contacts (≤5mΩ, ≥1000MΩ insulation), it delivers stable performance with 200V voltage and 1.5A-3.7A current.
With rugged aluminum alloy housing, threaded anti-loosening coupling and 4/7/10/19/32/50 pin options, this IP55 circular military grade connector is CE/RoHS certified and supports full OEM/ODM cable customization. Ideal for aviation, aerospace and industrial harsh-environment systems, it includes 7×24h professional technical support.

Item no.:
OL-KP
Payment:
Wire transfer, Paypal, Western Union, Alipay
Product origin:
China

Inquiry now

product introduction

Technical Specifications

Rated Current:	1.5A-3.7A
Rated Voltage:	200V

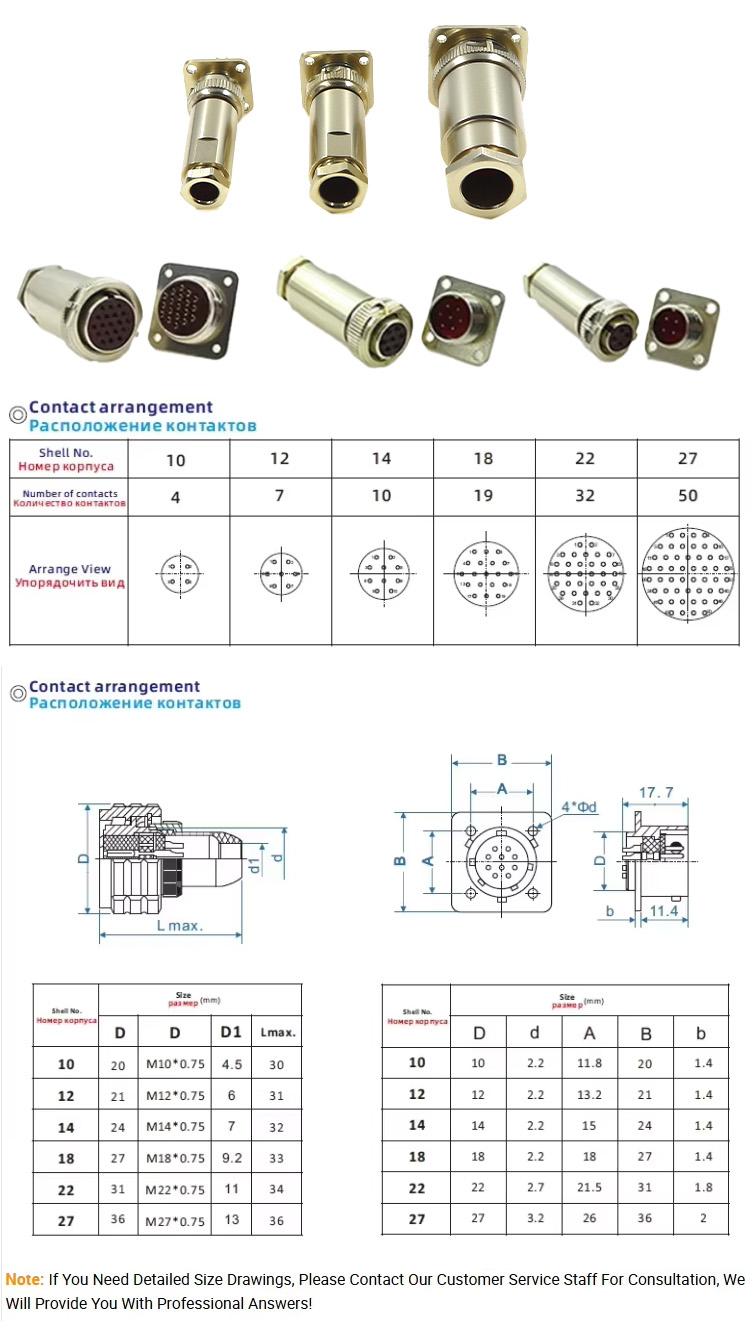

Pin Count:	4P/7P/10P/19P/32P/50P
Contact Material:	Brass
Shell Material:	aluminum alloy
IP Rating:	IP55
Vibration:	1-5000Hz 20g
Contact Resistance:	≤5mΩ
Insulation Resistance:	≥1000MΩ
Ambient Temperature:	-60℃~85℃
Contact Diameter:	Dia.1.0mm
Coupling Method:	Threaded Connection
Technical Support:	7*24h Online Service

Product selling points

· Harsh Environment Adaptability: Operates at -60℃~+85℃, shock-resistant (1000g single/100g multiple) and vibration-resistant (1-5000Hz 20g), IP55 protection rating.
· Excellent Electrical Performance: Brass contacts with ≤5mΩ contact resistance & ≥1000MΩ insulation resistance, rated 200V, 1.5A-3.7A (pin-dependent).
· Durable Construction: Aluminum alloy housing for robustness, threaded coupling ensures stable connection.

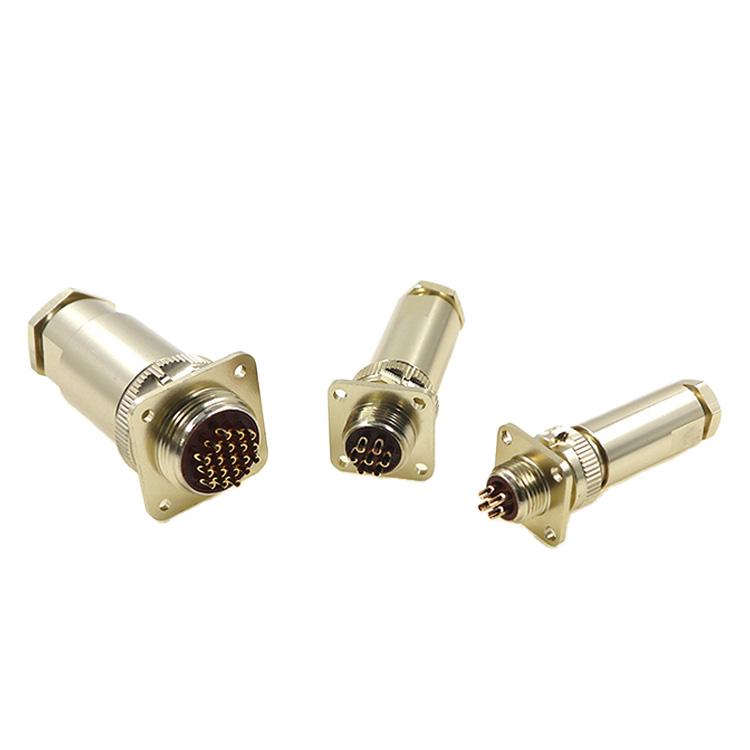

· Diverse Configurations: Multiple pin options (4/7/10/19/32/50), male & female genders available, straight orientation.
· Certified Quality: Complies with EU standards, CE/RoHS/IP67/IP68/ISO/SGS certified, strict quality testing.
· Customizable Service: Supports OEM/ODM (full customization, cable customization), 7*24h engineer-led online technical support.
· Reliable Supplier Strength: 10+ years of experience, 3000+ daily production, export to 100+ countries, free samples (freight not included).
· Flexible Delivery & Payment: MOQ 10 sets, fast logistics (FedEx/DHL/UPS/EMS), multiple payment methods available.

Product details

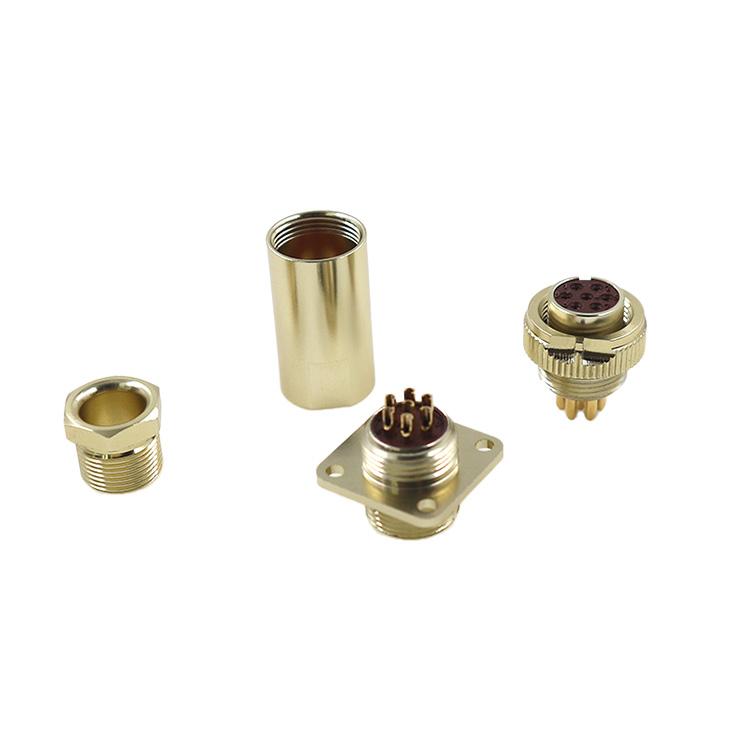

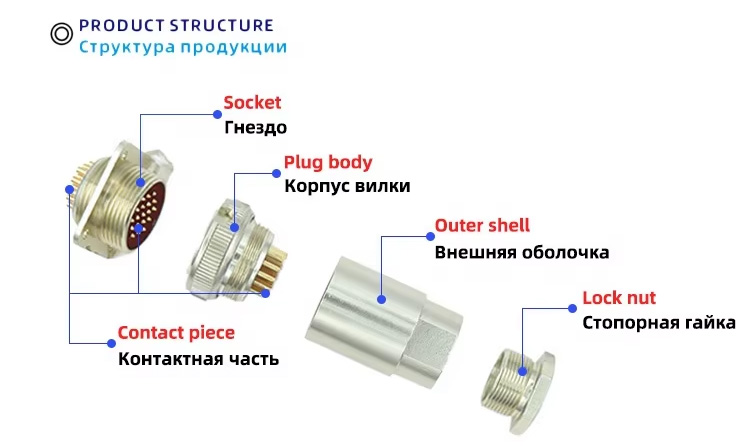

The KP metal connector consists of a socket, plug body, outer shell, contact piece and lock nut

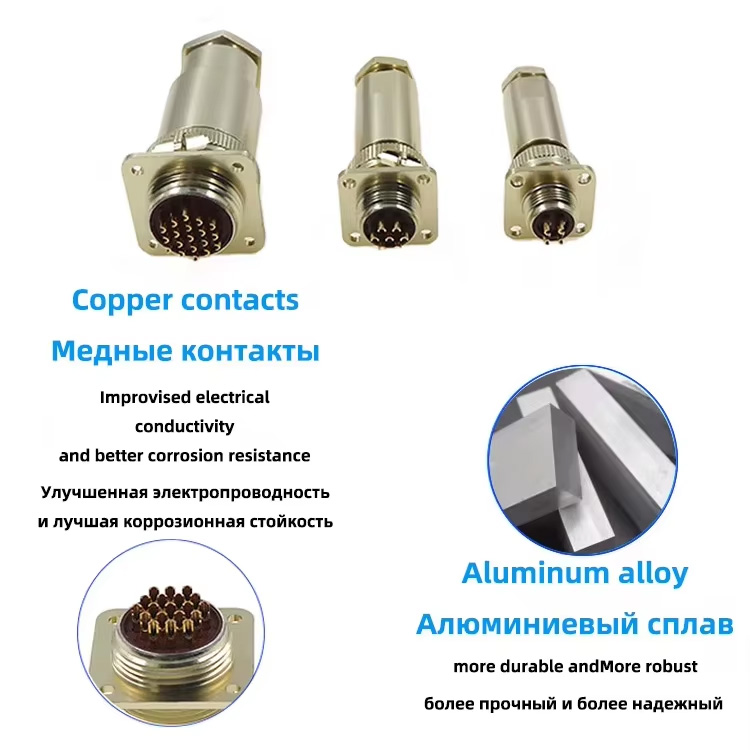

The KP metal connector features copper contacts and an aluminum alloy shell, making it sturdy, durable, and highly conductive

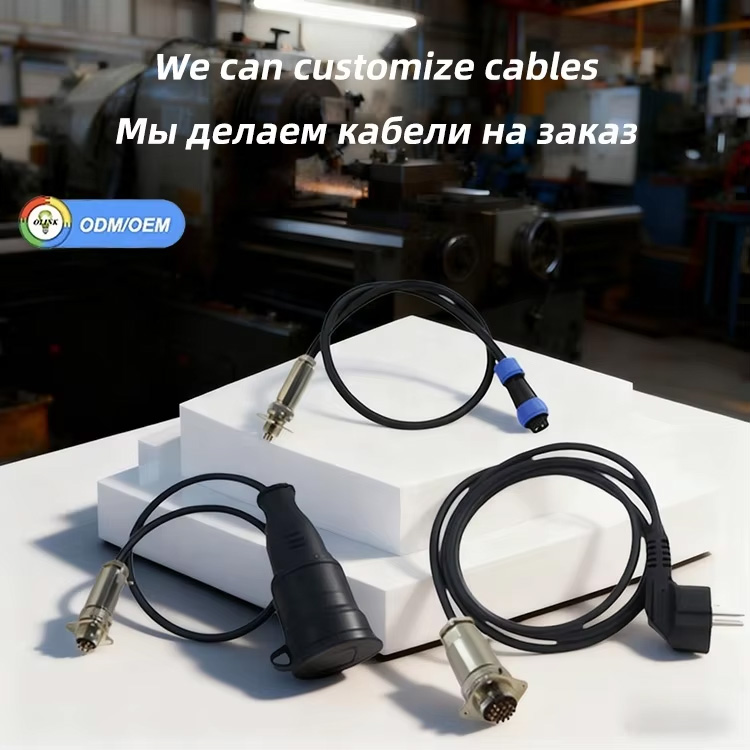

The KP metal connector supports customized cables, saving wiring time and enabling ready-to-use upon receipt

Application Scenarios

The OHS metal connector can be applied to tanks / armored vehicles, UAV power distribution systems, engineering vehicles, and oil drilling.

Factory Display

All-in-one production and customization factory

Certificate Display

Shipping & Payment Methods

We support sea, air and land transportation, with a variety of express delivery options. Payment methods include PayPal, Visa, etc
