Y2M series Military round bayonet connector

Y2 circular mil spec connector is widely used in circuit connection between various electronic and electrical equipment

  • Brand:

    OLINK
  • Item no.:

    Y2
  • Payment:

    Wire transfer, Paypal, Western Union, Alipay
  • Product origin:

    China
  • Color:

    Green
  • Shipping port:

    Xiamen
  • Lead Time:

    7

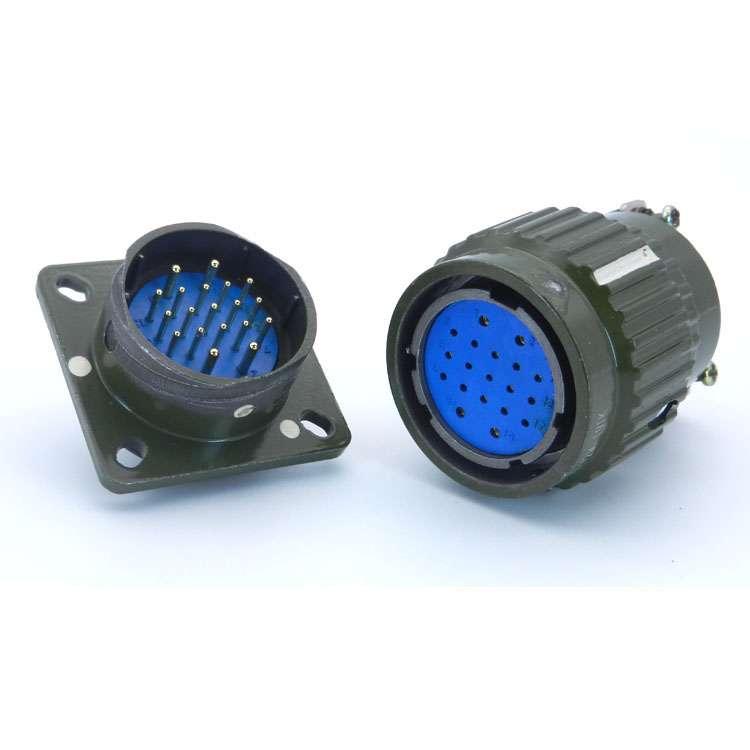

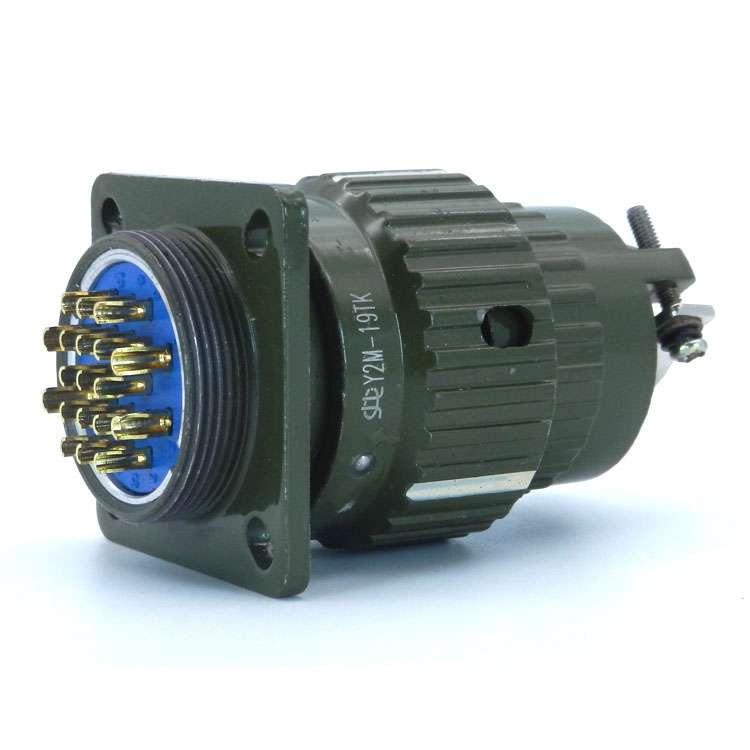

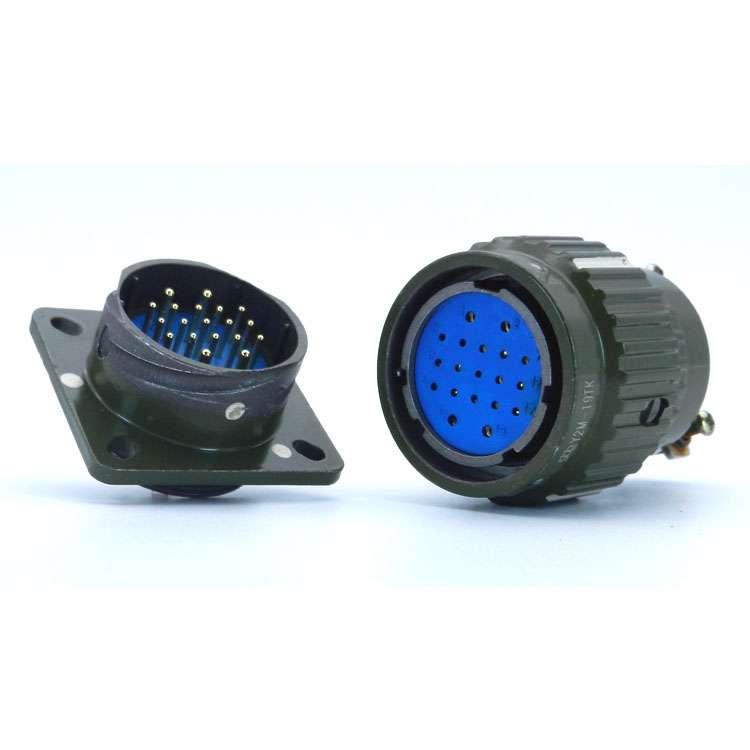

                                          Y2M series Military round bayonet connector

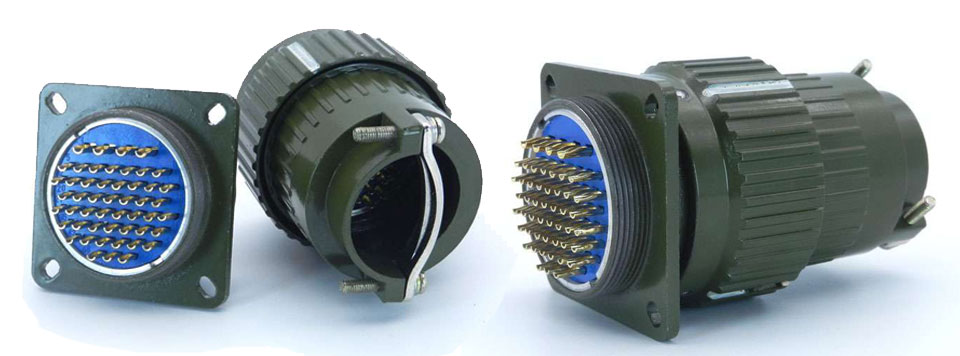

Y2 military connectors  have the features of bayonet connection, easy to use, fast and straight, complete specifications, socket sealing. The installation methods include flange type and cable type.


Working Conditions of round connector



Working Temperature   -40~+85°C
Relative humidity
 92 ~ 98% at40±2°C,
Working pressure
 101.33kPa~6.67Pa

Shock

 Max acceleration 980 m/s2

Endurance

 ≥ 500 cycles

Vibration

 Frequency 10 Hz~2000 Hz, 147m/s2

Constant acceleration   490 m/s2

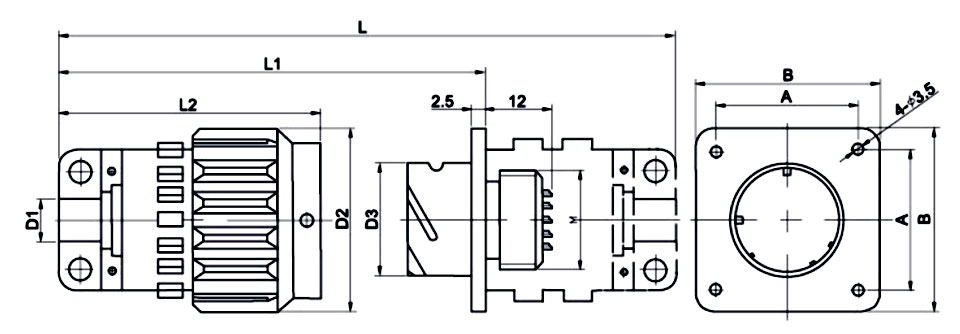

The Hole Place Arranges



Model
Installation size
Outside size
A D1 M B D2 D3 L L1 L2
Y2-21 22-24 Φ12
M21*0.75 31 Φ31
Φ31
79 51 45
Y2-28 28 Φ18
M28*1 38 Φ38
Φ38
88 56 49
Y2-36 36 Φ26
M36*1 46 Φ46
Φ46
108 67 60
Y2-50 51 Φ40
M51*1 60 Φ60
Φ60
126 77 71

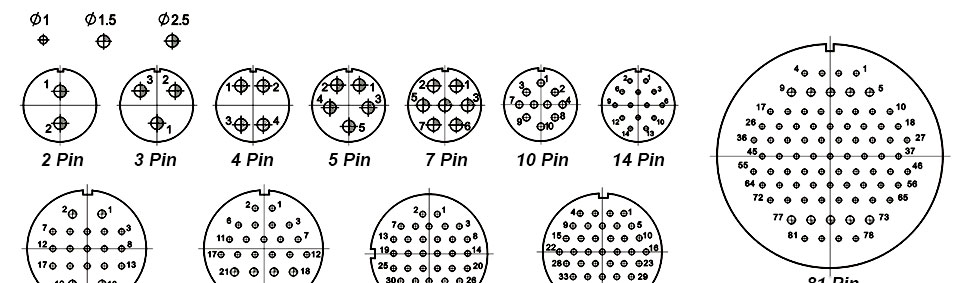

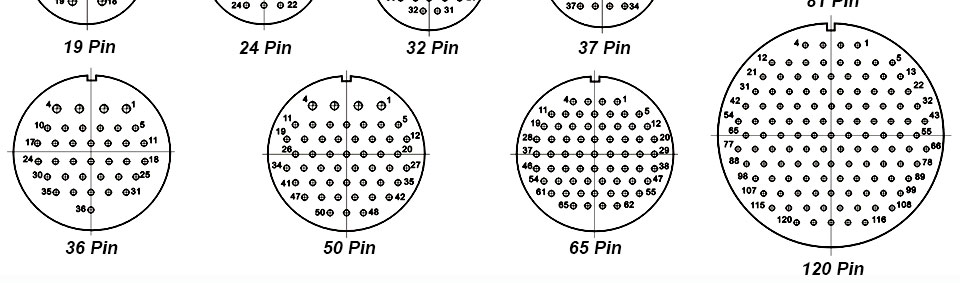

Model corresponds to the number of needles and needle arrangement


  • Y2-21:02,03,04,05,07,10,14 pin
  • Y2-28:19,24,32,37 pin
  • Y2-36:36,50,65 pin
  • Y2-50:81,120 pin


Contact current of round connector


Pin diameter(mm)
1 1.5 2
Working current(A)
5
10
20
Contact resistance(mΩ)
≤5 ≤3
≤1


Related products
8 pin round connector
Circular Aviation Connector P20 2Pin Plug and Socket
Circular connector P series are used for circuit connection between various electrical equipment.  They are made according to the standard SJ/T10496 and for military and industrial applications.
FQ connector types
FQ series bayonet type waterproof round connector
FQ military circular connectors are complied with the standards of component industry administration of the Ministry of electronic industry D24Q/RE008-84. They are widely used in electrical connection between electronic equipment.
GX16 aviation Connector
Waterproof Cable Connector GX16 2 3 5pin Connector
Panel mount GX16 aviation electrical connectors are sold as pairs. This is a robust metal connector which can be used for power or signal.
Circular push pull connector
FGG/EGG.00/0B/1B/2B/3B/4B 2 to 30 pin 6 pin 9 pin 12 pin circular self locking push pull connector
Circular push pull connectors are standard self-locking multi pole connectors with alignment key. Equivalent  B-Series ranges from 00 to 5B size.
 Push-pull Circular connector
0B 1B PHG FGG 2 3 4 5 6 7 9 10 12 14 16 pin push-pull Circular connector
The PHG male plug connector design allows to adjust and position the connector in an efficient way in order to prevent cable snaging. Each connector can be orientated during its assembly and enables 8 positions. The connector then remains securely positioned in its orientation.
Pcb mount circular connector
Push Pull Circular Connectors 2 to 30pin Male and Female
Push Pull Connectors: Standard B series; Waterproof/watertight K series; Half-moon insert S series; Standard F series; Plastic P series.
Socket Terminal Connector
Potential Equalization Socket Connector used for medical equipment
Socket Terminal Connector are used for grounding and eliminating potential difference of various medical equipments and precision instruments.
XS12 jack connector
XS12 Micro Jack Connector Waterproof Connector
XS12 electric connector has small and beautiful appearance, and has two structures: push in steel ball locking and thread locking. It is suitable for AC and DC circuit connection of various instruments and electronic equipment
