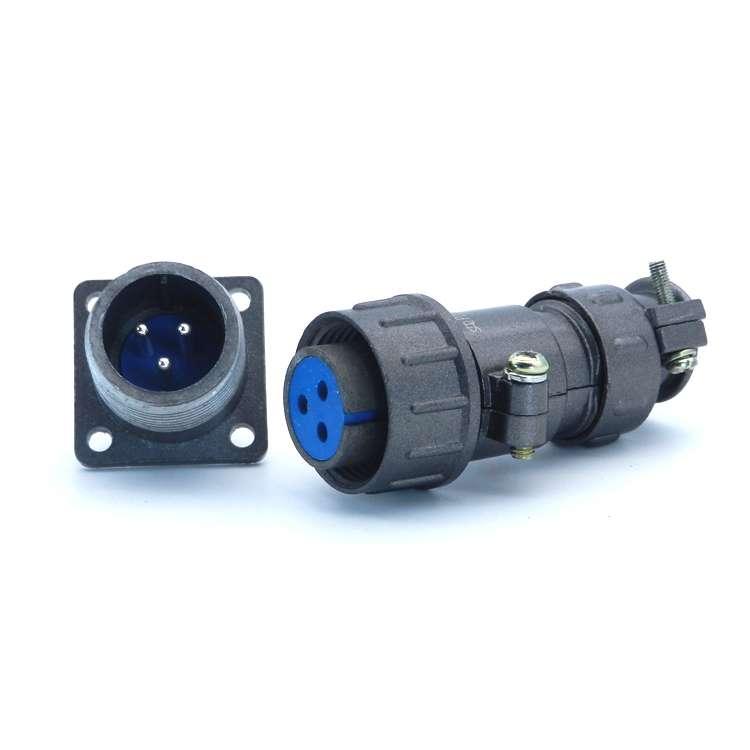

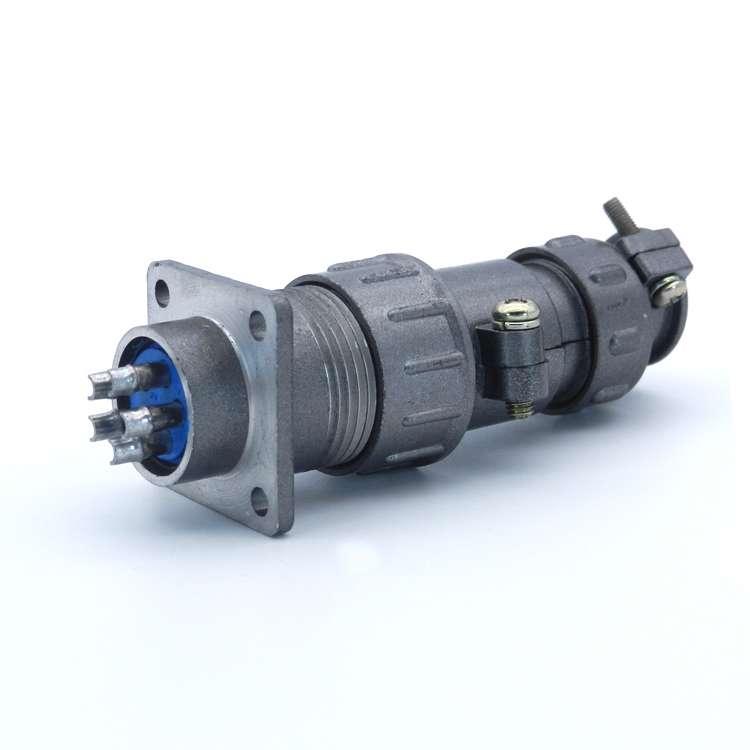

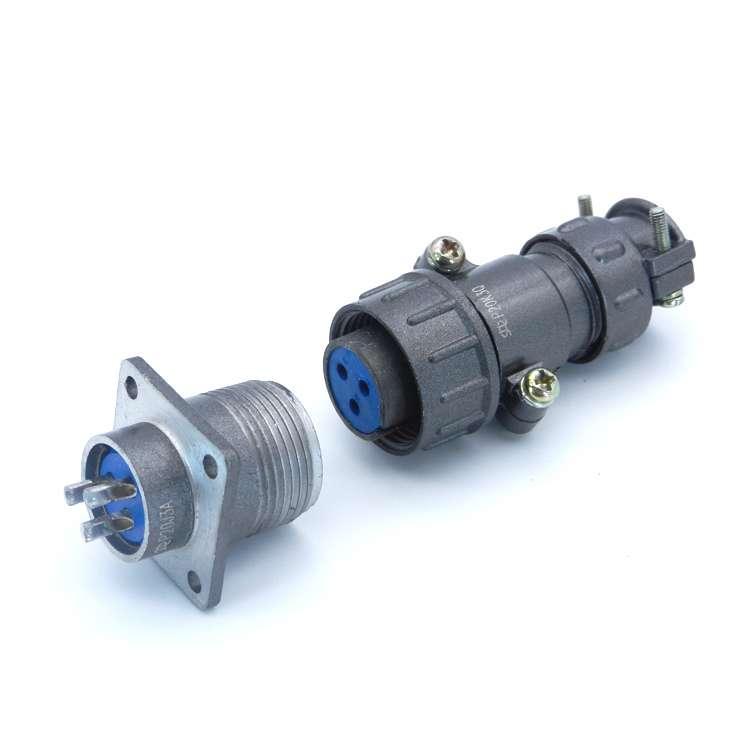

Circular Aviation Connector P20 2Pin Plug and Socket

Circular connector P series are used for circuit connection between various electrical equipment.  They are made according to the standard SJ/T10496 and for military and industrial applications.
  • Brand:

    OLINK
  • Item no.:

    P20, P28, P32,P40, P
  • Payment:

    Wire transfer, Paypal, Western Union, Alipay
  • Product origin:

    China
  • Color:

    Gray
  • Shipping port:

    Xiamen
  • Lead Time:

    7

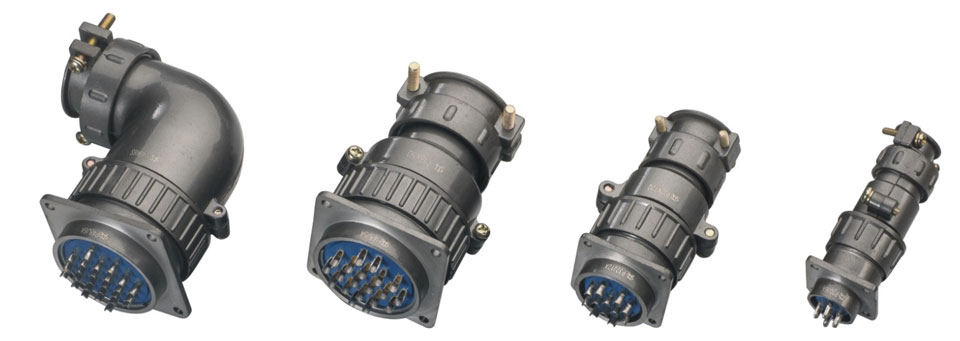

Circular Aviation Connector P20 2Pin Plug and Socket


P series circular connectors are used extensively in line connections between electrical equipment,

various instruments and meters. These connectors have the features of small volume,convenient application,

high durability of plugging and unplugging, threaded coupling, good sealing performance,

high conductivity and high dielectric strength.


Technical information of Circular electrical connectors



Rated voltage:
  500V Resistance  voltage:
  1500V
Humidity:
  40℃  92-98% The number of  pins:     2-61
Wording tempereture  range:
  -55~100°C Mechanical life:     500 times
Shock:     10-200Hz,Acceleration 98m/ Impact:     40-100 times/min,Acceleration 70m/
Constant Acceleration:     Acceleration 245m/

Diameter of contact(mm) 1.5 2.5 3.5 5.5
Contact resistace(mΩ)
2.5 1 0.5 0.3
Rated current

Number of contacts

1-20

10 25 50 100

Number of contacts

21-30

8 20 40 80

Number of contacts

31-48

7 17.5 35 70

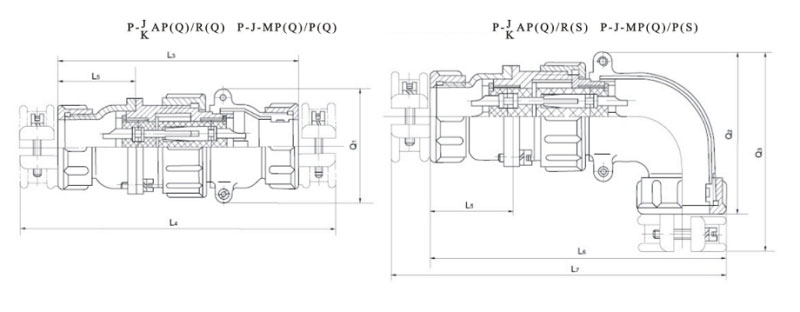

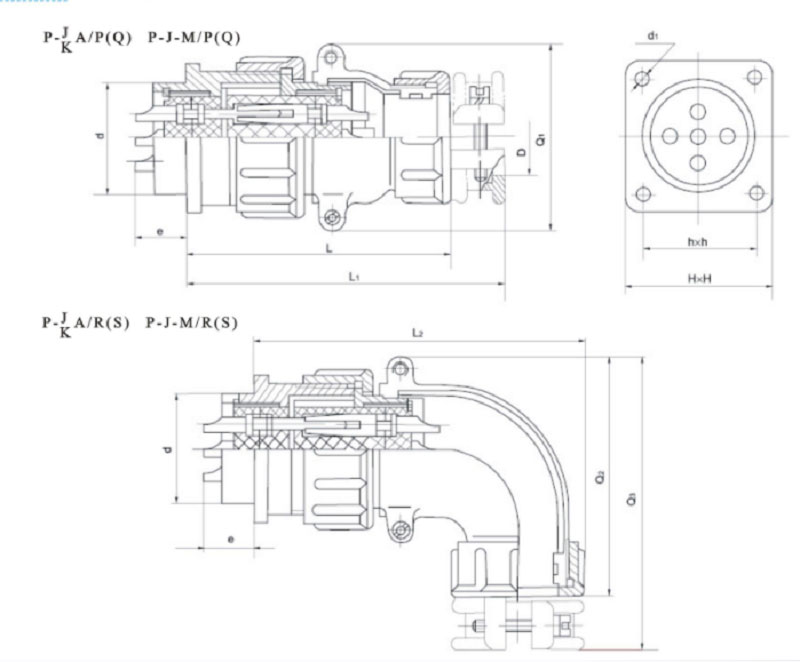

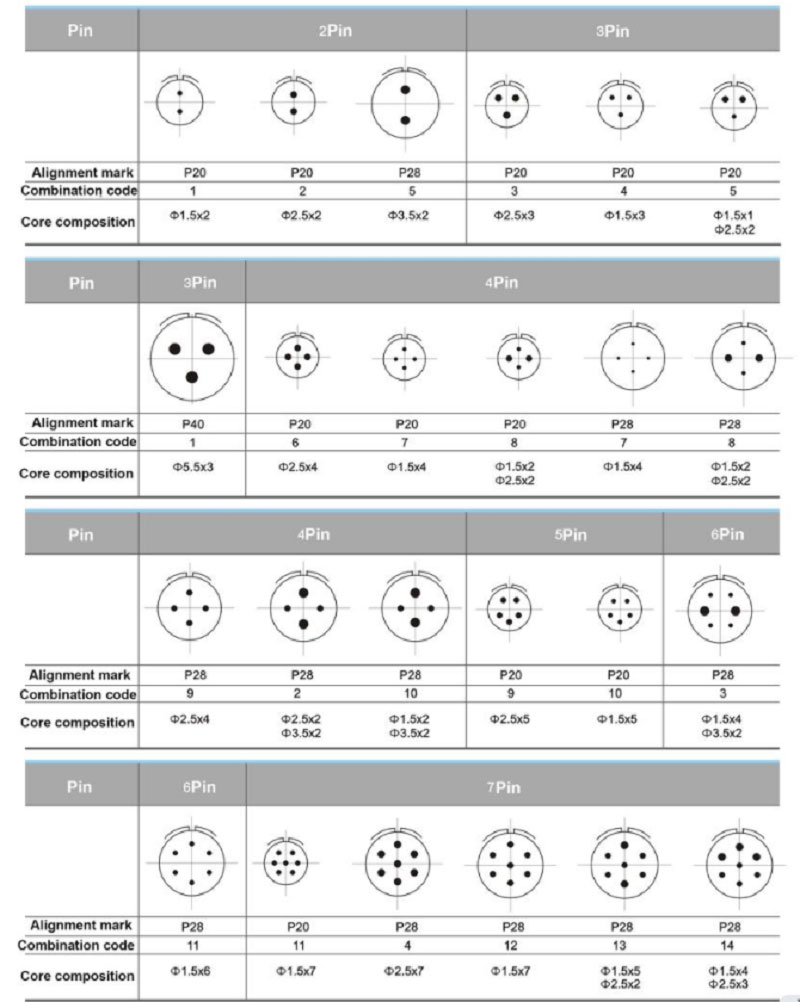

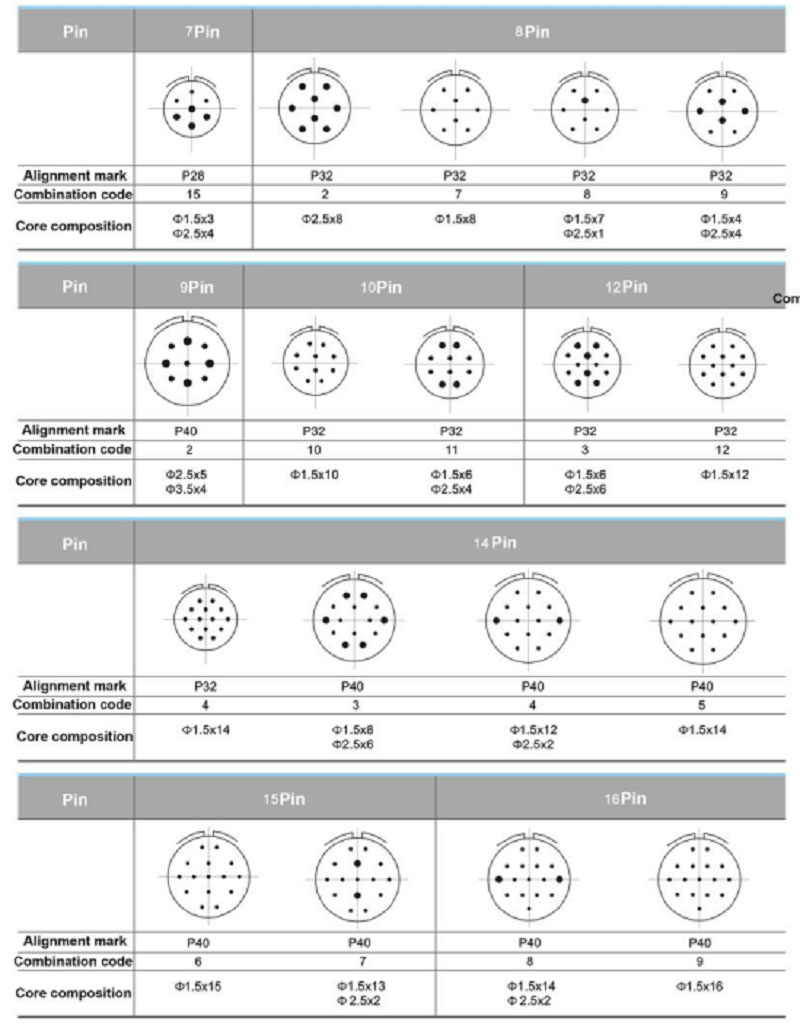

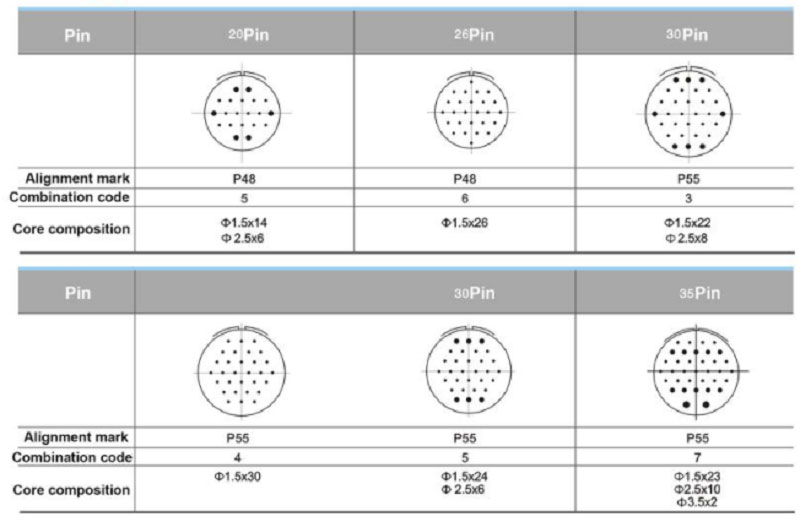

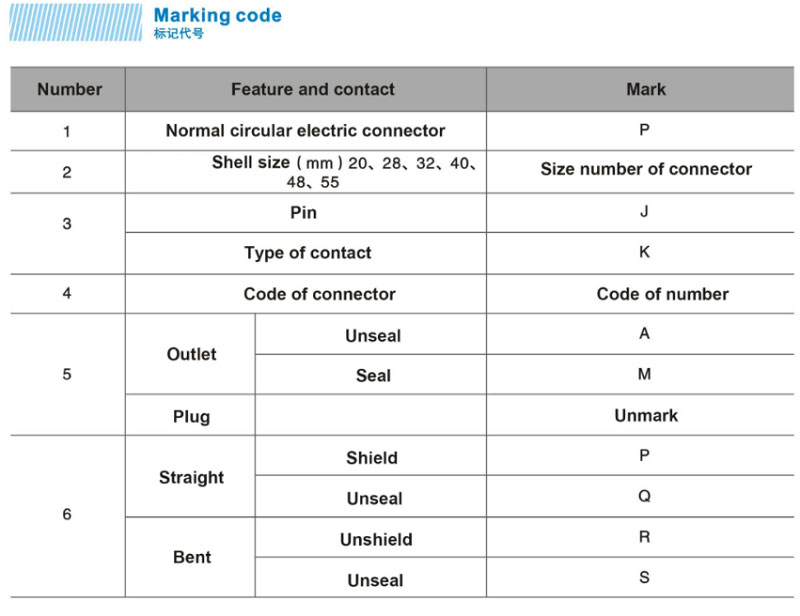

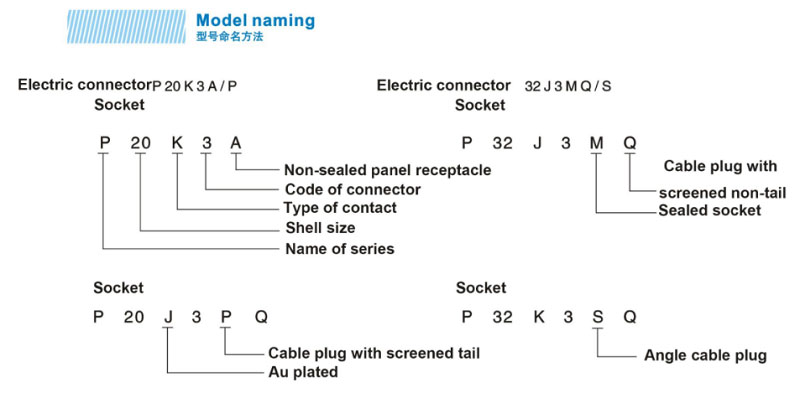

Ordering code of Circular electrical connectors



 Number

Classified features and contents

Marks
1 Circular connector type P
2

Matching diameter of socket and panel(mm)20.28.32.40.48.55.


Mark the Diameter size
3
    Male J
    Female K
4 Contact assembly code
Number code
5
Socket
Unsealed A
Sealed M
Plug
No marked
6
Straight Shield P
Unshielded Q
Bending type Shield R
Unshielded S
*For more information, please contact us by email or through any contact information on the webpage.


Related products
Y2 Military  connector
Y2M series Military round bayonet connector
Y2 circular mil spec connector is widely used in circuit connection between various electronic and electrical equipment
FQ connector types
FQ series bayonet type waterproof round connector
FQ military circular connectors are complied with the standards of component industry administration of the Ministry of electronic industry D24Q/RE008-84. They are widely used in electrical connection between electronic equipment.
GX16 aviation Connector
Waterproof Cable Connector GX16 2 3 5pin Connector
Panel mount GX16 aviation electrical connectors are sold as pairs. This is a robust metal connector which can be used for power or signal.
Circular push pull connector
FGG/EGG.00/0B/1B/2B/3B/4B 2 to 30 pin 6 pin 9 pin 12 pin circular self locking push pull connector
Circular push pull connectors are standard self-locking multi pole connectors with alignment key. Equivalent  B-Series ranges from 00 to 5B size.
 Push-pull Circular connector
0B 1B PHG FGG 2 3 4 5 6 7 9 10 12 14 16 pin push-pull Circular connector
The PHG male plug connector design allows to adjust and position the connector in an efficient way in order to prevent cable snaging. Each connector can be orientated during its assembly and enables 8 positions. The connector then remains securely positioned in its orientation.
Pcb mount circular connector
Push Pull Circular Connectors 2 to 30pin Male and Female
Push Pull Connectors: Standard B series; Waterproof/watertight K series; Half-moon insert S series; Standard F series; Plastic P series.
Socket Terminal Connector
Potential Equalization Socket Connector used for medical equipment
Socket Terminal Connector are used for grounding and eliminating potential difference of various medical equipments and precision instruments.
XS12 jack connector
XS12 Micro Jack Connector Waterproof Connector
XS12 electric connector has small and beautiful appearance, and has two structures: push in steel ball locking and thread locking. It is suitable for AC and DC circuit connection of various instruments and electronic equipment
