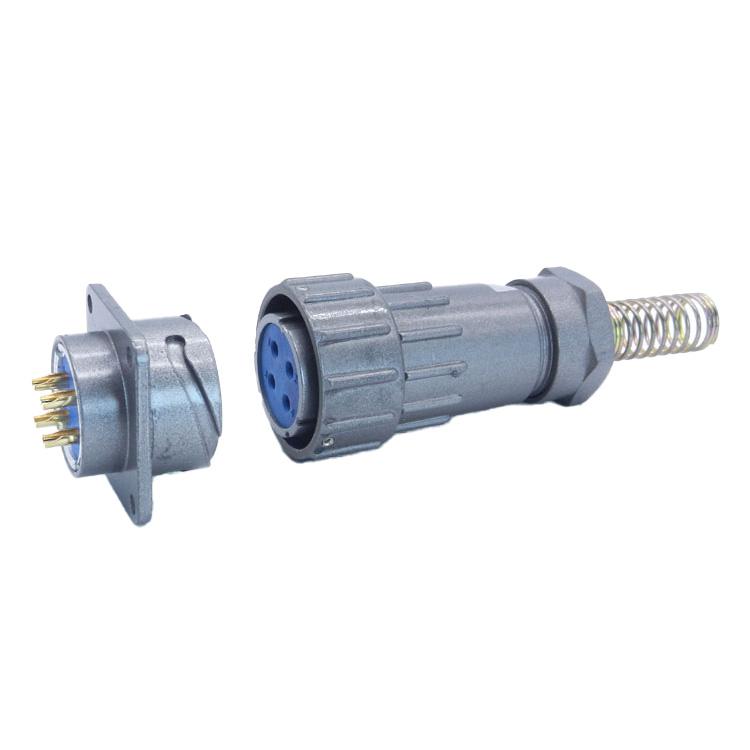

FQ Series IP67 25A Automotive Waterproof Connector

The FQ Series 25A automotive plug socket is a high-performance automotive electrical connector specially designed for vehicle and industrial power transmission applications. With a 25A rated current, this low-voltage high-current connector delivers stable power supply for automotive electrical systems, featuring a practical plug-and-socket design for easy mating and disconnection.
Engineered for complex automotive environments, it offers excellent anti-vibration performance and reliable contact stability, meeting standard automotive connection requirements. It is also widely suitable for other industrial low-voltage high-current connection scenarios with matching specifications.

Item no.:
OL-FQ
Payment:
Wire transfer, Paypal, Western Union, Alipay
Product origin:
China
Shipping port:
Xiamen
Lead Time:
7

Inquiry now

product introduction

Technical Specifications

Rated Current:	3A-25A
Rated Voltage:	1000V/1500V
Pin Count:	2P/3P/4P/5P/6P/7P/9P/10P/12P/13P/19P/26P/32P/42P/55P
Contact Material:	gold-plated copper
Shell Material:	aluminum alloy
IP Rating:	IP67
Coupling:	Bayonet coupling
Working Tempereture Range:	-55°C~100°C
Vibration:	20-2000Hz Acceleration 150m/s²
Pressure:	4.4Kpa
Shock:	Acceleration 490m/s²
Life Time:	>500
Technical Support:	7*24h Online Service

Product selling points

· Superior waterproof performance: IP67 rating with silica gel sealing ring; dustproof and waterproof for harsh automotive/outdoor use.
· Excellent electrical specs: 3A-25A rated current, 1000VAC/1500VAC rated voltage; gold-plated copper contacts for high conductivity and anti-oxidation.
· Durable premium materials: Aluminum alloy housing (corrosion-resistant); Nylon UV insulator; carbon structural steel spring for stable performance.
· Extreme environmental adaptability: -55℃~100℃ working temperature; resistant to vibration (20-2000Hz, 150m/s²) and shock (490m/s²).
· Secure connection: Bayonet coupling design; firm docking, anti-loosening for long-term reliable use.
· Flexible configurations: 2-55P pin options; multiple models (FQ14/FQ18/FQ24/FQ30) with various cable outlet calibers (5-16mm).
· Long service life: Mechanical life >500 mating cycles; wear-resistant contacts suitable for frequent connection.
· Certified quality: CE, RoHS certified; strict factory testing meets automotive and industrial standards.
· Customizable service: OEM/ODM supported for logos and specs; cable harness customization available.
· Efficient delivery: 7-day lead time for 1-1000 sets; factory direct tiered pricing; free samples (freight collect).
· Professional support: 7*24h online technical support; multiple logistics and payment options.
· Wide application: Ideal for automotive, instruments, high-speed rail, aerospace, CNC machines and industrial equipment.

Product details

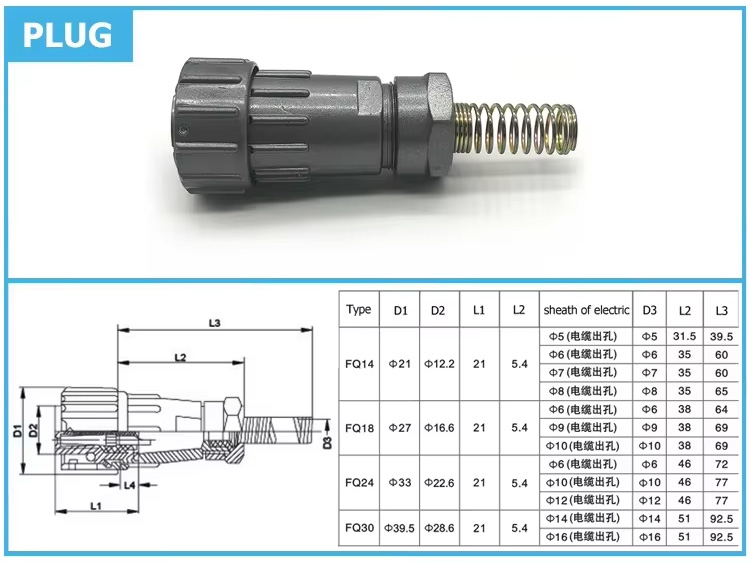

Overview of Detailed Dimensions and Drawings for FQ14/FQ18/FQ24/FQ30 Plugs

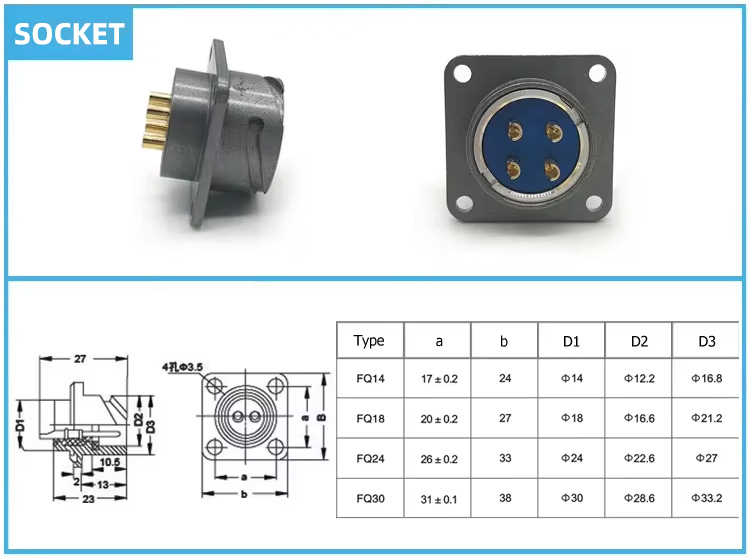

Overview of Detailed Dimensions and Drawings for FQ14/FQ18/FQ24/FQ30 Receptacles

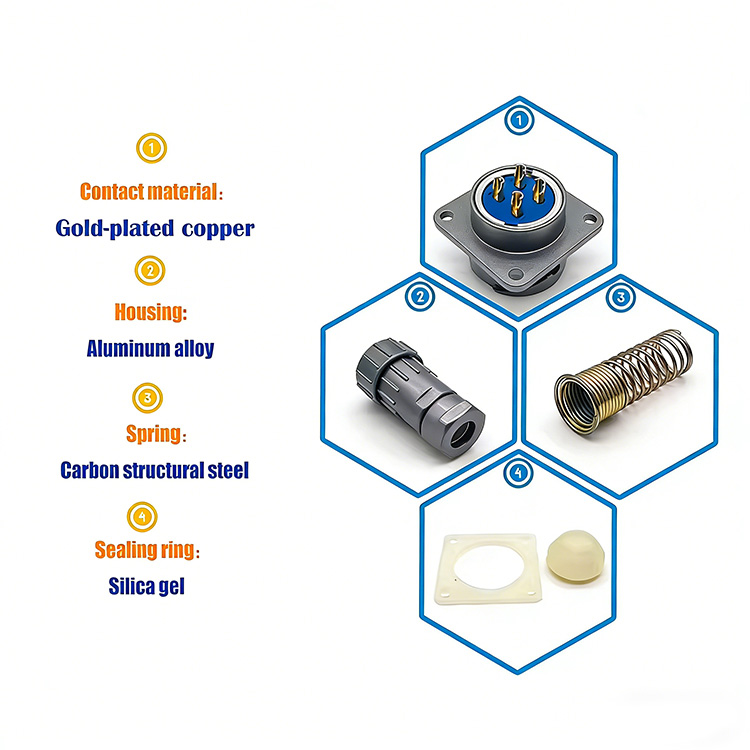

The contact material of the FQ metal connector is gold-plated copper, the shell is aluminum alloy, the spring is carbon structural steel, and the sealing ring is silicone.

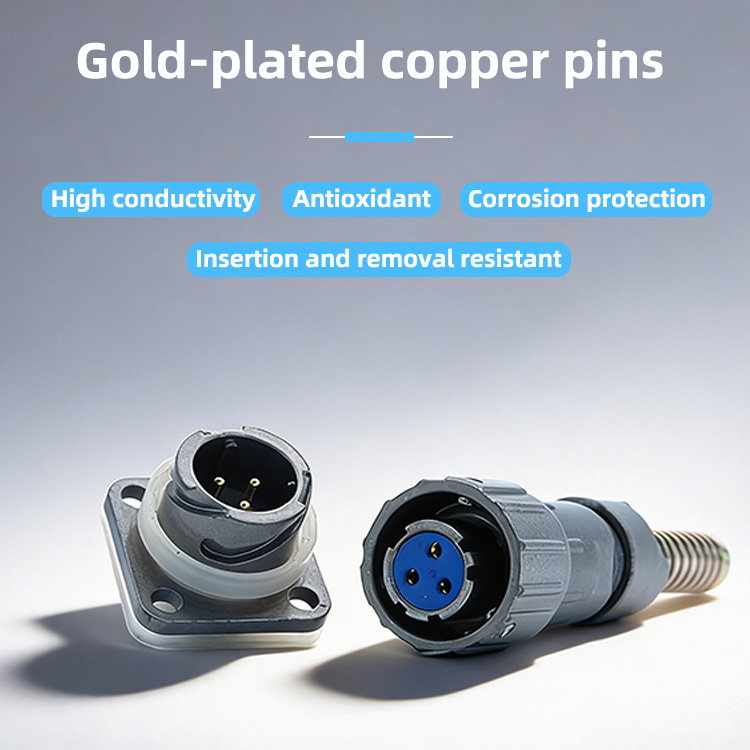

FQ metal connectors are equipped with gold-plated copper pin contacts, featuring high conductivity, oxidation resistance and corrosion resistance, allowing for long-term plugging and unplugging operations

Application Scenarios

FQ metal connectors can be used in machine control equipment, aviation electrical equipment, railway mechanical equipment and automatic machine tools

Factory Display

All-in-one production and customization factory

Certificate Display

Shipping & Payment Methods

We support sea, air and land transportation, with a variety of express delivery options. Payment methods include PayPal, Visa, etc
