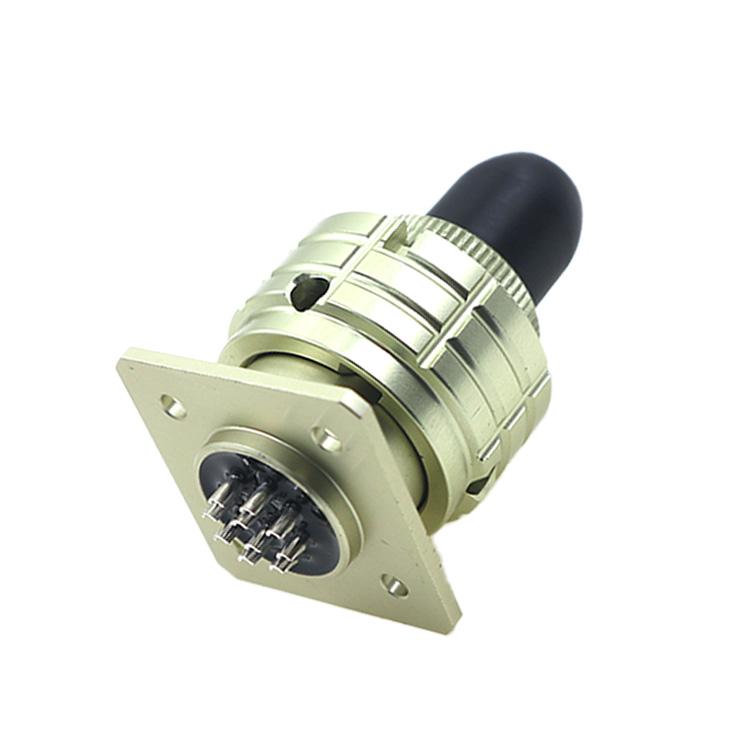

Quick-Connect Bayonet Connector - For Russian Industrial AC/DC Wiring, Miniature Power Connections

OHS Series Russian Mil 4Pin Bayonet Power Connector

OHS Russian‑standard aviation military‑grade female connector is specially designed for 24V power and signal transmission, with high stability and durability for harsh working conditions. It adopts a precision locking structure for secure connection and anti‑vibration, effectively preventing loosening during use. Built with high‑conductivity contacts and rugged housing, it features excellent oxidation resistance, waterproof and dustproof performance, ensuring long‑term reliable use. Widely used in automotive, machinery, industrial control, aerospace equipment, military devices and Russian‑standard electrical systems. With standard size and easy installation, it is an ideal choice for professional 24V power connection projects.

Item no.:
OHS
Payment:
Wire transfer, Paypal, Western Union, Alipay
Product origin:
China
Shipping port:
Xiamen
Lead Time:
7

Inquiry now

product introduction

Technical Specifications

Rated Current:	1.5A-3.7A
Rated Voltage:	250V
Pin Count:	4P/7P/10P/19P/32P/50P
Contact Material:	Silver-plated
Shell Material:	aluminum alloy
IP Rating:	IP55
Vibration:	1-5000Hz 20g
Contact Resistance:	≤5mΩ
Insulation Resistance:	≥1000MΩ
Ambient Temperature:	-60℃~85℃
Contact Diameter:	Dia.1.0mm
Anti-misplug:	Multi-keyway design
Technical Support:	7*24h Online Service

Product selling points

· Extreme Environmental Adaptability: Operates at -60℃~+85℃, shock-resistant (1000g single/100g multiple) and vibration-resistant (1-5000Hz 20g), IP55 dust/water protection.
· Superior Electrical Performance: Silver-plated contacts (≤5mΩ contact resistance, ≥1000MΩ insulation resistance), 250V rated voltage, 1.5A-3.7A pin-dependent rated current.
· Durable & Sturdy Build: High-strength aluminum alloy housing, bayonet/threaded connection for stable locking, 1.0mm precision contact diameter.
· Anti-misplug Design: Multi-keyway structure prevents wrong mating, ensuring connection safety and accuracy.
Diverse Configurations: 4/7/10/19/32/50 pin options, male/female genders, with/without tail attachment versions available.
· Certified Quality: Complies with EU standards, CE/RoHS/IP67/IP68/ISO/SGS certified, strict quality testing system.
Full Customization: Supports OEM/ODM (drawing/sample-based, cable/logo/mold customization), gold-plated contact option available.
· Professional Technical Support: 7*24h engineer-led online service, free detailed size drawings on request.
· Flexible Supply: MOQ 10 sets, free samples (freight excluded), 1-3 days for samples, 5-7 days for mass production.
· Reliable Supplier: 10+ years of export experience, 3000+ daily production, multiple payment/logistics options, exported to 100+ countries.

Product details

The OHS metal connector offers six different pin types for free selection according to your requirements

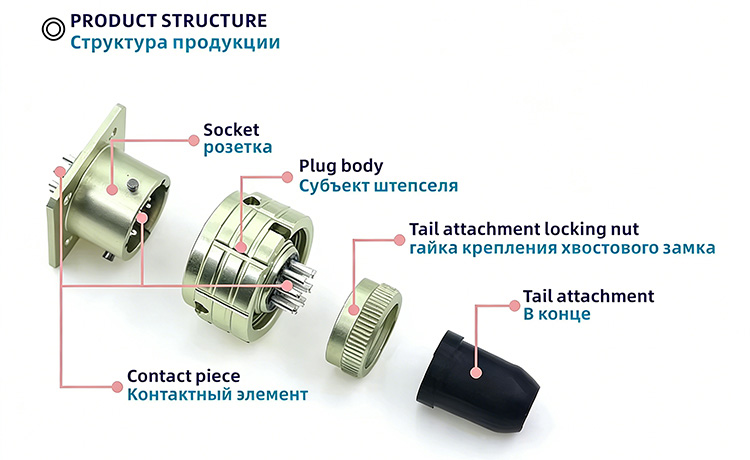

The OHS metal connector consists of socket, plug body, tail attachment locking nut, tail attachment and contact piece

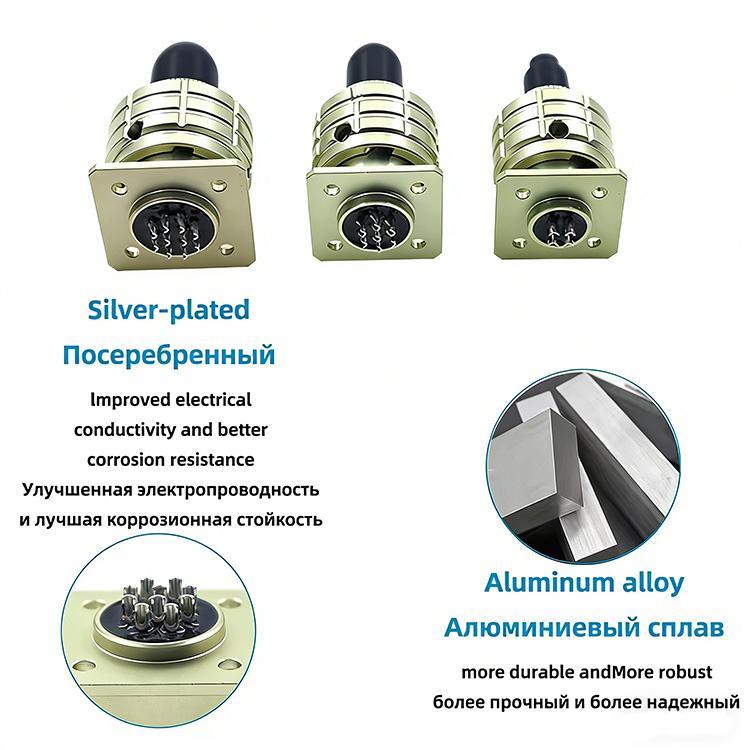

The OHS metal connector features silver-plated contacts and an aluminum alloy housing

OHS metal connector supports customized wiring harnesses, saving wiring time and ready for use upon receipt

Application Scenarios

The OHS metal connector can be applied to tanks / armored vehicles, UAV power distribution systems, engineering vehicles, and oil drilling.

Factory Display

All-in-one production and customization factory

Certificate Display

Shipping & Payment Methods

We support sea, air and land transportation, with a variety of express delivery options. Payment methods include PayPal, Visa, etc

Tags :

Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Categories

Related products

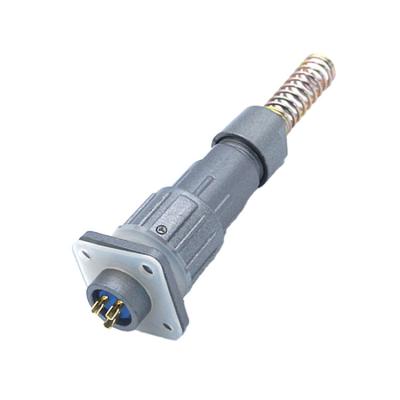

FQ Series IP67 25A Automotive Waterproof Connector

The FQ Series 25A automotive plug socket is a high-performance automotive electrical connector specially designed for vehicle and industrial power transmission applications. With a 25A rated current, this low-voltage high-current connector delivers stable power supply for automotive electrical systems, featuring a practical plug-and-socket design for easy mating and disconnection. Engineered for complex automotive environments, it offers excellent anti-vibration performance and reliable contact stability, meeting standard automotive connection requirements. It is also widely suitable for other industrial low-voltage high-current connection scenarios with matching specifications.

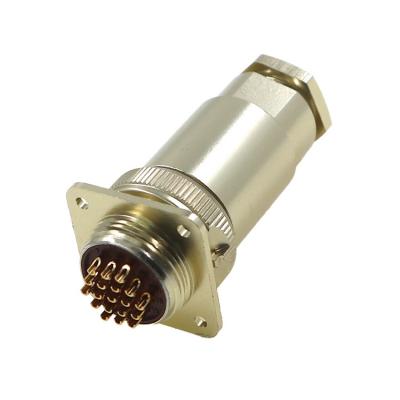

KP Series IP55 Russian Aviation Mini Connector

Fzolink KP Series is a professional Russian aviation mini aerospace connector with IP55-rated circular design, built for ultra-reliable electrical connections in extreme harsh environments. This high-shock & vibration resistant aerospace connector operates flawlessly from -60℃ to +85℃, withstanding 1000g single impact, 100g multiple impacts and 1-5000Hz 20g vibration. Featuring high-conductivity brass contacts (≤5mΩ, ≥1000MΩ insulation), it delivers stable performance with 200V voltage and 1.5A-3.7A current. With rugged aluminum alloy housing, threaded anti-loosening coupling and 4/7/10/19/32/50 pin options, this IP55 circular military grade connector is CE/RoHS certified and supports full OEM/ODM cable customization. Ideal for aviation, aerospace and industrial harsh-environment systems, it includes 7×24h professional technical support.

XS8 XS9 XS12 XS16 Round Socket Electric Quick Connector

XS Series IP65 Gold Plated Automotive Power Connector

Fzolink OL-XS series (XS8/XS9/XS12/XS16) are IP65 automotive round quick connectors designed for reliable wire-to-board connection in harsh automotive environments. Operating stably from -55℃ to +85℃ with >500 mating cycles, these thread & push-pull self-latching connectors feature gold-plated brass contacts (≤5mΩ) and gold/silver-plated aluminum alloy housing, ensuring superior conductivity with 250V voltage and 3A/5A/10A current options. With vibration and impact resistance, diverse 2P-9P pin configurations and compact space-saving design, these IP65 waterproof automotive electrical connectors offer secure, convenient coupling. CE and RoHS certified, they are perfect for stable power transmission in various automotive electrical systems.

YD Series IP55 500V Gold Plated Power Connector

Fzolink OL-YD Series YD40 is an IP55 waterproof high-current power cable connector with male & female mating design, specially engineered for heavy-duty power transmission in harsh industrial environments. This IP55 industrial high-current connector features gold-plated copper contacts and rugged nickel-plated zinc alloy housing, delivering superior conductivity and corrosion resistance with 7A-150A current, 500V rated voltage and 1500VAC withstanding voltage for stable power transfer. Offering 2-61 pin options, flat/round shapes, straight/right angle designs and cable/metal conduit connection types, it uses threaded coupling for secure anti-loosening connection. Operating reliably from -45℃ to 85℃ with high shock resistance and over 500 mating cycles, this IP55 waterproof industrial connector is CE/RoHS certified and supports OEM/ODM customization, making it perfect for demanding industrial power connection applications.

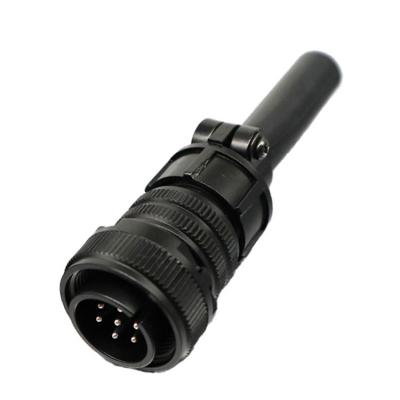

MS5015 IP65 4-Pin Automotive Waterproof Connector

Fzolink MS5015 is an IP65 waterproof Mil Spec circular connector designed as a heavy‑duty automotive power adapter connector with exceptional environmental adaptability. Operating stably from -55℃ to +125℃ and withstanding over 500 mating cycles, this industrial circular connector features gold/silver‑plated copper alloy contacts and nickel‑plated zinc alloy housing, delivering superior electrical performance with wide voltage (300/750/1500VAC) and current (10/25/50/100A) options, plus 5000MΩ insulation resistance. Offering 3‑61 pin configurations, male/female, straight/90° bend and panel mount styles, it uses threaded coupling for secure cable and metal conduit connections. CE/RoHS certified and EU standard compliant, this vibration‑resistant industrial connector excels in harsh environments for automotive, new energy, rail transit, aerospace and medical equipment, supporting OEM/ODM customized wiring for diverse applications.

MS3116 IP67 Mil-Spec Aerospace Circular Connector

OLINK MS3116 is an IP67 Mil Spec circular connector designed as a heavy‑duty aerospace power adapter for ultra‑reliable electrical connections in extreme harsh environments. Featuring gold‑plated copper alloy contacts and rugged aluminum alloy housing, this industrial Mil Spec connector delivers stable performance with 600V voltage, 7.5A current and 5000MΩ insulation resistance, operating flawlessly from -55℃ to +125℃. Available in straight/right angle designs and multiple shell sizes, it offers exceptional vibration and impact resistance with IP67 waterproof sealing. Compliant with international military standards and CE/RoHS certified, this high‑reliability Mil Spec connector is ideal for aerospace, instrumentation, petrochemical, new energy and automotive systems, supporting full OEM/ODM custom wire harnesses with global 7×24h technical support.

2PM Series IP67 Russian Standard 4-Pin Power Connector

The 2PM Series 4‑pin circular power connector is a rugged industrial connector designed for stable power and signal transmission in harsh working environments. Featuring a secure locking structure to prevent accidental disconnection, this heavy‑duty industrial power connector uses high‑conductivity metal contacts to ensure low resistance and long‑term reliability. Built with durable insulation and anti‑vibration housing, it is shockproof, moisture‑resistant and wear‑resistant for repeated plug‑and‑pull use. Ideal for industrial equipment, automotive systems, machinery control and power supply units, this 4‑pin locking electrical connector offers easy installation and strong compatibility for professional power applications.

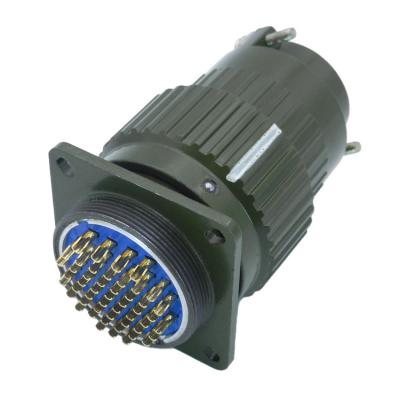

OL-YP IP68 Circular Automotive Connector 1500VAC 50A
