86-Type IP66 Outdoor Waterproof Socket & Switch Box – BG186 / BG286 / BG1G

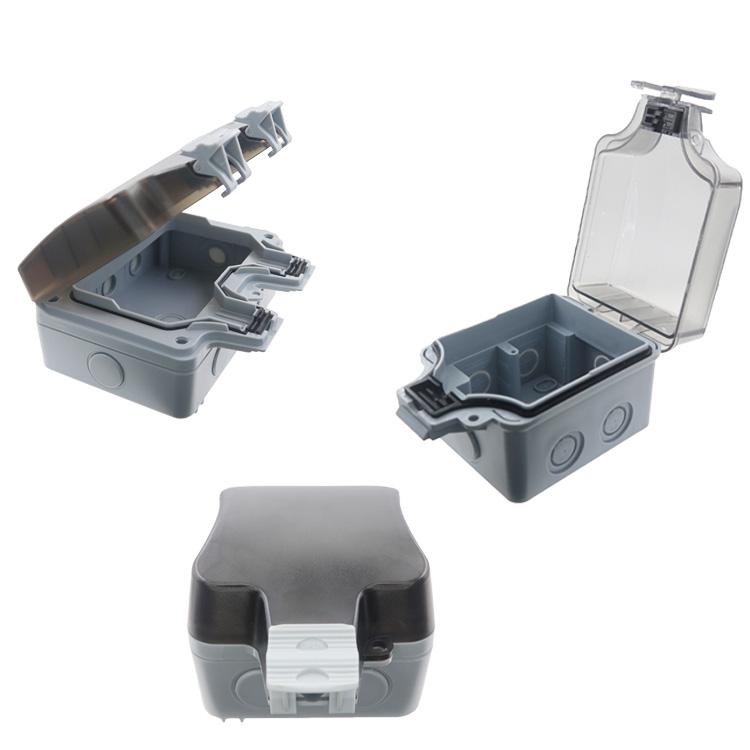

The BG186, BG286 and BG1G series are IP66 waterproof socket and switch boxes designed to protect compatible electrical panels from dust, rain and moisture. Featuring a durable PC housing and silicone rubber sealing structure, the series is suitable for both indoor and outdoor electrical installations.

Different models support different 86-type panel configurations, while Ø20 mm cable-entry knockouts provide flexible wiring options for installation. With replaceable panels and practical mounting design, the series is suitable for balconies, gardens, garages, workshops, commercial areas and other utility applications.

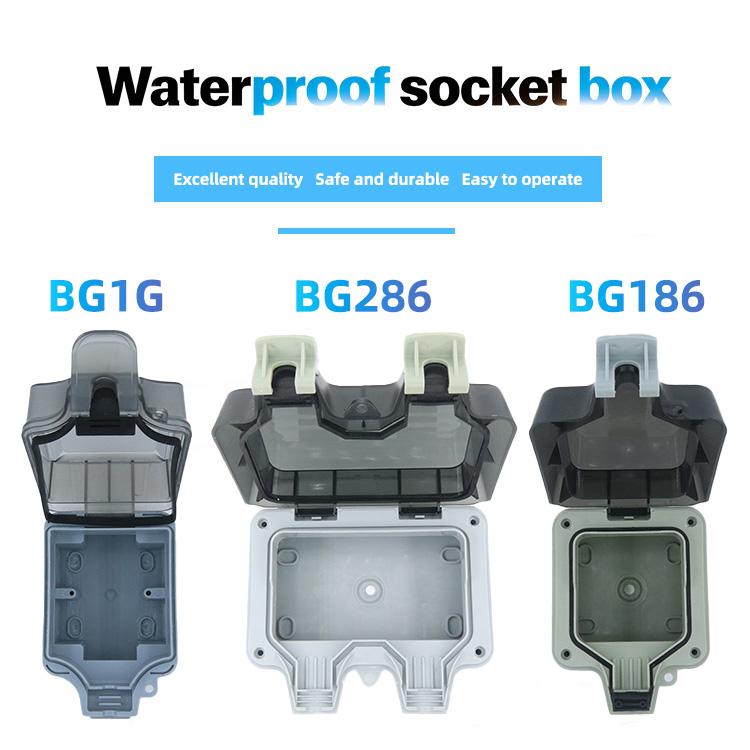

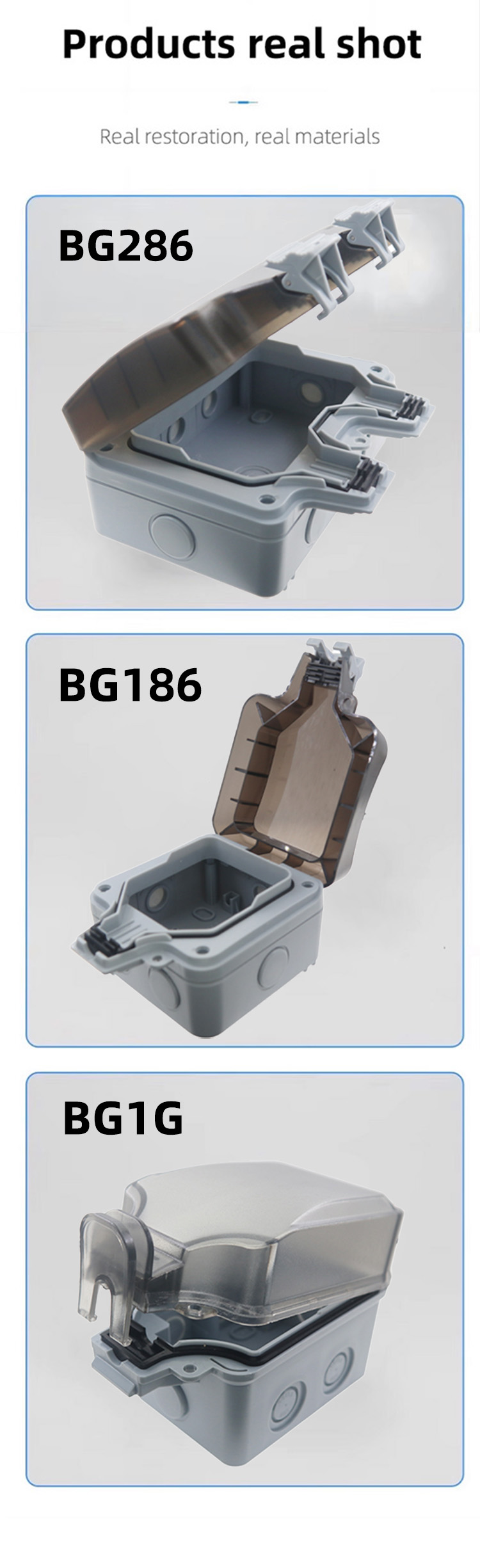

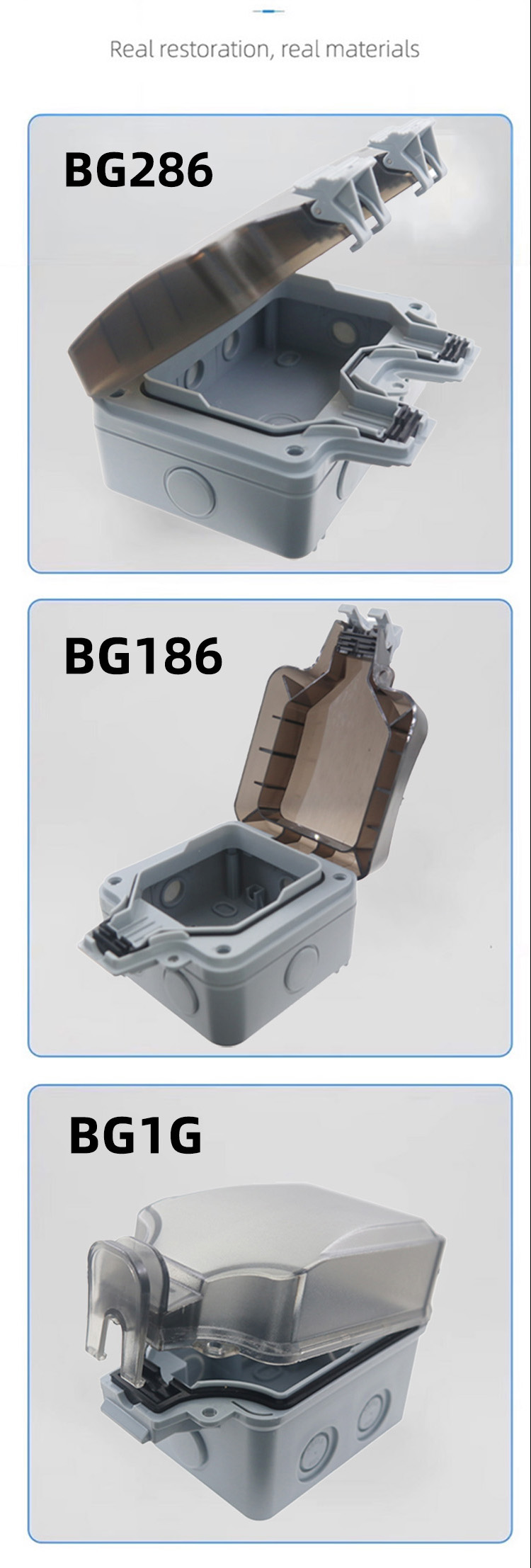

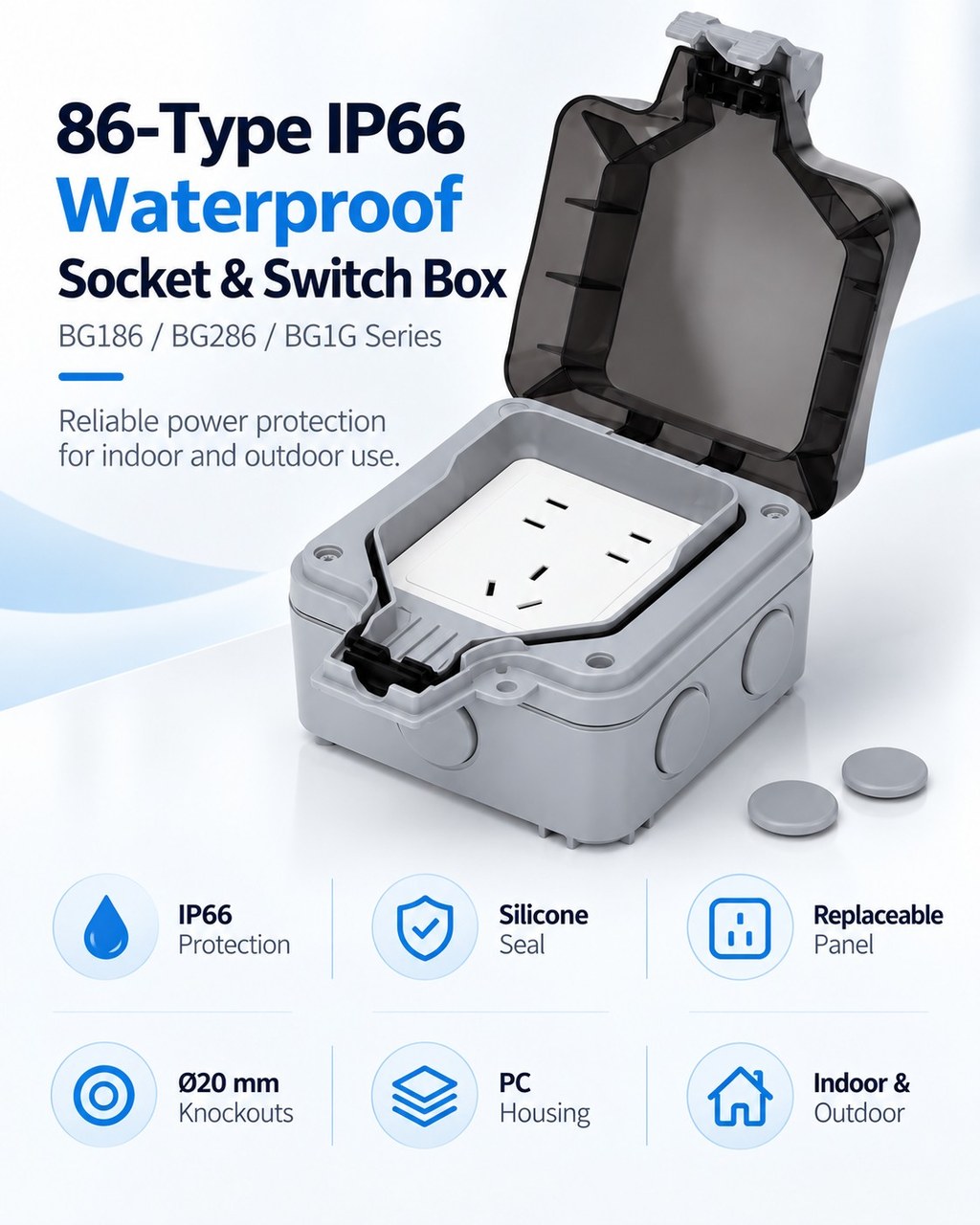

86-Type IP66 Waterproof Socket & Switch Box Series

The BG186, BG286 and BG1G series are IP66 waterproof socket and switch boxes designed to protect compatible electrical panels from dust, rain and moisture. Featuring a durable PC housing and silicone rubber sealing structure, the series is suitable for both indoor and outdoor electrical installations.

Different models support different 86-type panel configurations, while Ø20 mm cable-entry knockouts provide flexible wiring options. The compact enclosure design is suitable for residential, commercial and utility installations where additional protection for sockets and switches is required.

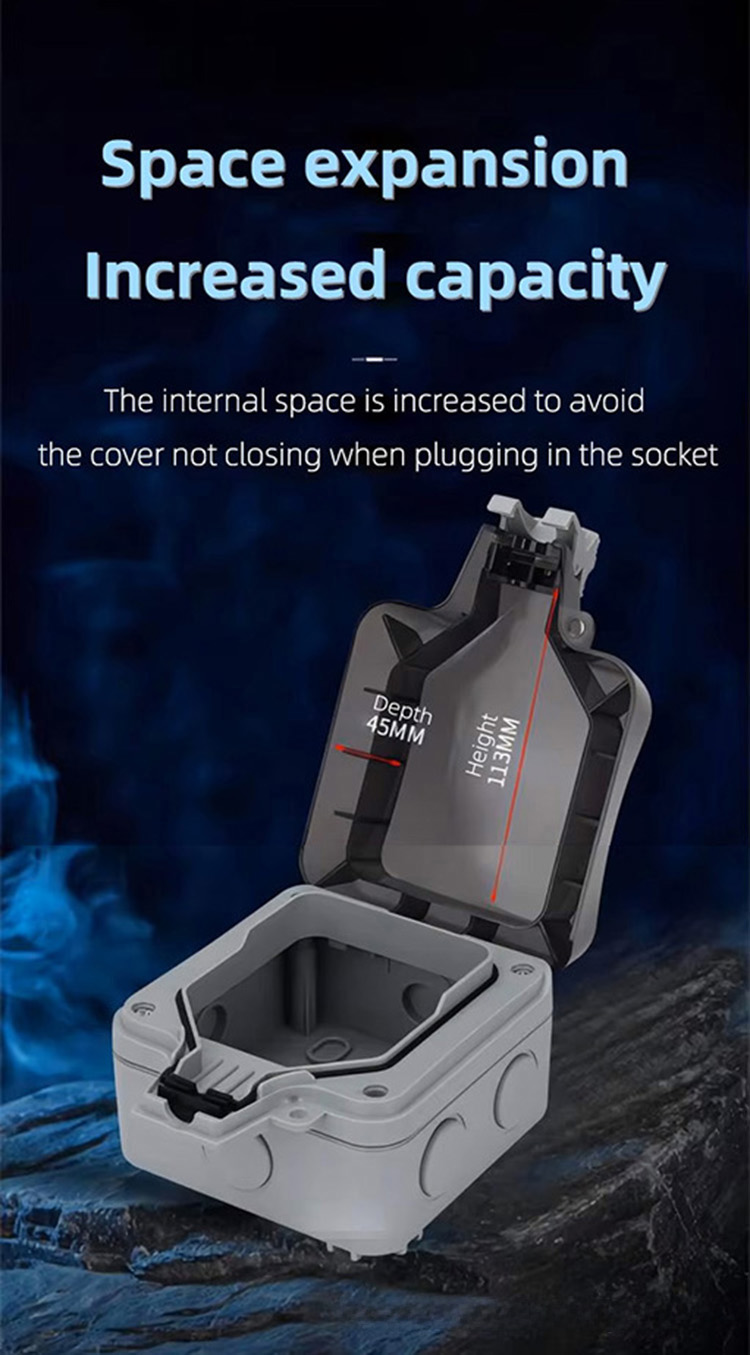

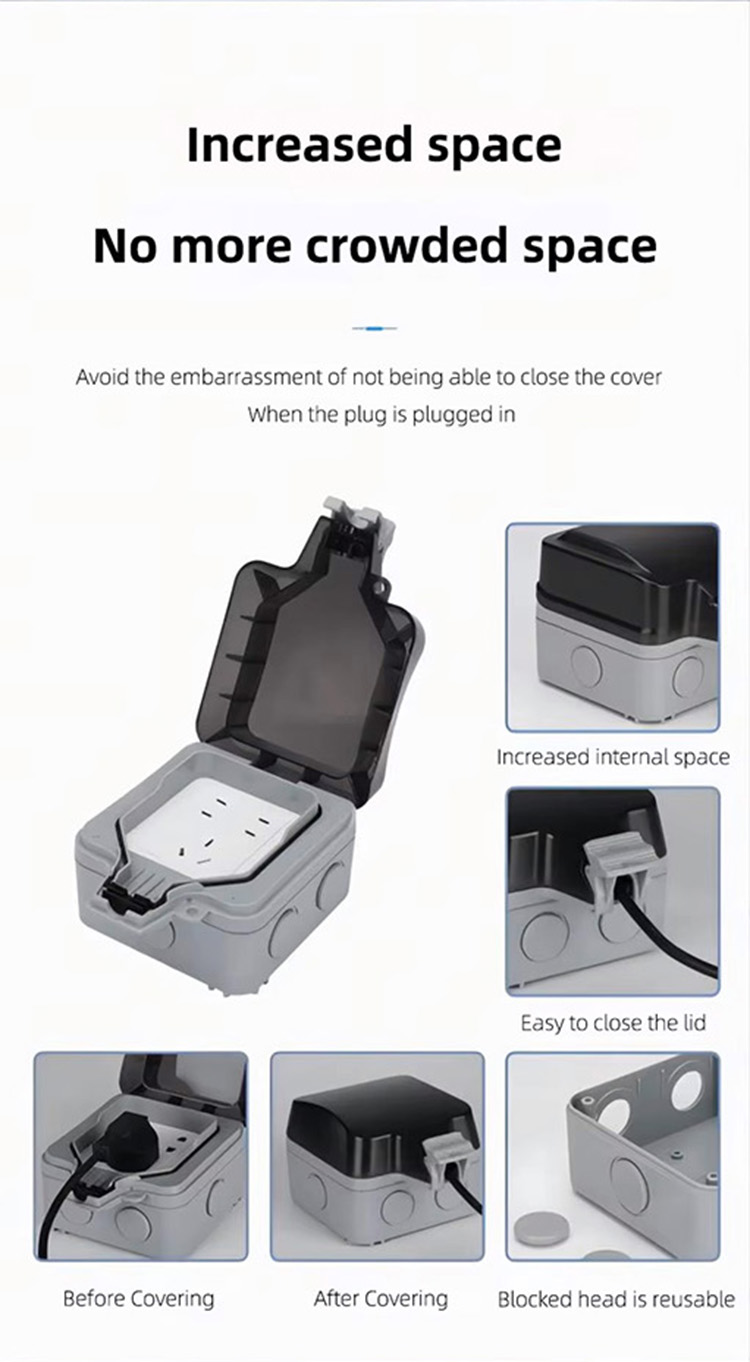

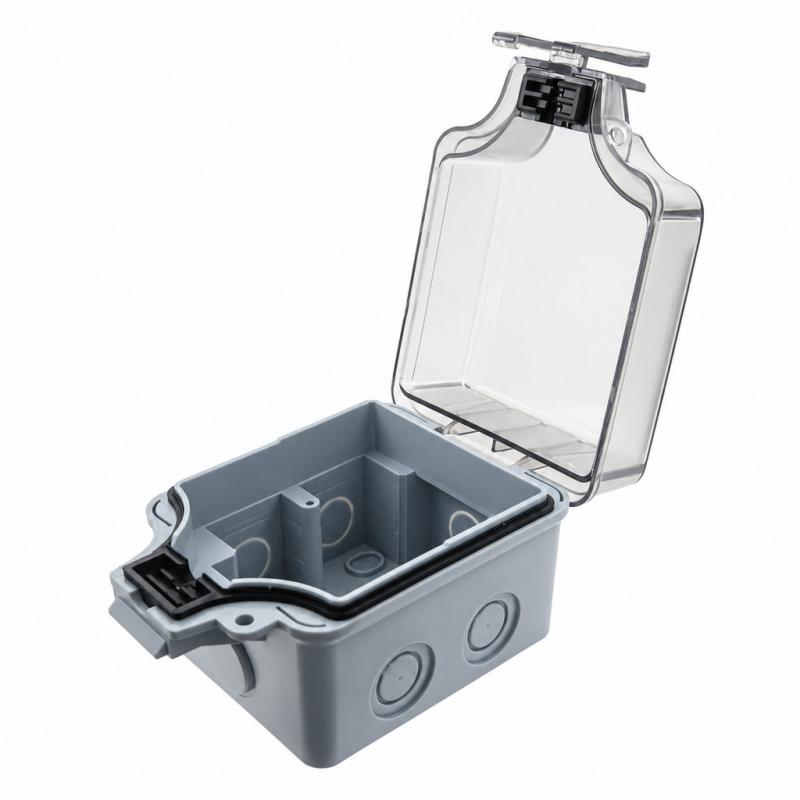

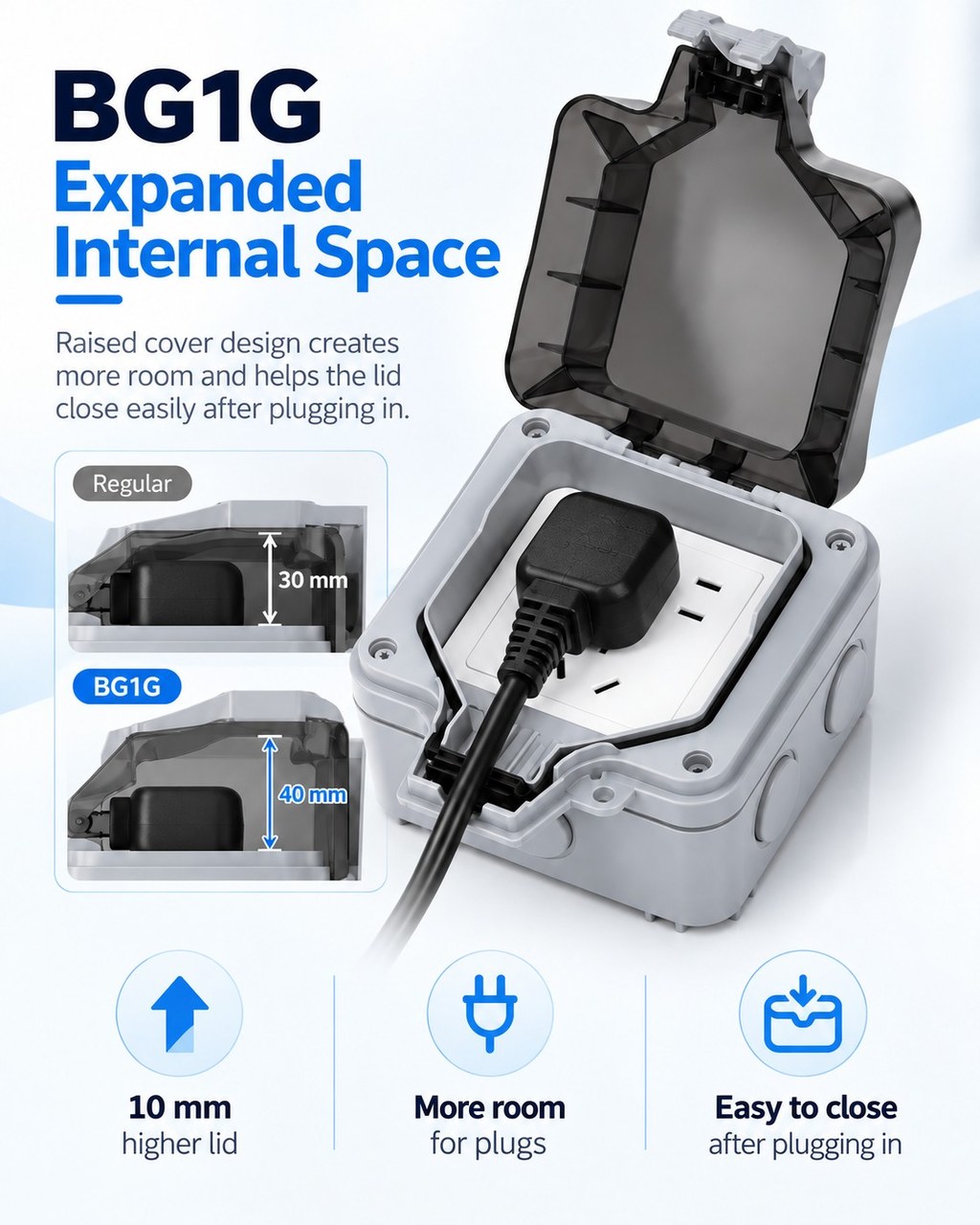

Expanded Internal Space for the BG1G Model

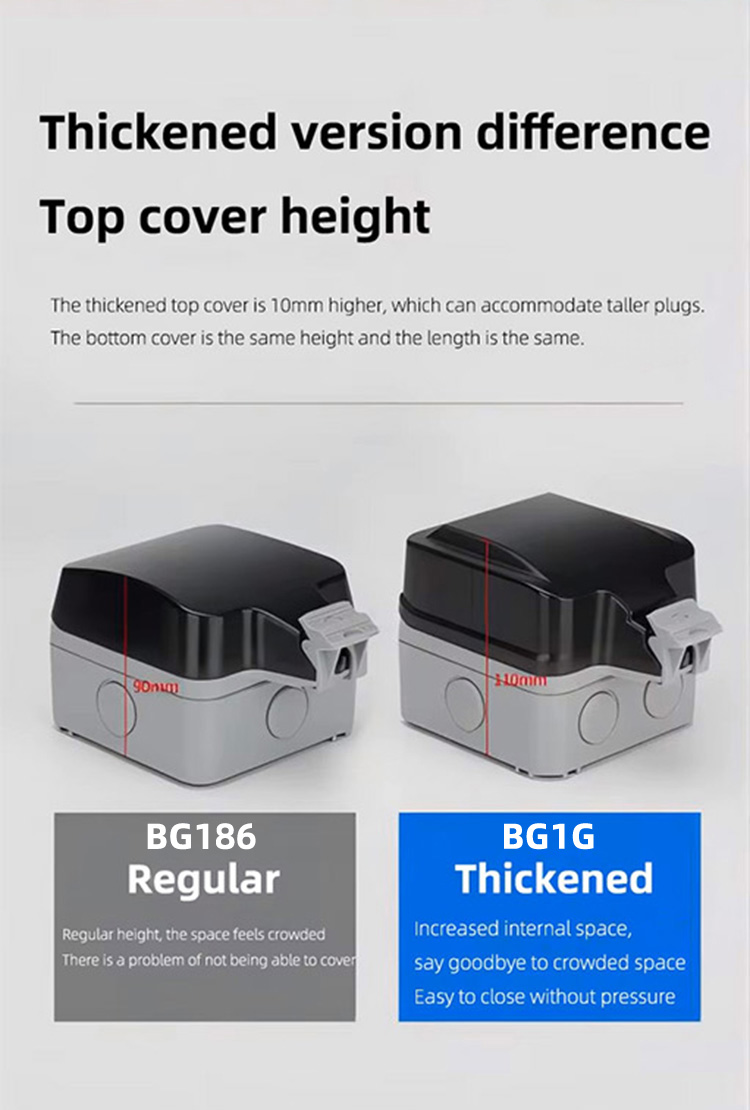

The BG1G features a raised cover design that provides approximately 10 mm of additional internal height compared with the standard version. The increased space helps accommodate taller plugs and reduces interference between the plug, cable and protective cover.

This deeper design makes it easier to close the cover while the socket is in use, making the BG1G suitable for installations where larger plugs or adapters require additional clearance.

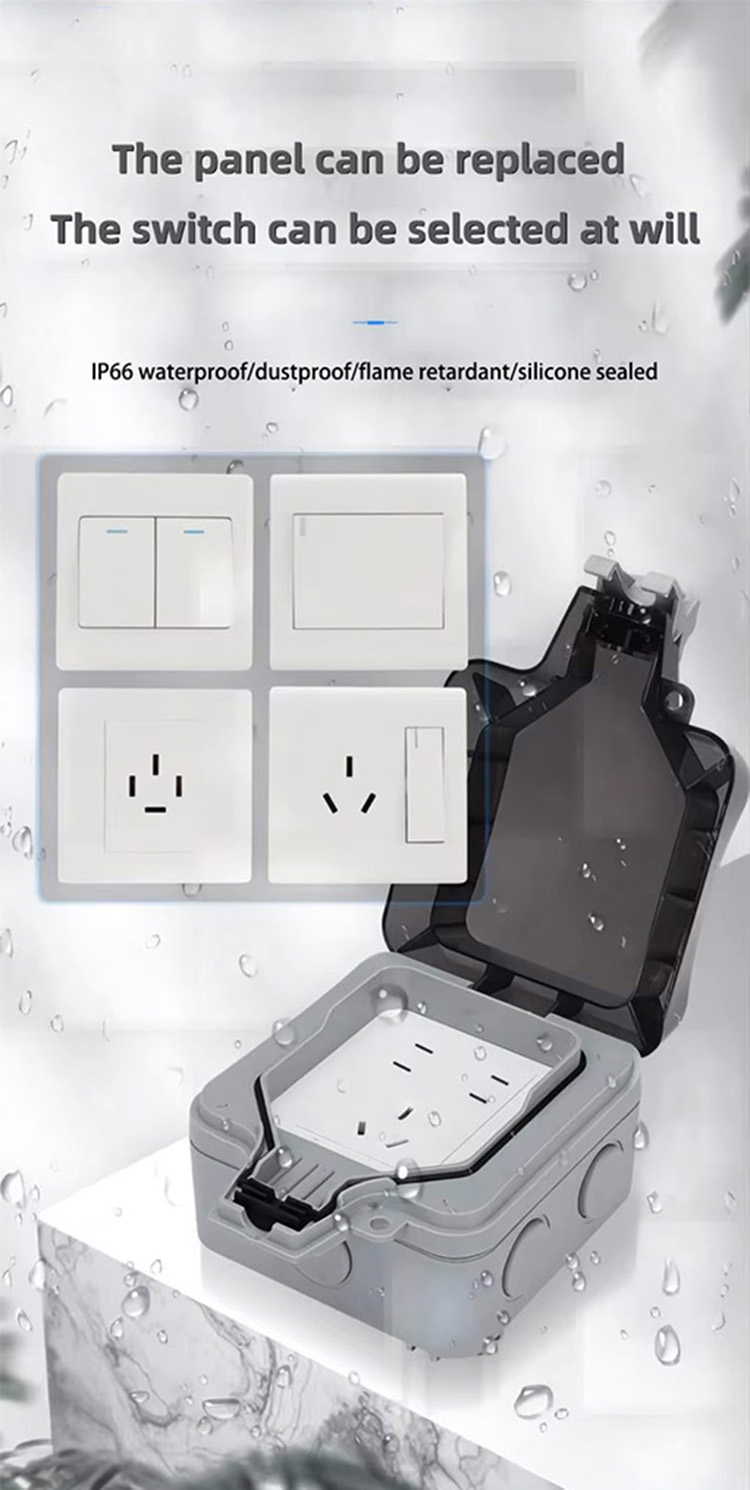

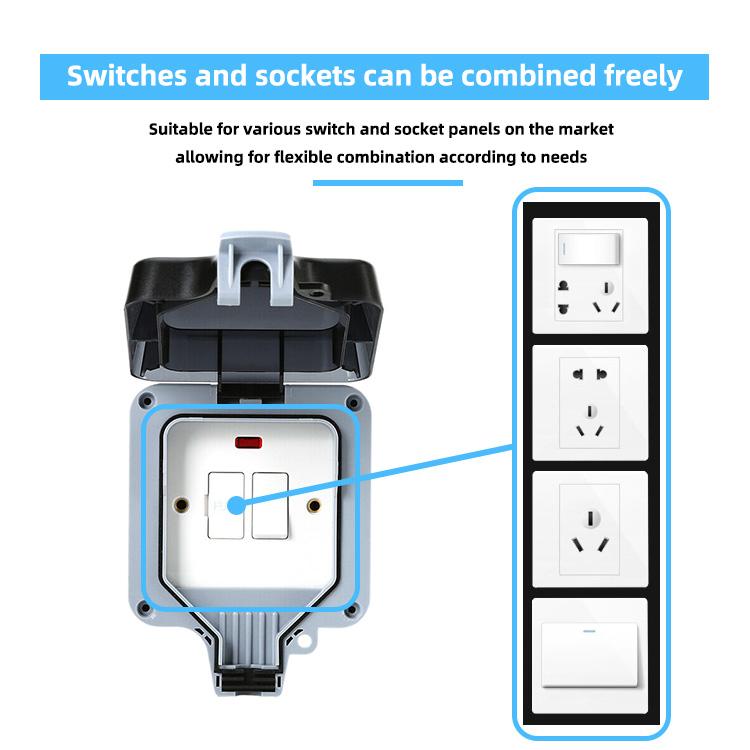

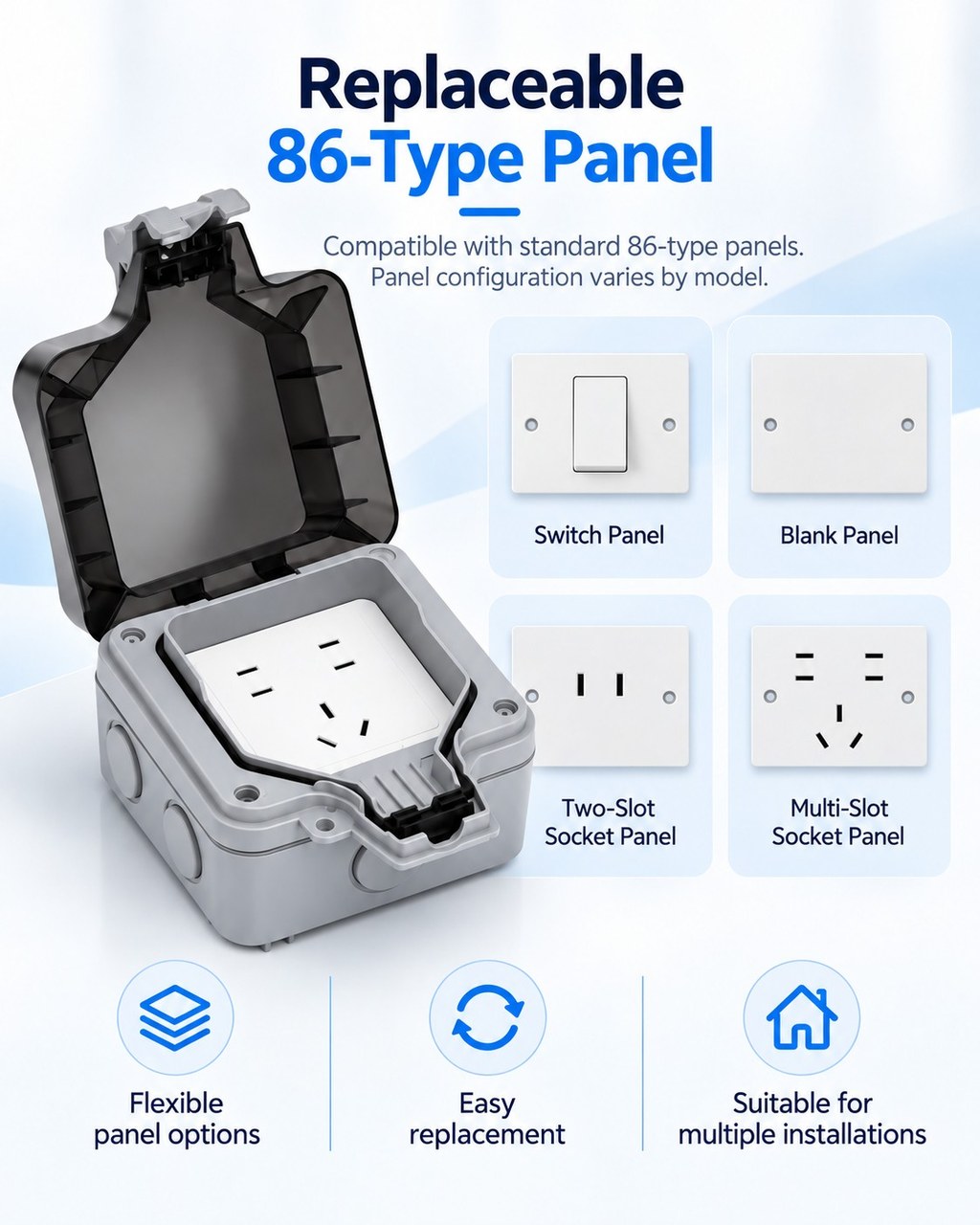

Flexible Panel Options for Different Electrical Needs

The BG series is designed to work with compatible 86-type socket and switch panels, allowing the enclosure to be configured for different electrical applications. Depending on the model, different panel layouts can be selected to suit the required installation.

The replaceable panel structure provides greater flexibility when choosing sockets, switches or other compatible 86-type modules without changing the complete waterproof enclosure.

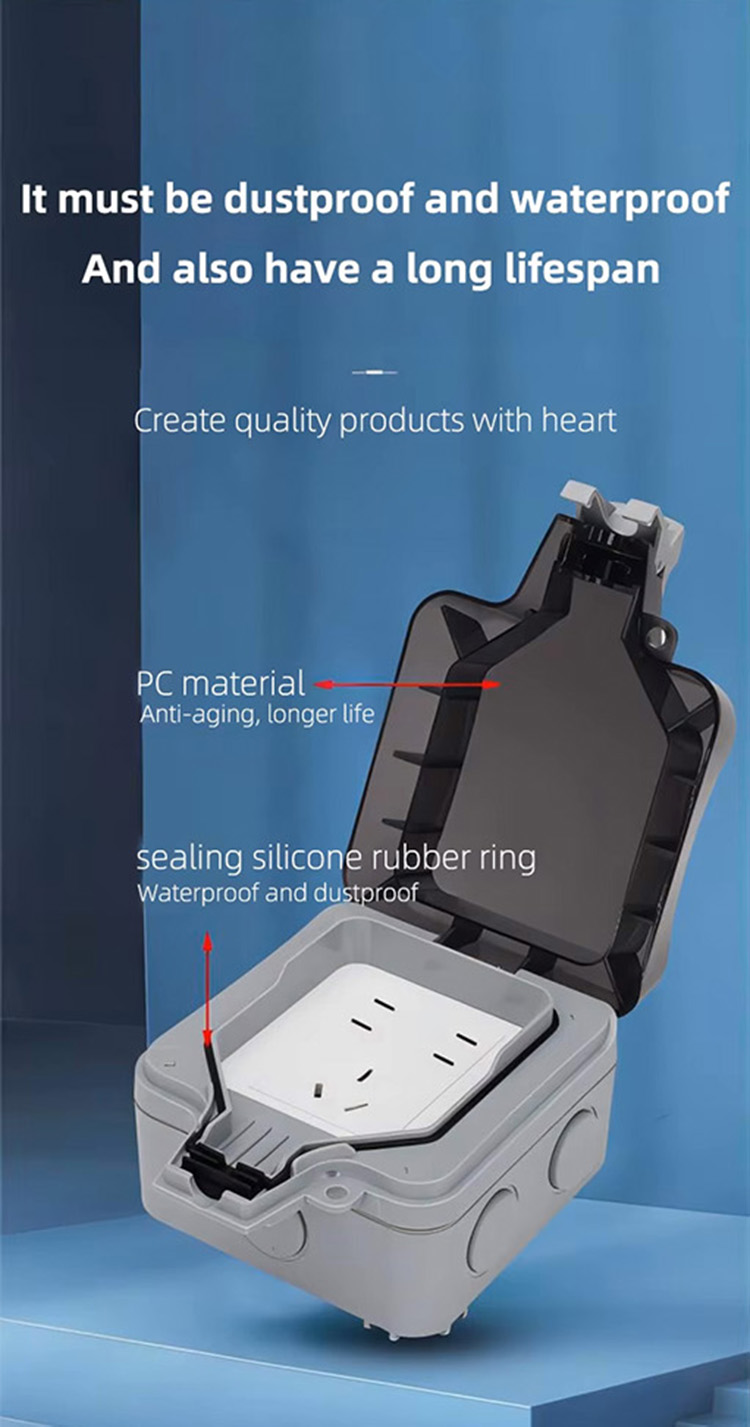

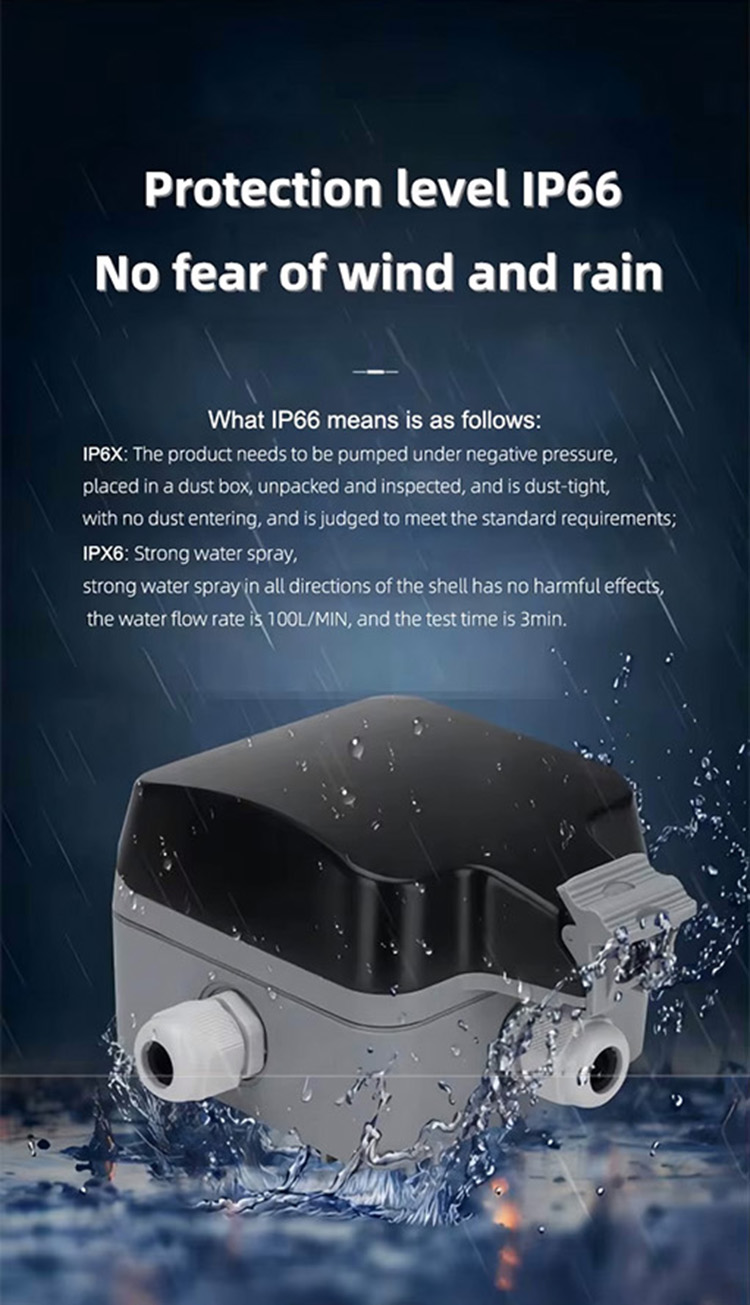

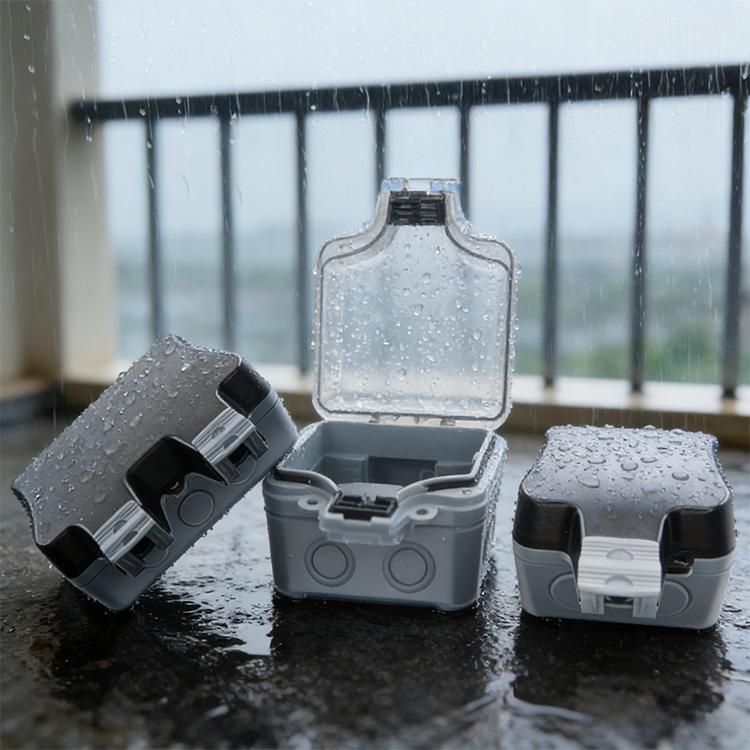

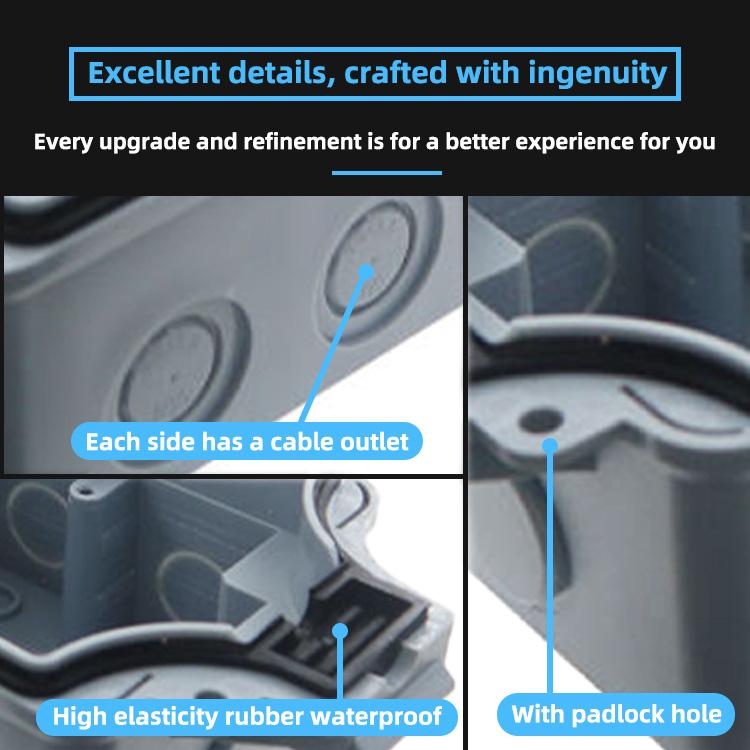

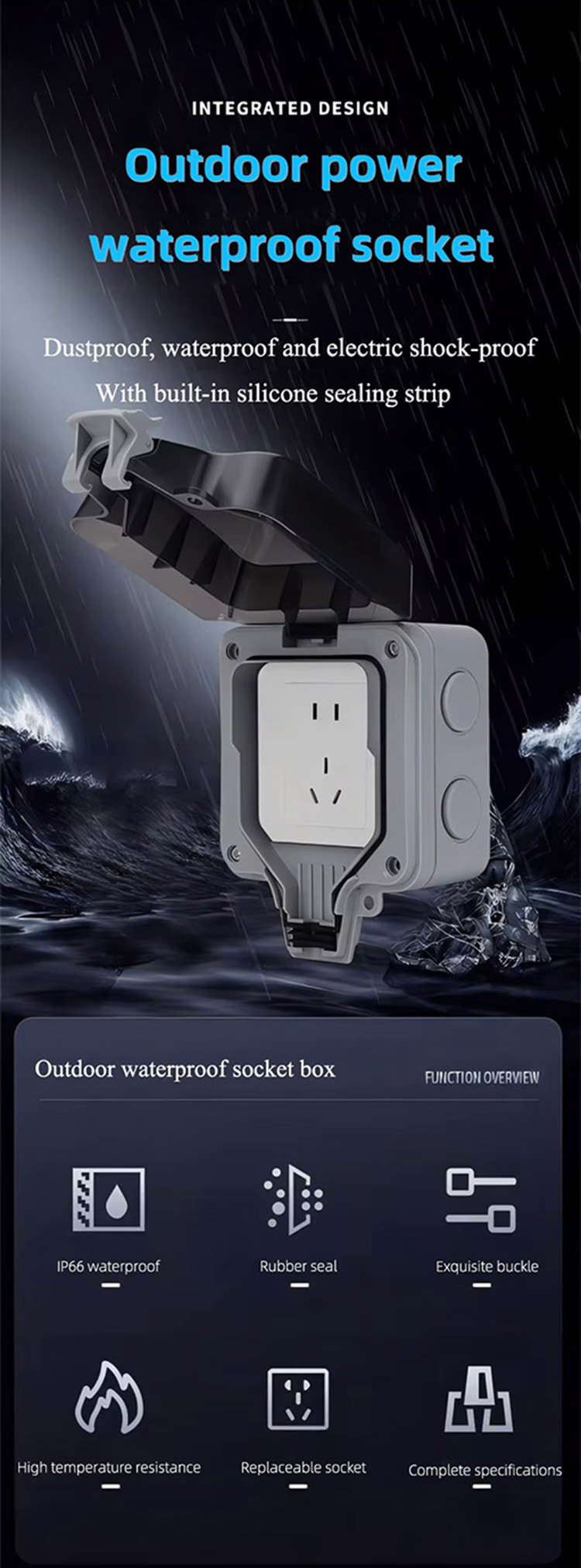

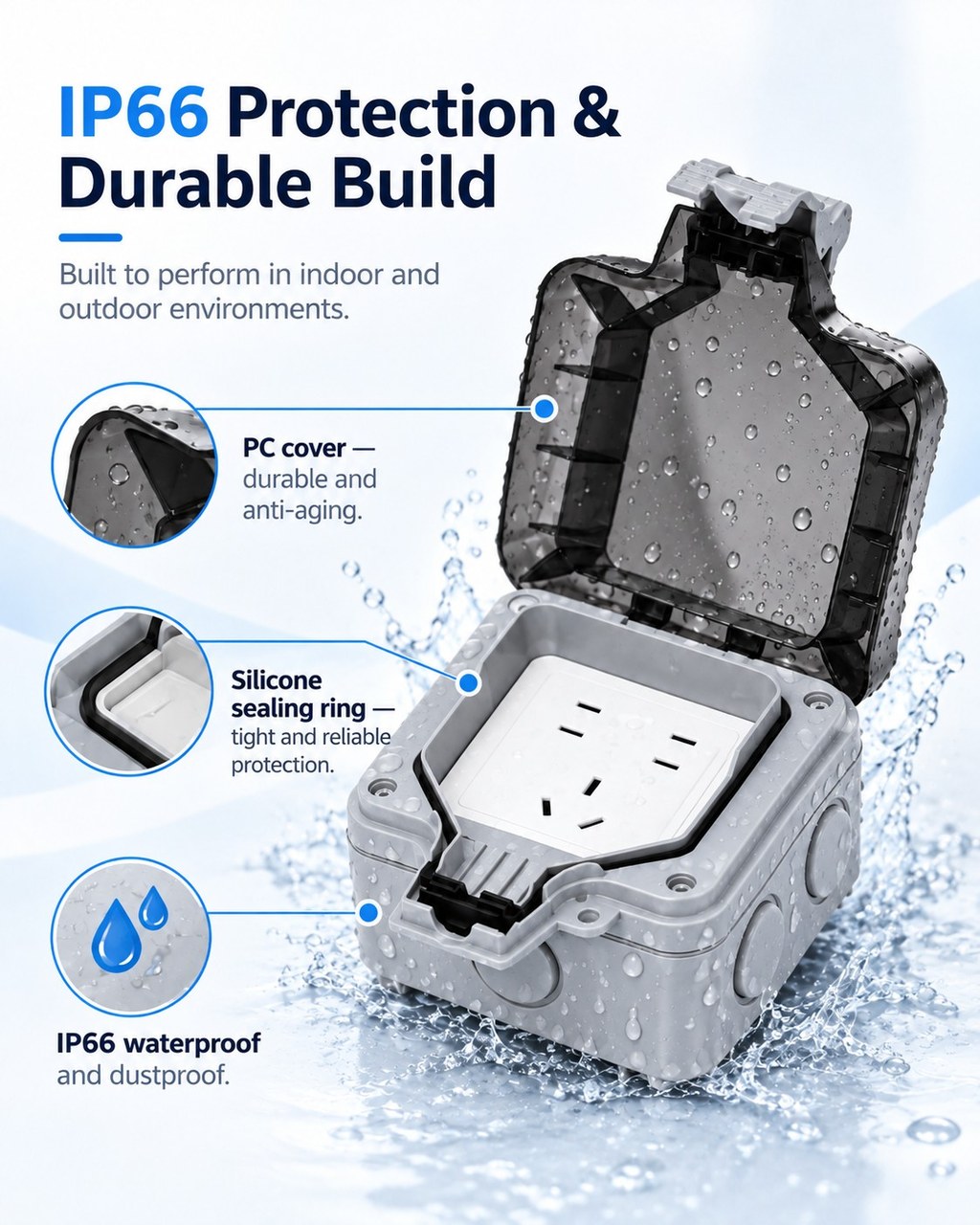

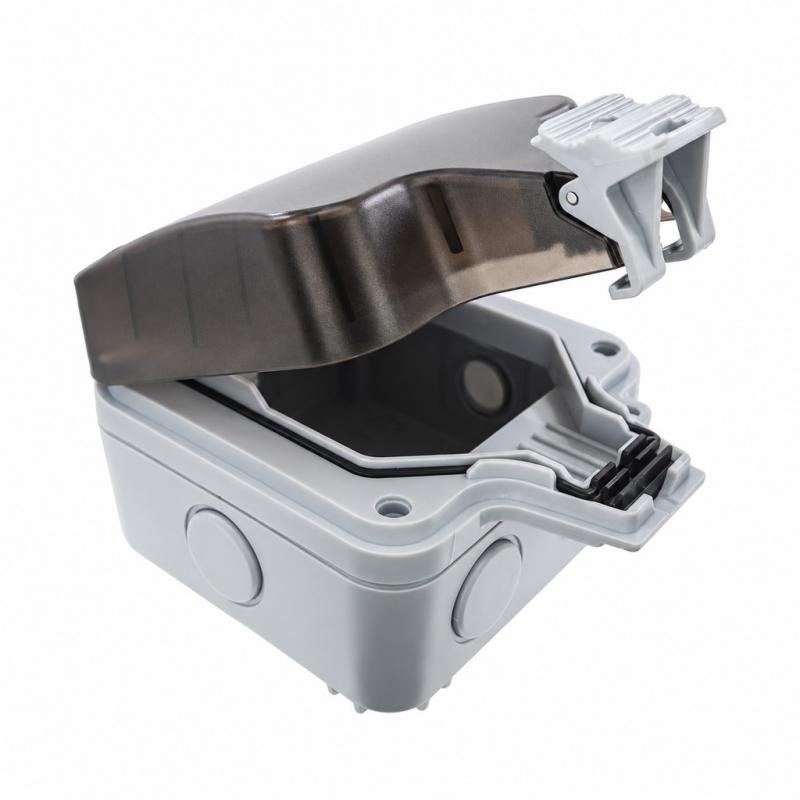

IP66 Protection with Silicone Sealing

The BG series features an IP66 protection level to help prevent dust and water ingress when properly installed. A silicone rubber sealing ring is positioned around the enclosure structure to help maintain a reliable seal between the cover and housing.

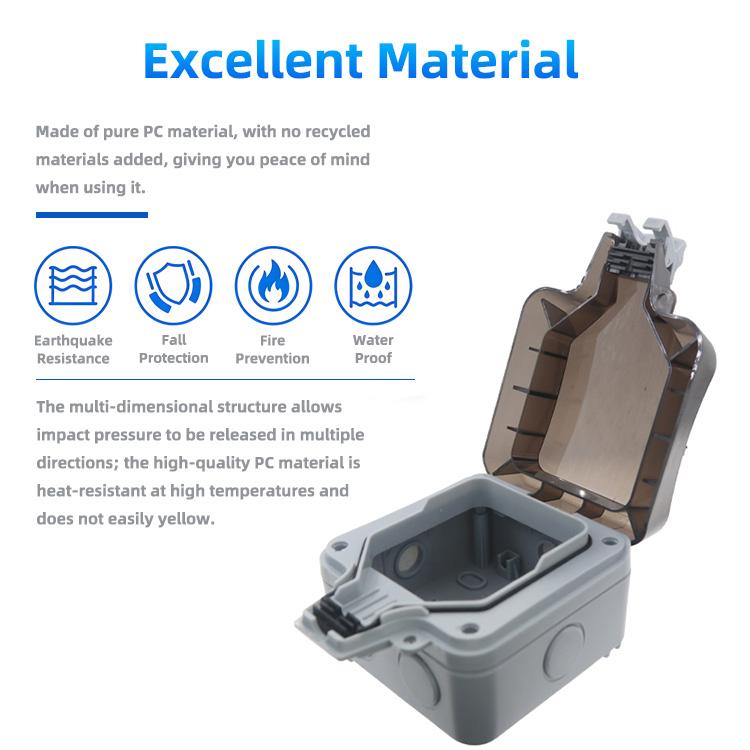

The enclosure is made from PC material for durable everyday use and is designed for indoor and outdoor environments where sockets and switches may be exposed to moisture, dust and changing weather conditions.

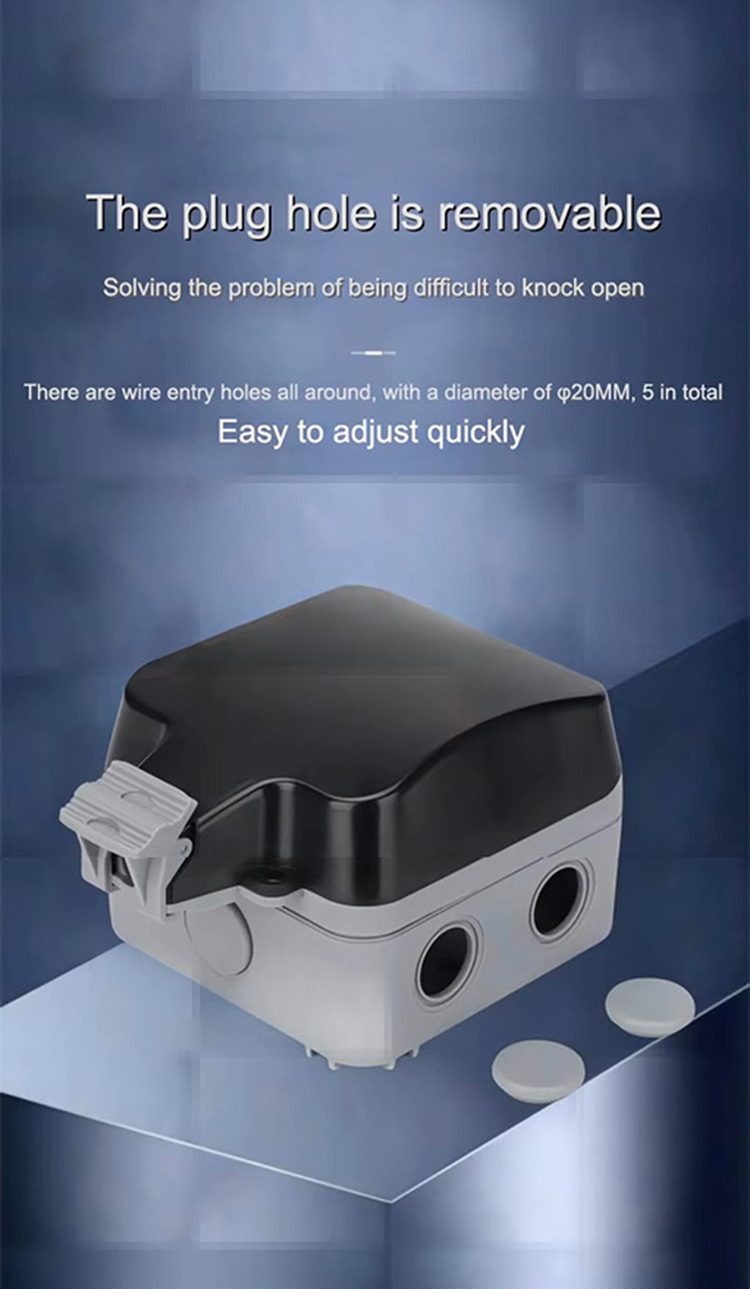

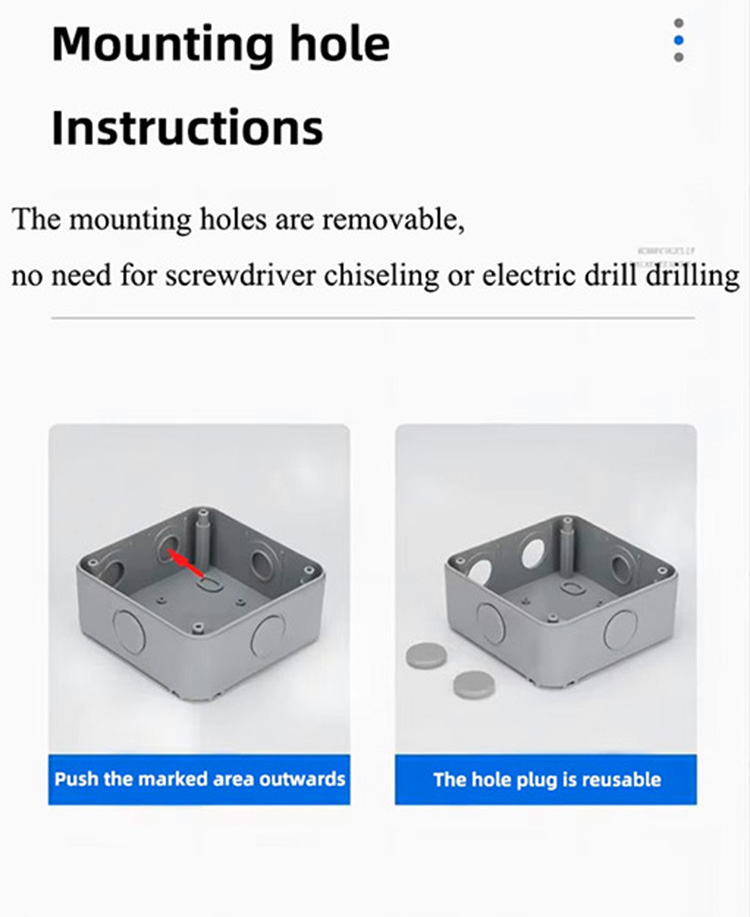

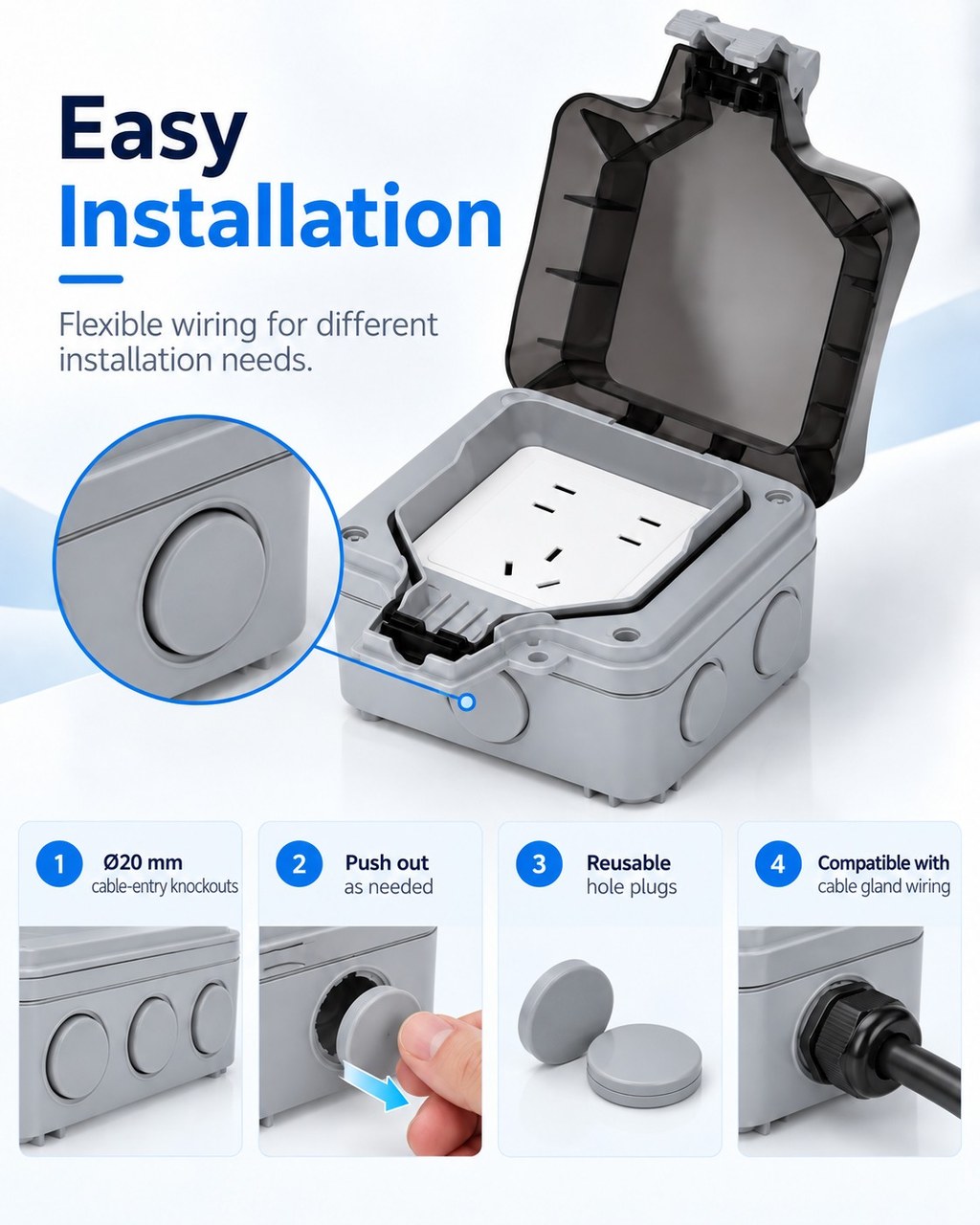

Flexible Cable Entry for Easier Installation

The enclosure is equipped with Ø20 mm cable-entry knockouts, allowing installers to select a suitable wiring direction according to the installation environment. The knockout openings can be removed as required and used with compatible cable glands for cable entry.

This design supports flexible cable routing and helps simplify wall-mounted installation in different residential, commercial and utility applications.

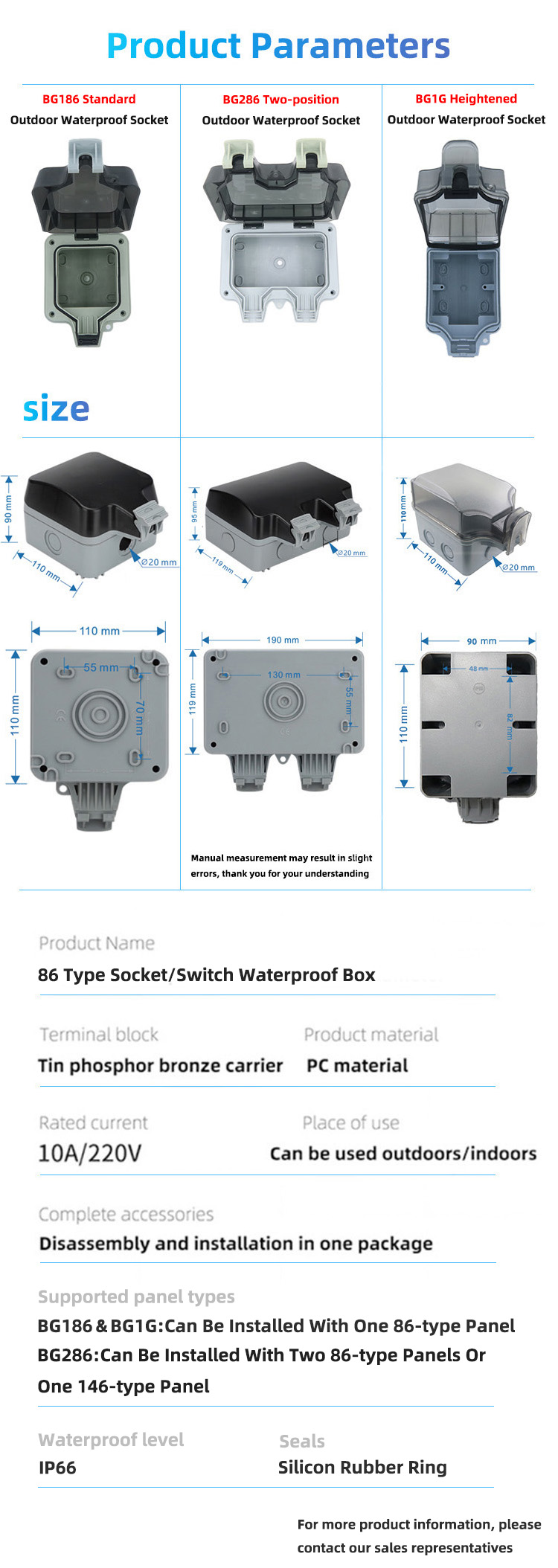

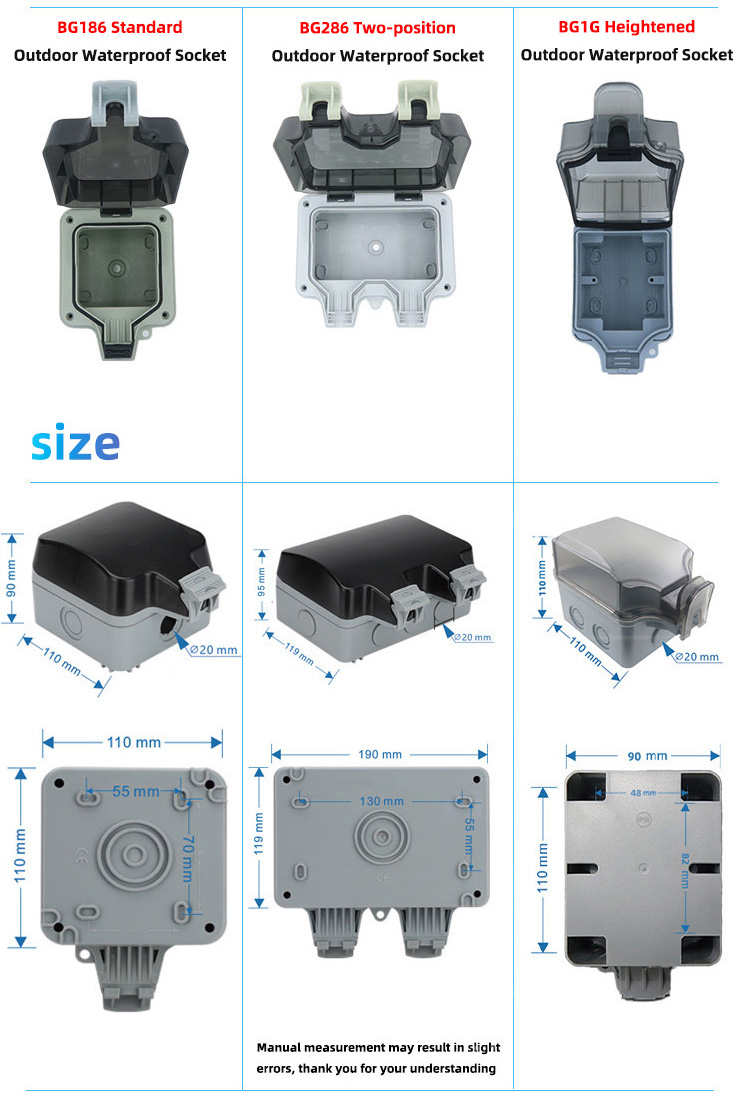

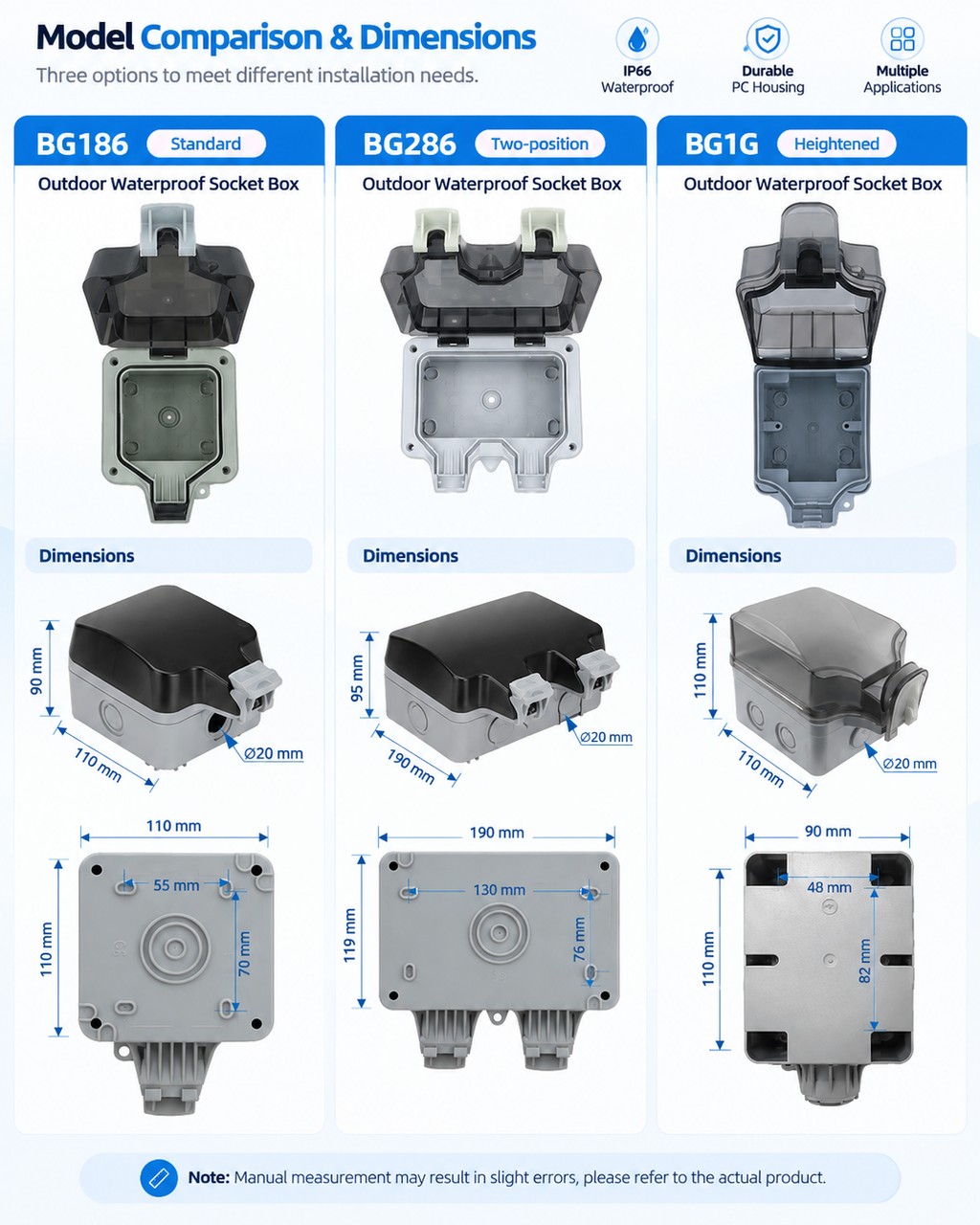

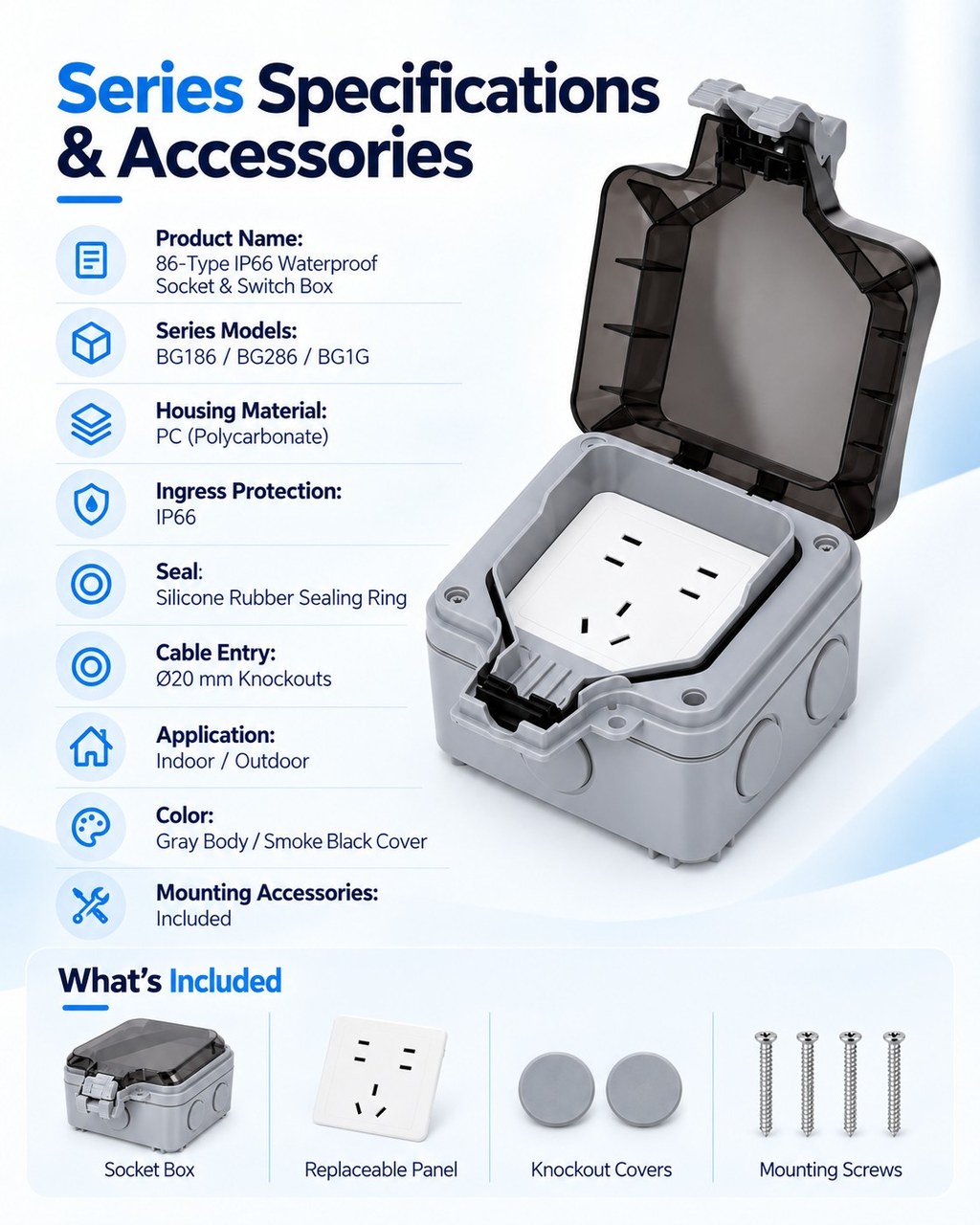

Common Specifications Across the BG Series

The BG186, BG286 and BG1G share a common waterproof enclosure design based on a PC housing, silicone rubber sealing structure and IP66 protection. The series uses Ø20 mm cable-entry knockouts and is suitable for both indoor and outdoor installation.

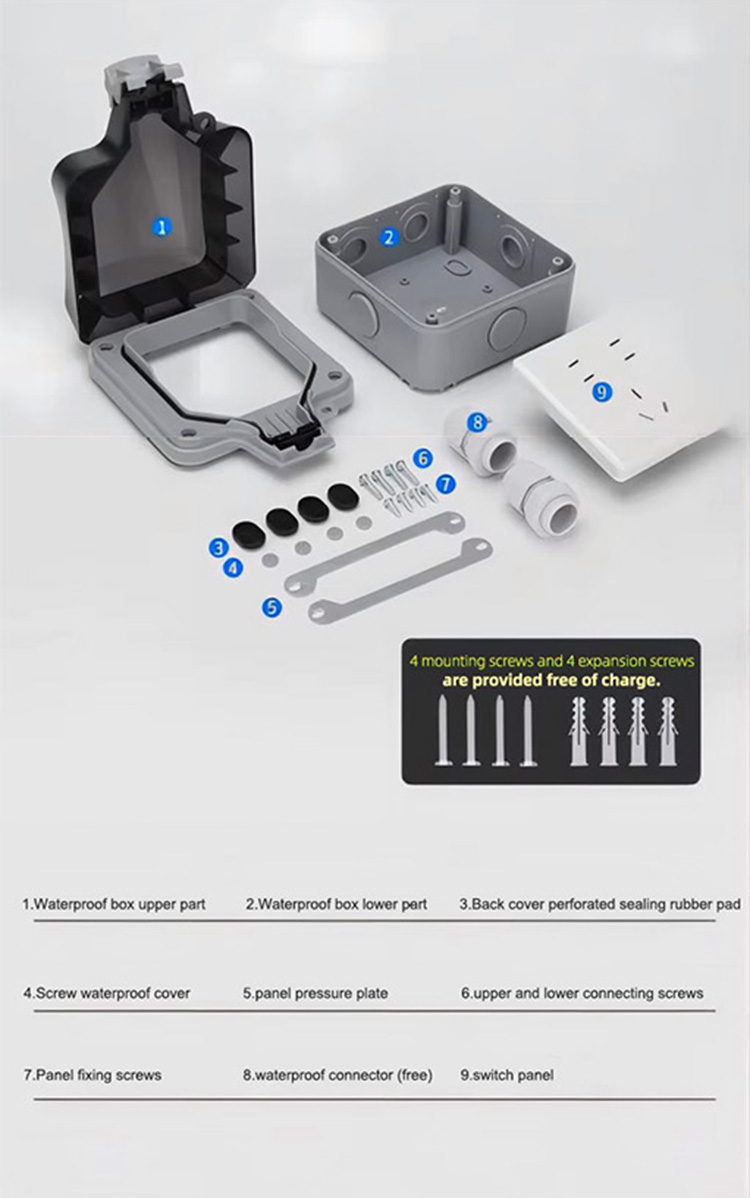

Panel configuration, enclosure dimensions and the number of cable-entry points vary by model. Mounting accessories are included to support installation, while compatible socket or switch panels can be selected according to the required model and application.

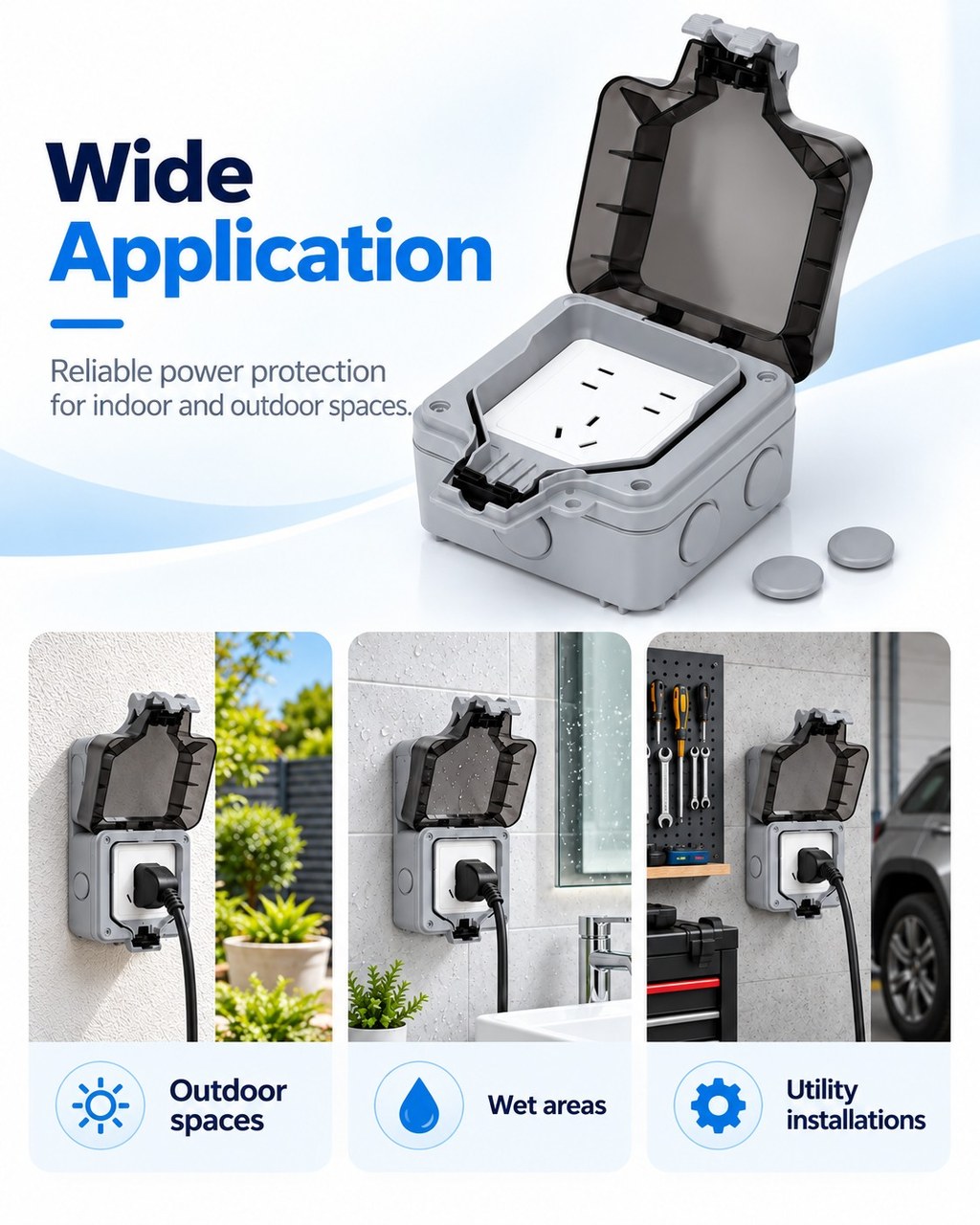

Suitable for a Wide Range of Installations

The BG waterproof socket and switch box series can be used in locations where electrical outlets require additional protection from moisture, dust or outdoor exposure. Typical applications include balconies, gardens, garages, workshops, utility areas and commercial installations.

With multiple model options, replaceable 86-type panels and flexible cable-entry designs, the series can be adapted to different wall-mounted electrical installations in both indoor and outdoor environments.

Send us your required panel configuration, installation environment, cable-entry requirements, and preferred model or enclosure size. Our team can help you select the suitable BG186, BG286 or BG1G waterproof socket & switch box for your project, sampling, or OEM/ODM requirements.
