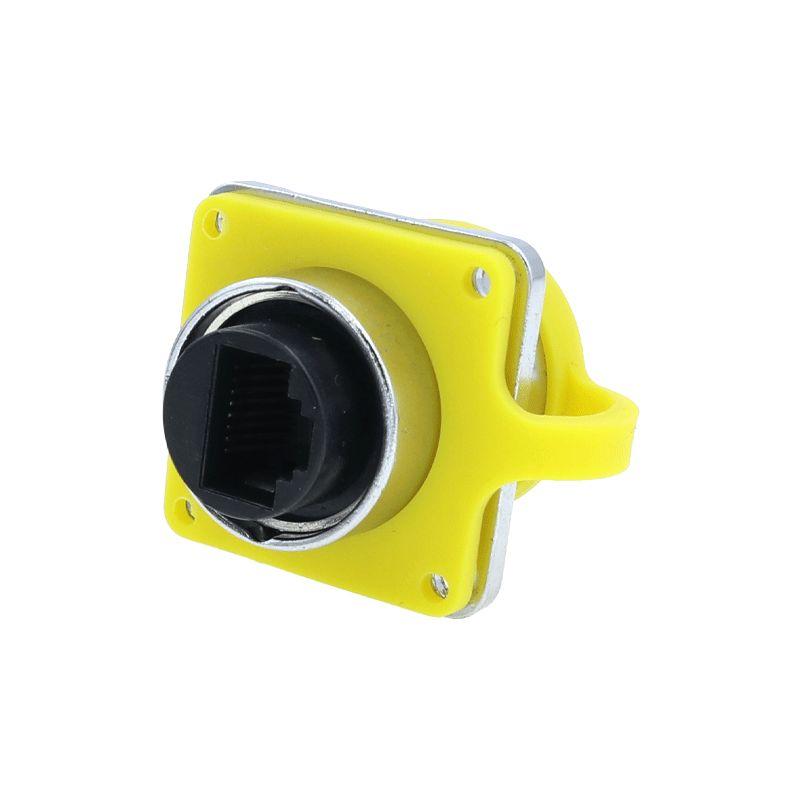

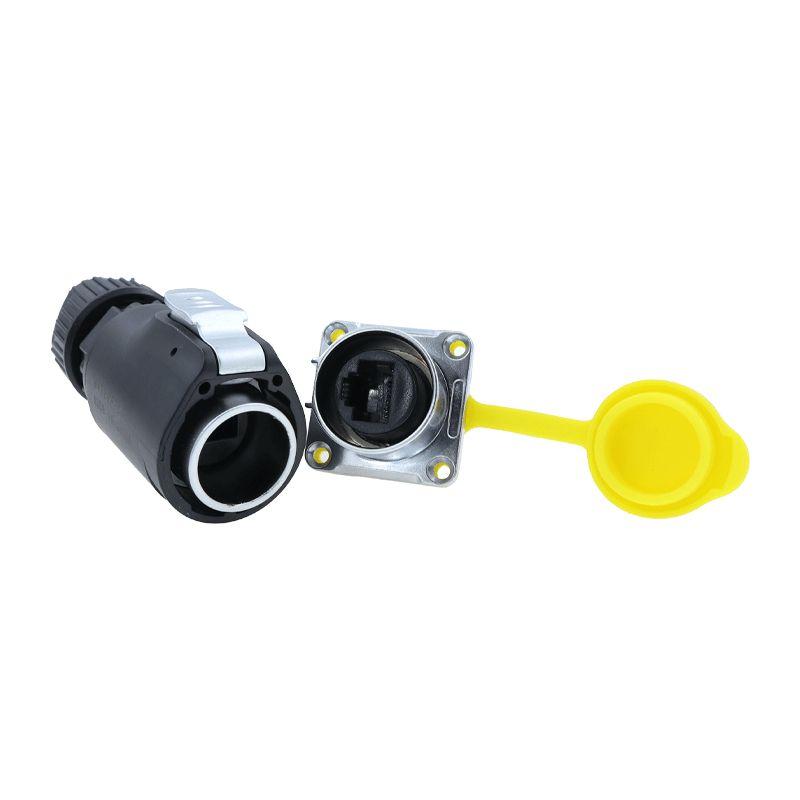

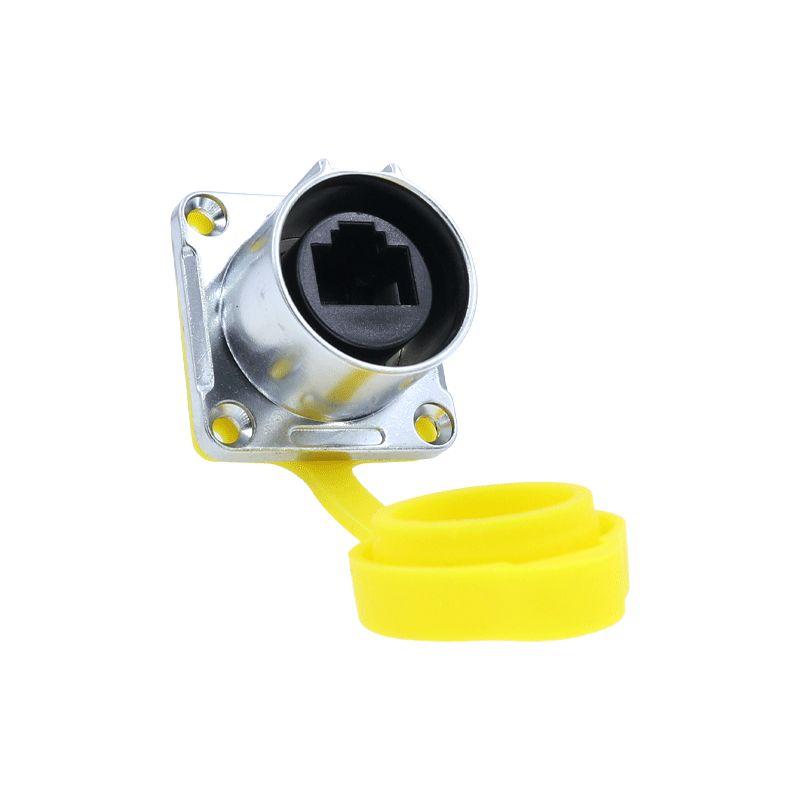

Gcabling Cat5e/Cat6 UTP Unshielded RJ45 Socket

FP24 IP68 RJ45 C5 Connector Adapter Ethernet Network LAN Cable RJ45 Connector Waterproof
  • Brand:

    OLINK
  • Item no.:

    FP24-RJ45
  • Payment:

    Wire transer, West Union, Paypal
  • Product origin:

    China
  • Color:

    Black
  • Goods stock:

    3000
  • Min order:

    10
  • Shipping port:

    Xiamen
  • Lead Time:

    7 days

                                              Ethernet RJ45 waterproof connector IP67/IP68


Our FP24-RJ45 waterproof RJ45 connector is a type of connector specifically designed to provide a waterproof seal in Ethernet networking applications. It allows you to connect Ethernet cables while ensuring that moisture and water do not damage the connection.

product name
RJ45 Socket
product model
FP24-RJ45
Rated voltage
36V
Rated current
1.5A
Wire size
26 AWG
Cable diameter
5.5-7mm
Material
RJ45 female socket: gold plated.
Contact plastic: Nylon V-0
Waterproof rubber ring: silicone.
Glue pouring: epoxy resin
Durability
(Plug/Unplug)
3000 times
Number of cores
8P
Protection class
IP67/IP68
Working temp.
-40℃~80℃
Resistance
Contact resistance: ≤10mΩ
Insulation resistance: 1000MΩ DC 500V
Applicable scene
Video transmission, transformer, network signal transmission equipment

Product Feature

● Excellent performance: use standard Category 6 pure copper four stranded twisted pair network cable and crystal head ● Convenient connection: There is no need for welding operations or any installation tools. Simply insert the standard crystal head directly, which can achieve quick installation and use.
● Waterproof and dustproof meet the requirements of IP67 standard.
● Threaded connection, safe and reliable, resistant to impact, vibration, and tension
● Anti electromagnetic interference protection
● No signal attenuation: Since the plug and socket do not need to damage or interrupt any original wiring structure, there is no signal attenuation.


The application scenario of FP24-RJ45
The most commonly used devices in the market are video transmission, transformers, and network signal transmission devices, which are widely used in communication fields, charging stations, home network ports, signal transmission and reception devices, 5G network fields, etc
