XIAMEN OLINK IMPORT & EXPORT CO.,LTD
Specially Develops, Produces and sells connectors / Terminals / wire harness / switches.
-
Give us a call 0592 6536915
-
Email us sophia@fzolink.com
1.RJ45 ethernet connector waterproof
2.Waterproof Rating :IP67
3.Cable: Cat.5E
4.convenient to use, OEM provided
5.Installation Size:M20*1.0
Brand:
OLINKItem no.:
RJ45-20/22Payment:
Wire transfer, PayPal, Western Union, AlipayProduct origin:
ChinaColor:
BlackGoods stock:
50000Shipping port:
Xiamen, NingboLead Time:
7Waterproof RJ45 Connector with Ethernet Cable
Feature of Rj45 female socket:
Network connector rj45 is used to connect standard Ethernet Class D /Cat.5e and Class E/cat 6 (10 Base T , 100 base TX , 1000 Base T net works ) in outdoor or water proof harsh working environment . no need soldering , easy to connect , it is widely use in communications , LED boards , security monitoring , automation control etc
Specification of Rj45 female socket
RJ45 waterproof connectors
Product name:
Product model:
RJ45-20/22
Wire range:
0.15mm²~2mm²/26-24 AWG
Cable OD.:
5.5-7 mm
Contact number:
8 pin
Rated current:
1.5A
Contact resistance:
＜30mΩ
Withstand voltage:
1000V
Waterproof O-ring:
Silica gel
Protection level:
IP67
Shell material:
PA66 UL94-V0
Working temperature:
-30℃ to 95℃
Contact material:
Brass with gold plating
Insulation resistance:
＞500mΩ
Connection method:
1/4 Bayonet connect
Wire lenght:
25cm or customized

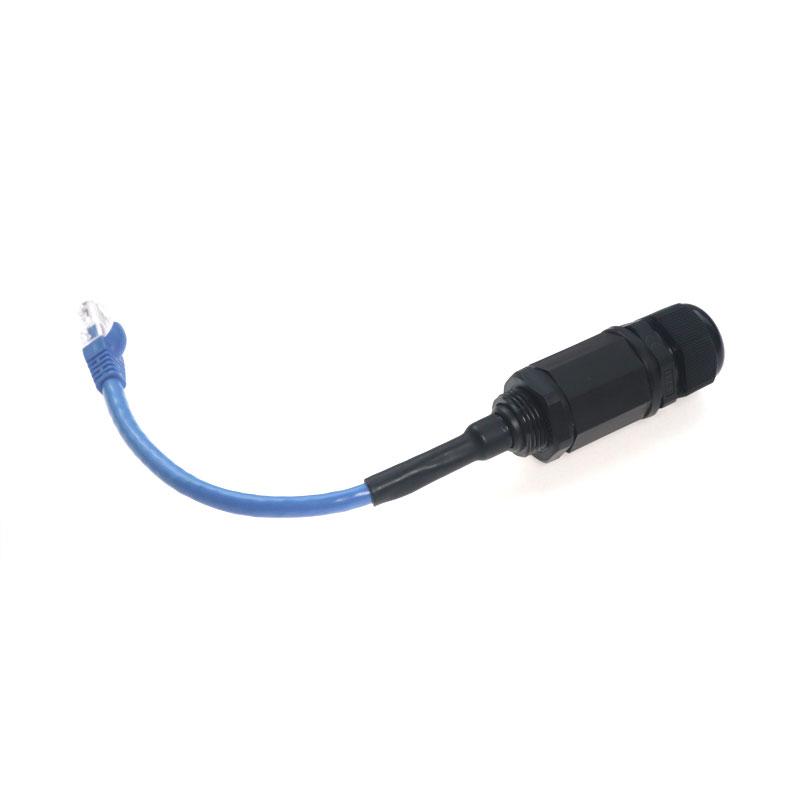

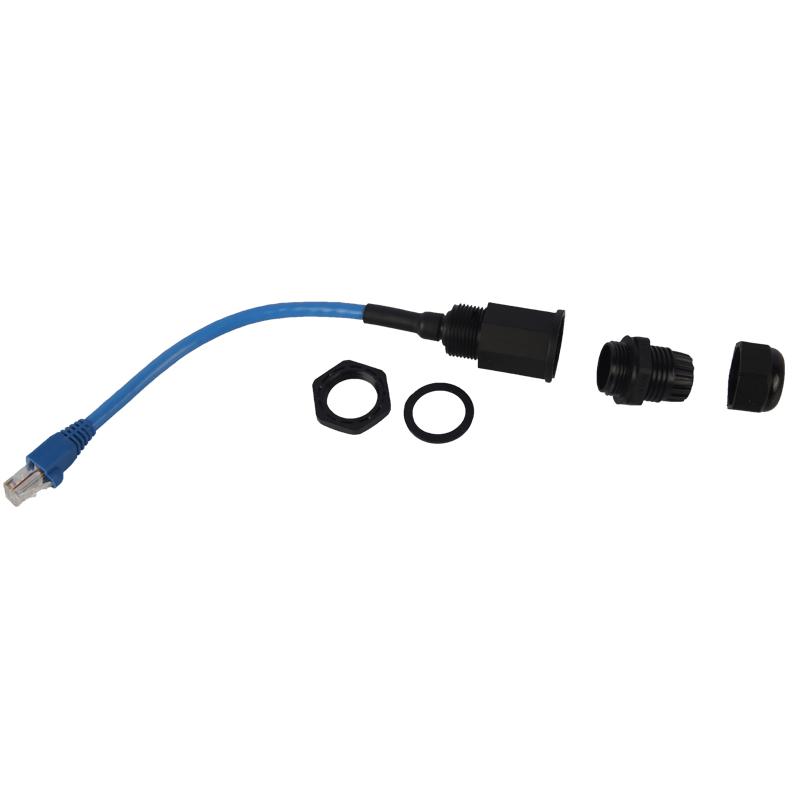

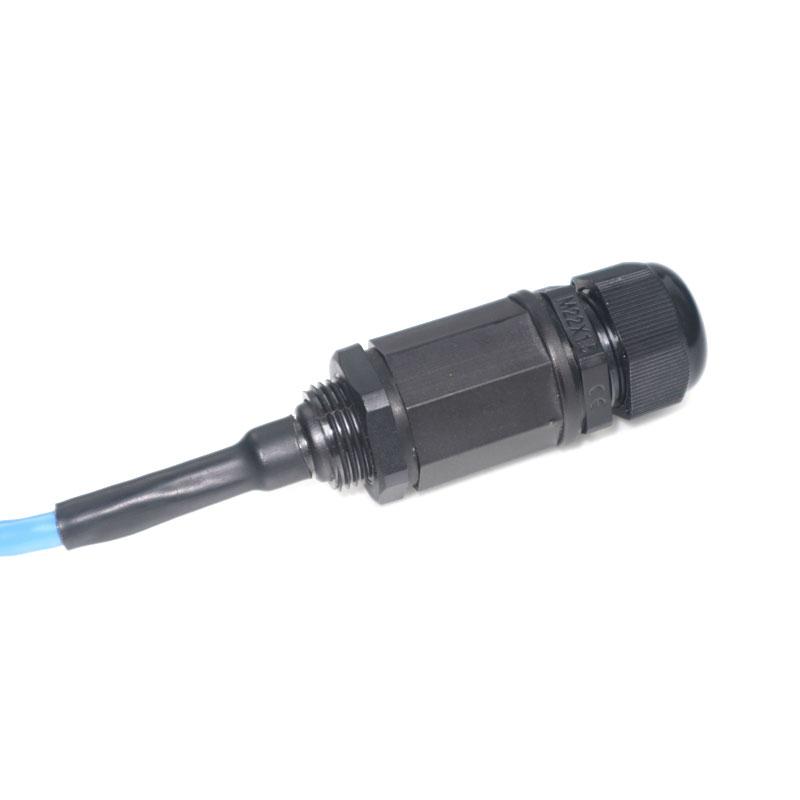

Products real shot of Rj45 male female connector
Application of RJ45 panel mount waterproof connector
RJ45 panel mount waterproof connector Because of its convenient connection and convenient use, it is widely used in data transmission of computers, external devices and other devices
*For more information, please contact us by email or through any contact information on the webpage.
