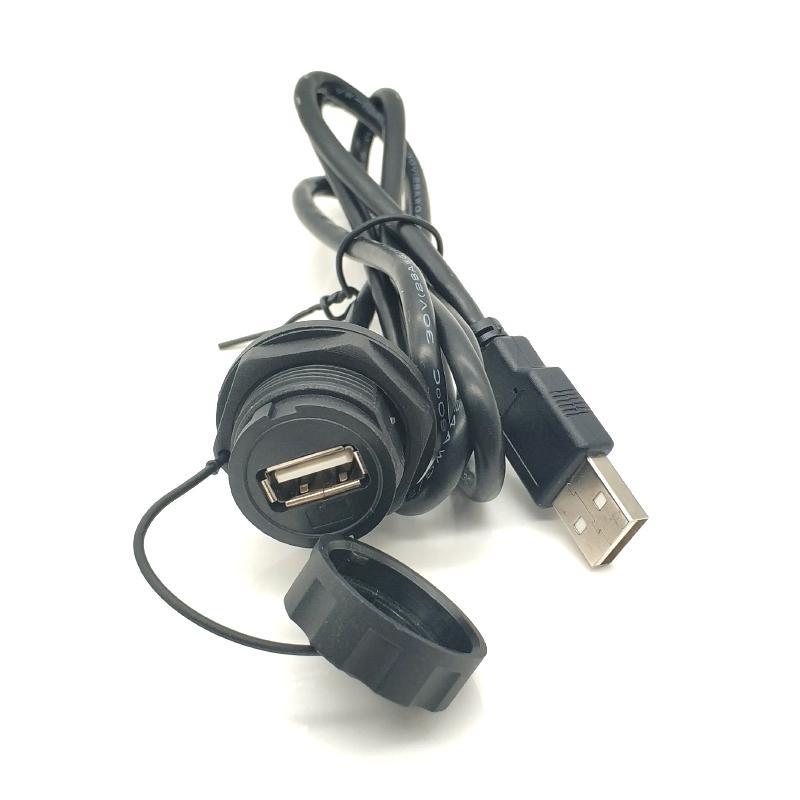

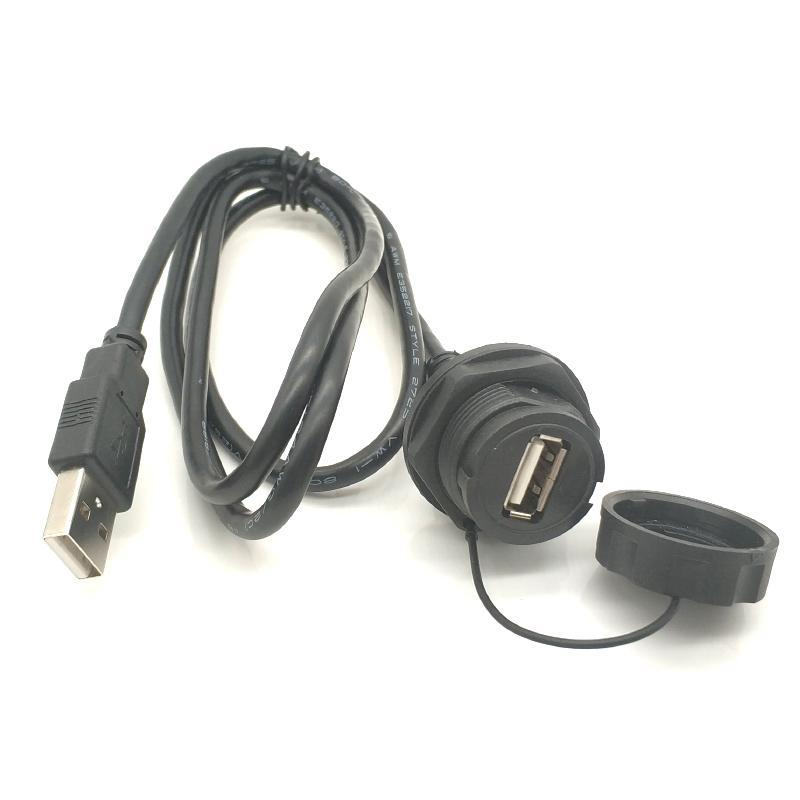

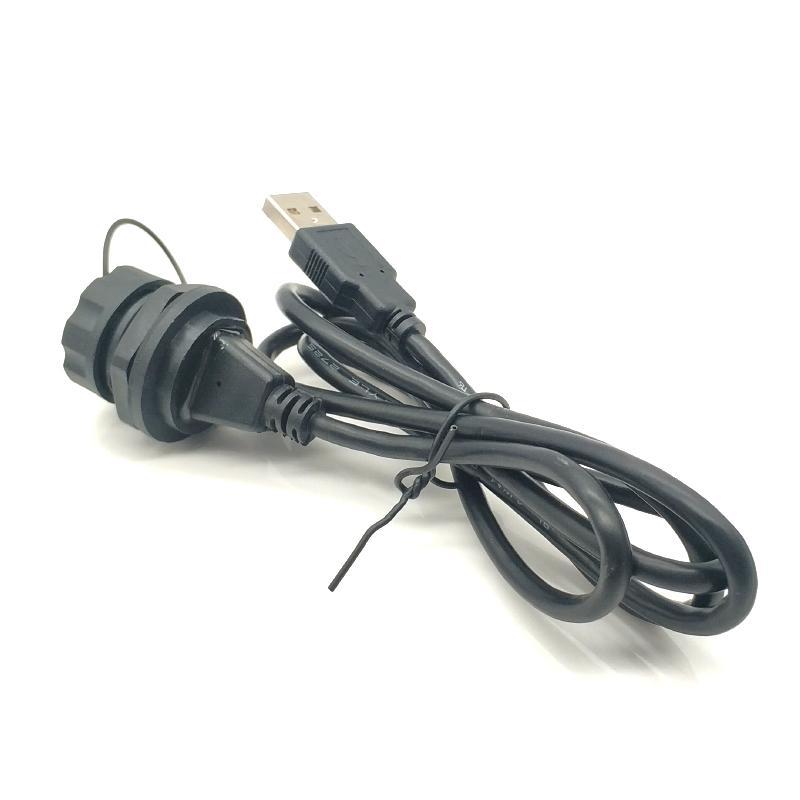

IP67 male to female usb connector with cable

Usb cable connectors: standard wire length is 1m, then end with a usb male connector. It's easy to operate, and you can choose use usb 2.0 or 3.0.

Brand:
OLINK
Item no.:
USB2-JSX-03-100
Payment:
Wire transfer, PayPal, Western Union, Alipay
Product origin:
China
Color:
Black
Goods stock:
50000
Shipping port:
Xiamen, Ningbo
Lead Time:
7

Inquiry now

product introduction

IP67 male to female usb connector with cable

Feature of USB connector male to female

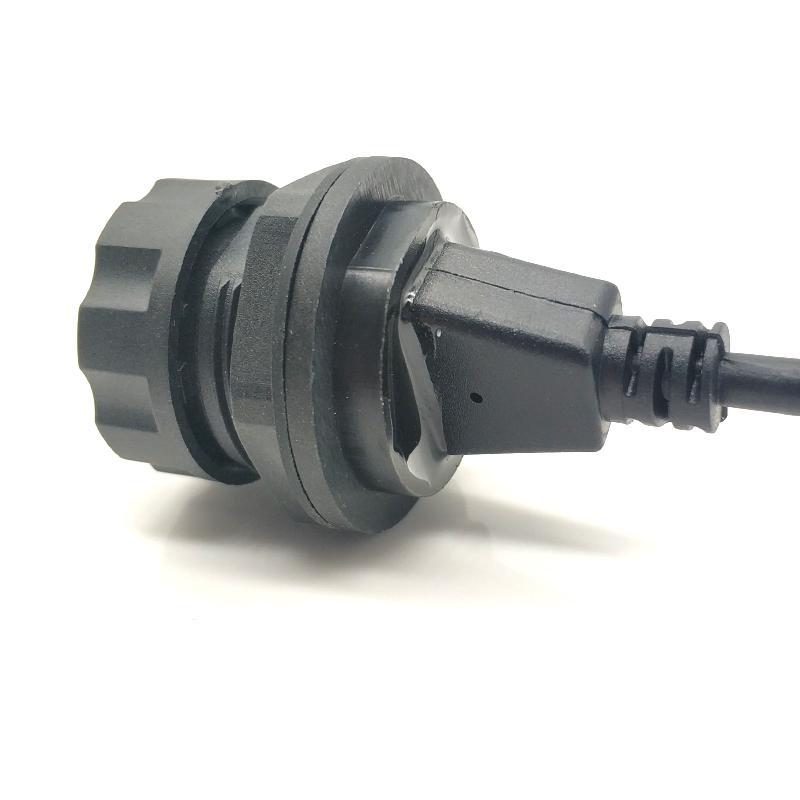

Front nut installation method
IP67 protection level
Bayonet connection design
The default cord length is 1m
The end of the line is USB type A male

Specification of USB cable connectors

Product name:	USB 2.0 cable connector	Contact resistance:	＜30mΩ
Withstand voltage:	1000V/AC	Insulation resistance:	＞500MΩ
Durability:	＞500 mating cycles	Receptacle housing:	PBT, Black
Overmolding:	PVC, Black	Contact:	Copper Alloy
Coupling ring:	PA66, Black	Operating temperature:	-40℃ to 80℃
Performance:	USB 2.0 or 3.0	Industrial seal rating:	IP67

Usb connecto with cable can be customized accessories

USB with cable waterproof connector

can choose ordinary male

or rubber-coated male,

the length of the cable

can be customized.

Application of USB waterproof round connector with cable

USB connector with cable Because of its convenient connection and convenient use, it is widely used in data transmission of computers, external devices and other devices

*For more information, please contact us by email or through any contact information on the webpage.
