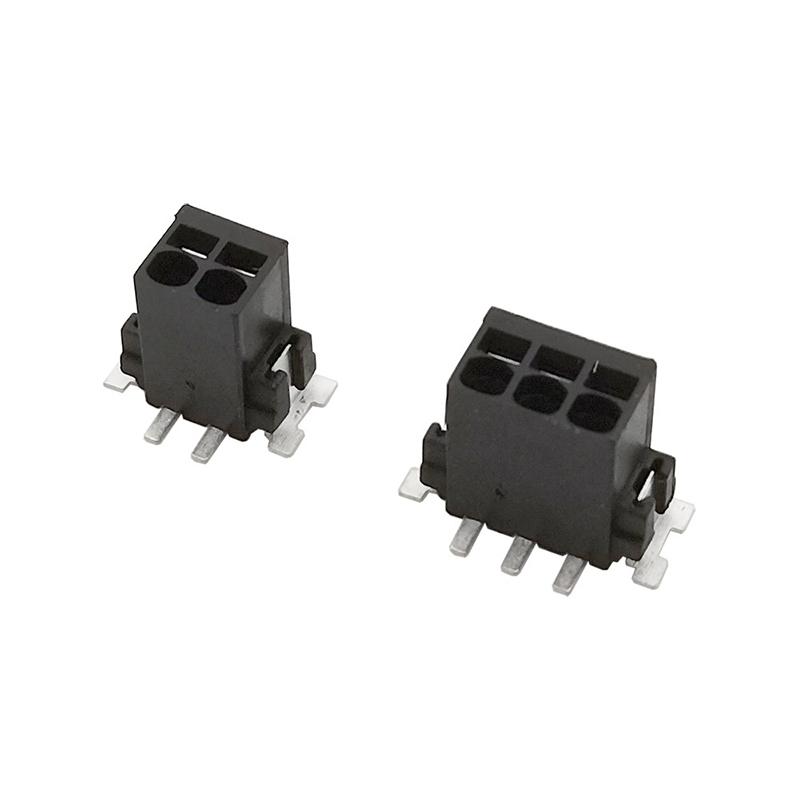

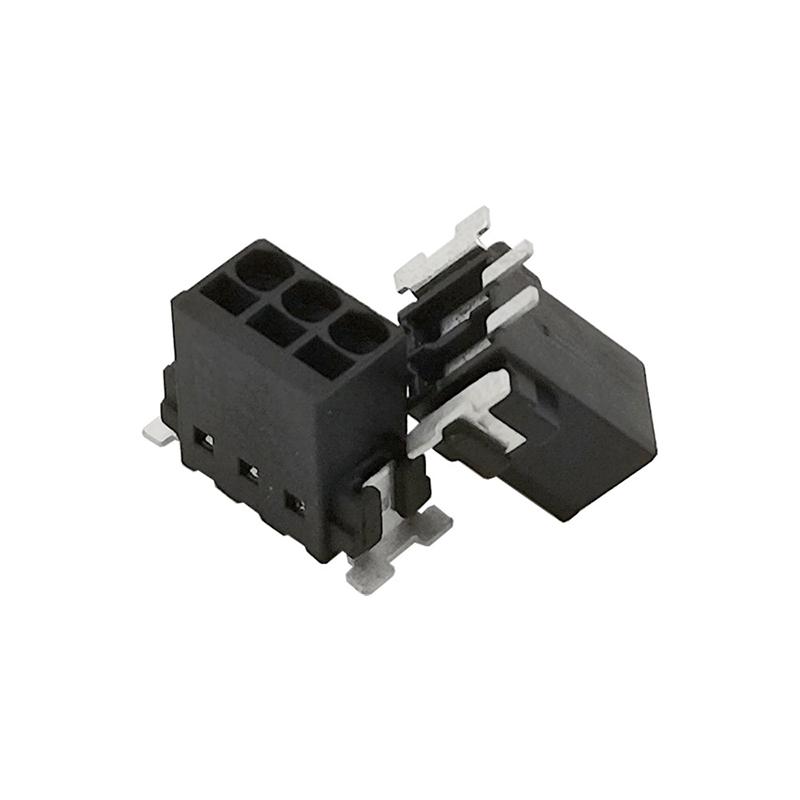

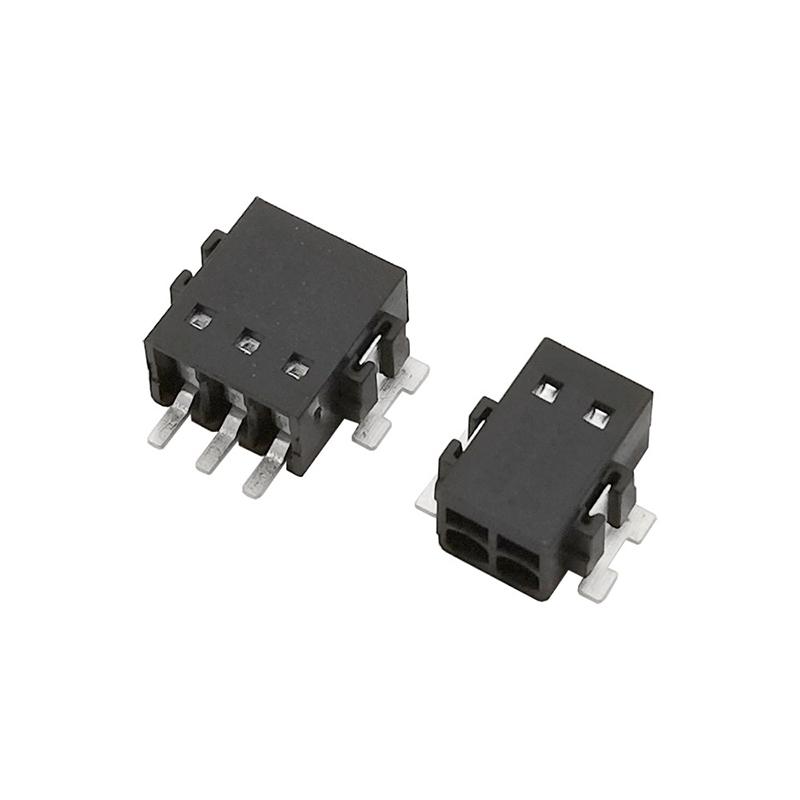

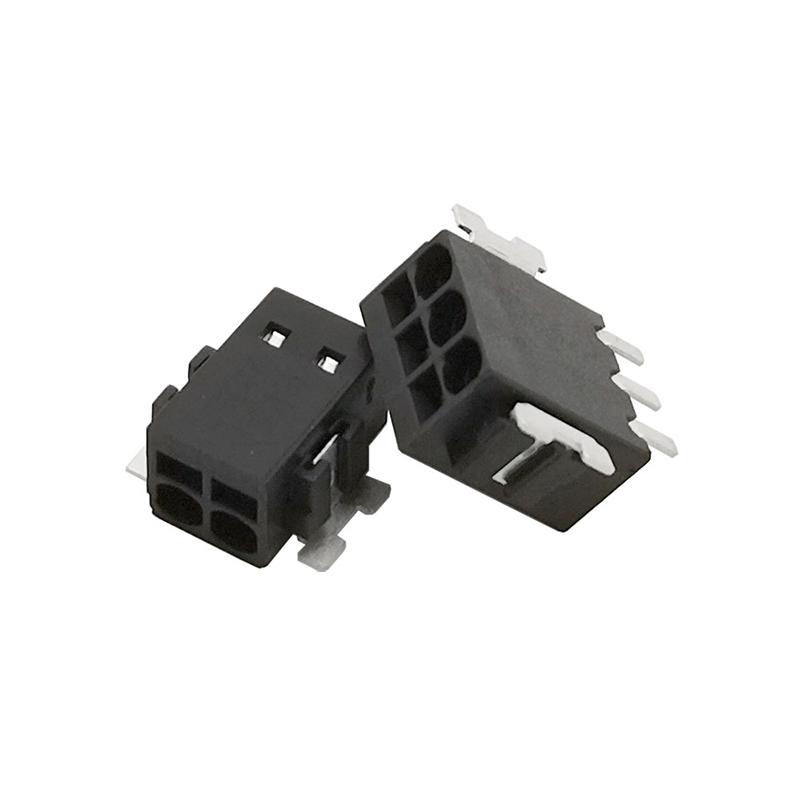

Terminal Block 2POS 1814634

Pcb terminal block, Norminal current: 6A. Pitch: 2.5mm, Number of positions:2

Brand:
OLINK
Item no.:
2025V/R-2.5
Payment:
Wire transfer, PayPal, Western Union, Alipay
Product origin:
China
Color:
Black
Goods stock:
50000
Min order:
1000
Shipping port:
Xiamen, Ningbo
Lead Time:
15

Inquiry now

product introduction

Terminal Block 2POS 1814634

Description of SMT terminal block

SMT terminal blocks are ideal for electrical connection of small LED modules in spotlights, downlights and street lights.

Suitable for THR welding process.

The product design conforms to IEC60998, UL1059 and other international standards.

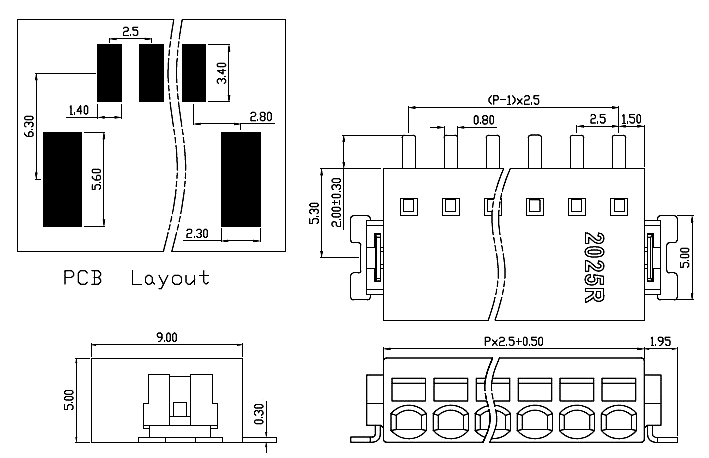

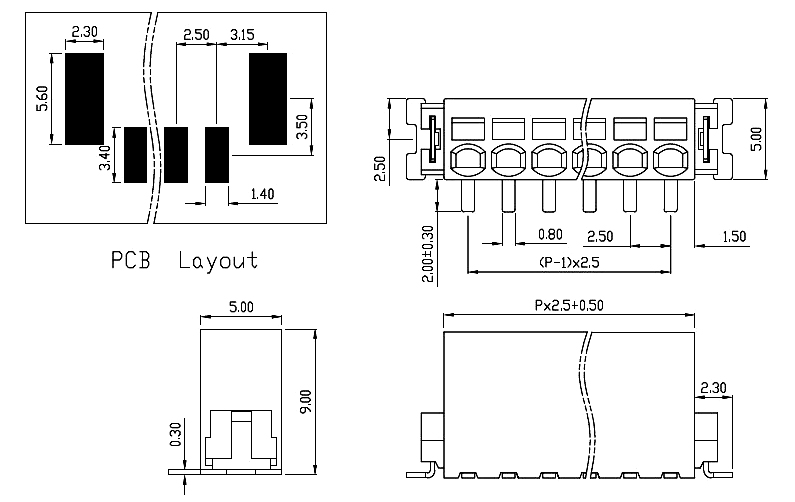

Drawing of PCB terminal block

Model: 2025V-2.5

Model: 2025R-2.5

Specification of SMD terminal block

Product name:	SMT terminal block	Model:	2025AV/AR-2.5
Certification:	UL, CE	Rated voltage:	150V (UL), 100V (IEC)
Rated current:	5A (UL), 6A (IEC)	Wire range:	28-20 AWG (2025V-2.5) 24-20 AWG (2025R-2.5)
Withstand voltage:	1300V/1Min	Conductor cross section:	0.5mm²(Solid/flexible)
Temperature range:	-60℃ to +105℃	Strip length:	6.0 mm
Pitch:	2.5 mm	Poles:	2P-12P
Housing:	PA46 UL94V-0	Contact material:	Copper alloy, tin plated
Pin dimensions:	-	PCB hole diameter:	2.0 mm (2025V-2.5) 1.2 mm (2025R-2.5)

Feature of Quick connect terminal block

SMT terminal blocks are ideal for electrical connection of small LED modules in spotlights, downlights and street lights.
It is suitable for connecting wires of 28/24-20AWG, and the pitch is 2.5mm.
Suitable for THR welding process.
The product design conforms to IEC60998, UL1059 and other international standards.

Application of 2 way terminal block

There are many types of SMT terminal block, and they are mainly used in security, lighting, power supply, elevator, electrical, power and other industries etc.

Other SMT type terminal blocks for your reference:

*For more information, please contact us by email or through any contact information on the webpage.
