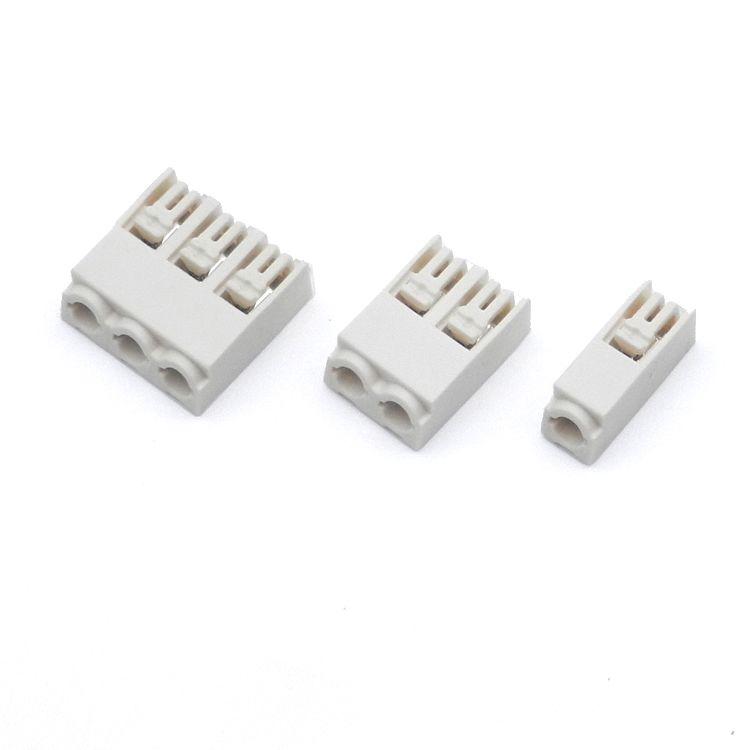

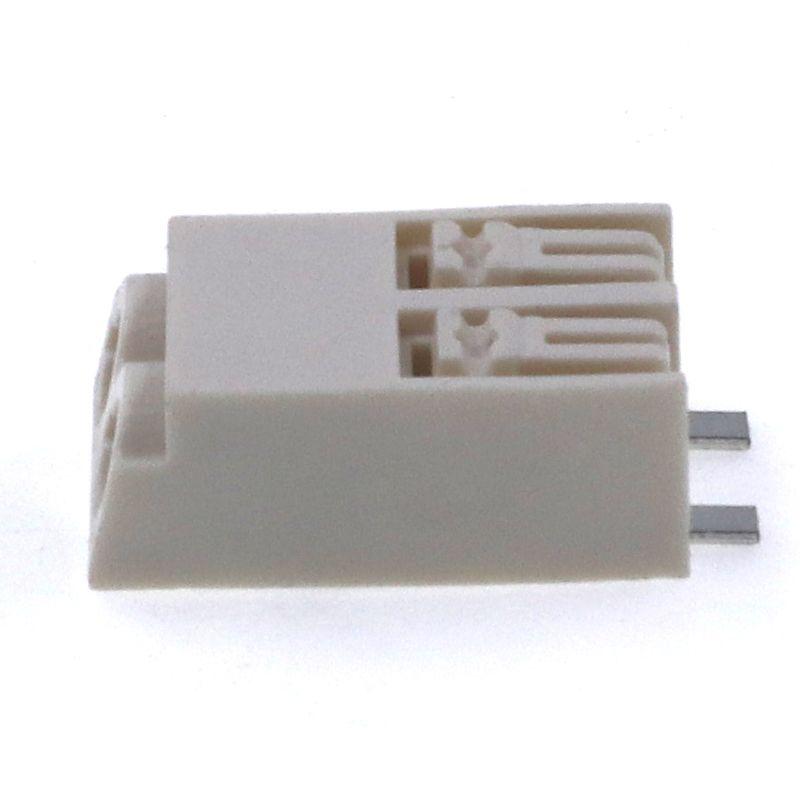

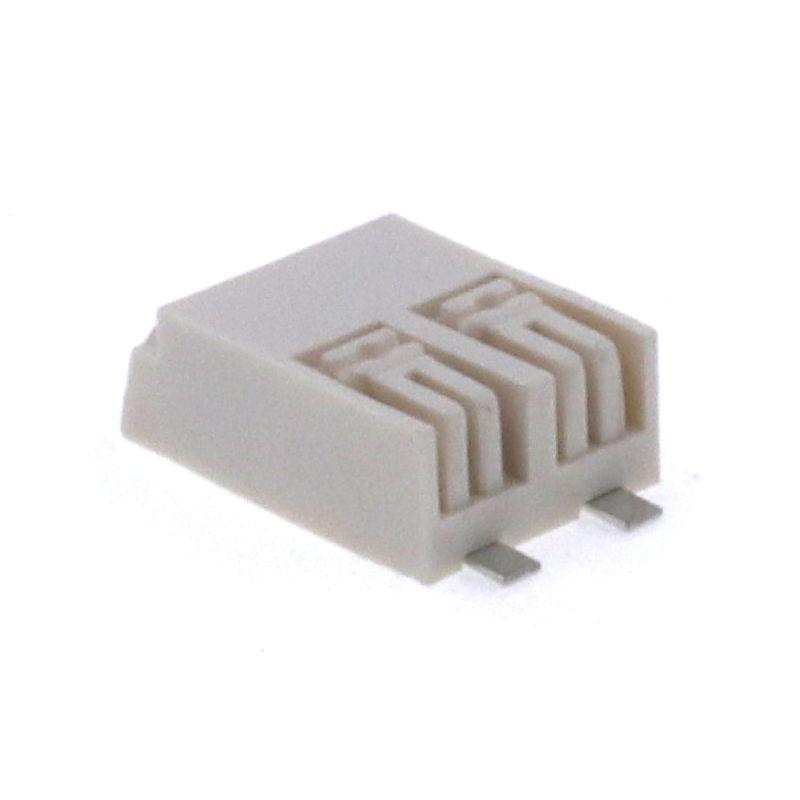

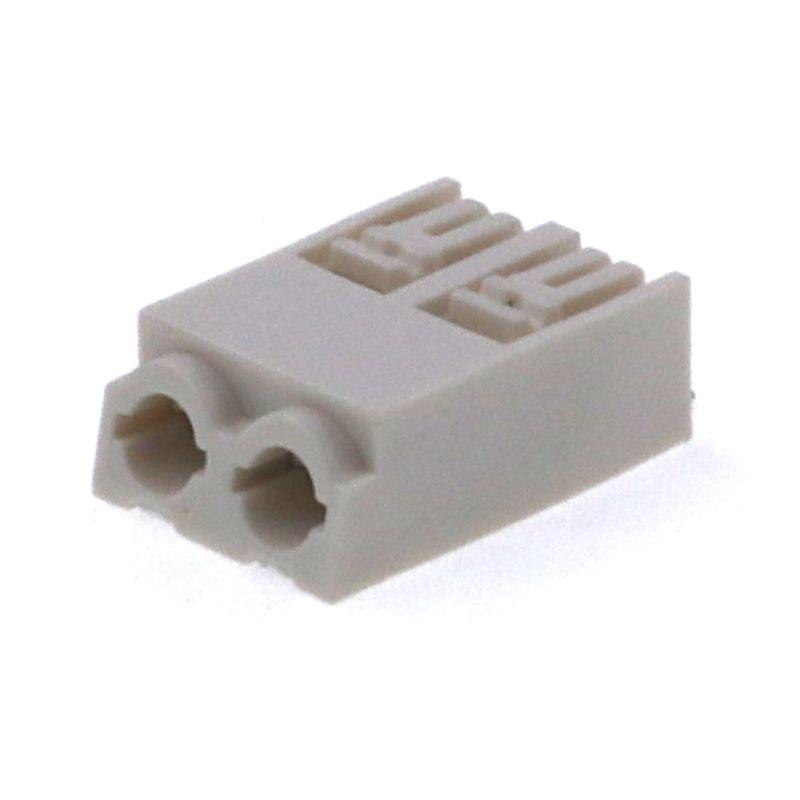

2 pin smd terminal block wire to board 2060 series crimp on connector

Our flexible and reliable smd wire to board connectors are designed for small size mating and safe termination, and support the connection of wires to a printed circuit board (PCB).



  • Brand:

    OLINK
  • Item no.:

    B07-2P
  • Payment:

    Wire transfer, PayPal, Western Union, Alipay
  • Product origin:

    China
  • Color:

    Buff
  • Goods stock:

    500000
  • Min order:

    1000
  • Shipping port:

    Xiamen, Ningbo,shenzhen,shanghai
  • Lead Time:

    7

2 pin smd terminal block wire to board 2060 series crimp on connector

Features of wire to board connectors


  • SMD type, small size, does not take up too much space, and reduces shadows when lighting applications;
  • High temperature resistance: can pass reflow soldering at 270℃ /2 minutes;
  • Hard wire can be inserted directly;
  • There are buttons to support the use of multiple strands of flexible wires;
  • Strip-type reel packaging, which can be used for automated production;
  • Can replace 2060 series;

Specifications:


Product Name:     wire to board connectors
Application:     PCB board/Hard light strip(Lamp panel)
Wiring method:     Insert
Wire range:     24 - 18 AWG
Strip length:     6-7 mm/0.24 - 0.28 in
Cross section:     0.2 - 0.75 mm2
Voltage(max.):     600V
Rated Current:     9A
Insulation material:     PA66, UL94-V0 Contact plating:     Tin-plated

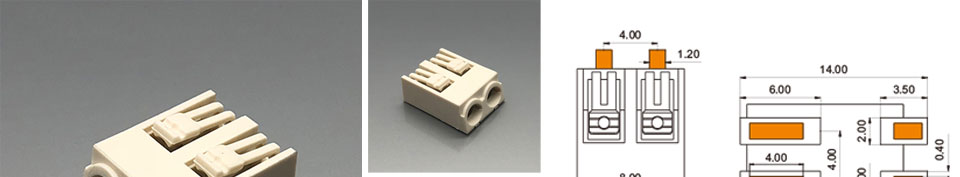

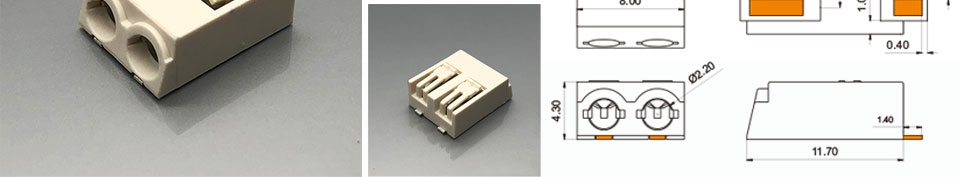

Real object and size of Smd wire to board connector



Packaging and application:


Terminal block connector Use strip packaging to facilitate automated production,

The product uses reflow soldering and is applied to PCB boards such as hard light strips, hard light bars, hard light panels, etc.


smd terminal block optional accessories:



When two B07 SMD terminal blocks are needed for connection, the B07J jumper can be selected, which has the same number of 1P, 2P and 3P pins as the B07 terminal block.


More wire connectors


*For more information, please contact us by email or through any contact information on the webpage.
