Multiple 3 way PCB lighting connector wire to board types

Surface mount wire to board connector support the connection of wires to a printed circuit board (PCB). There are 1 pin, 2 pin & 3 pin for your choose, it's easy to install.




  • Brand:

    OLINK
  • Item no.:

    B07-3P
  • Payment:

    Wire transfer, PayPal, Western Union, Alipay
  • Product origin:

    China
  • Color:

    Buff
  • Goods stock:

    500000
  • Min order:

    700
  • Shipping port:

    Xiamen, Ningbo,shenzhen,shanghai
  • Lead Time:

    7

Multiple 3 way PCB lighting connector wire to board types


Features of PCB wire to board connectors


  • SMD type, small size, does not take up too much space, and reduces shadows when lighting applications;
  • High temperature resistance: can pass reflow soldering at 270℃ /2 minutes;
  • Hard wire can be inserted directly;
  • There are buttons to support the use of multiple strands of flexible wires;
  • Strip-type reel packaging, which can be used for automated production;
  • Can replace 2060 series;


Specifications of PCB wire to board connectors



Product Name: wire to board connectors
Application: Junction box/electric power
Wiring method: Insert
Wire range: 24 - 18 AWG
Strip length: 6-7 mm/0.24 - 0.28 in
Cross section: 0.2 - 0.75 mm2
Voltage(max.): 600V
Rated Current: 9A
Insulation material: PA66, UL94-V0 Contact plating: Tin-plated

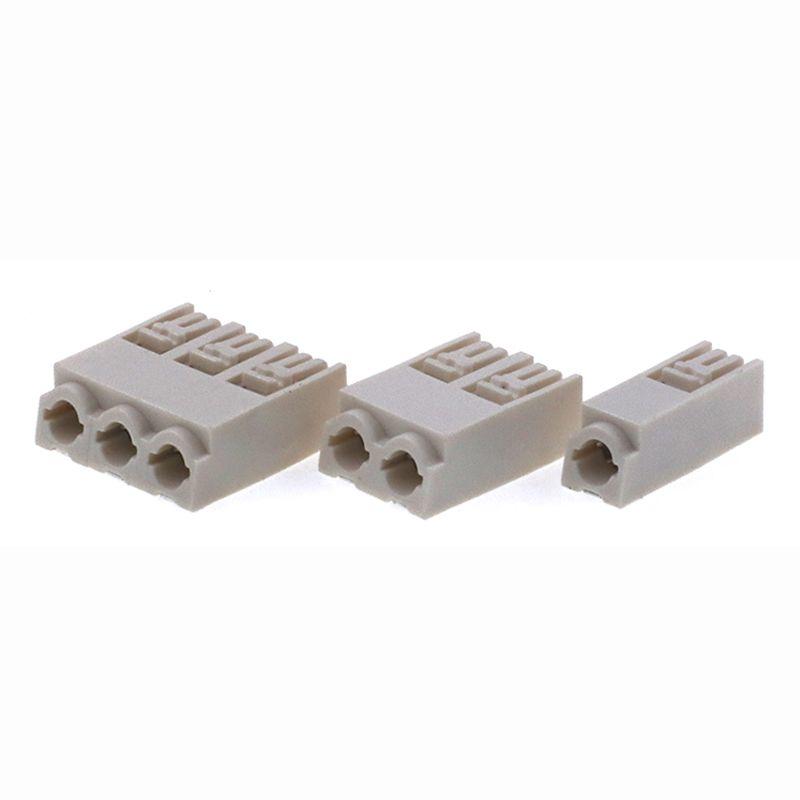

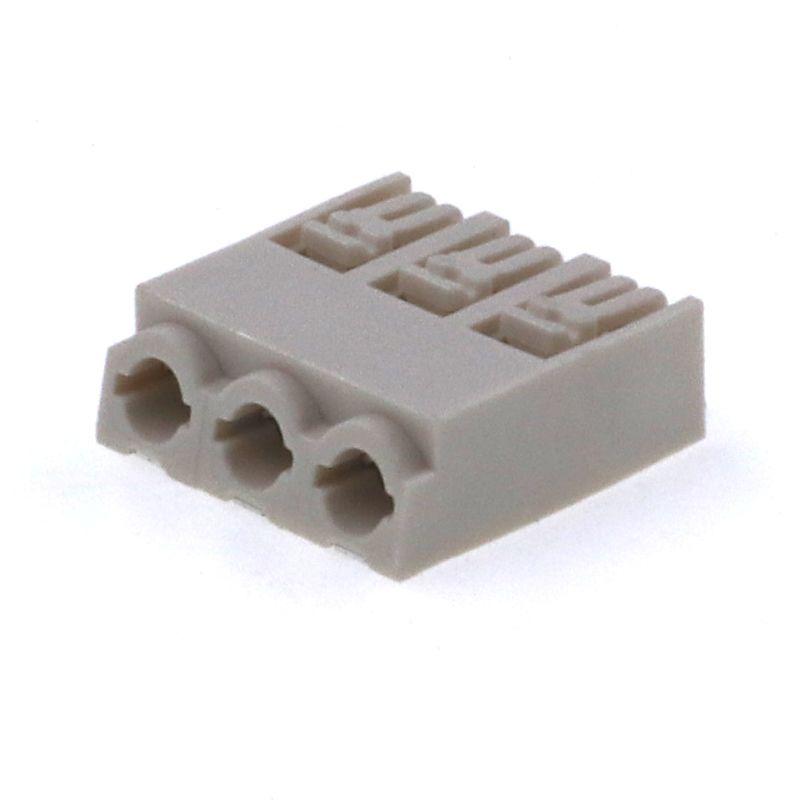

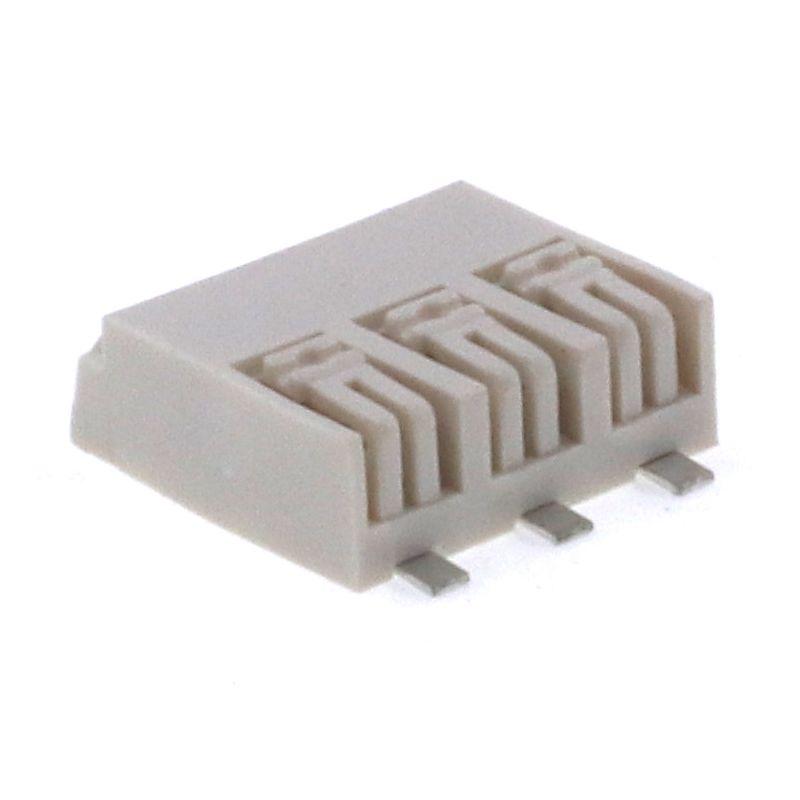

Real object and size of PCB wire to board connectors



Packaging and application of 3 way lighting connector


PCB wire to board connectors Use strip packaging to facilitate automated production,

The product uses reflow soldering and is applied to PCB boards such as hard light strips, hard light bars, hard light panels, etc.


3 way lighting connector optional accessories:


When two B07 3 way lighting connector are needed for connection, the B07J jumper can be selected, which has the same number of 1P, 2P and 3P pins as the B07 terminal block.


More wire connectors



*For more information, please contact us by email or through any contact information on the webpage.
