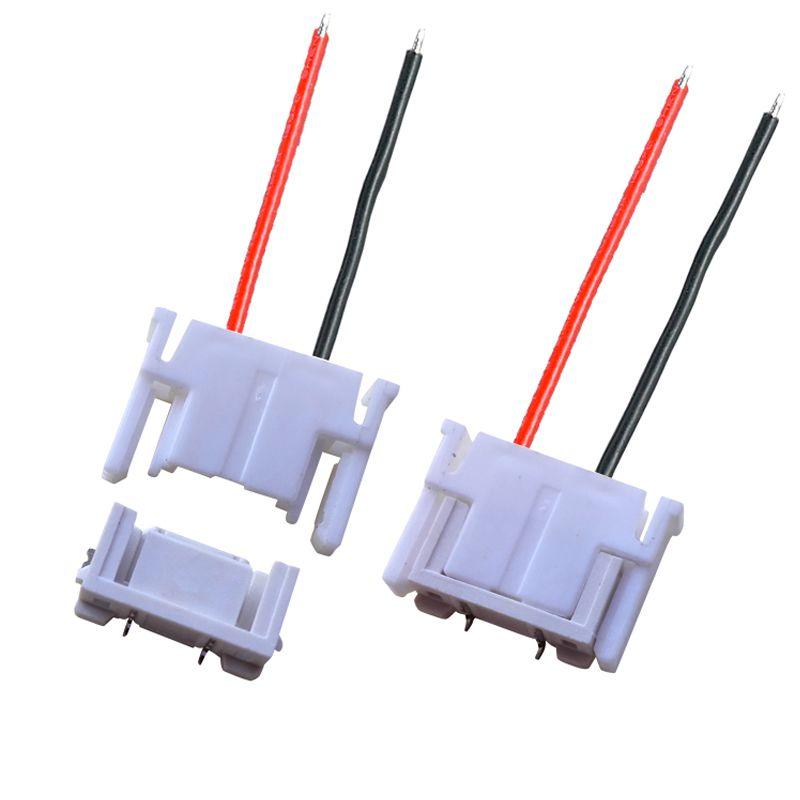

Flexi-Mate 3.70mm Pitch Board-to-Board plug, PCB mount

Pcb mount connector( 503469-0200) are widly used in LED lightings. They are

Surface Mount, Right-Angle, 3.00mm Stacking Height, 2 Circuits

  • Brand:

    OLINK
  • Item no.:

    OL3700/T/2Y/3701R/37
  • Payment:

    Wire transer, West Union
  • Product origin:

    China
  • Color:

    White
  • Min order:

    10000
  • Shipping port:

    Xiamen
  • Lead Time:

    7 days

Flexi-Mate 3.70mm Pitch Board-to-Board plug, PCB mount

 Board-to-board, wire-to-board and terminator options

 Space savings and easy mating/unmating
 Ensures reliable electrical connection
 Used in LED TVs, LCD panels etc


Datasheet of PCB terminal block:

Model Number
 OL3700/T/2Y/3701R/3702P
Brand Name:
 FZOLINK Type:
 PCB to PCB /PCB to Wire connector
Rated Current:
 2A DC.AC Use:
 Power/Signal/Electric
Pin spacing:
 3.7mm/0.146in Diameter of pin:
 2P
Applicable Wire
 AWG 26#-30# Terminal:
 Phosphor bronz
Housing
 Nylon66 UL94V-0 Wafer:
 LCP UL94V-0

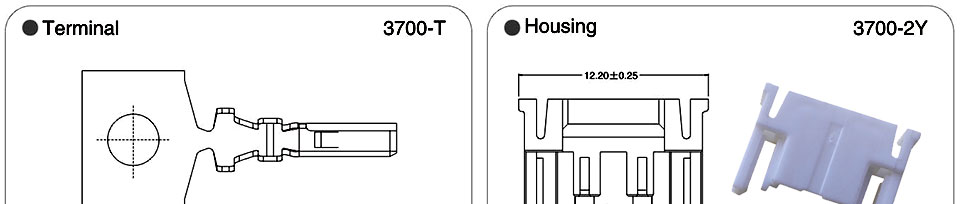

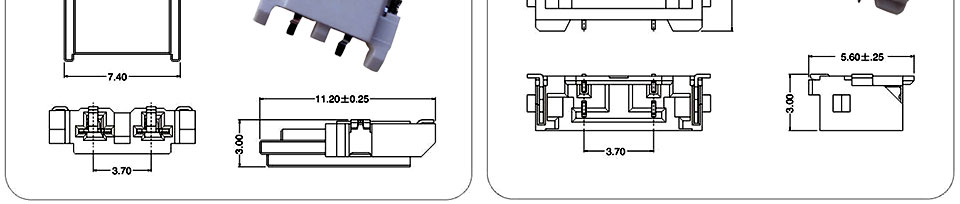

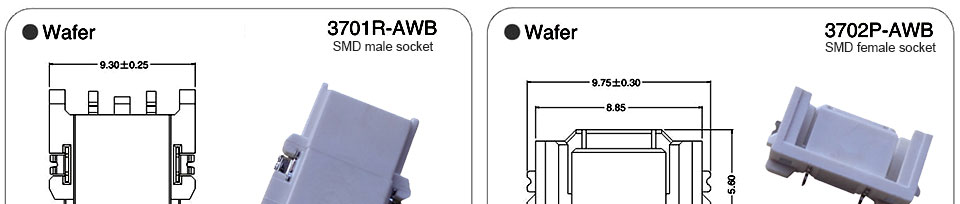

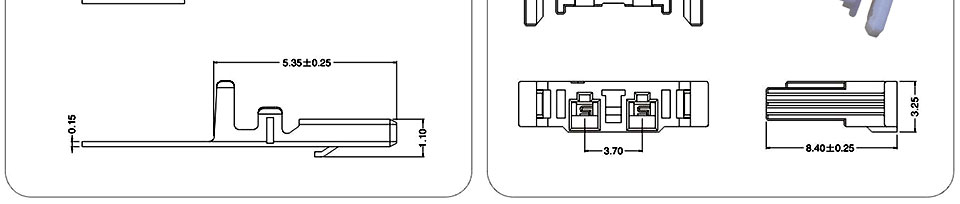

drawing of PCB terminal block:


Our PCB mount connectors can replace for Molex connector's part no as following:

503471-0200    5034710200

503473-0200    5034730200

503469-0200    5034690200


Connection Type of pcb to pcb connector:



37001R+3702P (PCB to PCB) 3700-T+2Y+3702P (Wire to PCB)

*For wire-to-board connection, the plastic shell needs to process terminals and wires

*For more information, please contact us by email or through any contact information on the webpage.
