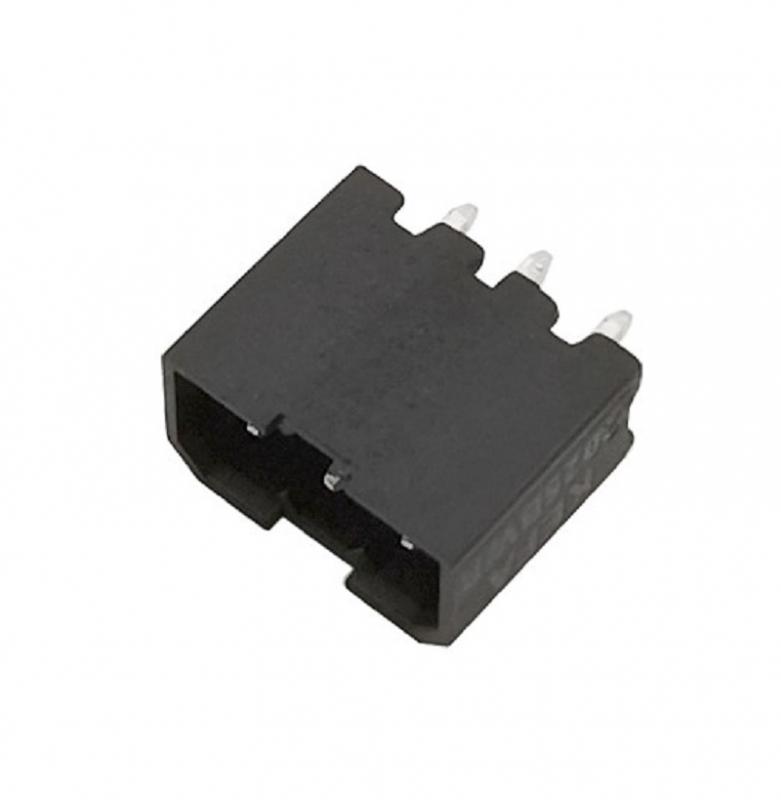

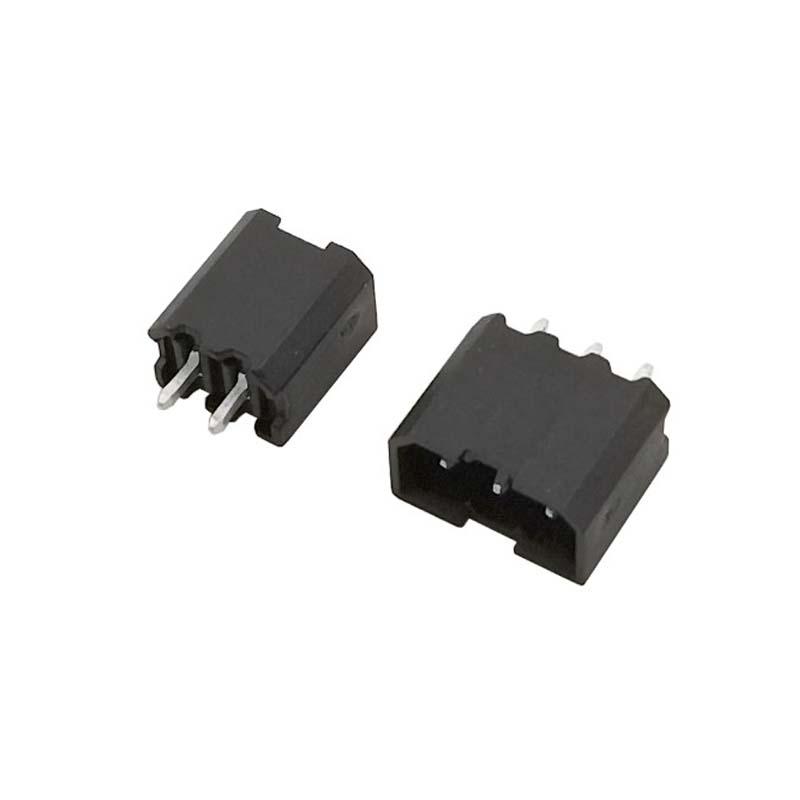

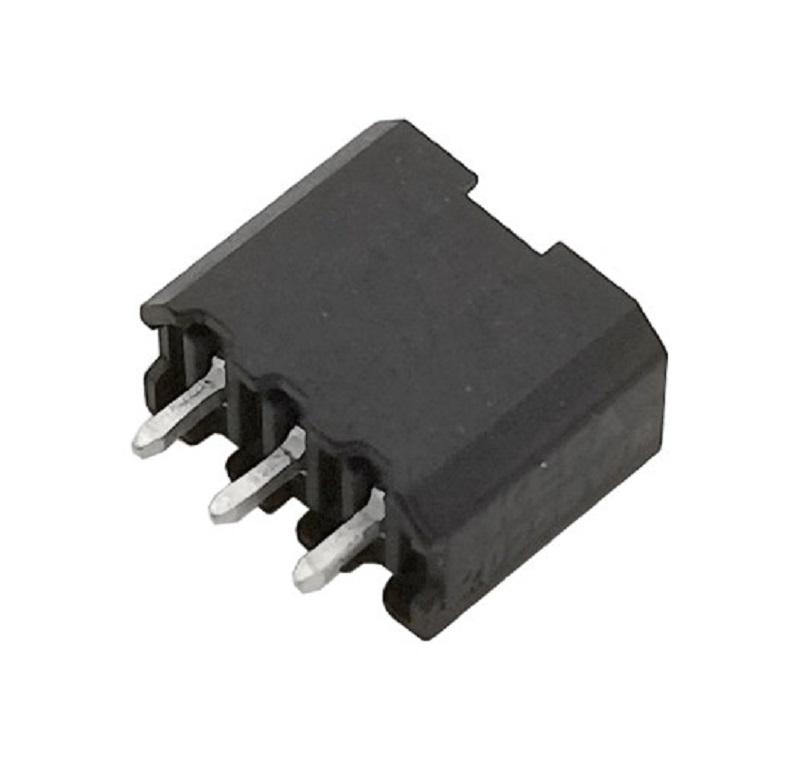

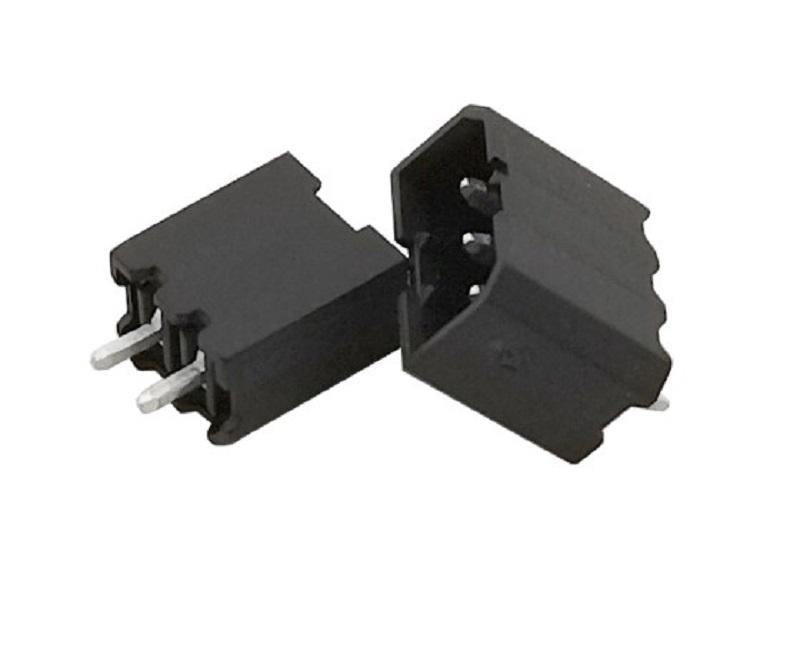

SMD Terminal Block KF2025BV

2.5mm Compact Spring Type SMD Terminal Block connector KF2025BV


  • Brand:

    OLINK
  • Item no.:

    KF2025BV
  • Payment:

    Wire transer, West Union, Paypal
  • Product origin:

    China
  • Color:

    Black
  • Min order:

    1000
  • Shipping port:

    Xiamen
  • Lead Time:

    7 days

2.5mm Pitch Compact Spring Type SMD Terminal Block connector


Datasheet of SMD terminal block:

Model Number
 KF2025BV
Brand Name:
 FZOLINK Pin Dimensions:
2.1mm
Rated Current:
 6A DC.AC PCB Hole Diameter:
1.2mm
Pin spacing:
 2.5mm Diameter of pin:
 2P-12P
Applicable Wire
 AWG 24#-20# Terminal:
 copper alloy
Housing
 Nylon66 UL94V-0 Contactive Coating:
 Tin plated

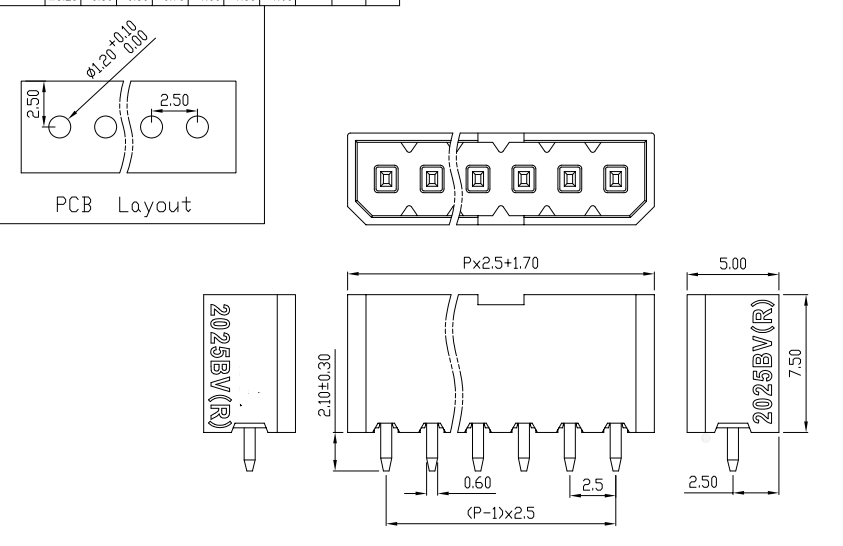

drawing of PCB terminal block:

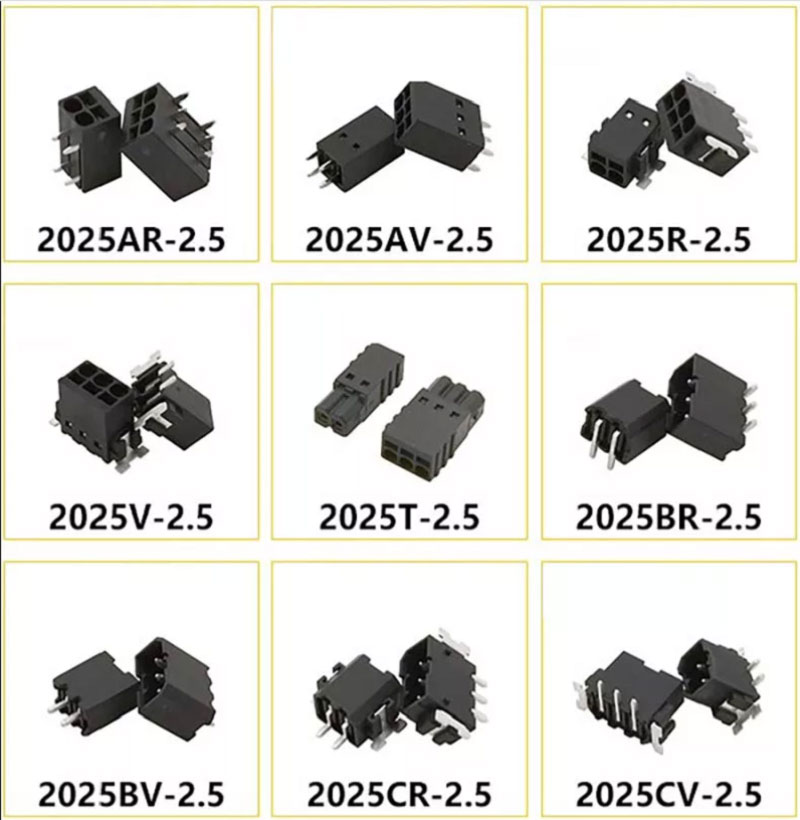

Other type of SMD pcb terminal block:


*For more information, please contact us by email or through any contact information on the webpage.
