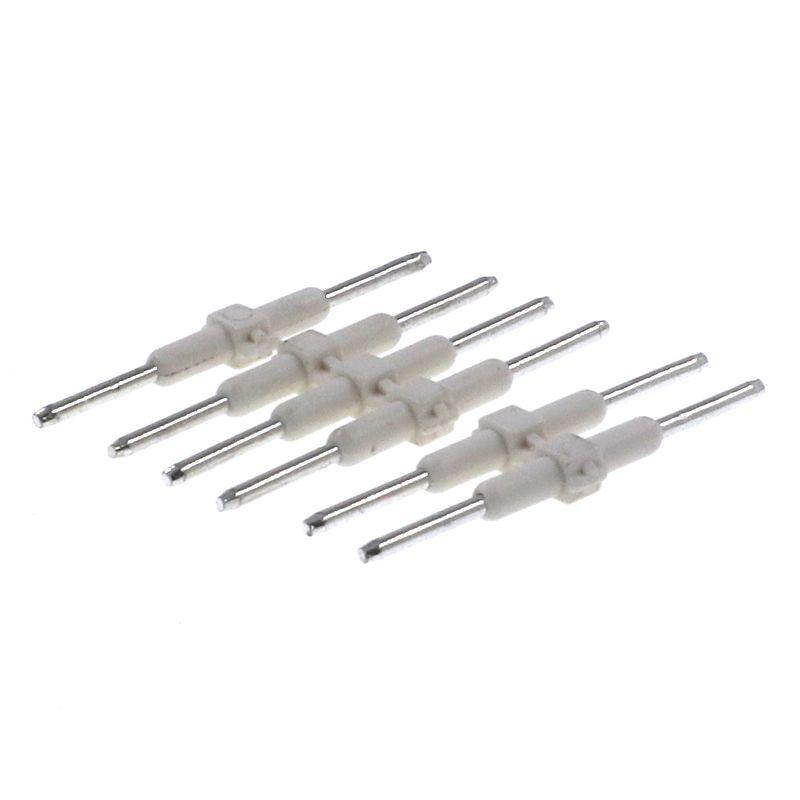

Electronic 2 pin 3 pin terminal pin jumper connector

The jumper connector which used with 2060 series, it can easily connect each column of LED lights on the PCB board, which can further save you a lot of time.


  • Brand:

    OLINK
  • Item no.:

    B07J-1P
  • Payment:

    Wire transfer, PayPal, Western Union, Alipay
  • Product origin:

    China
  • Color:

    Buff
  • Goods stock:

    500000
  • Min order:

    1000
  • Shipping port:

    Xiamen, Ningbo,shenzhen,shanghai
  • Lead Time:

    7

Electronic 2 pin 3 pin terminal pin jumper connector


Description of jumper connector

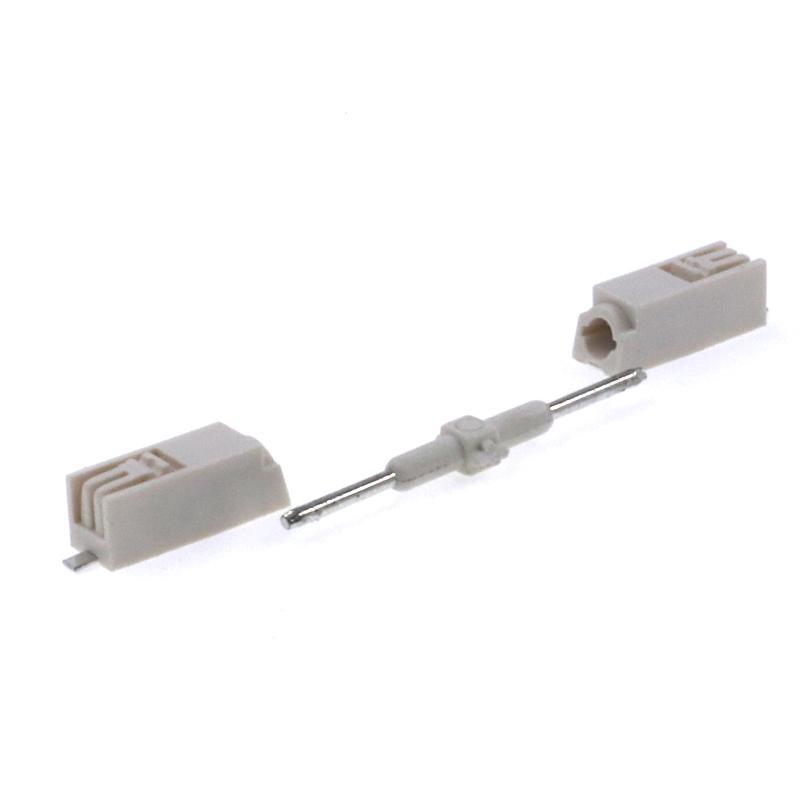

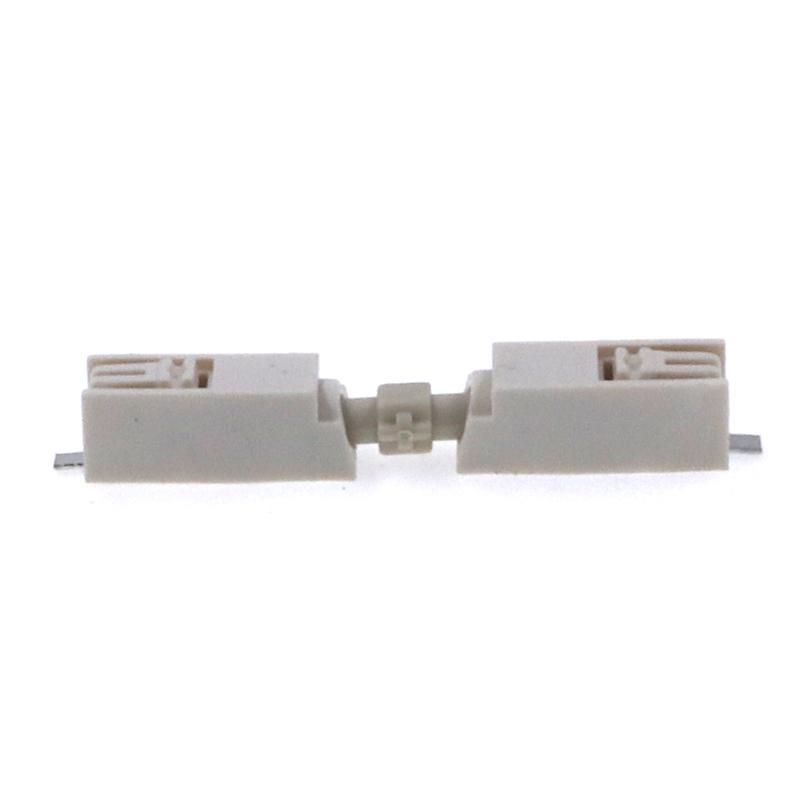

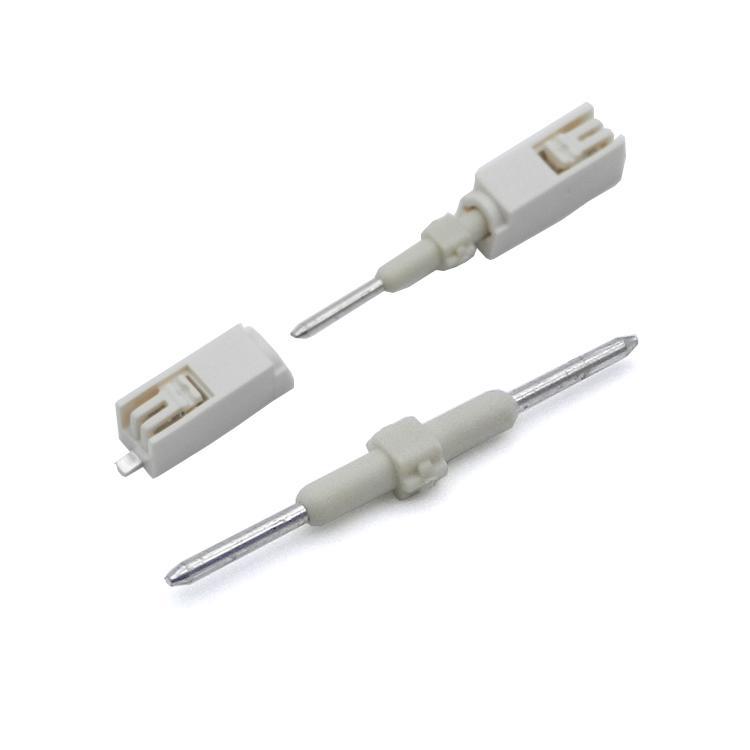

The jumper connector can increase the distance range between the wiring terminals on the two LED modules, thereby providing higher flexibility for the layout of the LED modules, and easily realize the connection between the LED modules: One end is directly inserted into the wire inlet hole of the terminal block and then connected to the terminal block on the adjacent LED module.


Features:

  • The connection between LED modules is fast and requires no tools
  • Convenient operation
  • Compared with manual wiring: save time
  • The easy series connection of LEDs reduces the types of circuit boards used
  • Reduce the cost and time of connection between LED lighting modules


Specifications:

Product Name: Jumper connectors
Application: Use with 2060 series to connect two connectors
Pin spacing: 4 mm/0.157 in
Rated Current: 9 A
Voltage(max.): 320 V
Contact platin: Silver-plated
Insulation material: PA 66, UL94-V0 Contact material: Tin-plated
