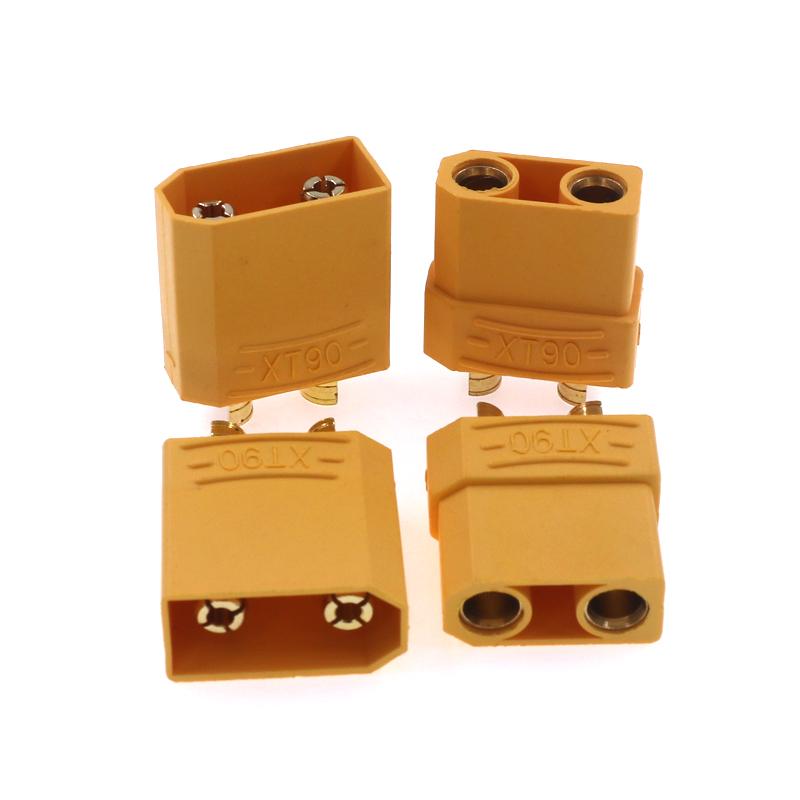

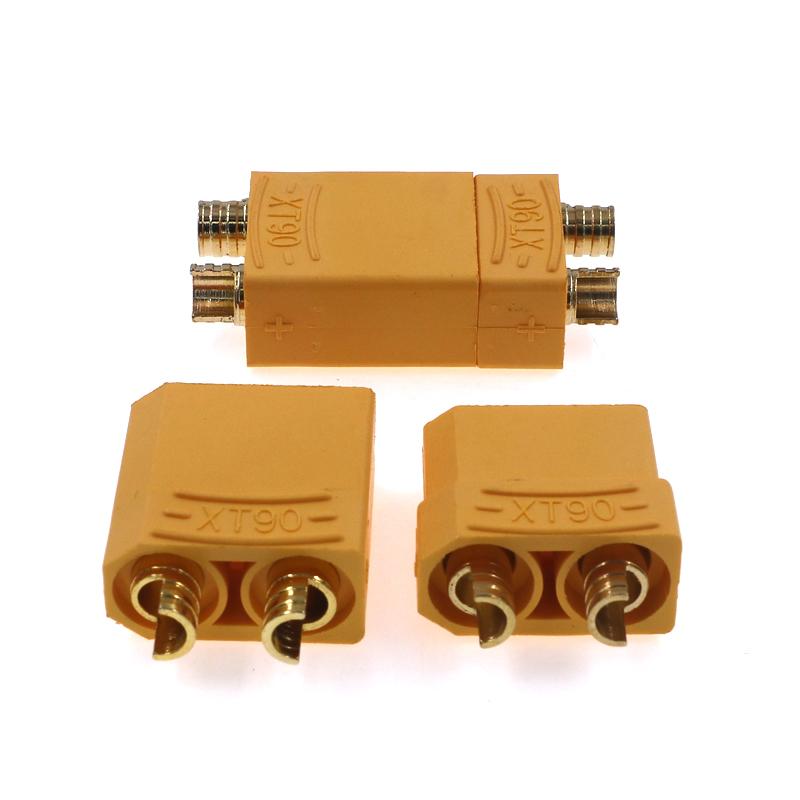

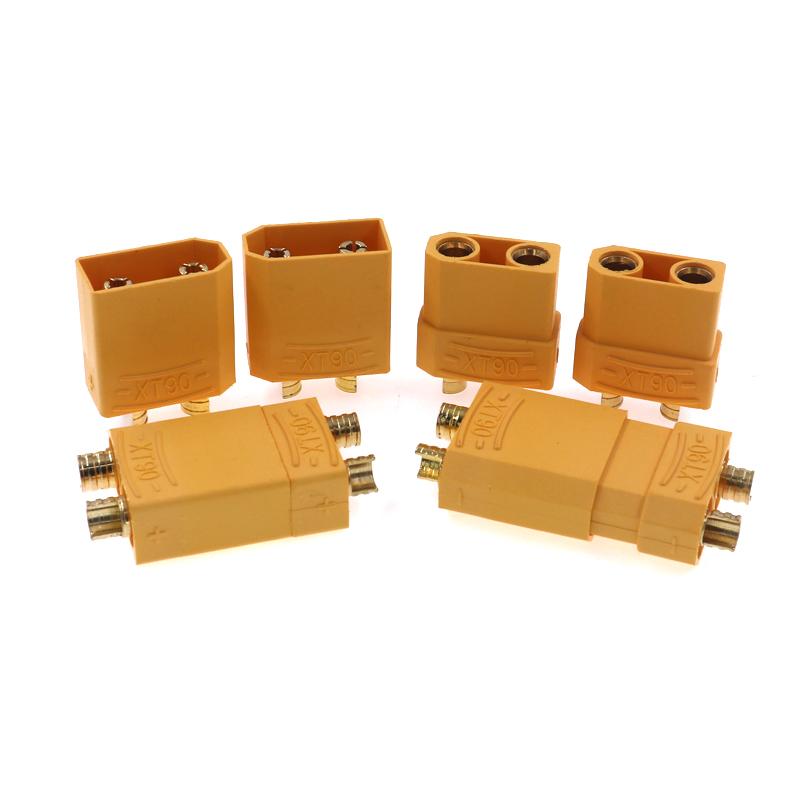

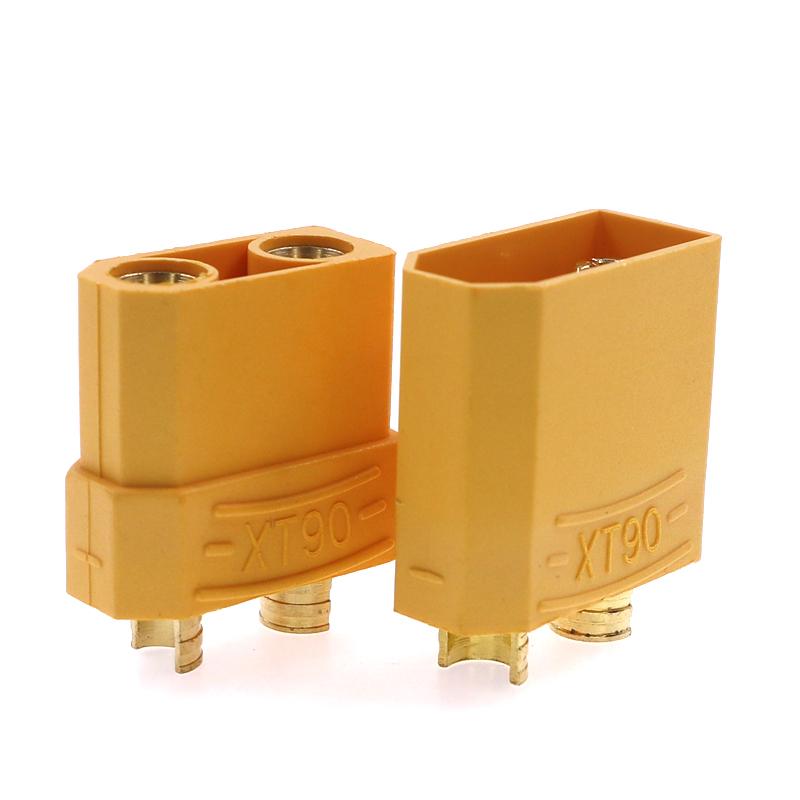

XT90 Plug Soldering Lipo Rc Battery Connectors Gold Plated

Equivalent to amass connectors, XT90 conenctor perfect for applications up to 90A constant. It can be sold in pairs(female + male) or a single side(female or male).



  • Brand:

    OLINK
  • Item no.:

    XT90
  • Payment:

    Wire transfer, PayPal, Western Union, Alipay
  • Product origin:

    China
  • Color:

    Yellow
  • Goods stock:

    50000
  • Shipping port:

    Xiamen, Ningbo
  • Lead Time:

    7


 Soldering type dc battery connector xt90 series


 Features For XT90 Battery Connector

  • Male and female design, female end connector battery (power supply), male end connected to load;
  • The contacts are gold-plated for better conductivity;
  • The opening of the tail welding cup is reversed, making welding more convenient;
  • The shell is marked with obvious "+" and "-" symbols, and the interface is designed in a special shape to prevent the wrong interface insertion;
  • After the XT90 connector is connected, it fits tightly, and it is not easy to loosen during the working process;

  Specification Of XT90 Series Connector

Item NO.:

 XT90 Connector CR:   0.30 MΩ
Color:   Yellow RV:   DC 500 V
Metal Material:   Brass Gold Plated RC:   40 A
Plastic Material:   PA66 MC:   90 A
FR level:   UL94 V0 Plug times:   1000 times
Recommend used:   Battery/Controller/Charger Cable Spec:   10AWG
Product description:   High current connector Temperature:   -20°C to 120°C

 Application

XT90 connectors are mainly used in UAVs, remote-controlled aircraft, remote-controlled cars, remote-controlled boats, balance vehicles, and power tools, and other occasions and fields that require larger current connections. Connectors can provide customized wiring harness services.
