MR30 Amass with Shrouds plug Gold-Plated LIPO Battery Adapters Bullet Connectors

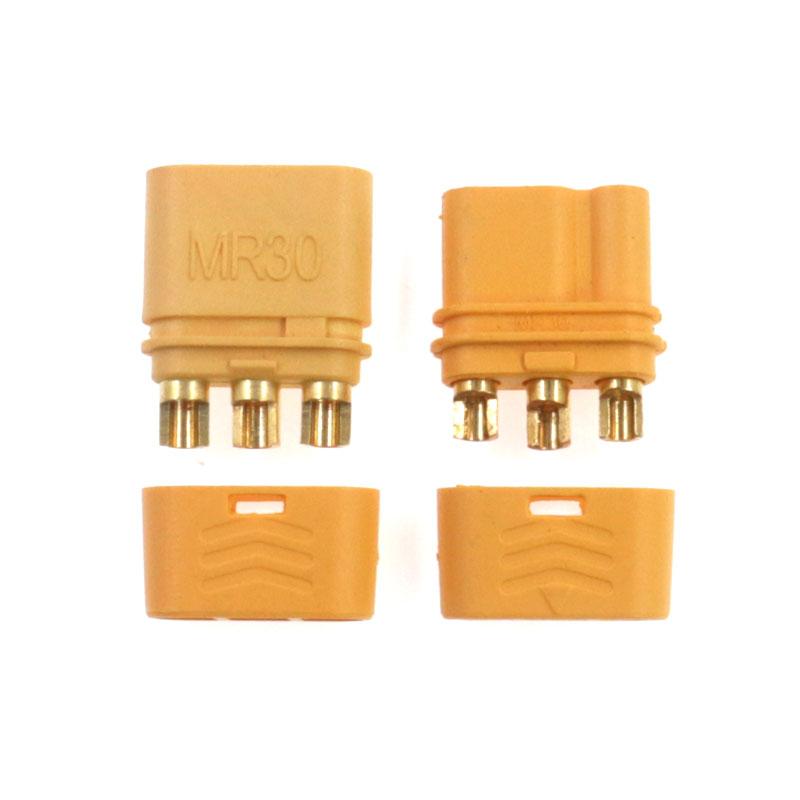

MR30 battery connector is recommended for motor connector, 3-pin structure, gold-plated copper contacts, complete set consists of one male and one female and two protective covers

  • Brand:

  • Item no.:

  • Payment:

    Wire transfer, Paypal, Western Union, Alipay
  • Product origin:

  • Color:

  • Goods stock:

  • Shipping port:

  • Lead Time:


MR30-F MR30-M MR30 Connectors Motor 3 Pin Pulg 15A RC Lipo Brttey Connectors

  Description For MR30 Power Connector

  • Male and female design, female end connector battery (power supply), male end connected to load;
  • The contacts are gold-plated for better conductivity;
  • With guiding structure, it will not cause wrong connection direction;
  • Solder cup with lid, will not expose the solder joint to the outside;
  • Small size, compact structure, tight connection after plugging, not easy to loose

ITEM No   MR30 Connector CR   0.7MΩ
Color   Yellow RV   DC 500V
Metal Material   Brass Gold Plated RC   15A
Plastic Material   PA MC   30A
FR level   UL94 V0 Plug times   1000 times
Recommend USD   MOTOR Cable Spec   16AWG
Pin   3 Temperature1   -20°C to 120°C


MR30 Motor Plug are mainly used in UAVs, remote-controlled aircraft, remote-controlled cars, remote-controlled boats, balance vehicles, and power tools, and other occasions and fields that require larger current connections.Connectors can include custom wiring harnesses.
