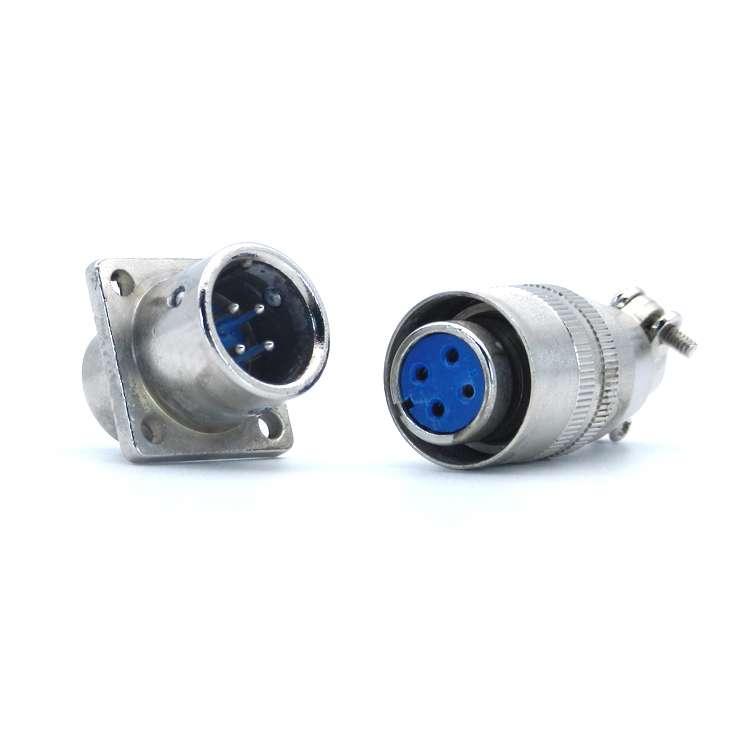

XS series cable power connector pcb mount

XS series electrical connectors are small and beautiful in appearance. Quick and easy plugging and unplugging. It is suitable for AC and DC circuit connection of various instruments, electronic equipment, etc.

Brand:
OLINK
Item no.:
XS8, XS9, XS10, XS12
Payment:
Wire transfer, PayPal, Western Union, Alipay
Product origin:
China
Color:
Sliver
Goods stock:
50000
Shipping port:
Xiamen, Ningbo
Lead Time:
7

Inquiry now

product introduction

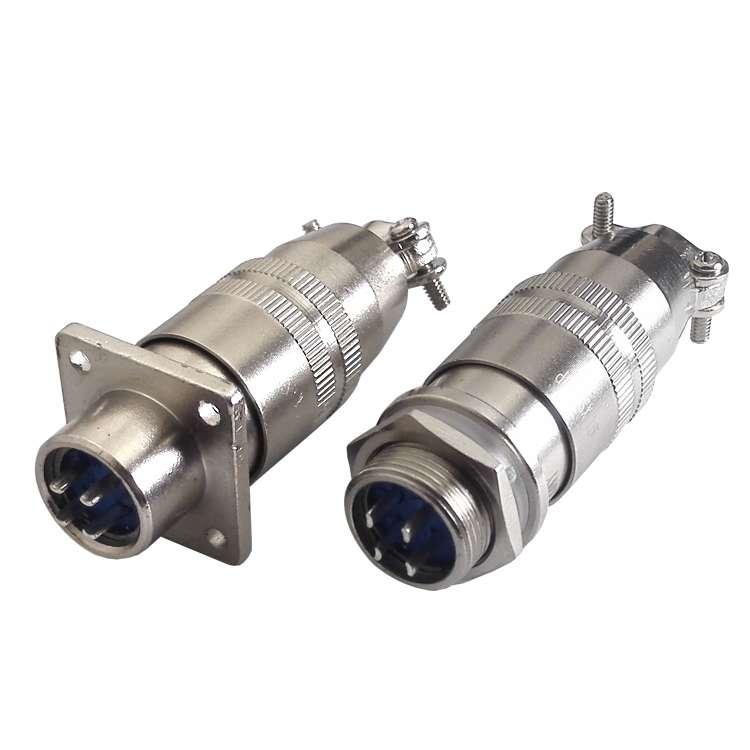

XS series cable power connector pcb mount

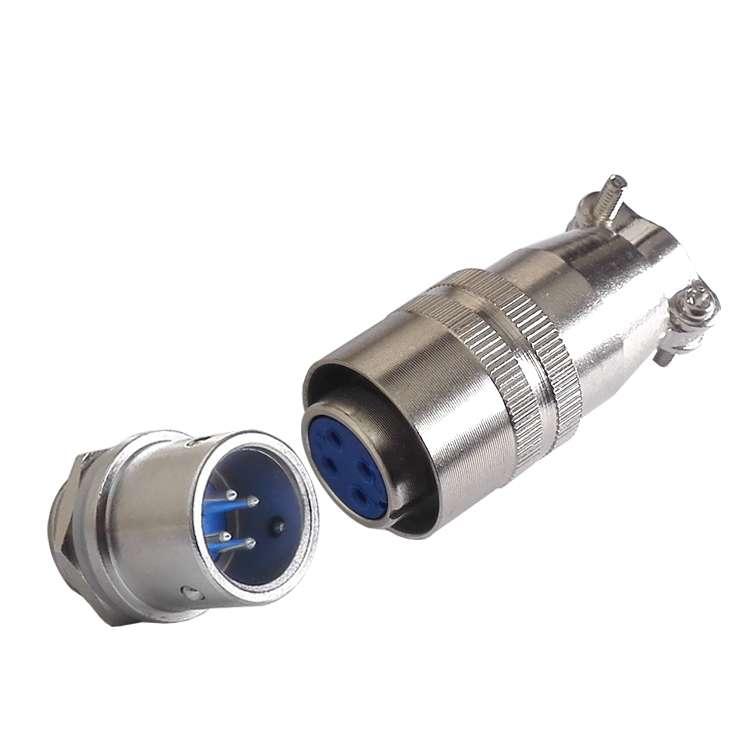

Feature of circular pcb connector

It is convenient to use, the volume is small, and the weight is light
Connection method: Screw connection & Push-in steel ball lock
There are two installation method: wire to board and wire to wire.

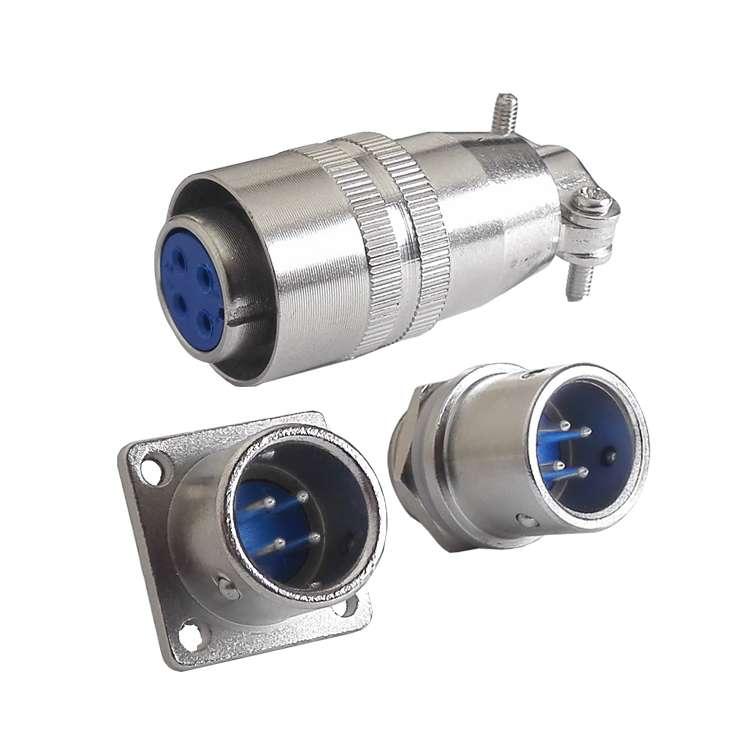

Specification of XS series metal connector

Temperature range:	-55℃~+85℃	Humidity:	40℃ 98%/93%
Connecting mode:	Push-in steel ball lock & Screw connection	Vibration:	50~500Hz, Acceleration 100m/s²
Collision:	40~80 times/min, Acceleration 250m/s²	Contact resistance:	≤5mΩ
Insulation resistance:	≥ 2000MΩ	Rated current:	5A
Rated voltage:	250V	Testing voltage:	1000V

Ordering code of circular cable connectors

Number	Classified features and contents		Marks
1	Circular electrical connector		XS
2	Number of series		8, 9, 10, 12, 16
3	Contact form	Pin(male)	J
3	Contact form	Hole(female)	K
4	Contact number(2, 3, 4, 5, 7, 9)		Mark the pin number
5	Type of plug, socekt	Flange socket	A
		Round socket	Y
		Plug with winged sleeve	P
		Plug with rubber sleeve	T

Eg: XS8J4Y: 8mm hole mount diameter, 4 pin, male, round socket.

XS10K5P: 10mm hole mount diameter, 5 pin, female, plug.

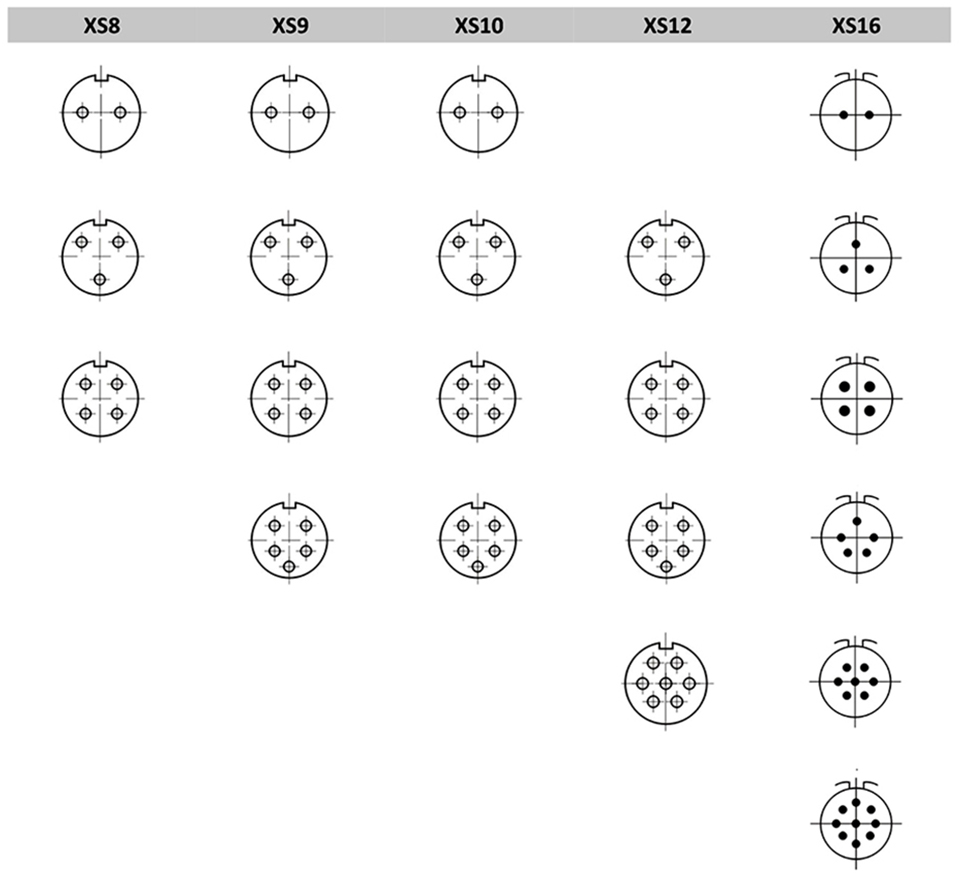

The hole place arrange (comply with the pin direction)

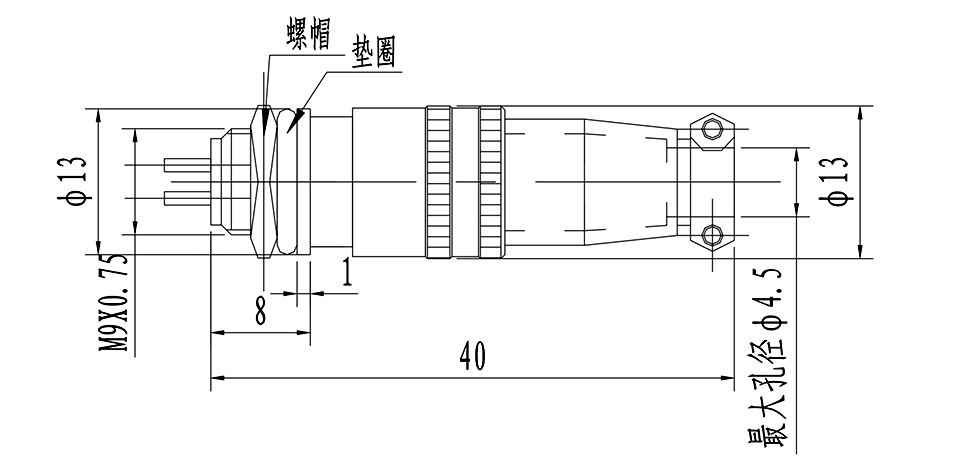

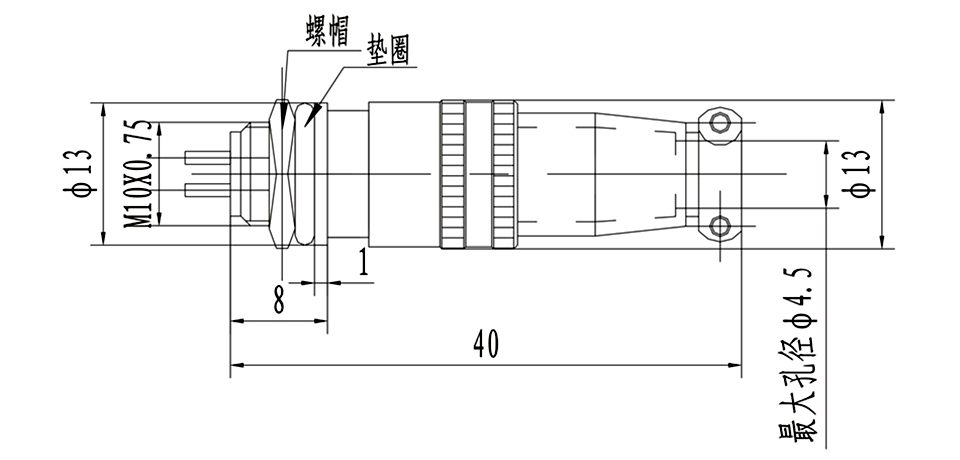

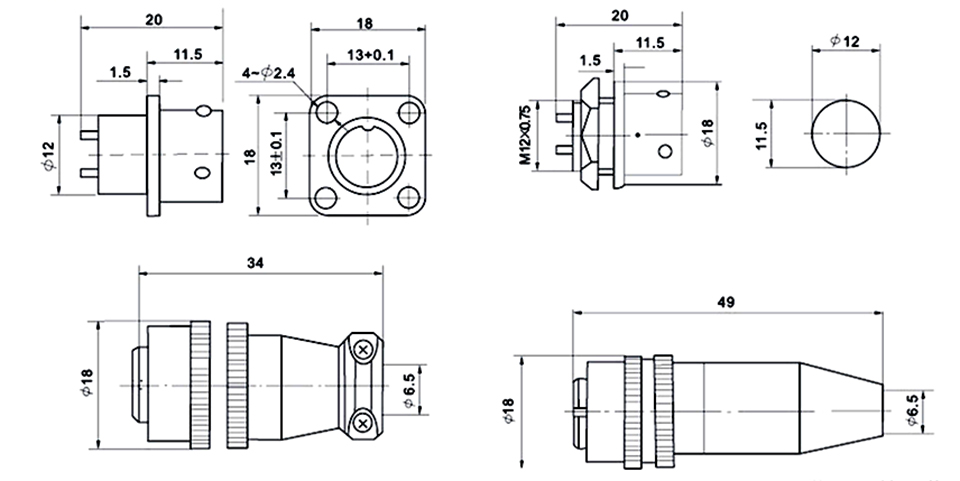

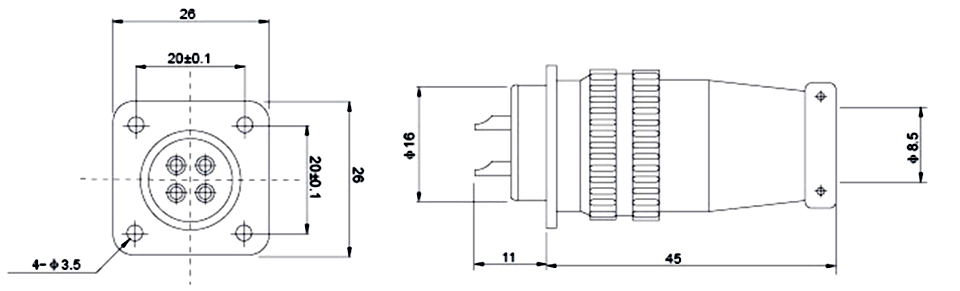

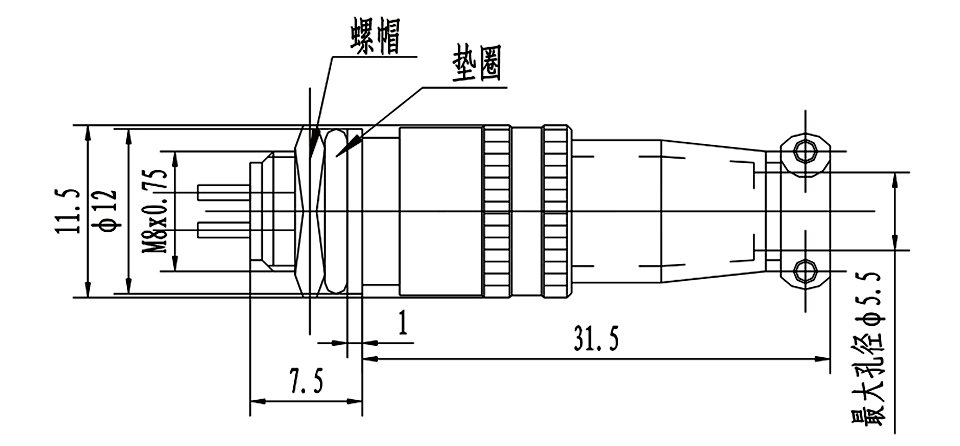

Dimension of circular power connector

XS8

XS9

XS10

XS12

XS16
