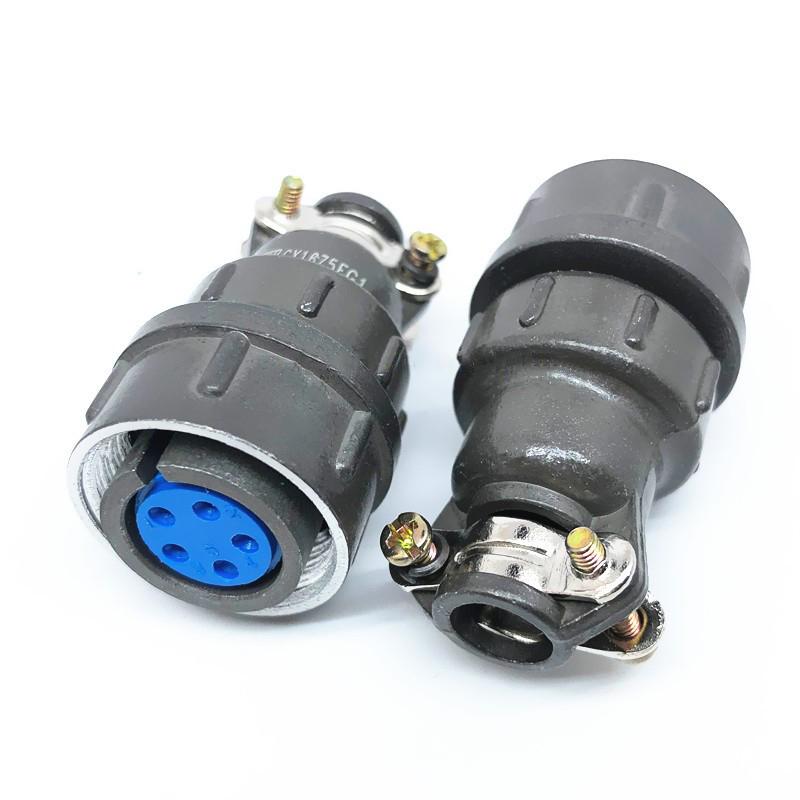

CX series 9 pin bulkhead electrical metal power connector

CX series circular electrical connectors, it's suitable for circuit connection between instruments, electrical and electronic equipment.


  • Brand:

    OLINK
  • Item no.:

    CX16, CX24
  • Payment:

    Wire transfer, PayPal, Western Union, Alipay
  • Product origin:

    China
  • Color:

    Grey
  • Goods stock:

    50000
  • Shipping port:

    Xiamen, Ningbo
  • Lead Time:

    7

CX series 9 pin bulkhead electrical metal power connector


Feature of circular wire connector


  • Small size, light weight, reliable in contact, good in insulation, resistant to temperature and humidity

  • Wiring method: Screw connection

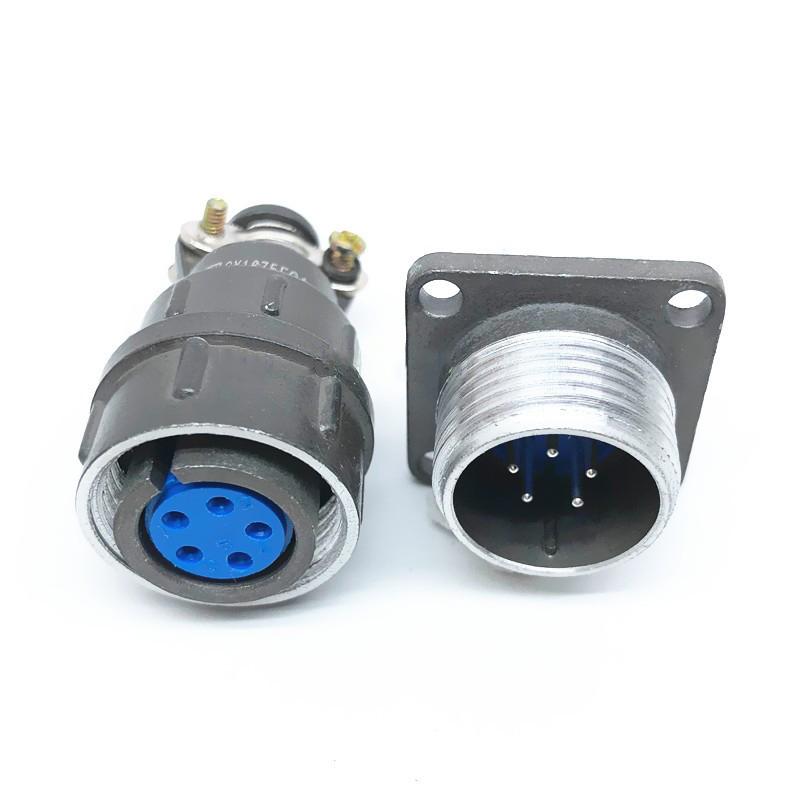

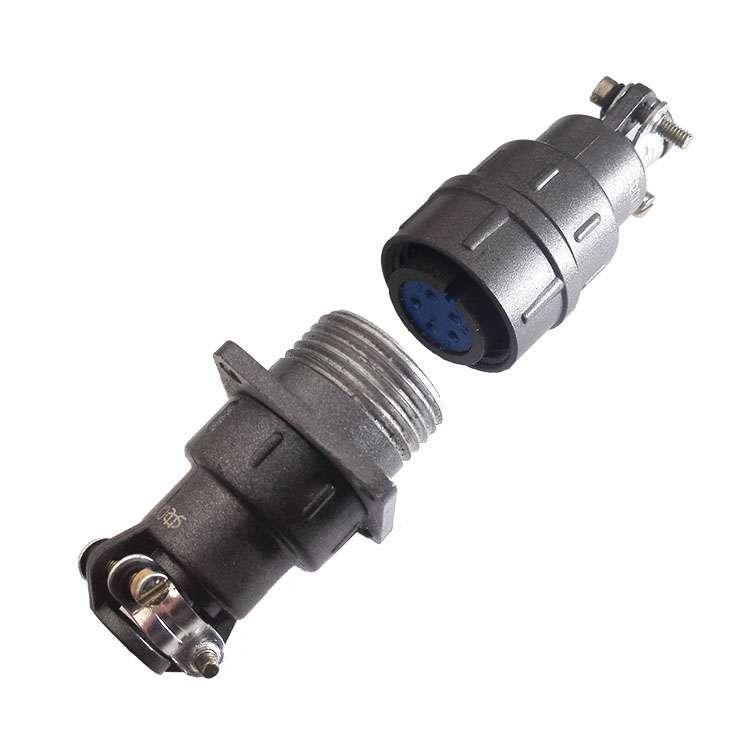

  • Two combination: male plug & female socket, or female plug & male socket

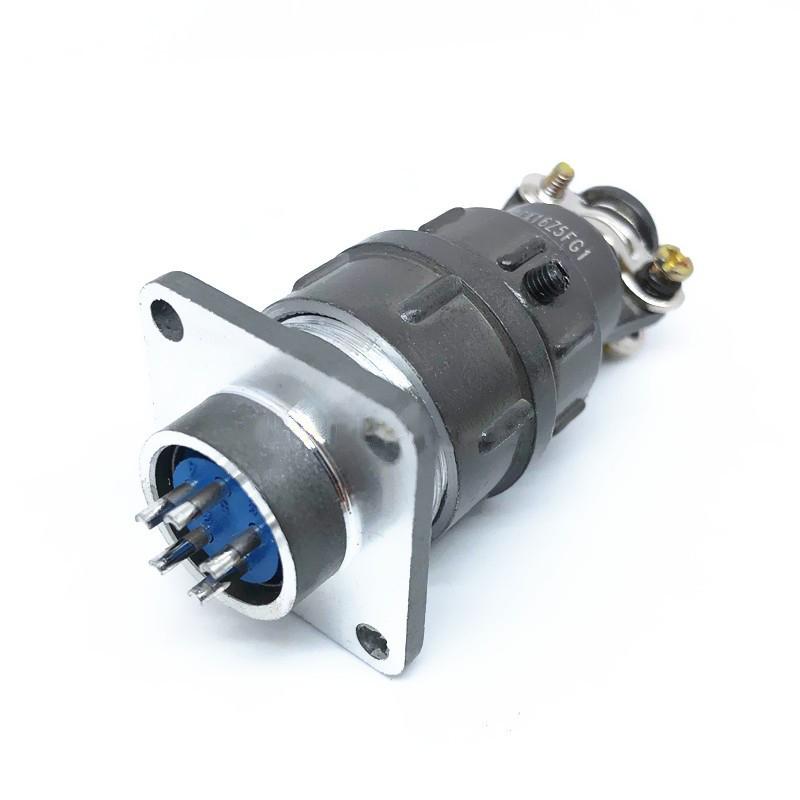

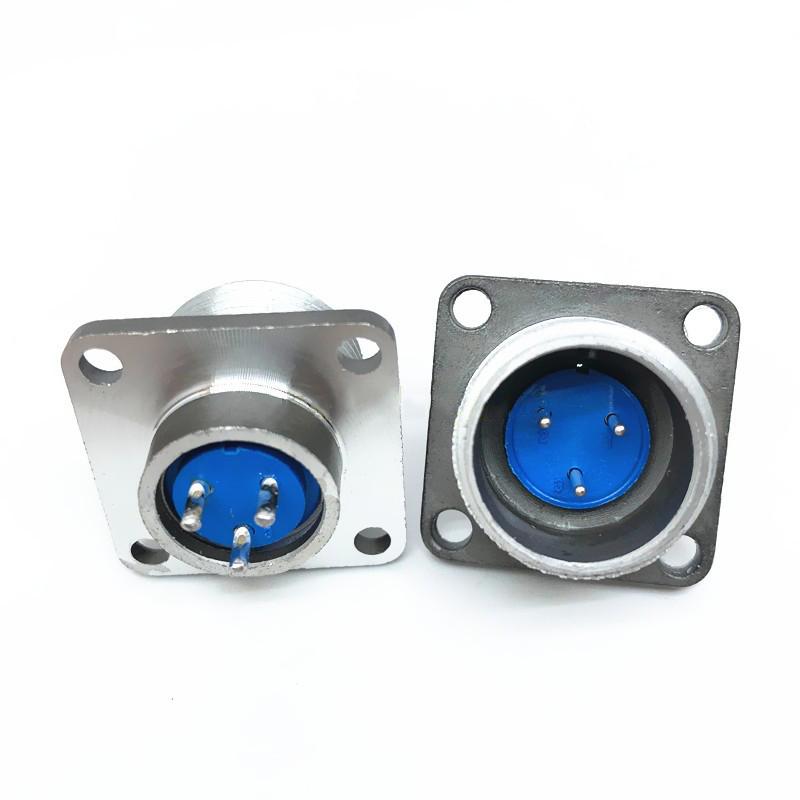

  • There are two installation methods: flange type (wire to board) and cable type (wire to wire).


Specification of CX series metal connector


Temperature range:

 -55℃~+85℃

Humidity:

  40℃  93%
Connecting mode:   Screw connect

Vibration:

 Acceleration 100m/s²

Insulation resistance:

≥ 1000MΩ




Pin diameter (mm): 1 1.5
Rated current (A): 3 10
Contact resistance (mΩ): 5 3
Number of contact: 3, 4, 5, 12 7, 9, 19
Rated voltage (V): 400 250
Withstand voltage (V): 1500 1000

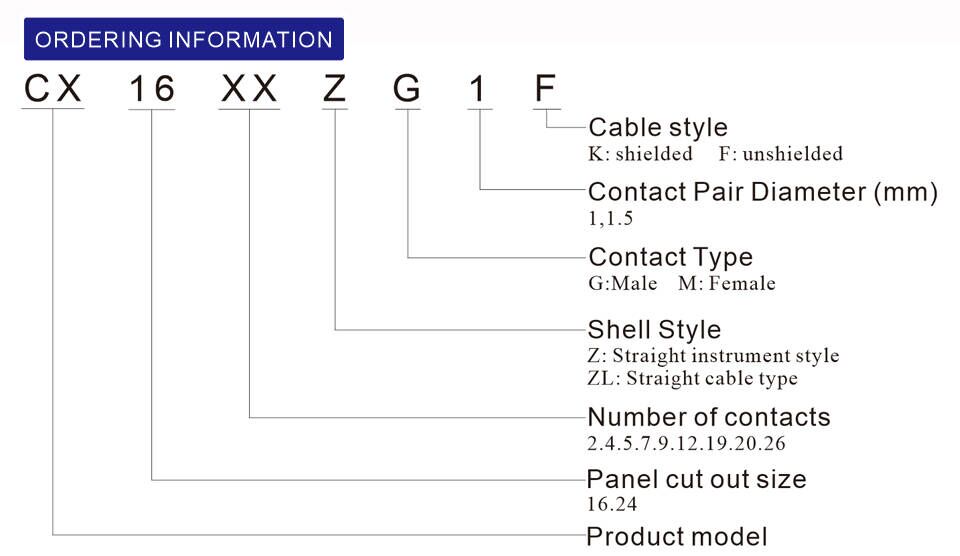

Ordering code of circular power connectors

 Number

 Classified features and contents

 Marks

 1

 Circular connector type

 CX
 2

 Matching diameter of socket and panel (mm) 16, 24

 Mark the Diameter size

3 Shell type

Straight instrument type

Z
Straight cable type ZL
4  Contact number (3, 4, 5, 7, 10, 12, 19, 20, 26, 32, 42, 55)

 Mark the pin number

5

Connection wire style

shielded  K
unshielded  F
6

 Contact form

Pin  G

 Hole

M
7  Contact diameter (mm)
1, 1.5

Eg: CX16Z5FG1- 16mm diameter, wire to board (female plug & male socket), 5 pin, contact OD: 1mm.

     CX16ZL5FG1- 16mm diameter, wire to wire (female plug & male docking plug), 5 pin, contact OD: 1mm.

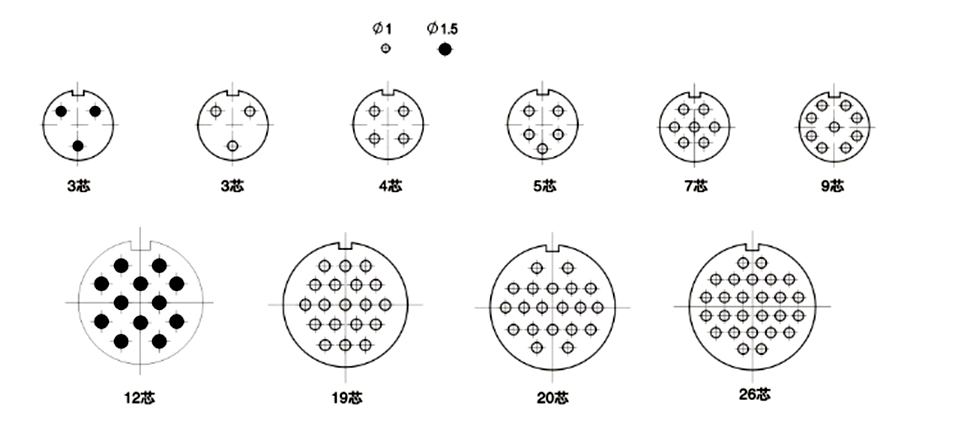

The hole place arrange (comply with the pin direction)

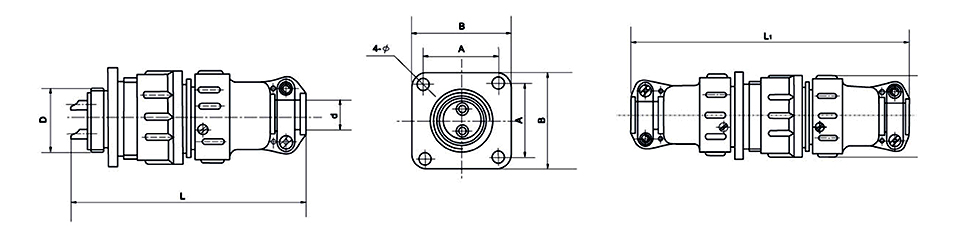

Dimension of electrical metal connector

Model Install dimensions Outlook dimensions
D A φ d L L1 B D1
CX16 M16x0.75 left 20 3.2 8 56 76 26 24
CX24 M24x1 left
26 3.5 12 69 95
33 33


*For more information, please contact us by email or through any contact information on the webpage.
