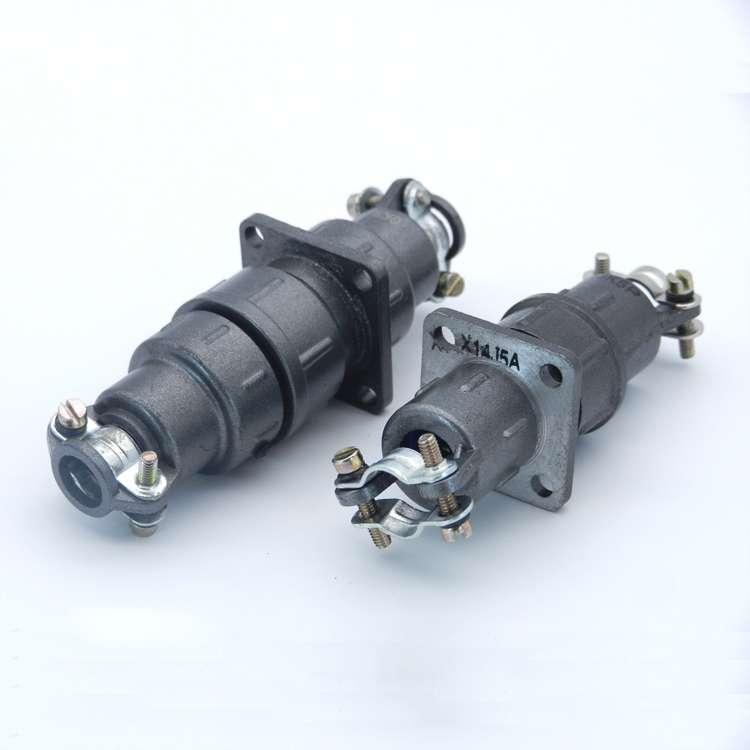

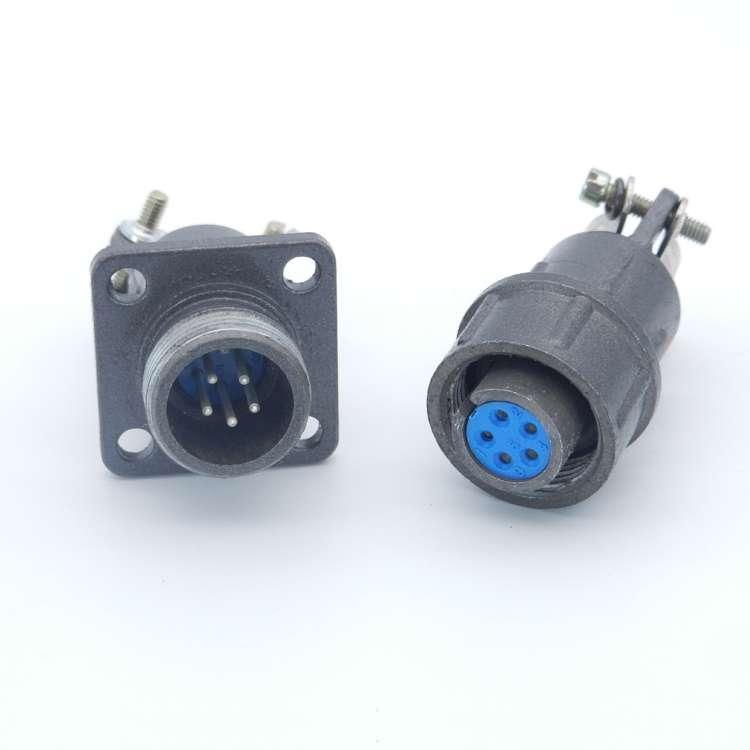

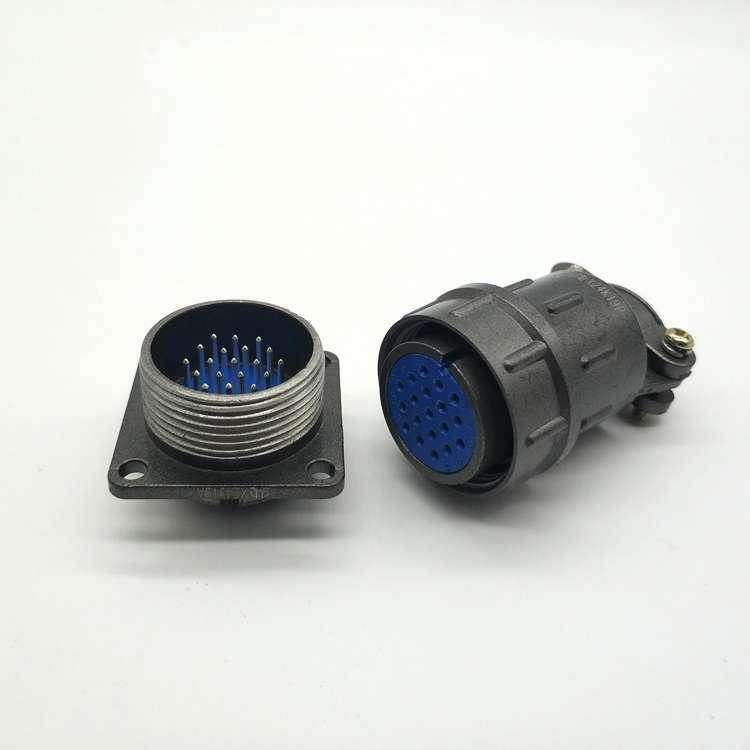

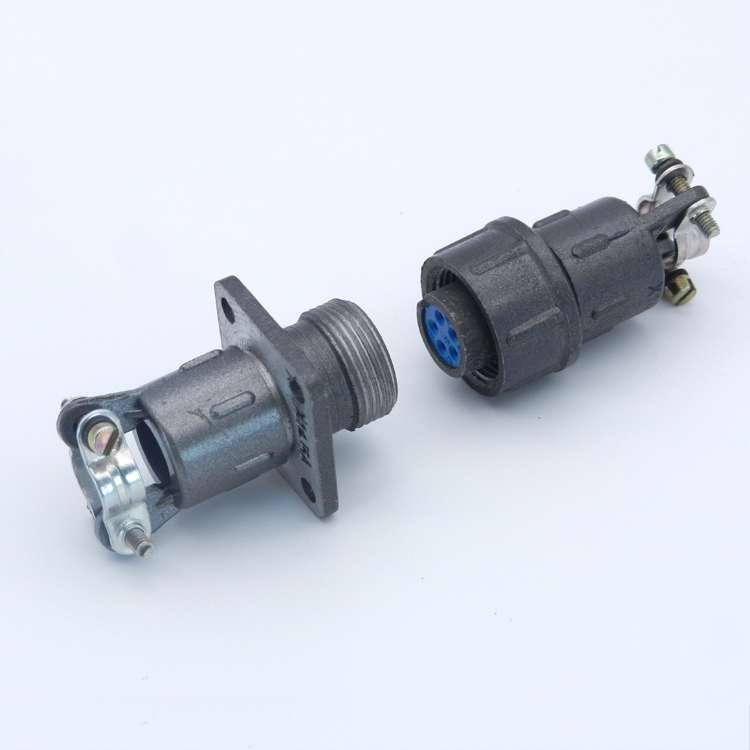

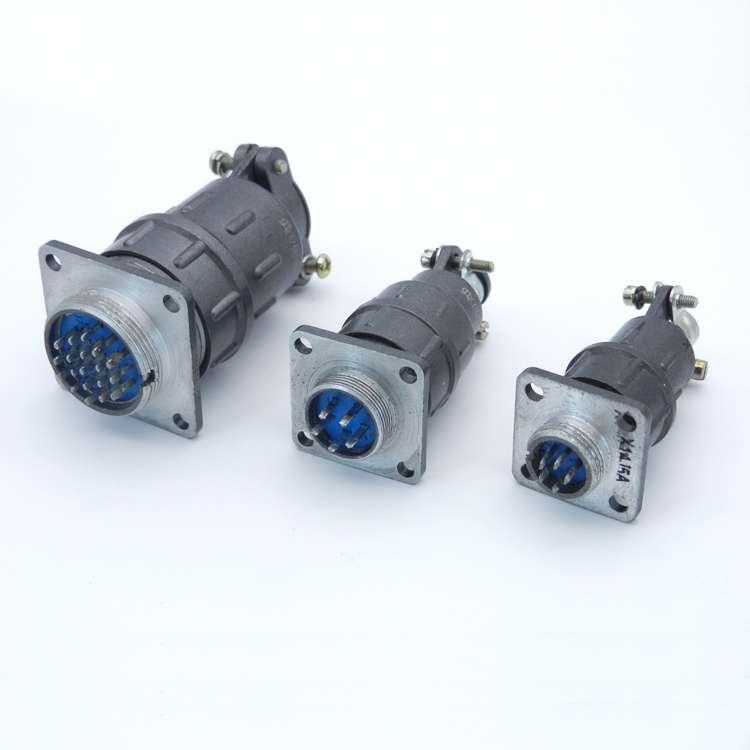

X series small circular electrical metal screw connector

X series small circular electrical connectors, it's screw connection and with simple structure. It is especially suitable for key projects.

  • Brand:

    OLINK
  • Item no.:

    X12, X14, X22, X24,
  • Payment:

    Wire transfer, PayPal, Western Union, Alipay
  • Product origin:

    China
  • Color:

    Grey
  • Goods stock:

    50000
  • Shipping port:

    Xiamen, Ningbo
  • Lead Time:

    7

X series small circular electrical metal screw connector


Feature of small circular connector


  • Small size, light weight, reliable in contact, good in insulation, resistant to temperature and humidity

  • Wiring method: Screw connection

  • Two combination: male plug & female socket, or female plug & male socket

  • There are two installation methods: panel mount (4 hole flange type) and cable type.


Specification of X series metal connector


Temperature range:

 -55℃~+100℃

Humidity:

  40±2℃  90~95%
Connecting mode:   Screw connect

Vibration:

 10-2000Hz, Acceleration 147m/s²

Impact:

 Acceleration 490m/s²

Constant Acceleration:

 Acceleration 294m/s²
Shock:   Acceleration 490m/s²
Mechanical life:
 500 times
Rated current:   3A Rated voltage:  500V
Withstand voltage:   1500V Contact resistance:   ≤ 5mΩ
Insulation resistance:   ≥ 1000MΩ


Ordering code of circular electrical connectors

 Number

 Classified features and contents

 Marks

 1

 Circular connector type

 X
 2

 Matching diameter of socket and panel (mm) 12, 14, 22, 24, 30

 Mark the Diameter size

3  Male  J
 Female  K
4  Contact number (3, 4, 5, 7, 10, 12, 19, 20, 26, 32, 42, 55)

 Mark the pin number

5  Plug  No marked
Sealed Socket sealed  M
unsealed  A
6

 Cable sleeve form

 Straight  P

 Bending type

 R

Eg: X14J7A- 14mm diameter, male, 7 pin, socket.

     X14K7P- 14mm diameter, female, 7 pin, straight plug

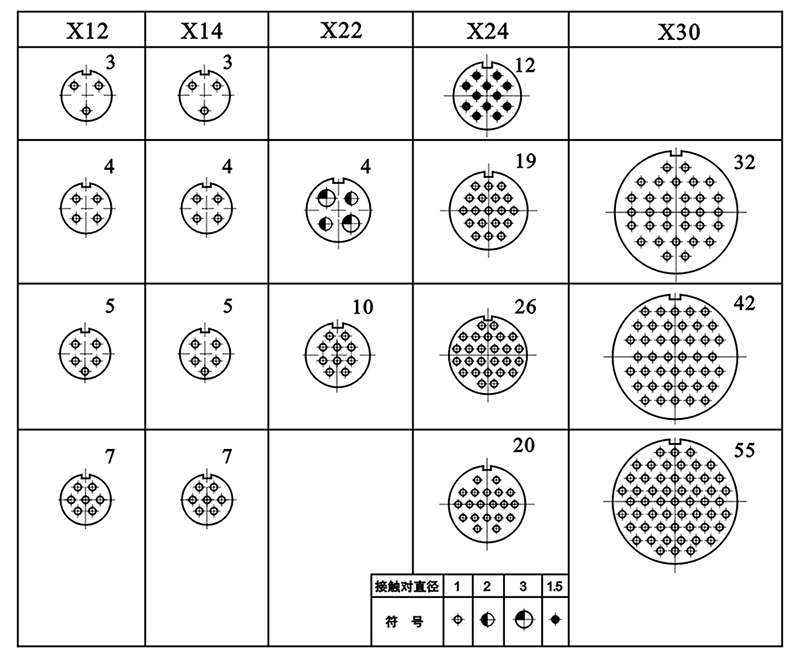

The hole place arrange (comply with the pin direction)

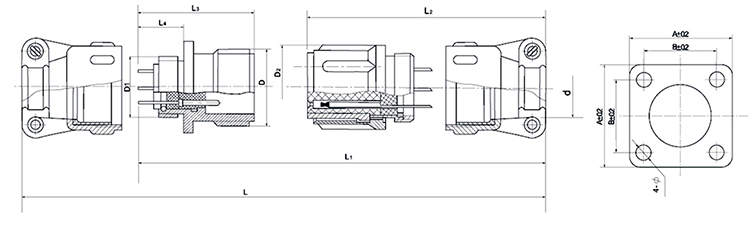

Dimension of metal screw connector

Model D L1 L2 L3 L4 L B A φ D1 D2 d
X12 M14x0.75 43 30 20 8
13 18 2.4 φ12 18 6.5
X14 M16x1 53 40 23 9 69 17 24 3.5 M14x1 left 21 8.5
X22 M24x1
62 48 24 9 87 23 30 3.5 M22x1 left
29 14
X24 M27x1.5
62 48 24 8 87 26 33 3.5 M24x1 left
33 18
X30 M33x1.5
62 48 24 8 87 31 38 3.5 M30x1 left
39 24


*For more information, please contact us by email or through any contact information on the webpage.
