Quick Fit Durable Remote Control Toy Battery Connector Stable Link for Power Application of RC Gadgets

MT60 connector, its housing is made with PA and the contact is gold plated, its shape prevents reverse polarity, and when plugged in the connection is super-solid. Advantages: low resistance, slow heating, anti-reverse insertion

Brand:
OLINK
Item no.:
MT60
Payment:
Wire transfer, PayPal, Western Union, Alipay
Product origin:
China
Color:
Yellow
Goods stock:
50000
Shipping port:
Xiamen, Ningbo
Lead Time:
7

Inquiry now

product introduction

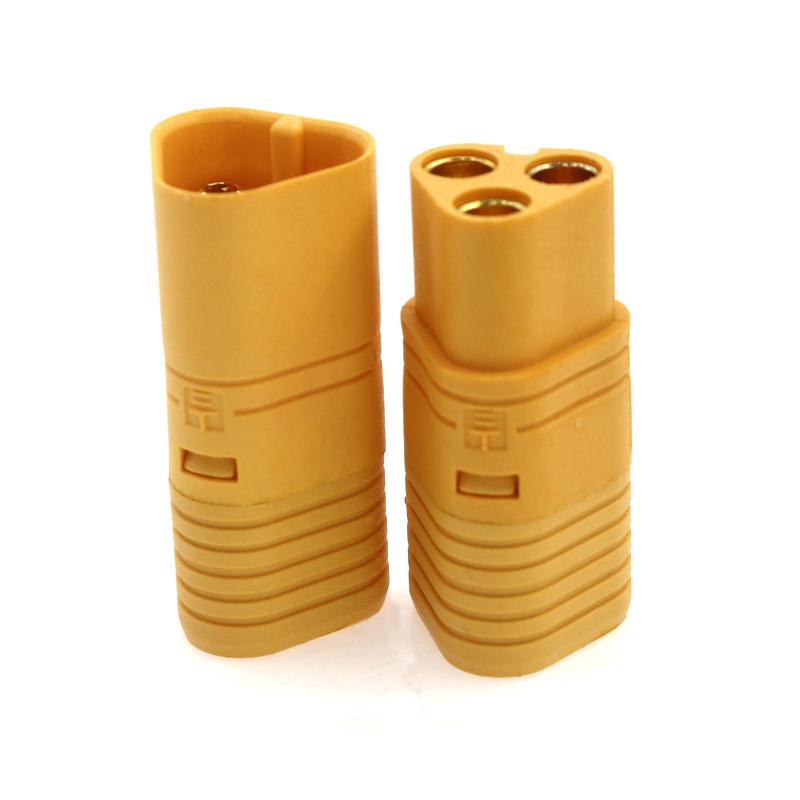

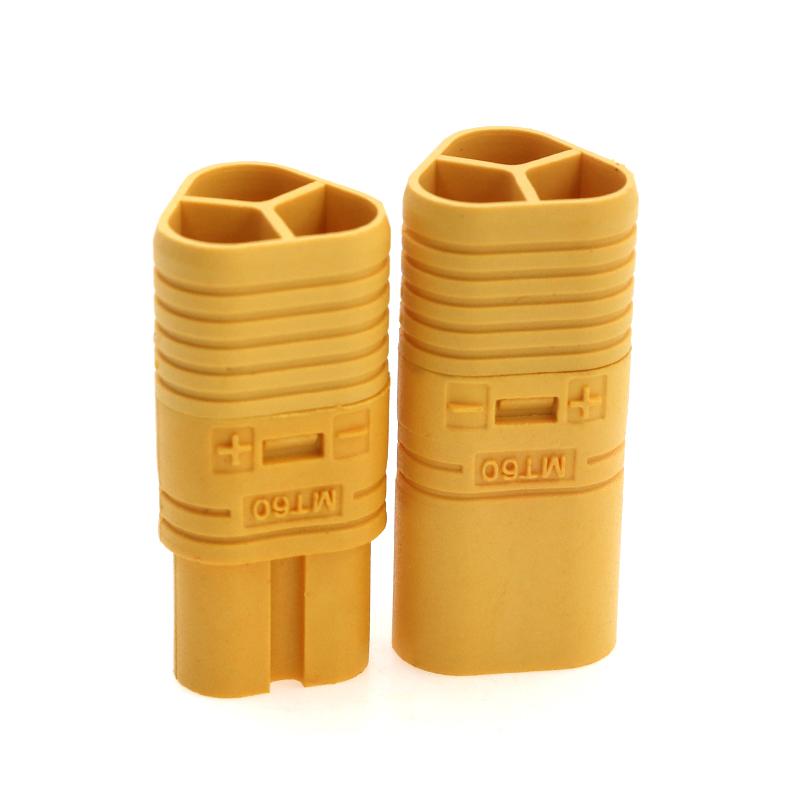

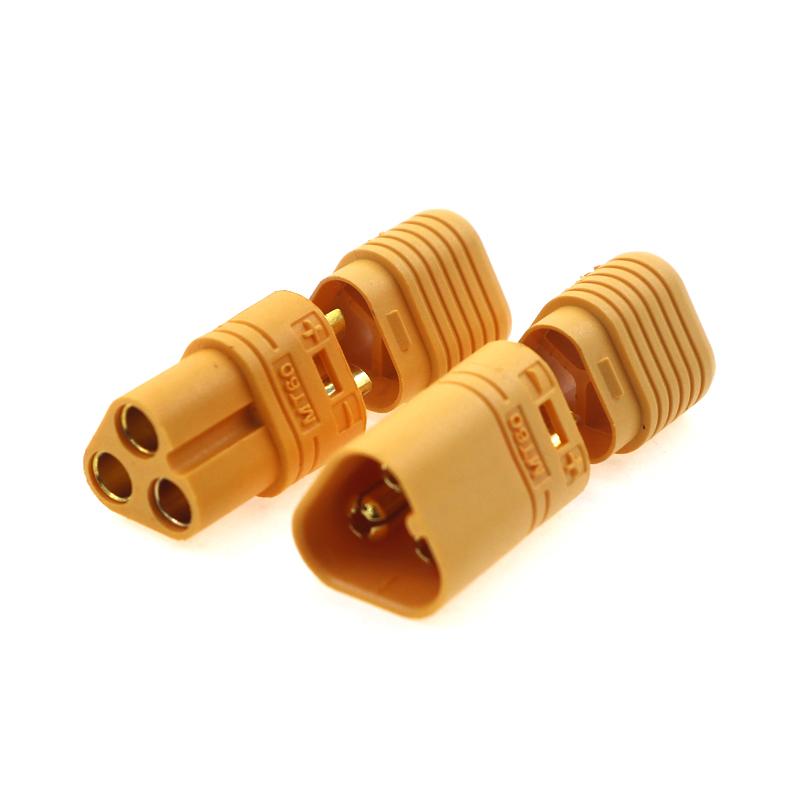

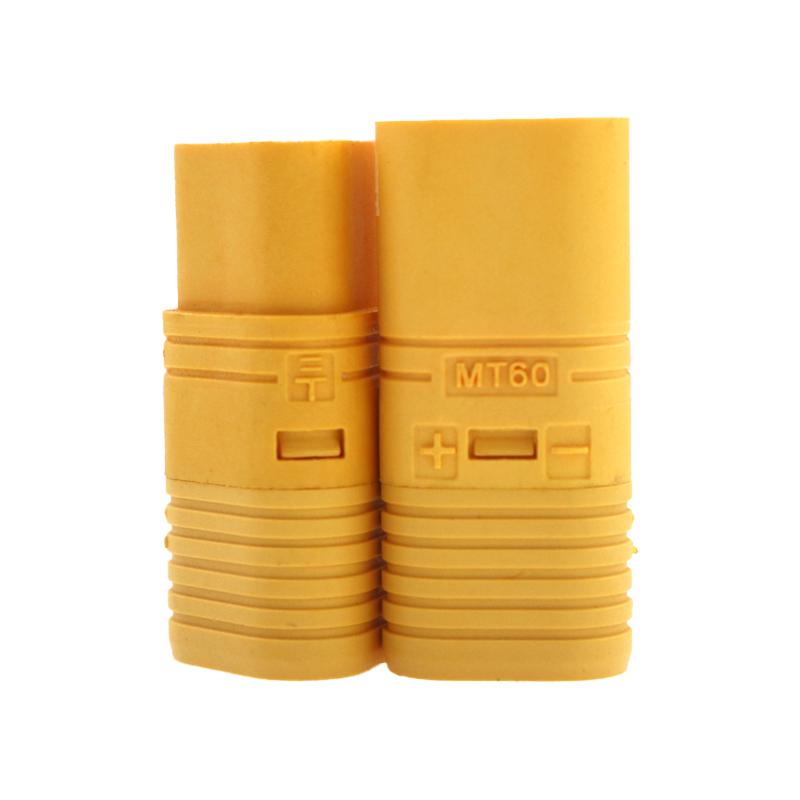

Male and female plug MT60 battery connector 30A

Features For MT60 Battery Connector

Miniaturization and portability: MT60 connector is miniaturized and lightweight to achieve efficient energy transmission in a limited space.
Fire protection and flame retardant: MT60 connector has UL certification and has excellent fire protection and flame retardant properties to prevent fires caused by high temperature or short circuit conditions.
Vibration resistance: The vibration resistance of MT60 connector ensures that the connector will not loosen in a vibrating environment.
Plug and unplug convenience: MT60 connector should be designed to be easy to plug and unplug, making it convenient for users to replace batteries or perform maintenance.
High conductivity: Use brass gold-plated high conductivity material to reduce contact resistance and energy loss.
Environmental adaptability: The battery connector should be able to work normally in extreme environments such as high temperature, low temperature, and high humidity.

Specificaton Of MT60 Power Connector
Item NO.:	MT60	Plastic Material:	PA
Color:	Yellow	RV:	DC 500V
Metal Material:	Brass Gold Plated	RC:	30A
FR level:	UL94 V0	Wiring Method:	Welding
Recommend USD:	Battery/Controller/Charger	Cable Spec:	12AWG/4.0mm²
Life:	1000 times	Temperature:	-20°C to 120°C

Application

MT60 connectors can be used in Power transmission: The MT60 connector is responsible for transferring electrical energy from the battery to the car's motor, which drives the car to complete the action.
