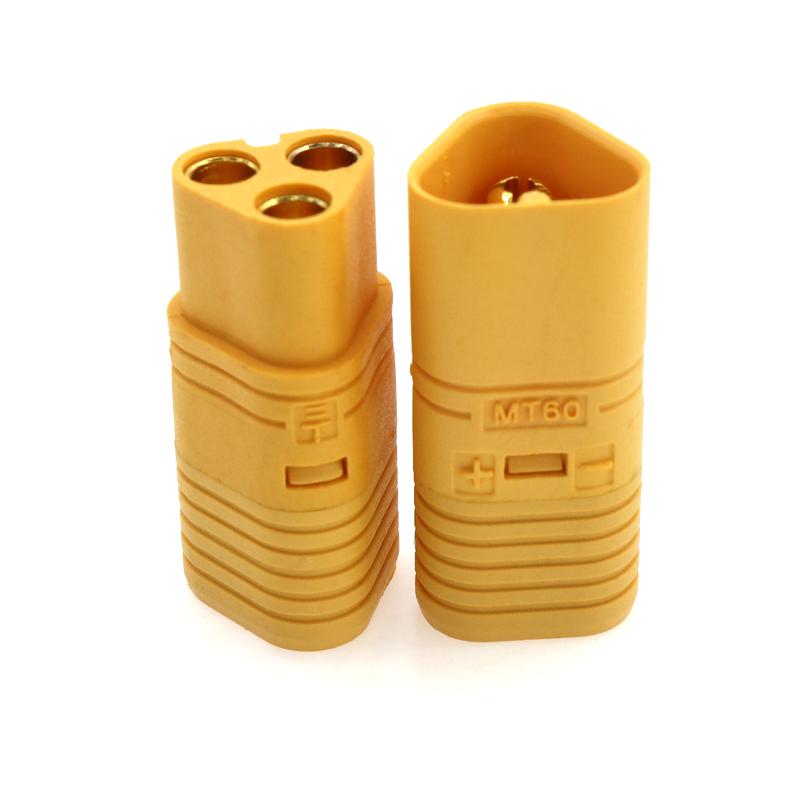

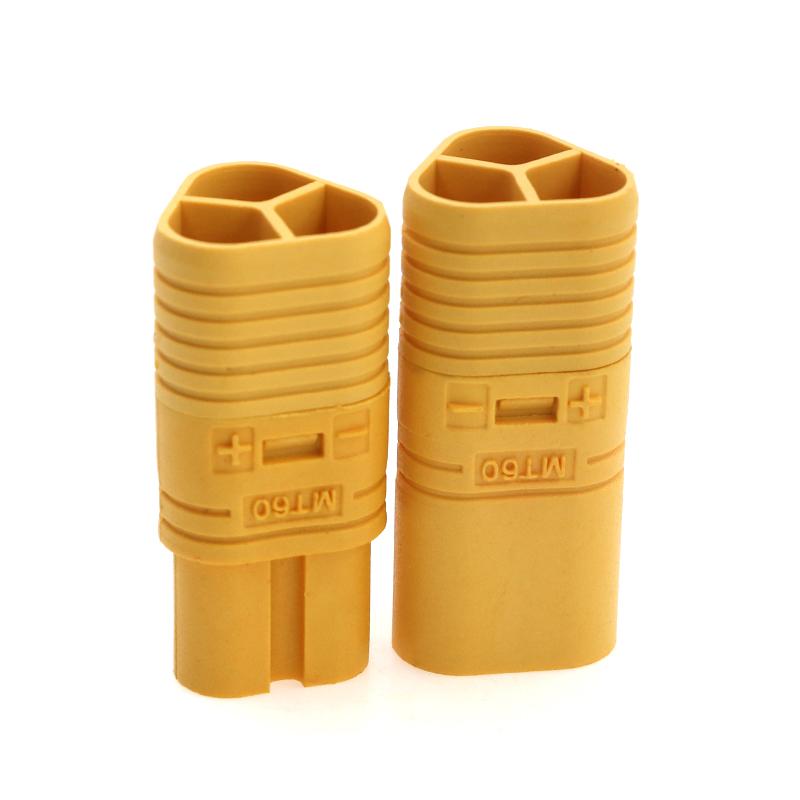

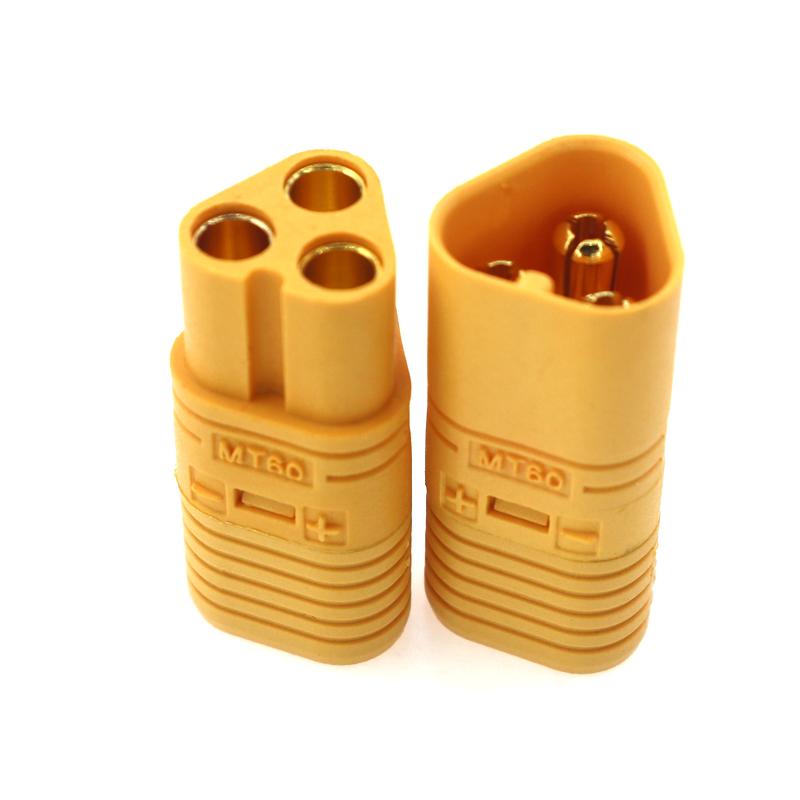

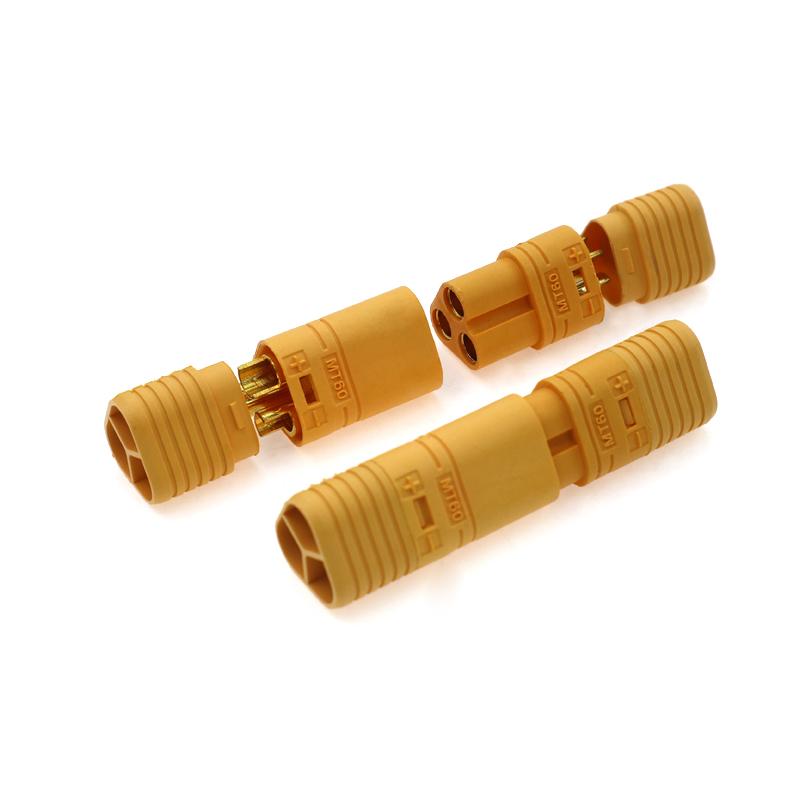

MT60 Gold Plated LIPO Bullet Battery Adapters Connector

MT60 connector, its housing is made with PA and the contact is gold plated, its shape prevents reverse polarity, and when plugged in the connection is super-solid. Advantages: low resistance, slow heating, anti-reverse insertion


  • Brand:

    OLINK
  • Item no.:

    MT60
  • Payment:

    Wire transfer, PayPal, Western Union, Alipay
  • Product origin:

    China
  • Color:

    Yellow
  • Goods stock:

    50000
  • Shipping port:

    Xiamen, Ningbo
  • Lead Time:

    7



 Male and female plug MT60 battery connector 30A

  Features For MT60 Battery Connector

  • Miniaturization and portability: MT60 connector is miniaturized and lightweight to achieve efficient energy transmission in a limited space.

  • Fire protection and flame retardant: MT60 connector has UL certification and has excellent fire protection and flame retardant properties to prevent fires caused by high temperature or short circuit conditions.

  • Vibration resistance: The vibration resistance of MT60 connector ensures that the connector will not loosen in a vibrating environment.

  • Plug and unplug convenience: MT60 connector should be designed to be easy to plug and unplug, making it convenient for users to replace batteries or perform maintenance.

  • High conductivity: Use brass gold-plated high conductivity material to reduce contact resistance and energy loss.
  • Environmental adaptability: The battery connector should be able to work normally in extreme environments such as high temperature, low temperature, and high humidity.


Specificaton Of MT60 Power Connector

Item NO.:

 MT60 Plastic Material:   PA
Color:   Yellow RV:   DC 500V
Metal Material:   Brass Gold Plated RC:   30A
FR level:   UL94 V0 Wiring Method:   Welding
Recommend USD:   Battery/Controller/Charger Cable Spec:   12AWG/4.0mm2
Life:   1000 times Temperature:   -20°C to 120°C


  Application

MT60 connectors can be used in Power transmission: The MT60 connector is responsible for transferring electrical energy from the battery to the car's motor, which drives the car to complete the action.
