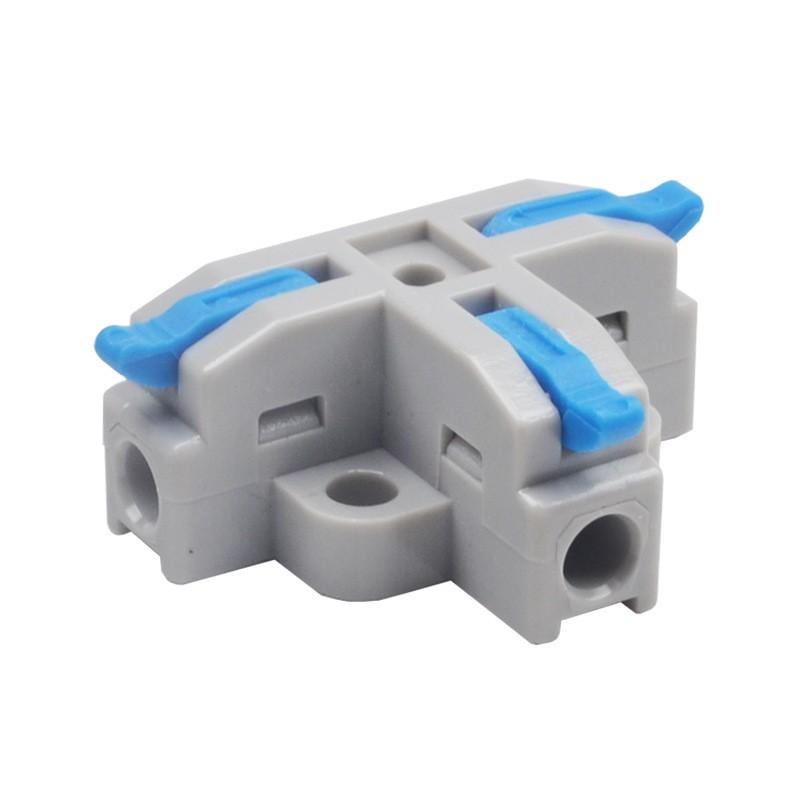

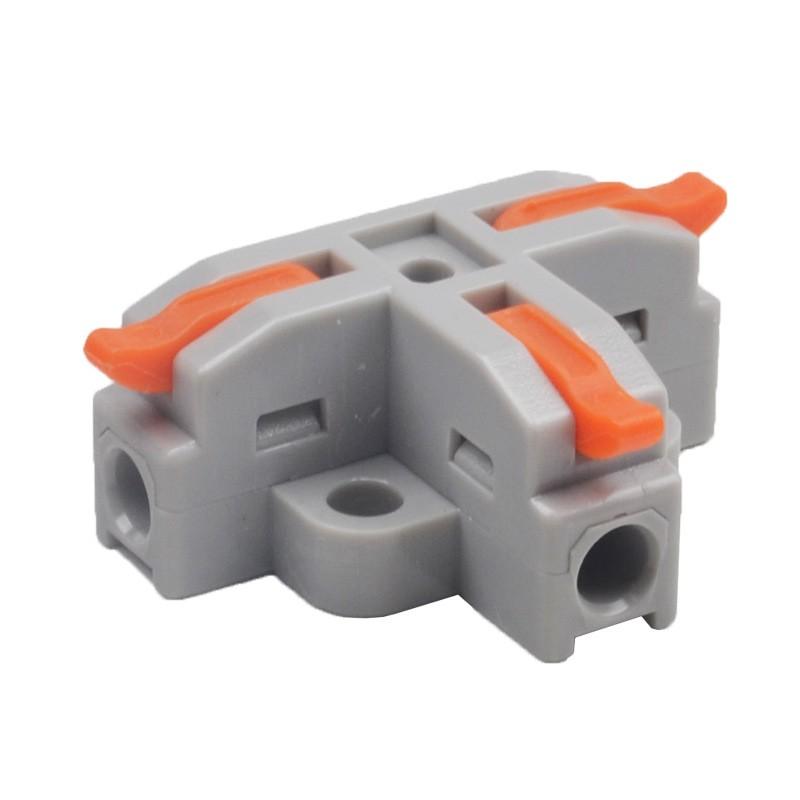

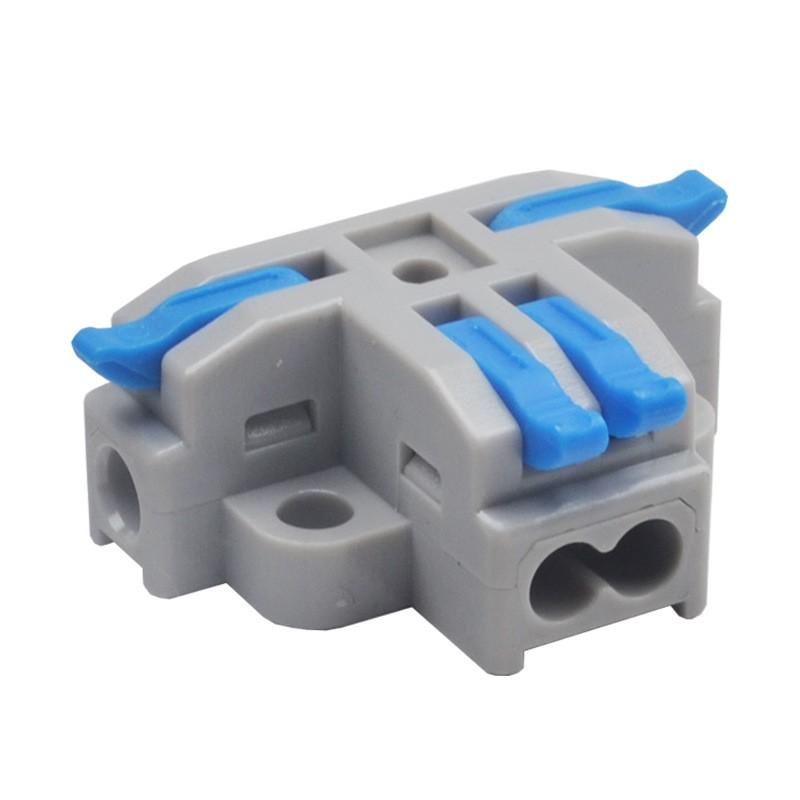

T tab push in electrical wire connector 3 port 4 port orange lever

Quick wire connector: No stravelping, hinging and welding, just need to snap the wire into connectors, very easy to use, and can use repeatedly.

Brand:
OLINK
Item no.:
KVT3/KVT4
Payment:
Wire transfer, Paypal, Western Union, Alipay
Product origin:
China
Color:
Blue, Orange, Yellow, Red lever
Goods stock:
30000
Shipping port:
Xiamen
Lead Time:
7

Inquiry now

product introduction

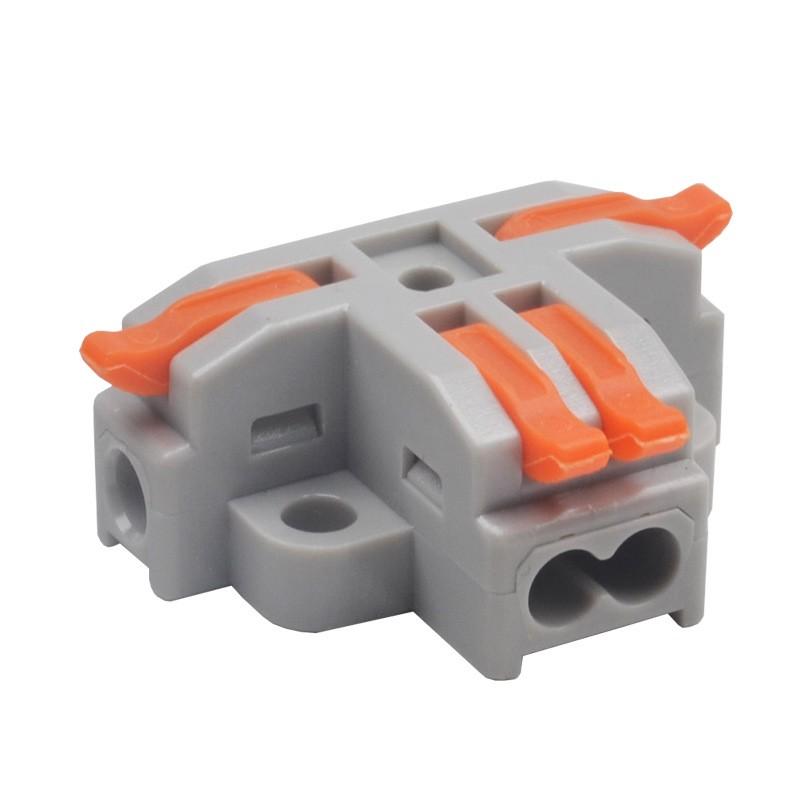

T tab push in electrical wire connector 3 port 4 port orange lever

Features of Lever Connector

Fixed design: can be matched with M4 screw achieve fixation
Flame-retardant plastic: It is not easy to be corroded, is resistant to aging, and is resistant to high pressure and flame retardant.

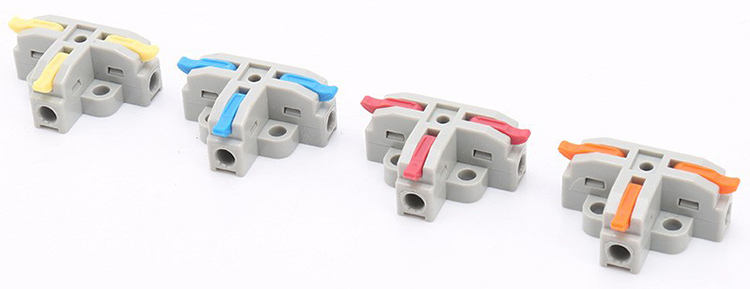

Color handle: multi-color handle, support color customization

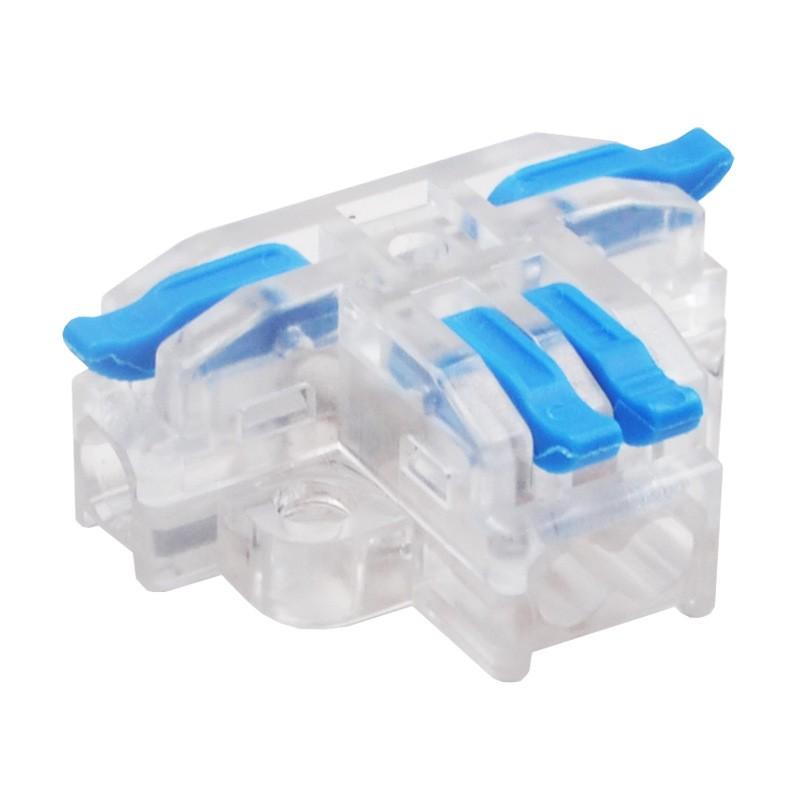

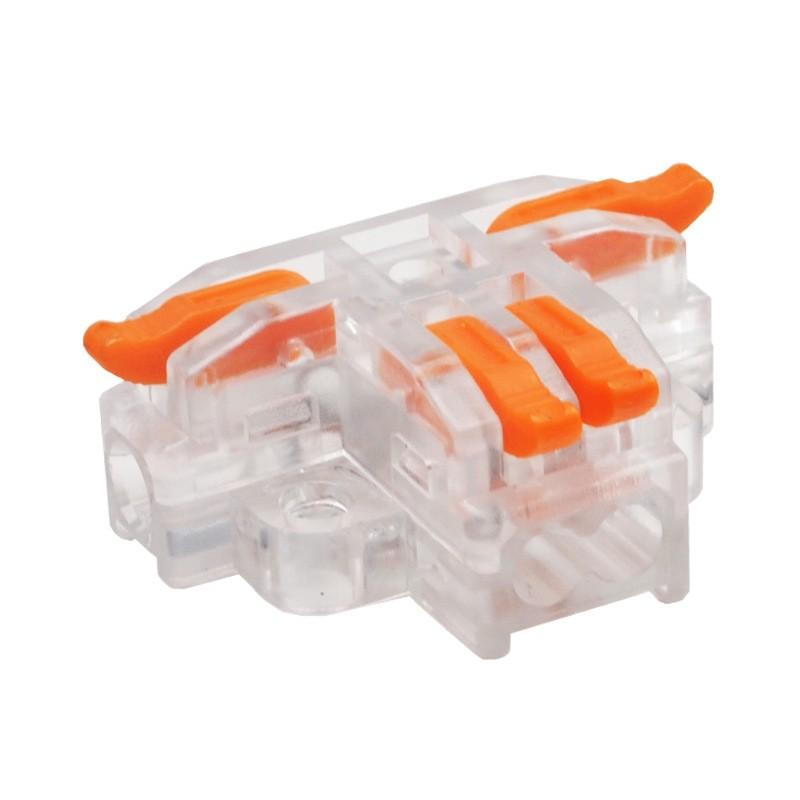

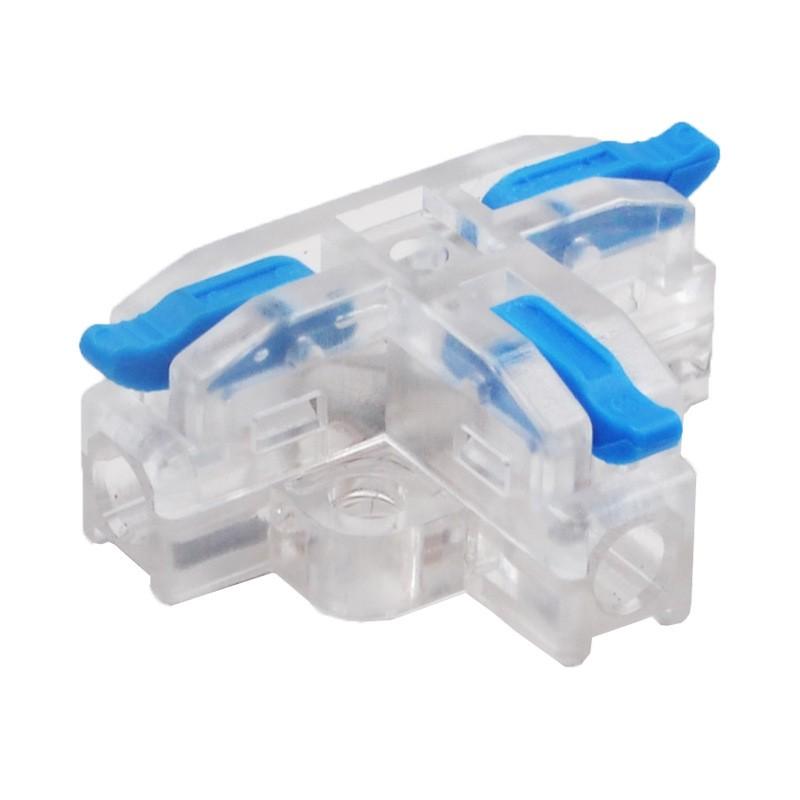

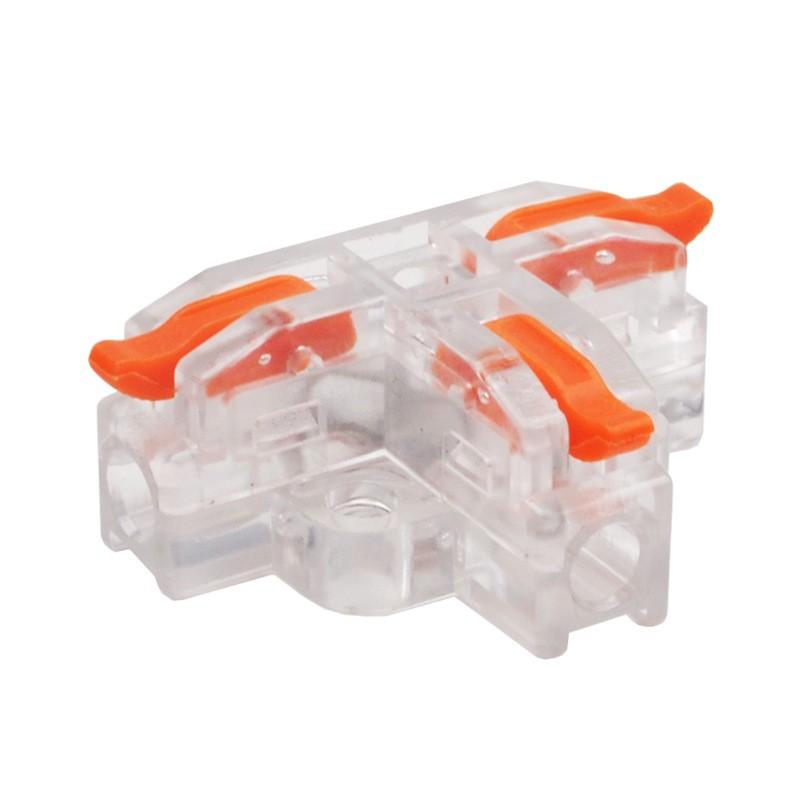

Shell color: there are grey color(Nylon material) and transparent color(PC material)

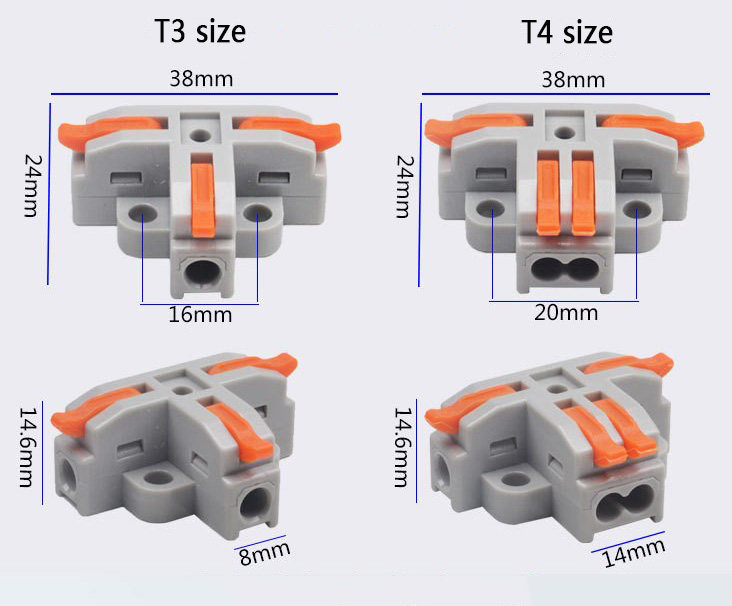

Size And Number Of Electrodes

There are 2 models for choose
The color of the handle can be customized

Specification of Electrical Wire To Wire Connector

Model Name:	KVT3/KVT4	Temperature range:	-25~95℃
Wire Range:	0.2-2.5-4mm2; 28-12 AWG	Material:	Housing: PA66/PC UL94-V2(0) Conductor: Brass With Tin-Plated Spring: 301 Stainless Steel
Rated Voltage:	250V/600V	Rated Current:	32A
Stripping length:	8 mm	Fixing holes:	M4
Insulation resistance:	≥1000MΩ	Contact resistance:	≤ 0.015 Ω

Application Of Mini Wire To Wire Connectors

It is widely used for various lighting electronics, electrical appliances, power sockets, low-loss in-home.

More Similar Wire Connectors

*For more information, please contact us by email or through any contact information on the webpage.
