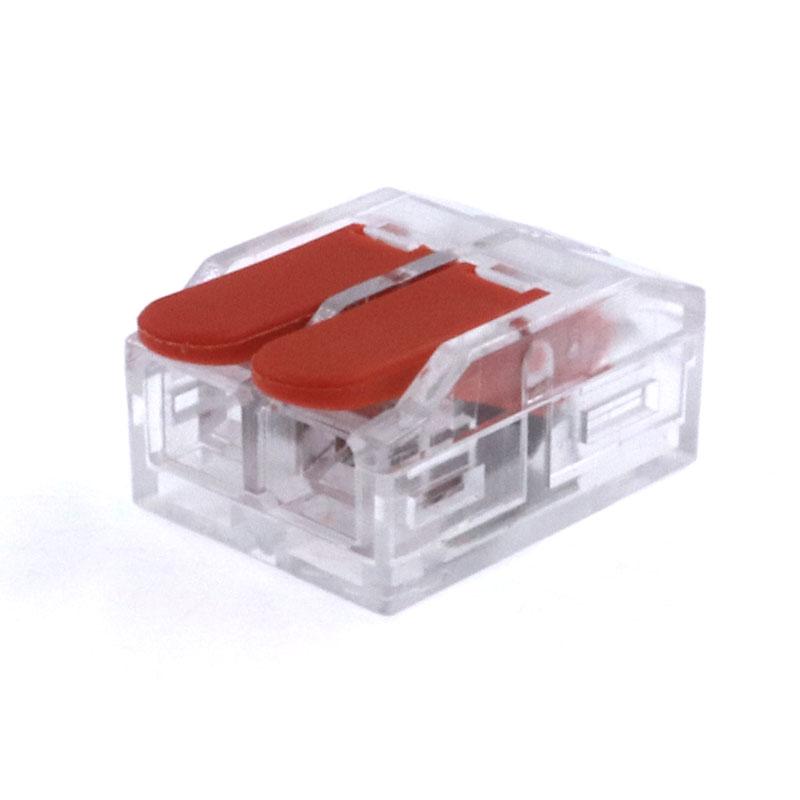

221-612 6mm wire connectors Building power line branch

Can replace 221 series connector, easy to use, handle color can be customized.
  • Brand:

    OLINK
  • Item no.:

    221-612
  • Payment:

    Wire transfer, PayPal, Western Union, Alipay
  • Product origin:

    China
  • Color:

    Gray/Orange (handle color can be customized)
  • Goods stock:

    500000
  • Min order:

    100
  • Product weight:

    3
  • Shipping port:

    Xiamen, Ningbo,shenzhen,shanghai
  • Lead Time:

    7

221-612 6mm wire connectors Building power line branch

  Features of Push in Connectors

  • Use copper-plated nickel (tin-plated) conductive strips for better contact and conductivity;
  • The shell is made of PC, and the flame retardant grade is UL94 V-0;
  • The clip is made of nickel-chromium spring steel, which has strong durability and good wire fixing ability;
  • The color of the handle of this wire-to-wire connector can be customized to distinguish incoming wires.


  Specifications of 221 Lever wire connectors

Model     221-612 Rated Voltage
  450V
Rated Current
  40A Strip Length
  13-15mm/0.59in
Wiring Size
  Solid Wire: 0.5-6mm2     Stand Wire: 0.4-4.0mm2
Wiring Method
  Lever Crimp Shell
  PC
Contact     Copper Sping
  High-Perfomance Spring Steel
Temperature
  -25℃~85℃ Applications
  Building Wire Branch and Connection

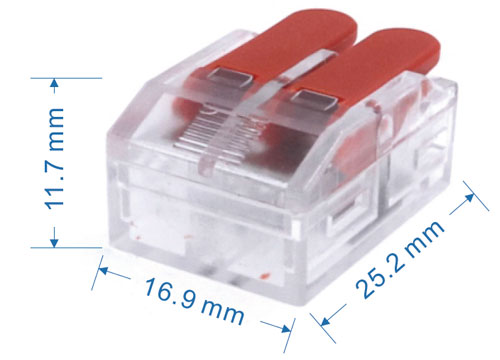

 Size and Description

The lever crimp wire connectors can be reused and the wiring is reliable. The shell is made of flame-retardant material to prevent fire, and there is a copper nickel-plated conductive sheet inside, which has good conductivity。

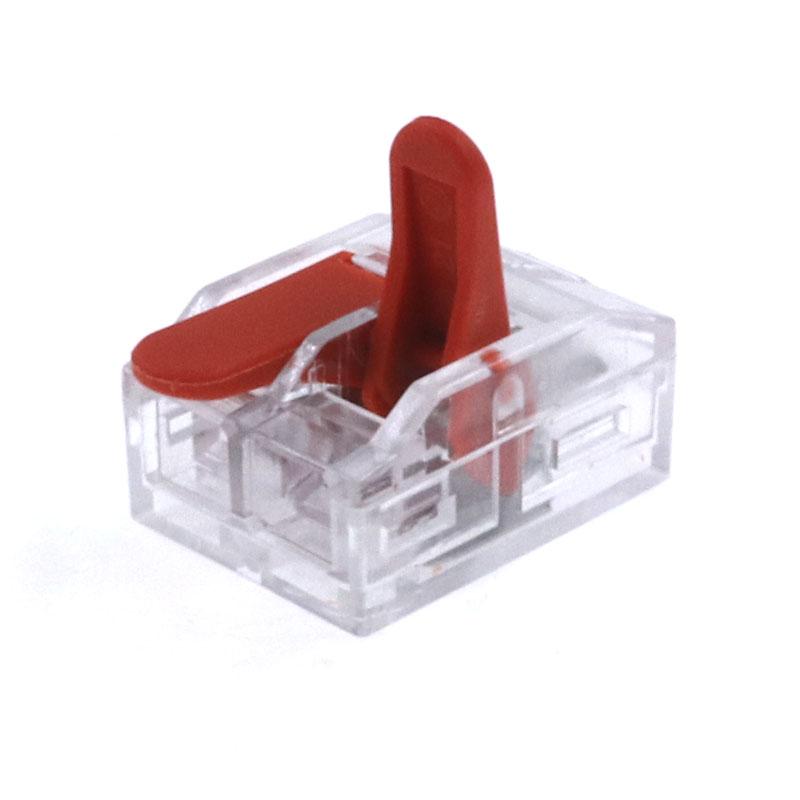

  How To Use Of Push In wire Connector
Easy Operation,Easy To Insert,Convenient, Fast,Safe And Reliable



1)Stip The Wire Length 13-15mm/0.59in

2)Open The Connectors Handle



3)Insert The Wire Hole and Close The Handle
4)Installation Is Complete


Other needle count products





221-613
2121-614
221-615


  More Push In Wire Connector

*For more information, please contact us by email or through any contact information on the webpage.
