SPL-3 two way 6 ports quick push-in wire connector

SPL-3 inline cable connectors are widely used in home appliances, building wiring and machinery wire connecting parts


  • Brand:

    OLINK
  • Item no.:

    PCT-2-3
  • Payment:

    Wire transfer, Paypal, Western Union, Alipay
  • Product origin:

    China
  • Color:

    Blue Orange yellow level
  • Goods stock:

    30000
  • Shipping port:

    Xiamen
  • Lead Time:

    7

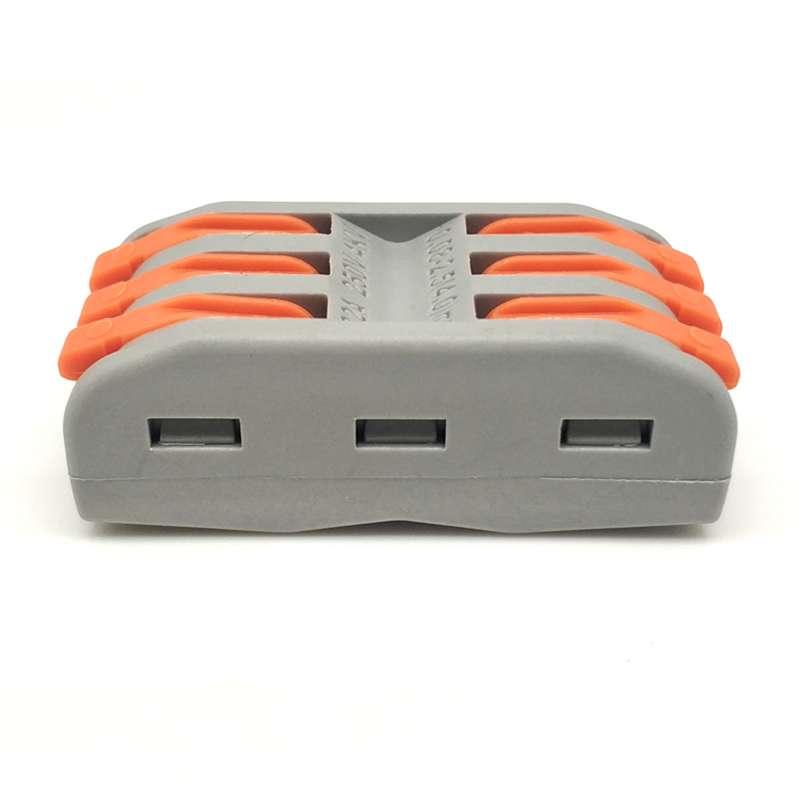

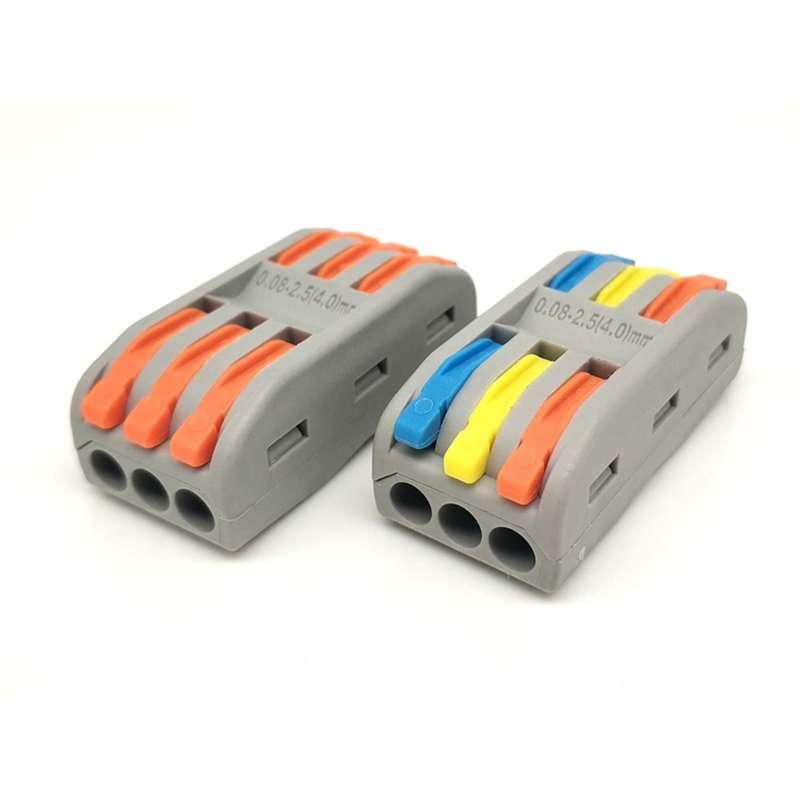

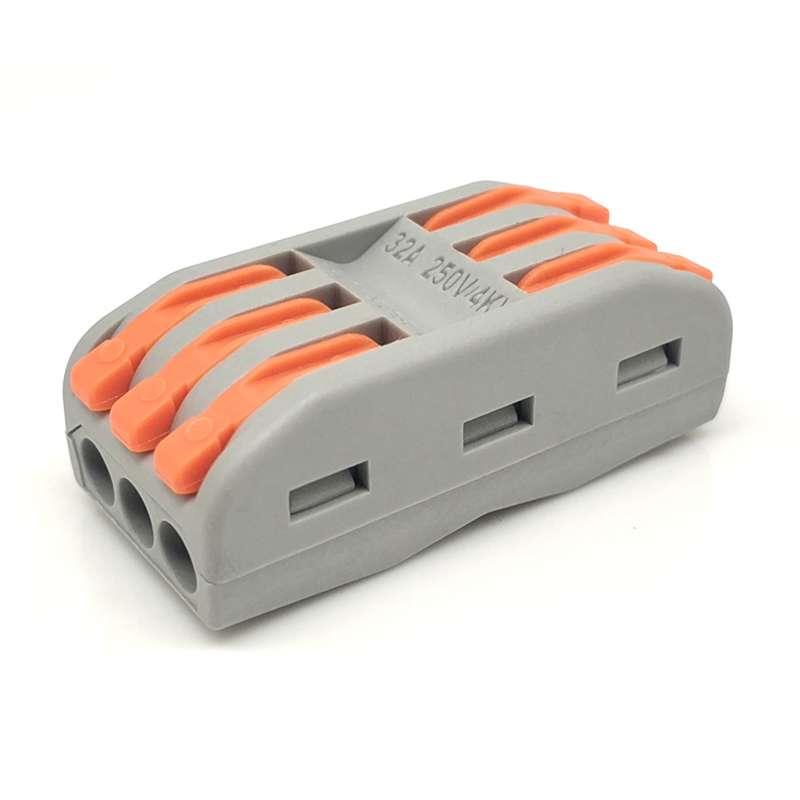

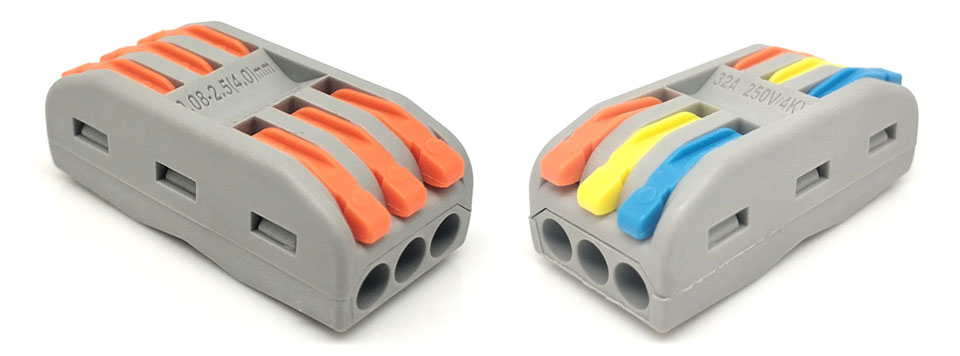

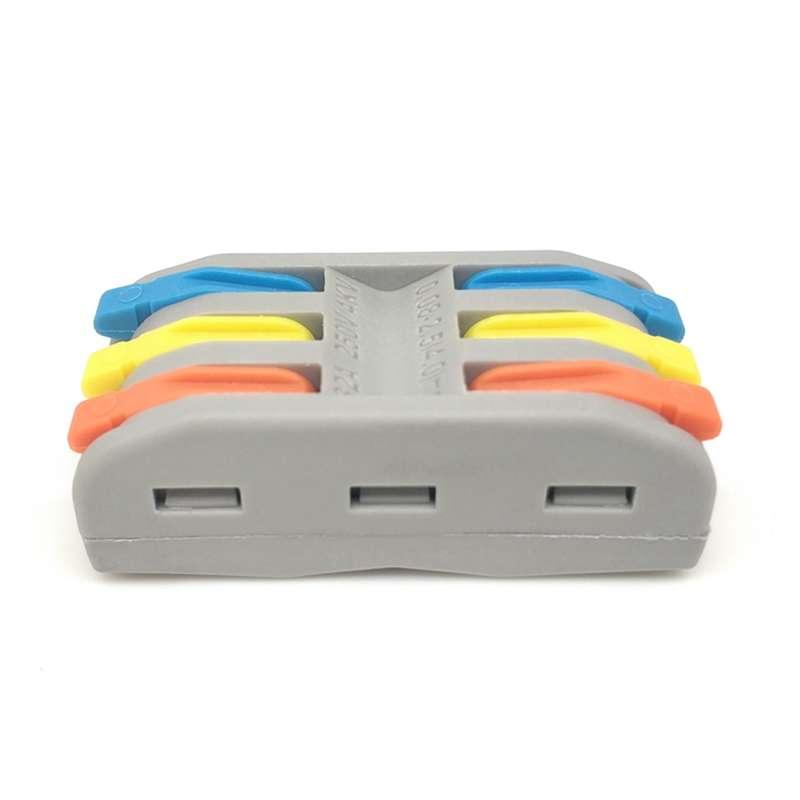

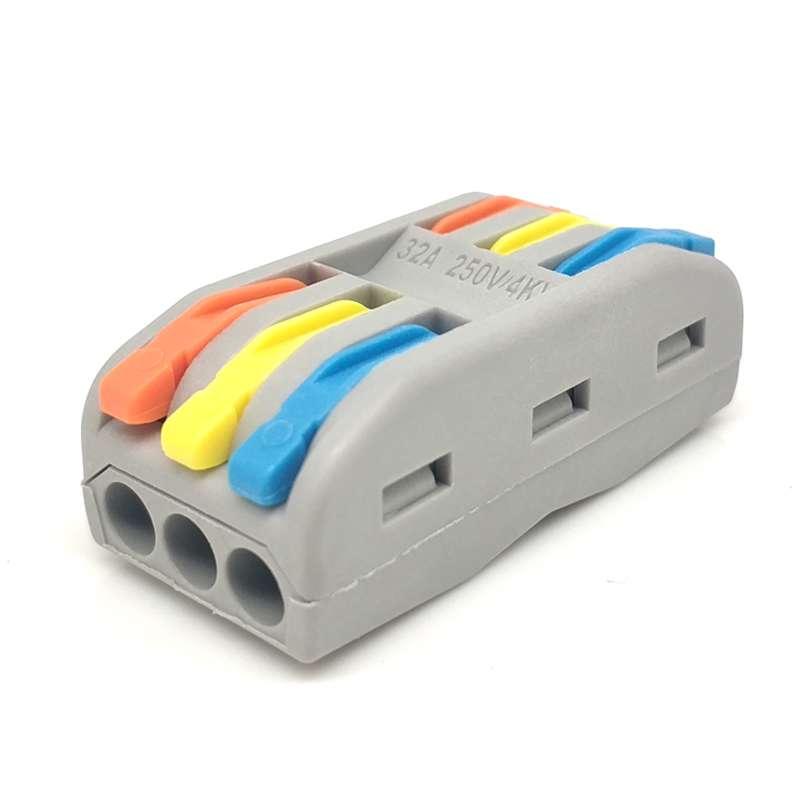

SPL-3 two way 6 ports quick push-in wire connector

Features of Wire splice connector


  • Can replace traditional electrical tape when connecting wires;
  • The use Wire splice connector can make the wire connection stronger and more reliable;
  • Fast crimping function, suitable for various types of wires, convenient and fast to use;
  • The wrench is available in orange and multi-color, and the color can be customized;


Size and Number of electrodes for wire to wire connector

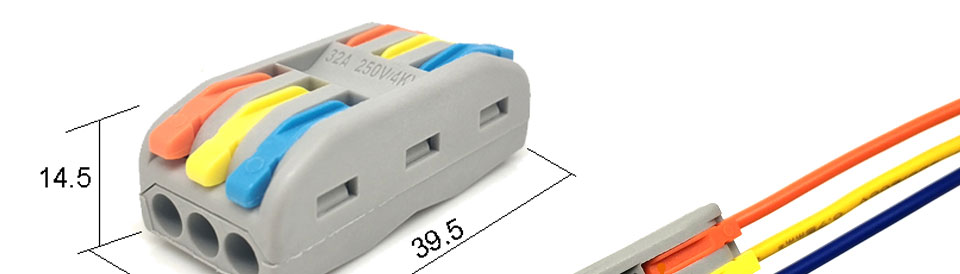

  • push-in wire connector size is 39.5mm*18.7mm*14.5mm
  • There are three electrodes, 3 in 3 out

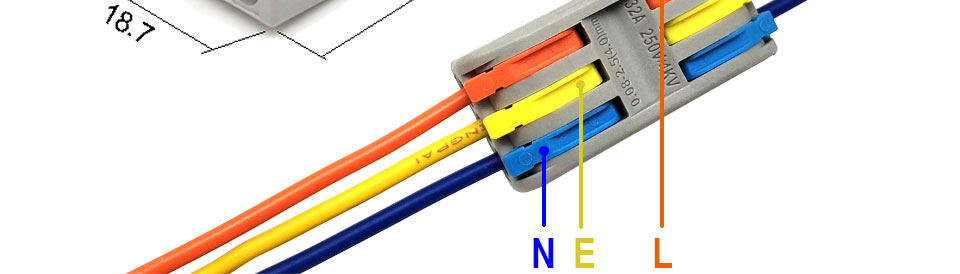

  • The color of the handle can be customized to better distinguish the electrode polarity


Specification of Inline splice connector



Product name:  Quick connect wire connectors
Wire range:

 Solid wire: 0.08-4.0mm2

 Stranded wire:0.08-2.5mm

Material:

 Housing:PA66 UL94V-0

 Conductor: Brass with tin-plated

 Spring: Stainless stell

Voltage:  400V
Current:  32A

application of quick push-in wire connector


Mainly used in indoor LED light power wiring, wire connection of junction box, etc.


More similar wire connectors



*For more information, please contact us by email or through any contact information on the webpage.
